核心板硬件介绍
视图

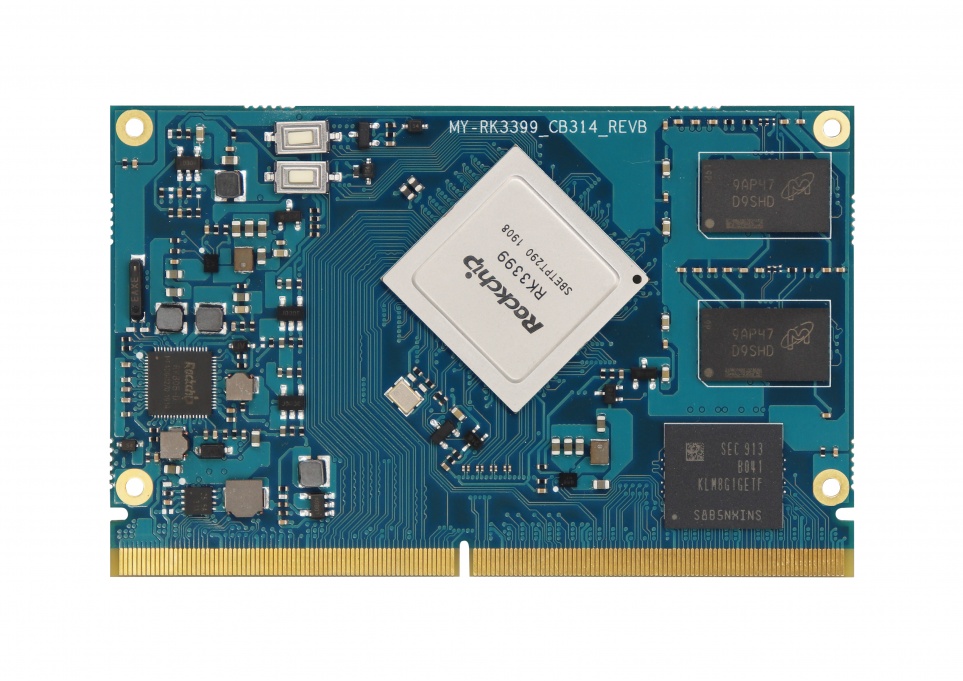

正面

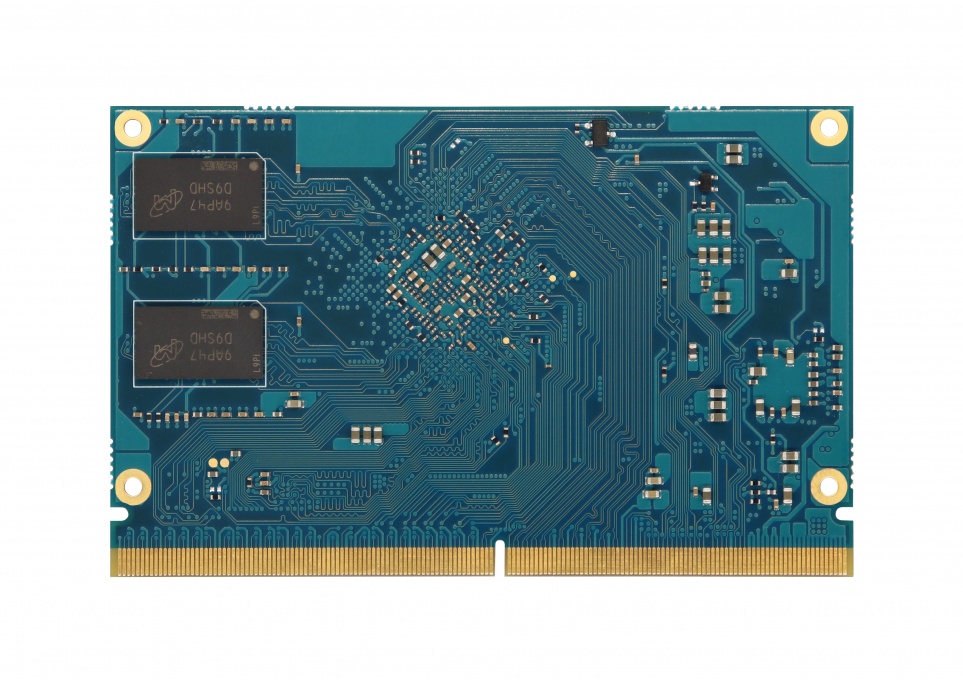

背面

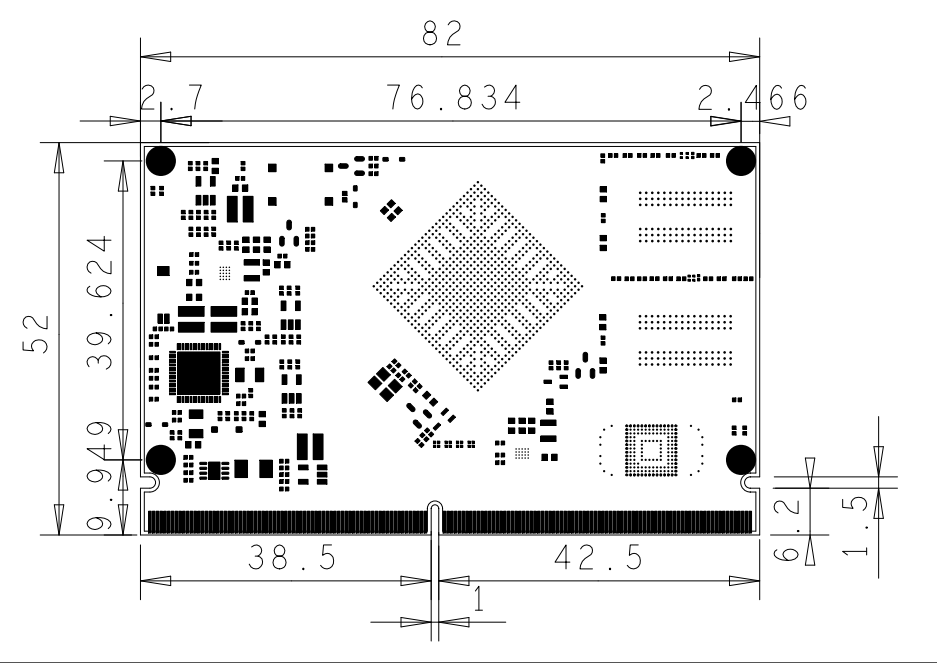

尺寸
参数
主控平台详细参数
CPU |
六核ARM 64位处理器，大小核结构 双核 Cortex-A72（高达1.8GHz）+四核 Cortex-A53（高达1.4GHz），且内置低功耗MCU Cortex-M0 |
一级缓存： 每个 Cortex-A72 配置有 48KB/32KB 的 ICache/DCache； 每个 Cortex-A53 配置有 32KB/32KB 的 ICache/DCache； |
|
二级缓存： 双 Cortex-A72 统一配置有 1MB； 四 Cortex-A53 统一配置有 512KB； |
|
GPU |
采用四核 Mali-T860 GPU，支持 ES1.1/2.0/3.0/3.1，OpenGL、OpenVG11.1、OpenCL 以及 DX11 |
支持 AFBC（帧缓冲压缩） |
|
多媒体 |
支持4K VP9和4K 10bits H265 / H264视频解码，最高可达60fps |
1080P多格式视频解码（WMV，MPEG-1/2/4，VP8） |
|
1080P视频解码，支持H.264，VP8格式 |
|
视频后期制作处理器：去隔行，去噪，边缘/细节/颜色优化 |
|
显示 |
双 VOP（Video Output Processor）显示：分辨率分别支持4096*2160 及 2560*1600 |
支持双通道 MIPI-DSI（每通道 4线） |
|
支持eDP 1.3（4 线，10.8Gbps） |
|
HDMI 2.0a支持4K 60Hz显示，以及HDCP 1.4/2.2 |
|
支持DisplayPort 1.2 (4 线，最高支持4K 60Hz) |
|
支持Rec.2020和Rec.709色域转换 |
|
摄像头 |
支持双路MIPI-CSI接口摄像头同时接入，内置双ISP(Image Sensor Processor) ，像素处理能力高达：单路 13MPix/s，双 8MPix/s |
支持单路 DVP接口摄像头，最高可达 5MPix/s |
|
音频 |
支持单路 HDMI 2.0/DisplayPort 1.2 音频输出 |
单路 SPDIF数字音频接口 |
|
三路 I2S 音频输入输出，I2S0/I2S2 可支持8通道输入输出，I2S1 支持2通道输入输出（其中 I2S2 用于内部HDMI/DP 音频输出） |
|
RTC |
内置RTC实时时钟（可支持定时开关机） |
以太网 |
支持 10/100/1000Mbps以太网 |
无线网络 |
支持SDIO接口的WIFI&蓝牙一体模块 |
PCIe |
支持PCIe 2.1 (4 full-duplex lanes ) |
USB |
支持双USB 2.0 OTG以及双USB 2.0 HOST接口（可配置双USB3.0 Type-C接口） |
其他 |
1*SDMMC、9*I2C、6*SPI、5*UART、5*ADC、4*PWM、5组GPIO |
系统 |
ubuntu16.04、 android8.1 |
硬件配置
核心板主型号 |
CPU |
内存容量 |
存储容量 |
启动方式 |
烧录方式 |
其它 |
|---|---|---|---|---|---|---|
MYZR-RK3399_CB314 |
RK3399 |
2G |
eMMC:8G~64G |
eMMC |
按键进入 |
标配：内存2G，存储8G |
温度范围
工作温度
消费级：
0°C ~ 70°C（商业级）
存储温度
-20°C ~ 100°C
操作系统支持
内核：ubuntu16.04
内核：android8.1
硬件接口
接口规格 |
最大可配置接口数 |
描述 |
|
|---|---|---|---|
多媒体 |
EDP |
1 |
“支持EDP1.3，多达4条通道，每通道可达 2.7Gbps，2560x1600@60fps 支持RGB 6/8/10bit 视频格式” |
HDMI |
1 |
“支持HDMI 1.4和2.0，3条通道，每通道可达6Gbps，4kx2k@60fps 支持480p/480i/576p/576i/720p/1080p/1080i” |
|
MIPI |
3 |
“支持3路MIPI，每路多达4条通道，每通道可达1.5Gbps 其中MIPI0仅用于DSI, MIPI1用于DSI或CSI, MIPI2仅用于CSI” |
|
CIF |
1 |
8bit |
|
I2S/PCM |
3 |
“I2S0/I2S2支持多达8通道TX和8通道 RX I2S1支持多达2通道TX和2通道RX” |
|
SPDIF |
1 |
最大支持24bits解析度 |
|
外部存储接口 |
SDMMC0 |
1 |
4bit，管脚电平：1.8V/3.0V，电平自动切换 |
外部存储接口 |
SDIO3.0 |
1 |
4bit，管脚电平：1.8V |
其他 |
Ethernet |
1 |
10/100/1000 Mbps |
USB |
2 |
USB2.0 OTGx2&USB2.0 HOSTx2&USB3.0x2（可配置出2路 Type-C） |
|
UART |
5 |
支持 5bit,6bit,7bit,8bit 串行数据收发 |
|
PCIE |
1 |
“符合PCIE2.1规范，多达4条双向通道 每方向每个通道可支持2.5GT/s串行数据传输速率” |
|
I2C |
9 |
“标准模式下以高达100 kbit/s的速率传输， 快速模式下可高达400 kbit/s的速率传输， 超快速模式下可高达1 Mbit/s的速率传输” |
|
SPI |
6 |
“支持串行主/从模式，由软件配置 内置两个32x16bit FIFO，分别用于TX和RX” |
|
PWM |
4 |
32bit定时器/计数器 |
|
ADC |
5 |
10bit，高达1MS/s采样率 |
|
管脚详细功能说明
IO参数定义
标志 |
描述 |
IO |
input/output (bidirectional) |
I |
input |
O |
output |
PI |
Power input |
PO |
Power output |
表1
管脚序号 |
管脚定义（默认功能） |
CPU 管脚定义 |
I/O属性 |
管脚电平 |
功能描述 |
|---|---|---|---|---|---|
P1 |
VCC_SYS |
VCC_SYS0 |
PI |
5V |
5V/3A 电源输入 |
P2 |
VCC_SYS1 |
||||
P3 |
VCC_SYS2 |
||||
P4 |
VCC_SYS3 |
||||
P5 |
VCC_SYS4 |
||||
P6 |
VCC_SYS5 |
||||
P7 |
VCC_SYS6 |
||||
P8 |
VCC_SYS7 |
||||
P9 |
VCC_SYS8 |
||||
P10 |
VCC_RTC |
VCC_RTC |
PI |
3V3 |
RTC 实时时钟电源输入，3.3V供电 |
P11 |
GND |
GND |
– |
0V |
地 |
P12 |
I2S_CLK |
GPIO4_A0/I2S_CLK_d |
IO |
1.8V |
|
P13 |
I2S0_SDI1 |
GPIO3_D4/I2S0_SDI1SDO3_d |
IO |
1.8V |
|
P14 |
I2S0_SCLK |
GPIO3_D0/I2S0_SCLK_d |
IO |
1.8V |
|
P15 |
I2S0_LRCK_RX |
GPIO3_D1/I2S0_LRCK_RX_d |
IO |
1.8V |
|
P16 |
I2S0_LRCK_TX |
GPIO3_D2/I2S0_LRCK_TX_d |
IO |
1.8V |
|
P17 |
I2S0_SDI0 |
GPIO3_D3/I2S0_SDI0_d |
IO |
1.8V |
|
P18 |
I2S0_SDO2 |
GPIO3_D5/I2S0_SDI2SDO2_d |
IO |
1.8V |
|
P19 |
I2S0_SDO1 |
GPIO3_D6/I2S0_SDI3SDO1_d |
IO |
1.8V |
|
P20 |
I2S0_SDO0 |
GPIO3_D7/I2S0_SDO0_d |
IO |
1.8V |
|
P21 |
NC |
– |
– |
– |
– |
P22 |
NC |
– |
– |
– |
– |
P23 |
GND |
GND |
– |
0V |
地 |
P24 |
I2S1_SCLK_BT_PCM |
GPIO4_A3/I2S1_SCLK_d |
IO |
1.8V |
|
P25 |
I2S1_LRCK_RX_BT_PCM |
GPIO4_A4/I2S1_LRCK_RX_d |
IO |
1.8V |
|
P26 |
I2S1_LRCK_TX_BT_PCM |
GPIO4_A5/I2S1_LRCK_TX_d |
IO |
1.8V |
|
P27 |
I2S1_SDI0_BT_PCM |
GPIO4_A6/I2S1_SDI0_d |
IO |
1.8V |
|
P28 |
I2S1_SDO0_BT_PCM |
GPIO4_A7/I2S1_SDO0_d |
IO |
1.8V |
|
P29 |
I2C1_SDA_1V8 |
GPIO4_A1/I2C1_SDA_u |
IO |
1.8V |
|
P30 |
I2C1_SCL_1V8 |
GPIO4_A2/I2C1_SCL_u |
IO |
1.8V |
|
P31 |
GND |
GND |
– |
0V |
地 |
P32 |
UART2DBG_RX |
GPIO4_C3/UART2C_RX_u |
IO |
3.3V |
默认调试串口 |
P33 |
UART2DBG_TX |
GPIO4_C4/UART2C_TX_u |
IO |
3.3V |
默认调试串口 |
P34 |
HP_DET_H |
GPIO4_D4_d |
IO |
3.3V |
|
P35 |
GPIO4_D0 |
GPIO4_D0/PCIE_CLKREQnB_u |
IO |
3.3V |
|
P36 |
VCC5V0_HOST_EN |
GPIO4_D1/DP_HOTPLUG_d |
IO |
3.3V |
|
P37 |
GPIO4_C6 |
GPIO4_C6/PWM1_d |
IO |
3.3V |
|
P38 |
PCIE_RST |
GPIO4_D3_d |
IO |
3.3V |
|
P39 |
PCIE_CLKREQ |
GPIO4_C5/SPDIF_TX_d |
IO |
3.3V |
|
P40 |
PCIE_WAKE |
GPIO4_D5_d |
IO |
3.3V |
|
P41 |
NC |
– |
– |
– |
– |
P42 |
GND |
GND |
– |
0V |
地 |
P43 |
TYPEC0_SBU1_DC |
TYPEC0_AUXP_PD_PU |
IO |
– |
|
P44 |
TYPEC0_SBU2_DC |
TYPEC0_AUXM_PU_PD |
IO |
– |
|
P45 |
TYPEC0_SBU2 |
TYPEC0_AUXM |
IO |
– |
|
P46 |
TYPEC0_SBU1 |
TYPEC0_AUXP |
IO |
– |
|
P47 |
TYPEC0_RX1N |
TYPEC0_RX1N |
IO |
– |
|
P48 |
TYPEC0_RX1P |
TYPEC0_RX1P |
IO |
– |
|
P49 |
TYPEC0_TX1P |
TYPEC0_TX1P |
O |
– |
|
P50 |
TYPEC0_TX1N |
TYPEC0_TX1N |
O |
– |
|
P51 |
TYPEC0_RX2N |
TYPEC0_RX2N |
IO |
– |
|
P52 |
TYPEC0_RX2P |
TYPEC0_RX2P |
IO |
– |
|
P53 |
TYPEC0_TX2P |
TYPEC0_TX2P |
O |
– |
|
P54 |
TYPEC0_TX2N |
TYPEC0_TX2N |
O |
– |
|
P55 |
TYPEC0_DP |
TYPEC0_DP |
IO |
– |
默认烧写口 |
P56 |
TYPEC0_DM |
TYPEC0_DM |
IO |
– |
|
P57 |
TYPEC0_U2VBUSDET |
TYPEC0_U2VBUSDET |
I |
– |
|
P58 |
GND |
GND |
– |
0V |
地 |
P59 |
TYPEC1_RX1N |
TYPEC1_RX1N |
IO |
– |
|
P60 |
TYPEC1_RX1P |
TYPEC1_RX1P |
IO |
– |
|
P61 |
TYPEC1_TX1P |
TYPEC1_TX1P |
O |
– |
|
P62 |
TYPEC1_TX1N |
TYPEC1_TX1N |
O |
– |
|
P63 |
TYPEC1_RX2N |
TYPEC1_RX2N |
IO |
– |
|
P64 |
TYPEC1_RX2P |
TYPEC1_RX2P |
IO |
– |
|
P65 |
TYPEC1_TX2P |
TYPEC1_TX2P |
O |
– |
|
P66 |
TYPEC1_TX2N |
TYPEC1_TX2N |
O |
– |
|
P67 |
TYPEC1_SBU2 |
TYPEC1_AUXM |
IO |
– |
|
P68 |
TYPEC1_SBU1 |
TYPEC1_AUXP |
IO |
– |
|
P69 |
TYPEC1_SBU1_DC |
TYPEC1_AUXP_PD_PU |
IO |
– |
|
P70 |
TYPEC1_SBU2_DC |
TYPEC1_AUXM_PU_PD |
IO |
– |
|
P71 |
TYPEC1_U2VBUSDET |
TYPEC1_U2VBUSDET |
I |
– |
|
P72 |
USB3_DP |
TYPEC1_DP |
IO |
– |
|
P73 |
USB3_DM |
TYPEC1_DM |
IO |
– |
|
P74 |
GND |
GND |
– |
0V |
地 |
P75 |
HOST0_DP |
HOST0_DP |
IO |
– |
|
P76 |
HOST0_DM |
HOST0_DM |
IO |
– |
|
P77 |
HOST1_DP |
HOST1_DP |
IO |
– |
|
P78 |
HOST1_DM |
HOST1_DM |
IO |
– |
|
P79 |
NC |
– |
– |
– |
– |
P80 |
NC |
– |
– |
– |
– |
P81 |
GND |
GND |
– |
0V |
地 |
P82 |
SDMMC0_CMD |
GPIO4_B5/SDMMC0_CMD/MCUJTAG_TMS_u |
IO |
1.8V/3.3V |
|
P83 |
SDMMC0_D1 |
GPIO4_B1/SDMMC0_D1/UART2A_TX_u |
IO |
1.8V/3.3V |
|
P84 |
SDMMC0_D0 |
GPIO4_B0/SDMMC0_D0/UART2A_RX_u |
IO |
1.8V/3.3V |
|
P85 |
SDMMC0_D2 |
GPIO4_B2/SDMMC0_D2/APJTAG_TCK_u |
IO |
1.8V/3.3V |
|
P86 |
SDMMC0_DET_L |
GPIO0_A7/SDMMC0_DET_u |
IO |
1.8V |
|
P87 |
SDMMC0_CLK |
GPIO4_B4/SDMMC0_CLKOUT/MCUJTAG_TCK_d |
DO |
1.8V/3.3V |
|
P88 |
SDMMC0_D3 |
GPIO4_B3/SDMMC0_D3/APJTAG_TMS_u |
IO |
1.8V/3.3V |
|
P89 |
GND |
GND |
– |
0V |
地 |
P90 |
4G_PWR_EN |
GPIO0_B0/SDMMC0_WRPRT/TEST_CLKOUT2_u |
IO |
1.8V |
|
P91 |
WIFI_HOST_WAKE_L |
GPIO0_A3/SDIO0_WRPT_d |
IO |
1.8V |
|
P92 |
BT_REG_ON_H |
GPIO0_B1/PMUIO2_VOLSEL_d |
IO |
1.8V |
|
P93 |
PCIE_PWR_ON |
GPIO0_B5/TCPD_VBUS_FDIS/TCPD_VBUS_SOURCE3_d |
IO |
1.8V |
|
P94 |
CHG_CC_INT_L |
GPIO1_A2/ISP0_FLASHTRIGIN/ISP1_FLASHTRIGIN/TCPD_CC1_VCONN_EN_d |
IO |
1.8V |
|
P95 |
COMP_INT_L |
GPIO1_A1/ISP0_SHUTTER_TRIG/ISP1_SHUTTER_TRIG/TCPD_CC0_VCONN_EN_d |
IO |
1.8V |
|
P96 |
HDMIIN_INT |
GPIO1_A4/ISP0_PRELIGHT_TRIG/ISP1_PRELIGHT_TRIG_d |
IO |
1.8V |
|
P97 |
SDMMC0_PWR_H |
GPIO0_A1/DDRIO_PWROFF/TCPD_CCDB_EN_u |
IO |
1.8V |
|
P98 |
DSI_EN |
GPIO1_A3/ISP0_FLASHTRIGOUT/ISP1_FLASHTRIGOUT_d |
IO |
1.8V |
|
P99 |
VCC5V0_TYPEC0_EN |
GPIO0_A6/PWM3A_IR_d |
IO |
1.8V |
|
P100 |
GND |
GND |
– |
0V |
地 |
P101 |
I2C4_SDA |
GPIO1_B3/I2C4_SDA_u |
IO |
1.8V |
|
P102 |
I2C4_SCL |
GPIO1_B4/I2C4_SCL_u |
IO |
1.8V |
|
P103 |
BT_HOST_WAKE_L |
GPIO0_A4/SDIO0_INTn_d |
IO |
1.8V |
|
P104 |
WIFI_REG_ON_H |
GPIO0_B2_d |
IO |
1.8V |
|
P105 |
AP_READY |
GPIO0_B4/TCPD_VBUS_BDIS_d |
IO |
1.8V |
|
P106 |
LCD_EN_H |
GPIO1_B5_d |
IO |
1.8V |
|
P107 |
4G_WAKEUP_OUT |
GPIO0_A2/WIFI_26MHz_d |
IO |
1.8V |
|
P108 |
SPK_CTL_H |
GPIO0_B3_d |
IO |
1.8V |
|
P109 |
GND |
GND |
– |
0V |
地 |
P110 |
HALL_INT_L |
GPIO1_A0/ISP0_SHUTTER_EN/ISP1_SHUTTER_EN/TCPD_VBUS_SINK_EN_d |
IO |
1.8V |
|
P111 |
SPI1_TXD |
GPIO1_B0/SPI1_TXD/UART4_TX_u |
IO |
1.8V |
|
P112 |
SPI1_RXD |
GPIO1_A7/SPI1_RXD/UART4_RX_u |
IO |
1.8V |
|
P113 |
SPI1_CSN0 |
GPIO1_B2/SPI1_CSn0/PMCU_JTAG_TMS_u |
IO |
1.8V |
|
P114 |
SPI1_CLK |
GPIO1_B1/SPI1_CLK/PMCU_JTAG_TCK_u |
IO |
1.8V |
|
P115 |
ALRT_H |
GPIO1_C2/SPI3_CSn0_u |
IO |
1.8V |
|
P116 |
HDMIIN_STBY |
GPIO1_C4/I2C8_SDA_u |
IO |
1.8V |
|
P117 |
NC |
– |
– |
– |
– |
P118 |
NC |
– |
– |
– |
– |
P119 |
GND |
GND |
– |
0V |
地 |
P120 |
CIF_D4 |
GPIO2_A4/VOP_D4/CIF_D4_d |
IO |
1.8V |
|
P121 |
CIF_D6 |
GPIO2_A6/VOP_D6/CIF_D6_d |
IO |
1.8V |
|
P122 |
CIF_CLKO |
GPIO2_B3/SPI2_CLK/VOP_DEN/CIF_CLKOUTA_u |
IO |
1.8V |
|
P123 |
CIF_D1 |
GPIO2_A1/VOP_D1/CIF_D1/I2C2_SCL_u |
IO |
1.8V |
|
P124 |
CIF_D0 |
GPIO2_A0/VOP_D0/CIF_D0/I2C2_SDA_u |
IO |
1.8V |
|
P125 |
CIF_D7 |
GPIO2_A7/VOP_D7/CIF_D7/I2C7_SDA_u |
IO |
1.8V |
|
P126 |
DVP_PDN0_H |
GPIO2_B4/SPI2_CSn0_u |
IO |
1.8V |
|
P127 |
CIF_VSYNC |
GPIO2_B0/VOP_CLK/CIF_VSYNC/I2C7_SCL_u |
IO |
1.8V |
|
P128 |
CIF_D2 |
GPIO2_A2/VOP_D2/CIF_D2_d |
IO |
1.8V |
|
P129 |
CIF_CLKI |
GPIO2_B2/SPI2_TXD/CIF_CLKIN/I2C6_SCL_u |
IO |
1.8V |
|
P130 |
CIF_HREF |
GPIO2_B1/SPI2_RXD/CIF_HREF/I2C6_SDA_u |
IO |
1.8V |
|
P131 |
CIF_D3 |
GPIO2_A3/VOP_D3/CIF_D3_d |
IO |
1.8V |
|
P132 |
CIF_D5 |
GPIO2_A5/VOP_D5/CIF_D5_d |
IO |
1.8V |
|
P133 |
GND |
GND |
– |
0V |
地 |
P134 |
RGMII_TXEN |
GPIO3_B4/MAC_TXEN/UART1_RX_u |
IO |
3.3V |
|
P135 |
RGMII_TXD0 |
GPIO3_A4/MAC_TXD0/SPI0_RXD_d |
IO |
3.3V |
|
P136 |
RGMII_TXD1 |
GPIO3_A5/MAC_TXD1/SPI0_TXD_d |
IO |
3.3V |
|
P137 |
RGMII_TXD2 |
GPIO3_A0/MAC_TXD2/SPI4_RXD_d |
IO |
3.3V |
|
P138 |
RGMII_TXD3 |
GPIO3_A1/MAC_TXD3/SPI4_TXD_d |
IO |
3.3V |
|
P139 |
RGMII_TXCLK |
GPIO3_C1/MAC_TXCLK/UART3_RTSn_u |
IO |
3.3V |
|
P140 |
GND |
GND |
– |
0V |
地 |
P141 |
RGMII_RXDV |
GPIO3_B1/MAC_RXDV_d |
IO |
3.3V |
|
P142 |
RGMII_RXD0 |
GPIO3_A6/MAC_RXD0/SPI0_CLK_u |
IO |
3.3V |
|
P143 |
RGMII_RXD1 |
GPIO3_A7/MAC_RXD1/SPI0_CSn0_u |
IO |
3.3V |
|
P144 |
RGMII_RXD2 |
GPIO3_A2/MAC_RXD2/SPI4_CLK_u |
IO |
3.3V |
|
P145 |
RGMII_RXD3 |
GPIO3_A3/MAC_RXD3/SPI4_CSn0_u |
IO |
3.3V |
|
P146 |
RGMII_RXCLK |
GPIO3_B6/MAC_RXCLK/UART3_RX_u |
IO |
3.3V |
|
P147 |
GND |
GND |
– |
0V |
地 |
P148 |
RGMII_CLK |
GPIO3_B3/MAC_CLK/I2C5_SCL_u |
IO |
3.3V |
|
P149 |
RGMII_MDC |
GPIO3_B0/MAC_MDC/SPI0_CSn1_u |
IO |
3.3V |
|
P150 |
RGMII_MDIO |
GPIO3_B5/MAC_MDIO/UART1_TX_u |
IO |
3.3V |
|
P151 |
RGMII_RST |
GPIO3_B7/MAC_CRS/CIF_CLKOUTB/UART3_TX_u |
IO |
3.3V |
|
P152 |
RGMII_INT |
GPIO3_C0/MAC_COL/UART3_CTSn/SPDIF_TX_u |
IO |
3.3V |
|
P153 |
RGMII_RXER |
GPIO3_B2/MAC_RXER/I2C5_SDA_u |
IO |
3.3V |
|
P154 |
GND |
GND |
– |
0V |
地 |
P155 |
GND |
GND |
– |
0V |
地 |
P156 |
GND |
GND |
– |
0V |
地 |
表2
管脚序号 |
管脚定义（默认功能） |
CPU 管脚定义 |
I/O属性 |
管脚电平 |
功能描述 |
|---|---|---|---|---|---|
S1 |
GND |
GND |
– |
0V |
地 |
S2 |
GND |
– |
0V |
地 |
|
S3 |
GND |
– |
0V |
地 |
|
S4 |
GND |
– |
0V |
地 |
|
S5 |
GND |
– |
0V |
地 |
|
S6 |
GND |
– |
0V |
地 |
|
S7 |
GND |
– |
0V |
地 |
|
S8 |
GND |
– |
0V |
地 |
|
S9 |
GND |
– |
0V |
地 |
|
S10 |
VCC3V3_SYS |
VCC3V3_SYS0 |
PO |
3.3V |
3.3V 输出，峰值可达2A |
S11 |
VCC3V3_SYS1 |
3.3V |
|||
S12 |
VCC3V3_SYS2 |
3.3V |
|||
S13 |
VCC_1V8 |
VCC_1V8_0 |
1.8V |
1.8V 输出，峰值可达 1A |
|
S14 |
VCC_1V8_1 |
1.8V |
|||
S15 |
VCC_1V8_2 |
1.8V |
|||
S16 |
VCCA3V0_CODEC |
VCCA3V0_CODEC0 |
3.0V |
3.0V输出，峰值可达 300mA |
|
S17 |
VCCA3V0_CODEC1 |
3.0V |
|||
S18 |
VCCA1V8_CODEC |
VCCA1V8_CODEC0 |
1.8V |
1.8V输出，峰值可达 300mA |
|
S19 |
VCCA1V8_CODEC1 |
1.8V |
|||
S20 |
VCC1V8_DVP |
VCC1V8_DVP |
1.8V |
1.8V输出，峰值可达 150mA |
|
S21 |
GND |
GND |
– |
0V |
地 |
S22 |
GND |
– |
0V |
地 |
|
S23 |
RTC_CLKO_WIFI |
PMIC_CLK32KOUT |
DO |
32.768K 时钟输出，由PMU RK808 给出 |
|
S24 |
PMIC_EXT_EN |
PMIC_EXT_EN |
DO |
1.8V |
电源使能输出，PMU RK808 启动后给高，不用请悬空 |
S25 |
RESET_L |
nPOR_u |
DI |
1.8V |
复位管脚，内部 1.8V 上拉 |
S26 |
GND |
GND |
– |
0V |
地 |
S27 |
DVP_PDN1_H |
GPIO2_D4/SDIO0_BKPWR_d |
IO |
1.8V |
|
S28 |
GSENSOR_INT_L |
GPIO1_C6/TCPD_VBUS_SOURCE0_d |
IO |
1.8V |
|
S29 |
CHARG_OK_H |
GPIO1_C7/TCPD_VBUS_SOURCE1_d |
IO |
1.8V |
|
S30 |
GPIO1_D0 |
GPIO1_D0/TCPD_VBUS_SOURCE2_d |
IO |
1.8V |
|
S31 |
NC |
– |
– |
– |
– |
S32 |
EDP_BL_PWM |
GPIO4_C2/PWM0/VOP0_PWM/VOP1_PWM_d |
IO |
3.3V |
|
S33 |
GPIO4_D2 |
GPIO4_D2_d |
IO |
3.3V |
|
S34 |
GPIO4_D6 |
GPIO4_D6_d |
IO |
3.3V |
|
S35 |
Camera_RST_L |
GPIO2_D3/SDIO0_PWREN_d |
IO |
1.8V |
|
S36 |
SDIO0_D0 |
GPIO2_C4/SDIO0_D0/SPI5_RXD_u |
IO |
1.8V |
|
S37 |
SDIO0_CMD |
GPIO2_D0/SDIO0_CMD_u |
IO |
1.8V |
|
S38 |
SDIO0_D1 |
GPIO2_C5/SDIO0_D1/SPI5_TXD_u |
IO |
1.8V |
|
S39 |
SDIO0_CLK |
GPIO2_D1/SDIO0_CLKOUT/TEST_CLKOUT1_u |
IO |
1.8V |
|
S40 |
SDIO0_D2 |
GPIO2_C6/SDIO0_D2/SPI5_CLK_u |
IO |
1.8V |
|
S41 |
SDIO0_D3 |
GPIO2_C7/SDIO0_D3/SPI5_CSn0_u |
IO |
1.8V |
|
S42 |
BT_WAKE_L |
GPIO2_D2/SDIO0_DETN/PCIE_CLKREQn_u |
IO |
1.8V |
|
S43 |
UART0_CTS |
GPIO2_C2/UART0_CTSn_u |
IO |
1.8V |
|
S44 |
UART0_RTS |
GPIO2_C3/UART0_RTSn_u |
IO |
1.8V |
|
S45 |
UART0_RXD |
GPIO2_C0/UART0_RX_u |
IO |
1.8V |
|
S46 |
UART0_TXD |
GPIO2_C1/UART0_TX_u |
IO |
1.8V |
|
S47 |
GND |
GND |
– |
0V |
地 |
S48 |
I2C3_SDA_HDMI |
GPIO4_C0/I2C3_SDA/UART2B_RX_u |
IO |
3.3V |
默认给到 HDMI |
S49 |
I2C3_SCL_HDMI |
GPIO4_C1/I2C3_SCL/UART2B_TX_u |
IO |
3.3V |
默认给到 HDMI |
S50 |
GND |
GND |
– |
0V |
地 |
S51 |
MIPI_TX0_D3N |
MIPI_TX0_D3N |
IO |
1.8V |
|
S52 |
MIPI_TX0_D3P |
MIPI_TX0_D3P |
IO |
1.8V |
|
S53 |
GND |
GND |
– |
0V |
地 |
S54 |
MIPI_TX0_D2N |
MIPI_TX0_D2N |
IO |
1.8V |
|
S55 |
MIPI_TX0_D2P |
MIPI_TX0_D2P |
IO |
1.8V |
|
S56 |
GND |
GND |
– |
0V |
地 |
S57 |
MIPI_TX0_CLKN |
MIPI_TX0_CLKN |
IO |
1.8V |
|
S58 |
MIPI_TX0_CLKP |
MIPI_TX0_CLKP |
IO |
1.8V |
|
S59 |
GND |
GND |
– |
0V |
地 |
S60 |
MIPI_TX0_D1N |
MIPI_TX0_D1N |
IO |
1.8V |
|
S61 |
MIPI_TX0_D1P |
MIPI_TX0_D1P |
IO |
1.8V |
|
S62 |
GND |
GND |
– |
0V |
地 |
S63 |
MIPI_TX0_D0N |
MIPI_TX0_D0N |
IO |
1.8V |
|
S64 |
MIPI_TX0_D0P |
MIPI_TX0_D0P |
IO |
1.8V |
|
S65 |
GND |
GND |
– |
0V |
地 |
S66 |
HDMI_CEC |
GPIO4_C7/HDMI_CECINOUT/EDP_HOTPLUG_u |
IO |
1.8V |
|
S67 |
HDMI_TXCP |
HDMI_TXCP |
O |
– |
|
S68 |
HDMI_TXCN |
HDMI_TXCN |
O |
– |
|
S69 |
HDMI_TX0P |
HDMI_TX0P |
O |
– |
|
S70 |
HDMI_TX0N |
HDMI_TX0N |
O |
– |
|
S71 |
HDMI_TX2P |
HDMI_TX2P |
O |
– |
|
S72 |
HDMI_TX2N |
HDMI_TX2N |
O |
– |
|
S73 |
HDMI_TX1P |
HDMI_TX1P |
O |
– |
|
S74 |
HDMI_TX1N |
HDMI_TX1N |
O |
– |
|
S75 |
PORT_HPD |
HDMI_PHD |
IO |
1.8V |
|
S76 |
GND |
GND |
– |
0V |
地 |
S77 |
MIPI_TX1/RX1_D1N |
MIPI_TX1/RX1_D1N |
IO |
1.8V |
|
S78 |
MIPI_TX1/RX1_D1P |
MIPI_TX1/RX1_D1P |
IO |
1.8V |
|
S79 |
GND |
GND |
– |
0V |
地 |
S80 |
MIPI_TX1/RX1_D0N |
MIPI_TX1/RX1_D0N |
IO |
1.8V |
|
S81 |
MIPI_TX1/RX1_D0P |
MIPI_TX1/RX1_D0P |
IO |
1.8V |
|
S82 |
GND |
GND |
– |
0V |
地 |
S83 |
MIPI_TX1/RX1_D2N |
MIPI_TX1/RX1_D2N |
IO |
1.8V |
|
S84 |
MIPI_TX1/RX1_D2P |
MIPI_TX1/RX1_D2P |
IO |
1.8V |
|
S85 |
GND |
GND |
– |
0V |
地 |
S86 |
MIPI_TX1/RX1_CLKP |
MIPI_TX1/RX1_CLKP |
IO |
1.8V |
|
S87 |
MIPI_TX1/RX1_CLKN |
MIPI_TX1/RX1_CLKN |
IO |
1.8V |
|
S88 |
GND |
GND |
– |
0V |
地 |
S89 |
MIPI_TX1/RX1_D3P |
MIPI_TX1/RX1_D3P |
IO |
1.8V |
|
S90 |
MIPI_TX1/RX1_D3N |
MIPI_TX1/RX1_D3N |
IO |
1.8V |
|
S91 |
GND |
GND |
– |
0V |
地 |
S92 |
MIPI_RX0_D0P |
MIPI_RX0_D0P |
IO |
1.8V |
|
S93 |
MIPI_RX0_D0N |
MIPI_RX0_D0N |
IO |
1.8V |
|
S94 |
GND |
GND |
– |
0V |
地 |
S95 |
MIPI_RX0_D1P |
MIPI_RX0_D1P |
IO |
1.8V |
|
S96 |
MIPI_RX0_D1N |
MIPI_RX0_D1N |
IO |
1.8V |
|
S97 |
GND |
GND |
– |
0V |
地 |
S98 |
MIPI_RX0_CLKP |
MIPI_RX0_CLKP |
IO |
1.8V |
|
S99 |
MIPI_RX0_CLKN |
MIPI_RX0_CLKN |
IO |
1.8V |
|
S100 |
GND |
GND |
– |
0V |
地 |
S101 |
MIPI_RX0_D2P |
MIPI_RX0_D2P |
IO |
1.8V |
|
S102 |
MIPI_RX0_D2N |
MIPI_RX0_D2N |
IO |
1.8V |
|
S103 |
GND |
GND |
– |
0V |
地 |
S104 |
MIPI_RX0_D3P |
MIPI_RX0_D3P |
IO |
1.8V |
|
S105 |
MIPI_RX0_D3N |
MIPI_RX0_D3N |
IO |
1.8V |
|
S106 |
GND |
GND |
– |
0V |
地 |
S107 |
ADC_IN2 |
HP_HOOK |
– |
||
S108 |
GND |
GND |
– |
0V |
地 |
S109 |
ADC_IN1 |
ADKEY_IN |
– |
||
S110 |
GND |
GND |
– |
0V |
地 |
S111 |
ADC_IN0 |
ADC_IN0 |
– |
||
S112 |
GND |
GND |
– |
0V |
地 |
S113 |
ADC_IN4 |
ADC_IN4 |
– |
||
S114 |
ADC_IN3 |
ADC_IN3 |
– |
||
S115 |
GND |
GND |
– |
0V |
地 |
S116 |
PCIE_RX1_P |
PCIE_RX1_P |
I |
– |
|
S117 |
PCIE_RX1_N |
PCIE_RX1_N |
I |
– |
|
S118 |
GND |
GND |
– |
0V |
地 |
S119 |
PCIE_TX1_P |
PCIE_TX1_P |
O |
– |
|
S120 |
PCIE_TX1_N |
PCIE_TX1_N |
O |
– |
|
S121 |
GND |
GND |
– |
0V |
地 |
S122 |
PCIE_RX0_P |
PCIE_RX0_P |
I |
– |
|
S123 |
PCIE_RX0_N |
PCIE_RX0_N |
I |
– |
|
S124 |
GND |
GND |
– |
0V |
地 |
S125 |
PCIE_TX0_P |
PCIE_TX0_P |
O |
– |
|
S126 |
PCIE_TX0_N |
PCIE_TX0_N |
O |
– |
|
S127 |
GND |
GND |
– |
0V |
地 |
S128 |
PCIE_RCLK_100M_P |
PCIE_RCLK_100M_P |
O |
– |
|
S129 |
PCIE_RCLK_100M_N |
PCIE_RCLK_100M_N |
O |
– |
|
S130 |
GND |
GND |
– |
0V |
地 |
S131 |
PCIE_RX3_P |
PCIE_RX3_P |
I |
– |
|
S132 |
PCIE_RX3_N |
PCIE_RX3_N |
I |
– |
|
S133 |
GND |
GND |
– |
0V |
地 |
S134 |
PCIE_TX3_P |
PCIE_TX3_P |
O |
– |
|
S135 |
PCIE_TX3_N |
PCIE_TX3_N |
O |
– |
|
S136 |
GND |
GND |
– |
0V |
地 |
S137 |
GND |
GND |
– |
0V |
地 |
S138 |
PCIE_RX2_P |
PCIE_RX2_P |
I |
– |
|
S139 |
PCIE_RX2_N |
PCIE_RX2_N |
I |
– |
|
S140 |
GND |
GND |
– |
0V |
地 |
S141 |
PCIE_TX2_P |
PCIE_TX2_P |
O |
– |
|
S142 |
PCIE_TX2_N |
PCIE_TX2_N |
O |
– |
|
S143 |
GND |
GND |
– |
0V |
地 |
S144 |
EDP_TX3P |
EDP_TX3P |
O |
– |
|
S145 |
EDP_TX3N |
EDP_TX3N |
O |
– |
|
S146 |
GND |
GND |
– |
0V |
地 |
S147 |
EDP_TX2P |
EDP_TX2P |
O |
– |
|
S148 |
EDP_TX2N |
EDP_TX2N |
O |
– |
|
S149 |
GND |
GND |
– |
0V |
地 |
S150 |
EDP_TX1P |
EDP_TX1P |
O |
– |
|
S151 |
EDP_TX1N |
EDP_TX1N |
O |
– |
|
S152 |
GND |
GND |
– |
0V |
地 |
S153 |
EDP_TX0P |
EDP_TX0P |
O |
– |
|
S154 |
EDP_TX0N |
EDP_TX0N |
O |
– |
|
S155 |
GND |
GND |
– |
0V |
地 |
S156 |
EDA_AUXP |
EDPAUXP |
I/O |
– |
|
S157 |
EDA_AUXN |
EDPAUXN |
I/O |
– |
|
S158 |
GND |
GND |
– |
0V |
地 |
