MYZR-RZFIVE-CB200硬件介绍
MYZR-RZFIVE-CB200 视图

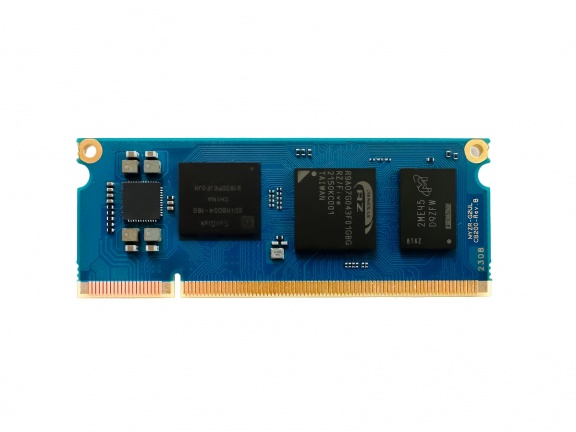

正面

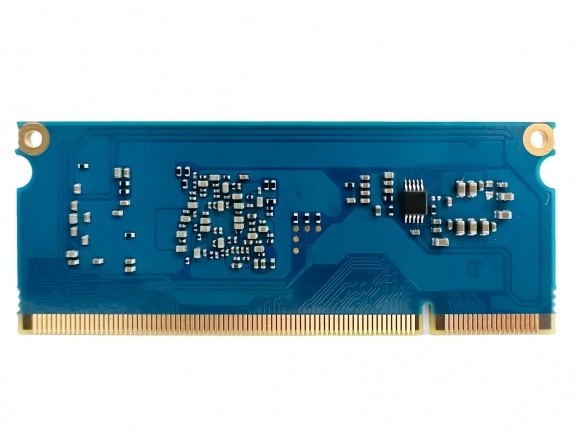

背面

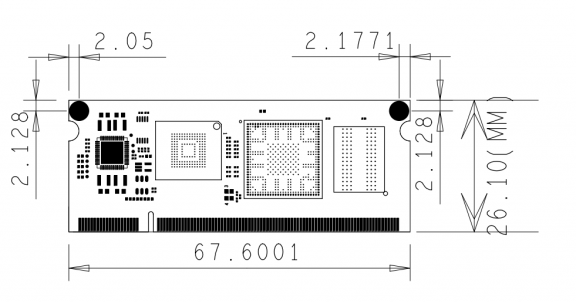

尺寸
MYZR-RZFIVE-CB200参数
硬件配置
CPU |
双核 Cortex-A55 |
主频 1.2Ghz |
内存 |
单通道 16bit DDR4 |
1/2G |
存储 |
eMMC |
8G 以上 |
供电电源
温度范围
工作温度
商业级：
0°C ~ 70°C
工业级：
-40°C ~ 85°C
存储温度
-60°C ~ 125°C
操作系统支持
内核
硬件接口
接口规格 |
最大可配置接口数 |
描述 |
|
|---|---|---|---|
CPU |
框架 |
1 |
AndesCore^TM AX45MPVersion5.0.0 |
CPU |
处理器 |
1 |
RenesasRZ/FIVE |
CPU |
主频 |
1 |
1.0GHz |
CPU |
位宽 |
1 |
64 bit |
内存 |
eMMC |
1 |
8G扩展至64GB |
内存 |
DDR |
1 |
1/2GB |
接口 |
Ethernet |
2 |
10/100/1000Mbit/s |
接口 |
USB |
2 |
(1xHost+1xOTG) |
接口 |
UART |
5 |
支持 5bit,6bit,7bit,8bit 串行数据收发 |
接口 |
CAN |
2 |
2路CAN2.0,最高速率1Mb/sec |
接口 |
lIC |
4 |
4路12C最高支持400 kbps |
接口 |
SPI |
3 |
支持串行主/从模式，最大传输速率33 Mbps |
接口 |
MMC/SD/SDIO |
1 |
4bit，符合eMMC 4.51 |
接口 |
SSI |
4 |
支持I2S/单声道/TDM音频格式 |
接口 |
ADC |
2 |
12bit精度 |
通用规格 |
工作电压 |
1 |
3.6V |
通用规格 |
工作温度 |
1 |
-40°C to +85°C |
通用规格 |
待机功耗 |
1 |
0.7W |
通用规格 |
尺寸 |
1 |
67.6mm x26.1 mm |
software |
内核版本 |
1 |
Linux 5.10 |
管脚定义&详细功能说明(ETH版本)
Pin NO. |
Pin Name |
Power |
Function |
描述 |
2 |
GND |
0V |
地 |
|
4 |
GND |
0V |
地 |
|
6 |
GND |
0V |
地 |
|
8 |
GND |
0V |
地 |
|
10 |
GND |
0V |
地 |
|
12 |
||||
14 |
||||
16 |
||||
18 |
PMIC_I2C_SCL |
3.3V |
— |
— |
20 |
PMIC_I2C_SDA |
3.3V |
— |
— |
22 |
||||
24 |
RZ_QSPI0_WP# |
3.3V |
QSPI_WP# |
— |
26 |
RZ_QSPI0_SSL |
3.3V |
QSPI0_SSL |
内部上拉 |
28 |
RZ_QSPI0_IO1 |
3.3V |
QSPI0_IO1 |
— |
30 |
RZ_QSPI0_SPCLK |
3.3V |
QSPI0_SPCLK |
内部上拉 |
32 |
RZ_QSPI_RESET# |
3.3V |
QSPI_RESET# |
内部上拉 |
34 |
RZ_QSPI0_IO2 |
3.3V |
QSPI0_IO2 |
— |
36 |
RZ_QSPI0_IO0 |
3.3V |
QSPI0_IO0 |
— |
38 |
RZ_QSPI0_IO3 |
3.3V |
QSPI0_IO3 |
|
40 |
||||
42 |
||||
44 |
RZ_MD_BOOT1 |
3.3V |
MD_BOOT1 |
|
46 |
RZ_MD_BOOT2 |
3.3V |
MD_BOOT2 |
|
48 |
RZ_MD_BOOT0 |
3.3V |
MD_BOOT0 |
— |
50 |
RZ_AUDIO_CLK1 |
3.3V |
AUDIO_CLK1 |
— |
52 |
RZ_AUDIO_CLK2 |
3.3V |
AUDIO_CLK2 |
— |
54 |
||||
56 |
RZ_OM_DQS |
3.3V |
OM_DQS |
— |
58 |
RZ_OM_SIO4 |
3.3V |
OM_SIO4 |
— |
60 |
RZ_OM_SIO5 |
3.3V |
OM_SIO5 |
— |
62 |
RZ_OM_SIO6 |
0V |
OM_SIO6 |
— |
64 |
RZ_OM_SIO7 |
3.3V |
OM_SIO7 |
— |
66 |
RZ_OM_CS1_N |
3.3V |
OM_CS1_N |
内部上拉 |
68 |
||||
70 |
RZ_SD1_CLK |
3.3V |
SD1_CLK |
— |
72 |
RZ_SD1_D2 |
3.3V |
SD1_DATA2 |
内部上拉 |
74 |
RZ_SD1_D0 |
3.3V |
SD1_DATA0 |
内部上拉 |
76 |
RZ_SD1_D1 |
3.3V |
SD1_DATA1 |
内部上拉 |
78 |
RZ_SD1_D3 |
3.3V |
SD1_DATA3 |
内部上拉 |
80 |
RZ_SD1_CMD |
3.3V |
SD1_CMD |
内部上拉 |
82 |
SD1_WP# |
3.3V |
P0_3/SD1_WP/MTIOC1B/RIIC2_SCL/IRQ1 |
— |
84 |
RZ_SD1_CD# |
3.3V |
P0_2/SD1_CD/MTIOC1A/RIIC2_SDA/IRQ0 |
内部上拉 |
86 |
||||
88 |
RZ_MTIOC2A_PWM |
3.3V |
P0_0/SD0_CD/RIIC3_SDA/MTIOC2A/SCI0_TXD |
— |
90 |
RZ_MTIOC2B_PWM |
3.3V |
P0_1/SD0_WP/RIIC3_SCL/MTIOC2B/SCI0_RXD |
— |
92 |
||||
94 |
||||
96 |
RZ_SCIF0_RXD |
3.3V |
P6_3/RIIC2_SDA/RSPI2_SSL/CAN0_TX_DATARATE_EN/SCIF2_CTS#/MTIOC7D/SCIF0_RXD/IRQ3 |
— |
98 |
RZ_SCIF0_TXD |
3.3V |
P6_4/RIIC2_SCL/CAN0_RX_DATARATE_EN/SCIF2_RTS#/ADC_TRG/SCIF0_TXD/IRQ4 |
|
100 |
CAN0_RX_D |
3.3V |
P6_2/ADC_TRG/RSPI2_MISO/CAN0_RX/SCIF2_SCK/MTIOC7C/IRQ2 |
— |
102 |
CAN0_TX_D |
3.3V |
P6_1/USB1_OVRCUR/RSPI2_MOSI/CAN0_TX/SCIF2_RXD/MTIOC7B |
— |
104 |
GPIO6_0 |
3.3V |
P6_0/USB1_VBUSEN/RSPI2_CK/CAN_CLK/SCIF2_TXD/MTIOC7A |
— |
106 |
RZ_MTIPC7C_PWM |
3.3V |
P5_2/USB0_OVRCUR/SCIF2_SCK/MTIOC7C/SSI2_BCK |
— |
108 |
RZ_SCIF2_TXD |
3.3V |
P5_0/USB0_VBUSEN/SCIF2_TXD/MTIOC7A |
— |
110 |
RZ_SCIF2_RXD |
3.3V |
P5_1/SCIF2_RXD/MTIOC7B/ADC_TRG/SCI0_CTS#/RTS#/RSPI0_SSL/IRQ2 |
— |
112 |
||||
114 |
||||
116 |
||||
118 |
||||
120 |
||||
122 |
||||
124 |
||||
126 |
||||
128 |
||||
130 |
||||
132 |
||||
134 |
||||
136 |
||||
138 |
||||
140 |
RSPI0_MOSI_B |
3.3V |
P15_1/RSPI0_MOSI/IRQ5/MTIOC8B/DISP_DATA13 |
— |
142 |
RSPI0_CK_B |
3.3V |
P15_0/RSPI0_CK/IRQ4/MTIOC8A/DISP_DATA11 |
— |
144 |
RSPI0_SSL_B |
3.3V |
P15_3/RSPI0_SSL/IRQ7/MTIOC8D/DISP_DATA14 |
— |
146 |
RSPI0_MISO_B |
3.3V |
P15_2/RSPI0_MISO/IRQ6/MTIOC8C/DISP_DATA16/SCI1_TXD |
— |
148 |
SSI1_RXD_C |
3.3V |
P17_3/RSPI1_SSL/SSI1_RXD/CAN1_RX_DATARATE_EN/MTIOC3D/DISP_DATA22 |
— |
150 |
SSI1_BCK_C |
3.3V |
P17_0/RSPI1_CK/SSI1_BCK/CAN1_TX/MTIOC3A/DISP_DATA17/SCI1_RXD |
— |
152 |
SSI1_TXD_C |
3.3V |
P17_2/RSPI1_MISO/SSI1_TXD/CAN1_TX_DATARATE_EN/MTIOC3C/DISP_DATA18 |
— |
154 |
SSI1_RCK_C |
3.3V |
P17_1/RSPI1_MOSI/SSI1_RCK/CAN1_RX/MTIOC3B/DISP_DATA19 |
— |
156 |
CAN1_TX_C |
3.3V |
P14_0/SCIF1_TXD/CAN1_TX/MTIC5U/SCI0_RXD/DISP_DATA7 |
— |
158 |
CAN1_RX_C |
3.3V |
P14_1/SCIF1_RXD/CAN1_RX/MTIC5V/SCI0_TXD/DISP_DATA9/IRQ2 |
— |
160 |
SCIF1_CTS# |
3.3V |
P16_0/SCIF1_CTS#/CAN1_RX_DATARATE_EN/SCI0_CTS#/RTS#/DISP_DATA10 |
初始状态不可为高 |
162 |
SCIF1_RTS# |
3.3V |
P16_1/SCIF1_RTS#/DISP_DATA12 |
初始状态不可为高 |
164 |
SCIF1_TXD_C |
3.3V |
P11_2/SSI0_TXD/POE8#/SCI1_SCK/RSPI2_MISO/DISP_DATA0/SCIF1_TXD |
— |
166 |
SCIF1_RXD_C |
3.3V |
P13_1/SCIF0_RXD/CAN0_TX/MTIOC4B/USB1_OVRCUR/DISP_DATA1/SCIF1_RXD |
— |
168 |
SCIF3_RXD |
3.3V |
P12_1/IRQ1/SCI0_TXD/MTIOC0B/SCIF3_RXD/DISP_DATA5 |
— |
170 |
SCIF3_TXD |
3.3V |
P12_0/IRQ0/SCI0_RXD/MTIOC0A/SCIF3_TXD/DISP_VSYNC |
— |
172 |
GPIO11_0 |
3.3V |
P11_0/SSI0_BCK/POE0#/SCI1_RXD/RSPI2_CK/DISP_HSYNC |
— |
174 |
GND |
0V |
地 |
|
176 |
GPIO11_3 |
3.3V |
P11_3/SSI0_RXD/POE10#/SCI1_CTS#/RTS#/RSPI2_SSL/DISP_CLK |
— |
178 |
GND |
0V |
地 |
|
180 |
GPIO13_0 |
3.3V |
P13_0/SCIF0_TXD/CAN_CLK/MTIOC4A/USB1_VBUSEN/DISP_DATA2 |
— |
182 |
MTIOC4D |
3.3V |
P13_3/SCIF0_CTS#/CAN0_TX_DATARATE_EN/MTIOC4D/DISP_DATA4 |
— |
184 |
ADC_TRG |
3.3V |
P14_2/SCIF1_SCK/ADC_TRG/CAN1_TX_DATARATE_EN/MTIC5W/SCI0_SCK/DISP_DATA8/IRQ3 |
— |
186 |
GPIO13_2 |
3.3V |
P13_2/SCIF0_SCK/CAN0_RX/MTIOC4C/DISP_DATA6 |
— |
188 |
GPIO11_1 |
3.3V |
P11_1/SSI0_RCK/POE4#/SCI1_TXD/RSPI2_MOSI/DISP_DE |
— |
190 |
GPIO13_4 |
3.3V |
P13_4/SCIF0_RTS#/CAN0_RX_DATARATE_EN/DISP_DATA3 |
— |
192 |
IRQ5_A |
3.3V |
P18_3/IRQ5/RSPI0_MOSI/SCI0_TXD/SCIF3_TXD/SCI0_CTS#/RTS#/DISP_DATA23/SCIF4_SCK |
— |
194 |
IRQ2_A |
3.3V |
P18_0/IRQ2/ADC_TRG/SCI0_SCK/DISP_DATA15/SCIF3_SCK |
— |
196 |
IRQ3_A |
3.3V |
P18_1/IRQ3/SCIF3_SCK/SCI0_TXD/DISP_DATA20/SCIF3_RXD |
— |
198 |
IRQ4_A |
3.3V |
P18_2/IRQ4/RSPI0_CK/SCI0_SCK/SCIF3_RXD/SCI0_RXD/DISP_DATA21/SCIF3_TXD |
— |
200 |
