MYZR-RZG2L-CB200
MYZR-RZG2L-CB200 视图

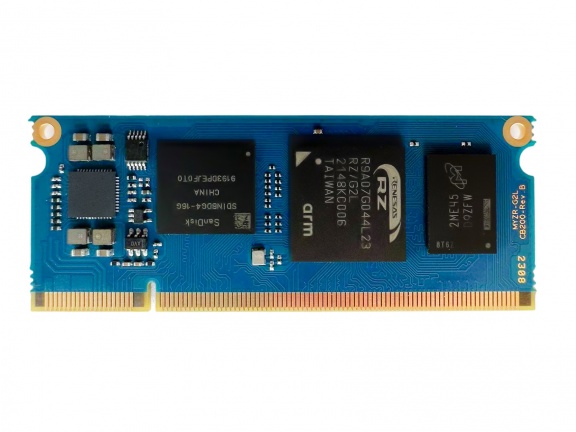

核心板MYZR-RZG2L-CB200 正面

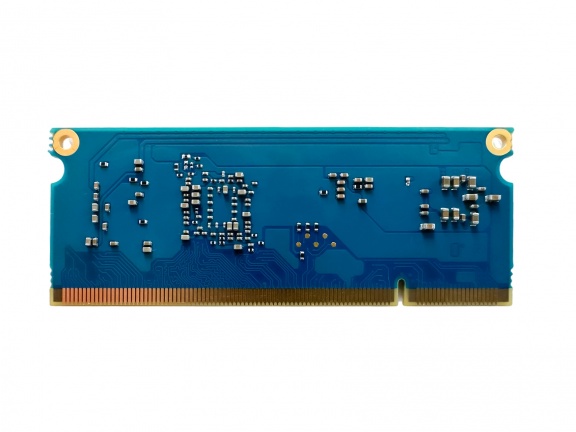

核心板MYZR-RZG2L-CB200 背面
尺寸
MYZR-RZG2L-CB200参数
硬件配置
CPU |
双核 Cortex-A55 |
主频 1.2Ghz |
|---|---|---|
内存 |
单通道 16bit DDR4 |
2G |
存储 |
eMMC |
32G |
硬件接口
接口规格 |
最大可配置接口数 |
描述 |
|
|---|---|---|---|
CPU |
框架 |
2 |
Dual Cortex-A55r2p0(Armv8-A) cores,Cortex-M33r0p4(ARMv8-M) |
处理器 |
1 |
Renesas RZ/G2L |
|
主频 |
1 |
1.2GHz |
|
位宽 |
1 |
64 bit |
|
图形加速(GPU) |
1 |
Arm Mali-G31 |
|
视频硬件加速(VPU) |
1 |
H.264/MVC(VCP),ISU |
|
内存 |
eMMC |
1 |
8G可扩展至64GB |
DDR |
1 |
1/2GBL |
|
接口 |
Ethernet |
2 |
10/100/1000Mbit/s |
USB |
2 |
(1xHost+1xOTG) |
|
UART |
5 |
支持 5bit,6bit,7bit,8bit 串行数据收发 |
|
CAN |
2 |
2路CAN2.0,最高速率1Mb/sec |
|
lIC |
4 |
4路12C最高支持400 kbps |
|
SPI |
3 |
支持串行主/从模式，最大传输速率33 Mbps |
|
MMC/SD/SDIO |
1 |
4bit，符合eMMC 4.51 |
|
SSI |
1 |
支持I2S/单声道/TDM音频格式 |
|
DSI |
1 |
1路4 lane的MIPI接口，每lane最高支持1.5Gbps，支持的最大分辨率1920x1080 60Hz |
|
CSI |
1 |
支持1/2/4 lane，每lane最高支持1.5 Gbps |
|
RGB |
1 |
支持最大分辨率1280×800 60Hz, 格式为RGB666/RGB888 |
|
ADC |
8 |
12bit精度 |
|
通用规格 |
工作电压 |
1 |
3.6V |
工作温度 |
1 |
-40°C to +85°C |
|
待机功耗 |
1 |
0.7W |
|
尺寸 |
1 |
67.6mm x26.1 mm |
|
software |
内核版本 |
1 |
Linux 5.10 |
图形界面 |
1 |
QT5.6 |
|
供电电源
温度范围
工作温度
商业级：
0°C ~ 70°C
工业级：
-40°C ~ 85°C
存储温度
-60°C ~ 125°C
操作系统支持
Linux
管脚定义&详细功能说明
Pin NO. |
Pin Name |
Power |
Function |
描述 |
1 |
MCU_VDD |
3.3V |
Power |
3.3V电源输入 |
2 |
GPIO39_0 |
3.3V |
P39_0/SCIF0_SCK/GTETRGC/CAN0_RX/MTIOC4C |
— |
3 |
MCU_VDD |
3.3V |
Power |
3.3V电源输入 |
4 |
RZ_IRQ3 |
3.3V |
P1_1/IRQ3/SCI0_CTS_N_RTS_N/GTIOC1B/MTIOC0D |
— |
5 |
VDD_3V6_PMIC |
3.6V |
Power |
3.6V电源输入 |
6 |
RZ_IRQ6 |
3.3V |
P3_0/IRQ6/RIIC2_SDA/GTIOC3A/MTIOC2A/SCIF4_SCK |
— |
7 |
VDD_3V6_PMIC |
3.6V |
Power |
3.6V电源输入 |
8 |
RZ_IRQ7 |
3.3V |
P3_1/IRQ7/RIIC2_SCL/GTIOC3B/MTIOC2B/CAM_FIELD |
— |
9 |
VDD_3V6_PMIC |
3.6V |
Power |
3.6V电源输入 |
10 |
RZ_IRQ2 |
3.3V |
P1_0/IRQ2/SCI0_SCK/GTIOC1A/MTIOC0C/SCIF3_SCK |
— |
11 |
VDD_3V6_PMIC |
3.6V |
Power |
3.6V电源输入 |
12 |
GND |
0V |
地 |
|
13 |
GND |
0V |
地 |
|
14 |
UART3_RXD |
3.3V |
P0_1/IRQ1/SCI0_TXD/GTIOC0B/MTIOC0B/SCIF3_RXD |
— |
15 |
GND |
0V |
地 |
|
16 |
UART3_TXD |
3.3V |
P0_0/IRQ0/SCI0_RXD/GTIOC0A/MTIOC0A/SCIF3_TXD |
— |
17 |
GND |
0V |
地 |
|
18 |
GPIO48_2 |
3.3V |
P48_2/SCIF2_SCK/RSPI1_MISO/RIIC3_SDA/MTCLKC |
— |
19 |
GND |
0V |
地 |
|
20 |
UART4_RXD |
3.3V |
P2_1/IRQ5/GTIOC2B/MTIOC1B/SCIF4_RXD |
— |
21 |
GND |
0V |
地 |
|
22 |
UART4_TXD |
3.3V |
P2_0/IRQ4/ADC_TRG/GTIOC2A/MTIOC1A/SCIF4_TXD |
— |
23 |
VDD_3V3_1 |
3.3V |
Power |
3.3V电源输出，最大输出300mA |
24 |
CAN1_RX |
3.3V |
P46_1/SSI1_RCK/GTETRGB/CAN1_RX/RIIC2_SCL |
— |
25 |
VDD_1V8_2 |
1.8V |
Power |
1.8V电源输出，最大输出300mA |
26 |
CAN1_TX |
3.3V |
P46_0/SSI1_BCK/GTETRGA/CAN1_TX/RIIC2_SDA |
— |
27 |
VDD_1V8_3 |
1.8V |
Power |
1.8V电源输出，最大输出200mA |
28 |
CAN1_STB |
3.3V |
P46_3/SSI1_RXD/GTETRGD/CAN1_RX_DATARATE_EN/RIIC3_SCL |
— |
29 |
GND |
0V |
地 |
|
30 |
UART1_RXD |
3.3V |
P40_1/SCIF1_RXD/GTIOC6B/CAN1_RX/MTIC5V/SCI0_TXD |
— |
31 |
POR_B |
3.3V |
RST |
复位，低电平有效，内部上拉 |
32 |
UART1_TXD |
3.3V |
P40_0/SCIF1_TXD/GTIOC6A/CAN1_TX/MTIC5U/SCI0_RXD |
— |
33 |
MainPWR_EN |
3.3V |
EN |
使能，上电就拉高 |
34 |
UART1_CTS |
3.3V |
P41_0/SCIF1_CTS/GTIOC7A/CAN1_RX_DATARATE_EN/GTIOC3A/SCI0_CTS_N_RTS_N |
— |
35 |
GPIO46_2 |
3.3V |
P46_2/SSI1_TXD/GTETRGC/CAN1_TX_DATARATE_EN/RIIC3_SDA |
— |
36 |
UART1_RTS |
3.3V |
P41_1/SCIF1_RTS/GTIOC7B/GTIOC3B |
— |
37 |
PMIC_I2C_SCL |
3.3V |
— |
— |
38 |
I2C2_SCL |
3.3V |
P42_4/RIIC2_SCL/CAM_FIELD/CAN0_RX_DATARATE_EN/SCIF2_RTS |
内部上拉 |
39 |
PMIC_I2C_SDA |
3.3V |
— |
— |
40 |
I2C2_SDA |
3.3V |
P42_3/RIIC2_SDA/RSPI2_SSL/CAN0_TX_DATARATE_EN/SCIF2_CTS/MTIOC7D |
内部上拉 |
41 |
QSPI_RESET_N |
3.3V |
QSPI_RESET_N |
— |
42 |
GPIO40_2 |
3.3V |
P40_2/SCIF1_SCK/CAN1_TX_DATARATE_EN/MTIC5W/SCI0_SCK |
— |
43 |
QSPI0_CLK |
3.3V |
QSPI0_CLK |
— |
44 |
UART0_RXD |
3.3V |
P38_1/SCIF0_RXD/GTETRGB/CAN0_TX/MTIOC4B/USB1_OVRCUR |
调试串口 |
45 |
QSPI0_IO2 |
3.3V |
QSPI0_IO2 |
— |
46 |
UART0_TXD |
3.3V |
P38_0/SCIF0_TXD/GTETRGA/CAN_CLK/MTIOC4A/USB1_VBUSEN |
调试串口 |
47 |
QSPI0_IO3 |
3.3V |
QSPI0_IO3 |
— |
48 |
GPIO39_2 |
3.3V |
P39_2/SCIF0_RTS/CAN0_RX_DATARATE_EN |
— |
49 |
QSPI0_IO0 |
3.3V |
QSPI0_IO0 |
— |
50 |
GPIO39_1 |
3.3V |
P39_1/SCIF0_CTS/GTETRGD/CAN0_TX_DATARATE_EN/MTIOC4D |
— |
51 |
QSPI0_IO1 |
3.3V |
QSPI0_IO1 |
— |
52 |
I2S0_RXD |
3.3V |
P45_3/SSI0_RXD/POE10_N/SCI1_CTS_N_RTS_N |
— |
53 |
QSPI0_SSL |
3.3V |
QSPI0_SSL |
— |
54 |
I2S0_TXD |
3.3V |
P45_2/SSI0_TXD/POE8_N/SCI1_SCK |
— |
55 |
BOOT_MODE0 |
3.3V |
BOOT_MODE0 |
— |
56 |
I2S0_BCK |
3.3V |
P45_0/SSI0_BCK/POE0_N/SCI1_RXD |
— |
57 |
BOOT_MODE1 |
3.3V |
BOOT_MODE1 |
— |
58 |
I2S0_LRCK |
3.3V |
P45_1/SSI0_RCK/POE4_N/SCI1_TXD |
— |
59 |
BOOT_MODE2 |
3.3V |
BOOT_MODE2 |
— |
60 |
AUDIO_CLK1 |
3.3V |
AUDIO_CLK1 |
外部音频时钟1输入 |
61 |
ENET0_TD3 |
3.3V |
P22_0/ET0_TXD3/SSI0_BCK/CAN1_TX/MTCLKA |
— |
62 |
GND |
0V |
地 |
|
63 |
ENET0_TD2 |
3.3V |
P21_1/ET0_TXD2/CAN0_RX_DATARATE_EN |
— |
64 |
AUDIO_CLK2 |
3.3V |
AUDIO_CLK2 |
外部音频时钟2输入 |
65 |
ENET0_TD1 |
3.3V |
P21_0/ET0_TXD1/RSPI0_SSL/CAN0_TX_DATARATE_EN |
— |
66 |
GTIOC0A/PWM |
3.3V |
P18_0/SD0_CD/GTIOC0A/RIIC3_SDA/MTIOC2A |
— |
67 |
ENET0_TD0 |
3.3V |
P20_2/ET0_TXD0/RSPI0_MISO/CAN0_RX |
— |
68 |
GTIOC0B/PWM |
3.3V |
P18_1/SD0_WP/GTIOC0B/RIIC3_SCL/MTIOC2B |
— |
69 |
ENET0_TX_CTL |
3.3V |
P20_1/ET0_TX_CTL_TX_EN/RSPI0_MOSI/CAN0_TX |
— |
70 |
SD1_WP |
3.3V |
P19_1/SD1_WP/GTIOC3B/MTIOC1B/RIIC2_SCL |
— |
71 |
ENET0_TXC |
3.3V |
P20_0/ET0_TXC_TX_CLK/RSPI0_CK/CAN_CLK |
— |
72 |
SD1_nCD |
3.3V |
P19_0/SD1_CD/GTIOC3A/MTIOC1A/RIIC2_SDA |
— |
73 |
ENET0_TX_CRS |
3.3V |
P23_1/ET0_TX_CRS/SSI0_RXD/CAN1_RX_DATARATE_EN/MTCLKD |
— |
74 |
SD1_DATA1 |
3.3V |
SD1_DATA1 |
内部上拉 |
75 |
ENET0_TX_ERR |
3.3V |
P22_1/ET0_TX_ERR/SSI0_RCK/CAN1_RX/MTCLKB |
— |
76 |
SD1_DATA0 |
3.3V |
SD1_DATA0 |
内部上拉 |
77 |
ENET0_TX_COL |
3.3V |
P23_0/ET0_TX_COL/SSI0_TXD/CAN1_TX_DATARATE_EN/MTCLKC |
— |
78 |
SD1_DATA3 |
3.3V |
SD1_DATA3 |
内部上拉 |
79 |
ENET0_RD1 |
3.3V |
P25_1/ET0_RXD1/SSI1_RXD/POE10_N |
— |
80 |
SD1_DATA2 |
3.3V |
SD1_DATA2 |
内部上拉 |
81 |
ENET0_LINKSTA |
3.3V |
P28_1/ET0_LINKSTA |
— |
82 |
SD1_CMD |
3.3V |
SD1_CMD |
内部上拉 |
83 |
ENET0_MDC |
3.3V |
P27_1/ET0_MDC/RSPI1_SSL/MTIOC8D |
— |
84 |
SD1_CLK |
3.3V |
SD1_CLK |
— |
85 |
ENET0_MDIO |
3.3V |
P28_0/ET0_MDIO |
— |
86 |
USB0_EXICEN |
3.3V |
P5_2/USB0_OTG_EXICEN/SCIF2_RTS/SSI2_DATA |
— |
87 |
ENET0_RXC |
3.3V |
P24_0/ET0_RXC_RX_CLK/SSI1_BCK/POE0_N |
— |
88 |
USB0_OTG_ID |
3.3V |
P5_1/USB0_OTG_ID/SCIF2_CTS/MTIOC7D/SSI2_RCK |
— |
89 |
ENET0_RX_CTL |
3.3V |
P24_1/ET0_RX_CTL_RX_DV/SSI1_RCK/POE4_N |
— |
90 |
USB0_VBUSEN |
3.3V |
P4_0/USB0_VBUSEN/SCIF2_TXD/MTIOC7A/ADC_TRG |
— |
91 |
ENET0_RD3 |
3.3V |
P26_1/ET0_RXD3/RSPI1_MOSI/MTIOC8B |
— |
92 |
USB0_OC_N |
3.3V |
P5_0/USB0_OVRCUR/SCIF2_SCK/MTIOC7C/SSI2_BCK |
— |
93 |
ENET0_RD2 |
3.3V |
P26_0/ET0_RXD2/RSPI1_CK/MTIOC8A |
— |
94 |
USB1_DN |
3.3V |
USB1_DM |
— |
95 |
ENET0_RD0 |
3.3V |
P25_0/ET0_RXD0/SSI1_TXD/POE8_N |
— |
96 |
USB1_DP |
3.3V |
USB1_DP |
— |
97 |
ENET0_RX_ERR |
3.3V |
P27_0/ET0_RX_ERR/RSPI1_MISO/MTIOC8C |
— |
98 |
USB0_DN |
3.3V |
USB0_DM |
— |
99 |
CAN0_STB |
3.3V |
P42_0/USB1_VBUSEN/RSPI2_CK/CAN_CLK/SCIF2_TXD/MTIOC7A |
— |
100 |
USB0_DP |
3.3V |
USB0_DP |
— |
101 |
CAN0_RX |
3.3V |
P42_2/ADC_TRG/RSPI2_MISO/CAN0_RX/SCIF2_SCK/MTIOC7C |
— |
102 |
USB0_VBUSIN |
3.3V |
USB0_VBUSIN |
USB0电源输入 |
103 |
CAN0_TX |
3.3V |
P42_1/USB1_OVRCUR/RSPI2_MOSI/CAN0_TX/SCIF2_RXD/MTIOC7B |
— |
104 |
GPIO4_1 |
3.3V |
P4_1/SCIF2_RXD/MTIOC7B |
— |
105 |
CSI_DN3 |
1.8V |
CSI_DATA3_N |
— |
106 |
DISP_DATA1 |
3.3V |
P8_0/DISP_DATA1/USB1_VBUSEN/RSPI2_CK/RIIC3_SCL |
Pixel data Red1 |
107 |
CSI_DP3 |
1.8V |
CSI_DATA3_P |
— |
108 |
DISP_DATA3 |
3.3V |
P8_2/DISP_DATA3/RSPI2_MISO |
Pixel data Red3 |
109 |
CSI_DN1 |
1.8V |
CSI_DATA1_N |
— |
110 |
DISP_DATA5 |
3.3V |
P9_1/DISP_DATA5/MTIOC2B |
Pixel data Red5 |
111 |
CSI_DP1 |
1.8V |
CSI_DATA1_P |
— |
112 |
DISP_DATA0 |
3.3V |
P7_2/DISP_DATA0/USB0_OTG_EXICEN/MTIC5W |
Pixel data Red0 |
113 |
CSI_DN0 |
1.8V |
CSI_DATA0_N |
— |
114 |
DISP_DATA4 |
3.3V |
P9_0/DISP_DATA4/ADC_TRG/RSPI2_SSL/MTIOC2A |
Pixel data Red4 |
115 |
CSI_DP0 |
1.8V |
CSI_DATA0_P |
— |
116 |
DISP_DATA8 |
3.3V |
P11_0/DISP_DATA8/CAN0_RX/MTIOC6C/GTETRGC |
Pixel data Green0 |
117 |
CSI_DN2 |
1.8V |
CSI_DATA2_N |
— |
118 |
DISP_DATA2 |
3.3V |
P8_1/DISP_DATA2/USB1_OVRCUR/RSPI2_MOSI/RIIC3_SDA |
Pixel data Red2 |
119 |
CSI_DP2 |
1.8V |
CSI_DATA2_P |
— |
120 |
DISP_DATA6 |
3.3V |
P10_0/DISP_DATA6/CAN_CLK/MTIOC6A/GTETRGA |
Pixel data Red6 |
121 |
CSI_CKN |
1.8V |
CSI_CLKN |
— |
122 |
DISP_DATA9 |
3.3V |
P11_1/DISP_DATA9/CAN0_TX_DATARATE_EN/MTIOC6D/GTETRGD |
Pixel data Green1 |
123 |
CSI_CKP |
1.8V |
CSI_CLKP |
— |
124 |
DISP_DATA7 |
3.3V |
P10_1/DISP_DATA7/CAN0_TX/MTIOC6B/GTETRGB |
Pixel data Red7 |
125 |
DSI_DN2 |
1.8V |
DSI_DATA2_N |
— |
126 |
DISP_DATA10 |
3.3V |
P12_0/DISP_DATA10/CAN0_RX_DATARATE_EN/POE0_N/GTIOC7A |
Pixel data Green2 |
127 |
DSI_DP2 |
1.8V |
DSI_DATA2_P |
— |
128 |
DISP_DATA16 |
3.3V |
P14_1/DISP_DATA16/SSI1_RCK/SD1_WP/MTCLKB |
Pixel data Blue0 |
129 |
DSI_DN0 |
1.8V |
DSI_DATA0_N |
— |
130 |
DISP_DATA17 |
3.3V |
P15_0/DISP_DATA17/SSI1_TXD/GTIOC4A/MTCLKC |
Pixel data Blue1 |
131 |
DSI_DP0 |
1.8V |
DSI_DATA0_P |
— |
132 |
DISP_DATA11 |
3.3V |
P12_1/DISP_DATA11/CAN1_TX/POE4_N/GTIOC7B |
Pixel data Green3 |
133 |
DSI_CKP |
1.8V |
DSI_CLKP |
— |
134 |
DISP_DATA13 |
3.3V |
P13_1/DISP_DATA13/CAN1_TX_DATARATE_EN/POE10_N/IRQ1 |
Pixel data Green5 |
135 |
DSI_CKN |
1.8V |
DSI_CLKN |
— |
136 |
DISP_DATA18 |
3.3V |
P15_1/DISP_DATA18/SSI1_RXD/GTIOC4B/MTCLKD |
Pixel data Blue2 |
137 |
DSI_DN1 |
1.8V |
DSI_DATA1_N |
— |
138 |
DISP_DATA12 |
3.3V |
P13_0/DISP_DATA12/CAN1_RX/POE8_N/IRQ0 |
Pixel data Green4 |
139 |
DSI_DP1 |
1.8V |
DSI_DATA1_P |
— |
140 |
DISP_DATA20 |
3.3V |
P16_1/DISP_DATA20/SCIF2_RXD/GTIOC5B/IRQ4 |
Pixel data Blue4 |
141 |
DSI_DN3 |
1.8V |
DSI_DATA3_N |
— |
142 |
DISP_DATA21 |
3.3V |
P17_0/DISP_DATA21/SCIF2_SCK/GTIOC6A/IRQ5 |
Pixel data Blue5 |
143 |
DSI_DP3 |
1.8V |
DSI_DATA3_P |
— |
144 |
DISP_DATA22 |
3.3V |
P17_1/DISP_DATA22/SCIF2_CTS/GTIOC6B/IRQ6 |
Pixel data Blue6 |
145 |
ENET1_TX_CRS |
3.3V |
P33_0/ET1_TX_CRS/CAM_DATA4/GTIOC2A/SCIF2_TXD/GTIOC0A |
— |
146 |
DISP_DATA19 |
3.3V |
P16_0/DISP_DATA19/SCIF2_TXD/GTIOC5A/IRQ3 |
Pixel data Blue3 |
147 |
ENET1_TX_ERR |
3.3V |
P32_0/ET1_TX_ERR/CAM_DATA2/SCI1_SCK/MTIOC3A/SSI3_TXD |
— |
148 |
DISP_DATA23 |
3.3V |
P17_2/DISP_DATA23/SCIF2_RTS/IRQ7 |
Pixel data Blue7 |
149 |
ENET1_TX_COL |
3.3V |
P32_1/ET1_TX_COL/CAM_DATA3/SCI1_CTS_N_RTS_N/MTIOC3B/SSI3_RXD |
— |
150 |
DISP_DATA14 |
3.3V |
P13_2/DISP_DATA14/CAN1_RX_DATARATE_EN/IRQ7/IRQ2 |
Pixel data Green6 |
151 |
ENET1_TD0 |
3.3V |
P30_0/ET1_TXD0/CAM_VSYNC/SSI2_DATA |
— |
152 |
DISP_CLK |
3.3V |
P6_0/DISP_CLK/SSI0_BCK/USB0_VBUSEN/MTIOC1A |
Pixel clock |
153 |
ENET1_TXC |
3.3V |
P29_0/ET1_TXC_TX_CLK/CAM_PCLK/USB1_VBUSEN/SSI2_BCK |
— |
154 |
DISP_DATA15 |
3.3V |
P14_0/DISP_DATA15/SSI1_BCK/SD1_CD/MTCLKA |
Pixel data Green7 |
155 |
ENET1_TD2 |
3.3V |
P31_0/ET1_TXD2/CAM_DATA0/SCI1_RXD/SSI3_BCK |
— |
156 |
DISP_HSYNC |
3.3V |
P6_1/DISP_HSYNC/SSI0_RCK/MTIOC1B |
Horizontal sync pulse |
157 |
ENET1_TD1 |
3.3V |
P30_1/ET1_TXD1/CAM_DATA15 |
— |
158 |
DISP_VSYNC |
3.3V |
P7_0/DISP_VSYNC/SSI0_TXD/USB0_OVRCUR/MTIC5U |
Vertical sync pulse |
159 |
ENET1_TX_CTL |
3.3V |
P29_1/ET1_TX_CTL_TX_EN/CAM_HREF/USB1_OVRCUR/SSI2_RCK |
— |
160 |
DISP_DE |
3.3V |
P7_1/DISP_DE/SSI0_RXD/USB0_OTG_ID/MTIC5V |
Enable |
161 |
ENET1_TD3 |
3.3V |
P31_1/ET1_TXD3/CAM_DATA1/SCI1_TXD/SSI3_RCK |
— |
162 |
ADC_CH6 |
1.8V |
ADC_CH6 |
最大采样电压1.8V |
163 |
ENET1_MDIO |
3.3V |
P37_1/ET1_MDIO/CAM_DATA13/SCIF2_CTS/GTETRGD |
— |
164 |
ADC_CH3 |
1.8V |
ADC_CH3 |
最大采样电压1.8V |
165 |
ENET1_LINKSTA |
3.3V |
P37_2/ET1_LINKSTA/CAM_DATA14/SCIF2_RTS |
— |
166 |
ADC_CH4 |
1.8V |
ADC_CH4 |
最大采样电压1.8V |
167 |
ENET1_MDC |
3.3V |
P37_0/ET1_MDC/CAM_DATA12/SCIF2_SCK/GTETRGC |
— |
168 |
ADC_CH2 |
1.8V |
ADC_CH2 |
最大采样电压1.8V |
169 |
ENET1_RXC |
3.3V |
P33_1/ET1_RXC_RX_CLK/CAM_DATA5/GTIOC2B/SCIF2_RXD/GTIOC0B |
— |
170 |
ADC_CH0 |
1.8V |
ADC_CH0 |
最大采样电压1.8V |
171 |
ENET1_RX_ERR |
3.3V |
P36_1/ET1_RX_ERR/CAM_DATA11/SSI0_RXD/MTIOC3D/GTETRGB |
— |
172 |
ADC_CH1 |
1.8V |
ADC_CH1 |
最大采样电压1.8V |
173 |
ENET1_RX_CTL |
3.3V |
P34_0/ET1_RX_CTL_RX_DV/CAM_DATA6/GTIOC3A/MTIOC0A/GTIOC1A |
— |
174 |
ADC_CH5 |
1.8V |
ADC_CH5 |
最大采样电压1.8V |
175 |
ENET1_RD3 |
3.3V |
P36_0/ET1_RXD3/CAM_DATA10/SSI0_TXD/MTIOC3C/GTETRGA |
— |
176 |
ADC_CH7 |
1.8V |
ADC_CH7 |
最大采样电压1.8V |
177 |
ENET1_RD0 |
3.3V |
P34_1/ET1_RXD0/CAM_DATA7/GTIOC3B/MTIOC0B/GTIOC1B |
— |
178 |
I2C0_SDA |
3.3V |
I2C0_SDA |
内部上拉 |
179 |
ENET1_RD1 |
3.3V |
P35_0/ET1_RXD1/CAM_DATA8/SSI0_BCK/MTIOC0C/GTIOC2A |
— |
180 |
I2C0_SCL |
3.3V |
I2C0_SCL |
内部上拉 |
181 |
ENET1_RD2 |
3.3V |
P35_1/ET1_RXD2/CAM_DATA9/SSI0_RCK/MTIOC0D/GTIOC2B |
— |
182 |
I2C1_SDA |
3.3V |
I2C1_SDA |
内部上拉 |
183 |
GND |
0V |
地 |
|
184 |
I2C1_SCL |
3.3V |
I2C1_SCL |
内部上拉 |
185 |
UART2_RTS |
3.3V |
P48_4/SCIF2_RTS/ADC_TRG |
— |
186 |
SPI1_SSL |
3.3V |
P44_3/RSPI1_SSL/SSI1_RXD/CAN1_RX_DATARATE_EN/MTIOC3D/GTIOC7B |
— |
187 |
UART2_RXD |
3.3V |
P48_1/SCIF2_RXD/RSPI1_MOSI/RIIC2_SCL/MTCLKB |
— |
188 |
SPI1_MISO |
3.3V |
P44_2/RSPI1_MISO/SSI1_TXD/CAN1_TX_DATARATE_EN/MTIOC3C/GTIOC7A |
— |
189 |
UART2_TXD |
3.3V |
P48_0/SCIF2_TXD/RSPI1_CK/RIIC2_SDA/MTCLKA |
— |
190 |
SPI1_MOSI |
3.3V |
P44_1/RSPI1_MOSI/SSI1_RCK/CAN1_RX/MTIOC3B/GTIOC6B |
— |
191 |
UART2_CTS |
3.3V |
P48_3/SCIF2_CTS/RSPI1_SSL/RIIC3_SCL/MTCLKD |
— |
192 |
SPI1_CLK |
3.3V |
P44_0/RSPI1_CK/SSI1_BCK/CAN1_TX/MTIOC3A/GTIOC6A |
— |
193 |
GPIO47_3 |
3.3V |
P47_3/SCI0_CTS_N_RTS_N/SD1_WP/IRQ3/SSI1_RXD/RSPI0_SSL |
— |
194 |
SPI0_SSL |
3.3V |
P43_3/RSPI0_SSL/GTIOC5B/IRQ7/MTIOC8D |
— |
195 |
GPIO47_2 |
3.3V |
47_2/SCI0_SCK/SD1_CD/IRQ2/SSI1_TXD/RSPI0_MISO |
— |
196 |
SPI0_MISO |
3.3V |
P43_2/RSPI0_MISO/GTIOC5A/IRQ6/MTIOC8C |
— |
197 |
GPIO47_0 |
3.3V |
P47_0/SCI0_RXD/SD0_CD/IRQ0/SSI1_BCK/RSPI0_CK |
— |
198 |
SPI0_MOSI |
3.3V |
P43_1/RSPI0_MOSI/GTIOC4B/GTIOC6B/IRQ5/MTIOC8B |
— |
199 |
GPIO47_1 |
3.3V |
P47_1/SCI0_TXD/SD0_WP/IRQ1/SSI1_RCK/RSPI0_MOS |
— |
200 |
SPI0_CLK |
3.3V |
P43_0/RSPI0_CK/GTIOC4A/GTIOC6A/IRQ4/MTIOC8A |
— |
