MYZR-IMX6-CB314 硬件介绍
视图

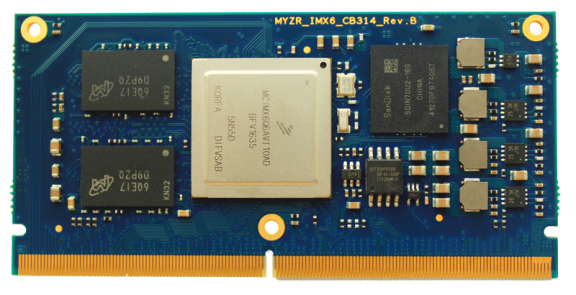

正面

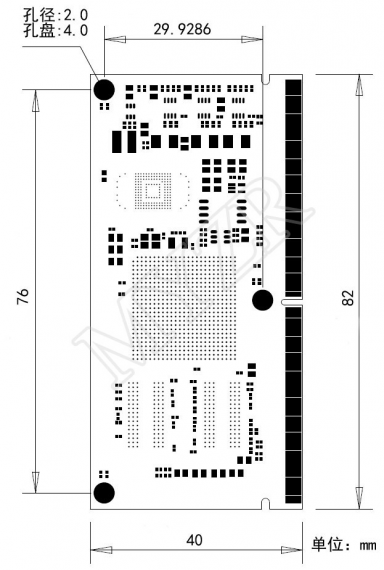

尺寸
参数
硬件配置
核心板主型号 |
CPU |
内存容量 |
存储容量 |
启动方式 |
烧录方式 |
其它 |
|---|---|---|---|---|---|---|
MYZR-IMX6-CB200 |
i.MX 6QP |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
i.MX 6Q |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
|
i.MX 6U |
1G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
|
i.MX 6S |
512M / 1G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存512M，存储4G |
|
MYZR-IMX6-CB314 |
i.MX 6QP |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
i.MX 6Q |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
|
i.MX 6U |
1G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
|
MYZR-IMX6-CB336 |
i.MX 6QP |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
i.MX 6Q |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
|
说明：以上系列核心板均可供应 汽车级/工业控制级/消费电子级 规格。标配为 消费电子级。 |
||||||
温度范围
工作环境温度
商业级：
工业级：
汽车级：
存储温度

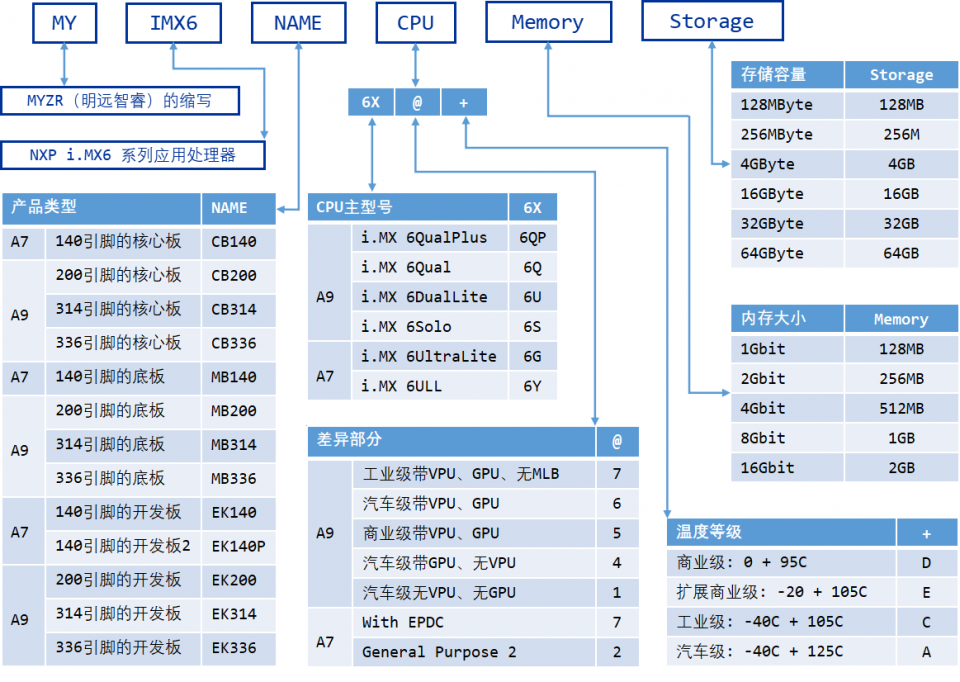

型号命令规则
型号举例
MYZR-IMX6-CB314-6Q5E-1G-4G
操作系统支持
操作系统及版本 |
MYZR-IMX6-EK200 |
MYZR-IMX6-EK314 |
MYZR-IMX6-EK336 |
MYZR-IMX6-EK140 |
|
|---|---|---|---|---|---|
Linux |
Linux-3.0.35 |
YES |
YES |
– |
– |
Linux |
Linux-3.14.52 |
YES |
YES |
– |
– |
Linux |
Linux-4.1.15 |
YES |
YES |
YES |
YES |
Android |
Android 4.2.2 |
YES |
– |
– |
– |
Android |
Android 4.4.2 |
YES |
YES |
– |
– |
Android |
Android-5.1.1 |
YES |
YES |
YES |
– |
QT |
QT-4.8.5 |
YES |
YES |
– |
YES |
QT |
QT-5.5.0 |
YES |
YES |
YES |
– |
Ubuntu |
Ubuntu 11.10 |
YES |
YES |
– |
– |
Ubuntu |
Ubuntu 12.04 |
YES |
YES |
– |
– |
硬件接口
接口规格 |
最大可配置接口数 |
描述 |
|
|---|---|---|---|
通讯接口 |
Ethernet |
1 |
1路10/100/1000Mbps以太网 |
USB |
2 |
1路USB2.0 HOST, 1路OTG接口，最高速率480M |
|
UART |
5 |
5路UART,每路高达4.0Mbps |
|
PCIe |
1 |
1路PCIe Gen2.0 |
|
I2C |
3 |
3路I2C,最高支持400 kbps |
|
SPI |
2 |
2路eCSPI,每个高达52Mbps |
|
FlexCan |
2 |
2路CAN2.0,最高速率1 Mb/sec |
|
EIM |
1 |
1路16bit总线扩展 |
|
PWM |
4 |
4路16位计数器，4x16 FIFO |
|
外部存储接口 |
SATA |
1 |
SATA II, 3.0 Gbps（Only IMX6Q） |
SD3.0/SDIO |
3 |
eMMC版本4.4,SD/SDIO版本3.0 |
|
多媒体 |
DSI-MIPI |
1 |
1路2通道MIPI显示接口，高达1.5Gbps |
LVDS |
2 |
“2路8bit模式，每路最高到85 Mpixels/s，分辨率1366X768 合成一路可以达到165 Mpixels/s” |
|
RGB |
1 |
支持 8/16/18/24位显示，最大分辨率1366x768 |
|
HDMI |
1 |
1路HDMI1.4，1920X1080@60Hz |
|
DVP |
1 |
1路8bit并口的摄像头接口 |
|
CSI-MIPI |
1 |
1路2通道MIPI摄像头接口，高达1Gbps |
|
SSI |
1 |
1路 I2S/AC97,速率高达1.4 Mbps |
|
S/PDIF |
1 |
1路S/PDIF立体声收发器，支持收发 |
|
供电电源
默认显示选择
LVDS0
LVDS1
RGB
HDMI
管脚定义
标号 |
管脚名称 |
电压 |
标号 |
管脚名称 |
电压 |
|---|---|---|---|---|---|
P1 |
GND |
0V |
S1 |
GND |
0V |
P2 |
GND |
0V |
S2 |
GND |
0V |
P3 |
GND |
0V |
S3 |
CSI0_PIXCLK |
2.5V |
P4 |
UART1_RX |
2.5V |
S4 |
CSI0_VSYNCH |
2.5V |
P5 |
UART1_TX |
2.5V |
S5 |
CSI0_DAT12 |
2.5V |
P6 |
AUD3_TXC |
2.5V |
S6 |
CSI0_DAT13 |
2.5V |
P7 |
AUD3_TXD |
2.5V |
S7 |
CSI0_DAT19 |
2.5V |
P8 |
GPIO_0_CLKO |
3.3V |
S8 |
CSI0_DATA_EN |
2.5V |
P9 |
AUD3_RXD |
2.5V |
S9 |
CSI0_DAT17 |
2.5V |
P10 |
AUD3_TXFS |
2.5V |
S10 |
CSI0_DAT16 |
2.5V |
P11 |
UART5_RXD |
3.3V |
S11 |
CSI0_DAT14 |
2.5V |
P12 |
UART5_TXD |
3.3V |
S12 |
CSI0_DAT18 |
2.5V |
P13 |
GND |
0V |
S13 |
CSI0_DAT15 |
2.5V |
P14 |
GND |
0V |
S14 |
CSI0_HSYNCH |
2.5V |
P15 |
LVDSO_TX1_N |
2.5V |
S15 |
GND |
0V |
P16 |
LVDSO_TX1_P |
2.5V |
S16 |
GND |
0V |
P17 |
GND |
0V |
S17 |
CAN1_TX |
3.3V |
P18 |
LVDSO_TX2_N |
2.5V |
S18 |
CAN1_RX |
3.3V |
P19 |
LVDSO_TX2_P |
2.5V |
S19 |
GND |
0V |
P20 |
GND |
0V |
S20 |
I2C2_SDA |
3.3V |
P21 |
LVDSO_TX0_N |
2.5V |
S21 |
I2C2_SCL |
3.3V |
P22 |
LVDSO_TX0_P |
2.5V |
S22 |
GND |
0V |
P23 |
GND |
0V |
S23 |
I2C3_SDA |
3.3V |
P24 |
LVDSO_TX3_N |
2.5V |
S24 |
I2C3_SCL |
3.3V |
P25 |
LVDSO_TX3_P |
2.5V |
S25 |
GND |
0V |
P26 |
GND |
0V |
S26 |
UART4_RXD |
3.3V |
P27 |
LVDSO_CLK_N |
2.5V |
S27 |
UART4_TXD |
3.3V |
P28 |
LVDSO_CLK_P |
2.5V |
S28 |
GND |
0V |
P29 |
GND |
0V |
S29 |
CAN2_TX |
3.3V |
P30 |
DISP0_DAT18 |
3.3V |
S30 |
CAN2_RX |
3.3V |
P31 |
DISP0_DAT22 |
3.3V |
S31 |
GND |
0V |
P32 |
DISP0_DAT14 |
3.3V |
S32 |
KEY_COL2 |
3.3V |
P33 |
DISP0_DAT17 |
3.3V |
S33 |
GND |
0V |
P34 |
DISP0_DAT9 |
3.3V |
S34 |
LVDS1_TX1_P |
2.5V |
P35 |
DISP0_DAT12 |
3.3V |
S35 |
LVDS1_TX1_N |
2.5V |
P36 |
DISP0_DAT5 |
3.3V |
S36 |
GND |
0V |
P37 |
DISP0_DAT7 |
3.3V |
S37 |
LVDS1_TX0_P |
2.5V |
P38 |
DISP0_CNTRST |
3.3V |
S38 |
LVDS1_TX0_N |
2.5V |
P39 |
DISP0_DAT0 |
3.3V |
S39 |
GND |
0V |
P40 |
DISP0_HSYNCH |
3.3V |
S40 |
LVDS1_CLK_N |
2.5V |
P41 |
DISP0_DAT13 |
3.3V |
S41 |
LVDS1_CLK_P |
2.5V |
P42 |
DISP0_DAT16 |
3.3V |
S42 |
GND |
0V |
P43 |
DISP0_DAT21 |
3.3V |
S43 |
LVDS1_TX2_N |
2.5V |
P44 |
DISP0_DAT20 |
3.3V |
S44 |
LVDS1_TX2_P |
2.5V |
P45 |
DISP0_DAT23 |
3.3V |
S45 |
GND |
0V |
P46 |
DISP0_DAT10 |
3.3V |
S46 |
LVDS1_TX3_P |
2.5V |
P47 |
DISP0_DAT11 |
3.3V |
S47 |
LVDS1_TX3_N |
2.5V |
P48 |
DISP0_DAT19 |
3.3V |
S48 |
GND |
0V |
P49 |
DISP0_DAT15 |
3.3V |
S49 |
EIM_DA15 |
3.3V |
P50 |
DISP0_DAT8 |
3.3V |
S50 |
EIM_WAIT |
3.3V |
P51 |
DISP0_DAT6 |
3.3V |
S51 |
CSPI2_CS0 |
3.3V |
P52 |
DISP0_DAT4 |
3.3V |
S52 |
EIM_DA2 |
3.3V |
P53 |
DISP0_DAT2 |
3.3V |
S53 |
EIM_DA10 |
3.3V |
P54 |
DISP0_DAT1 |
3.3V |
S54 |
EIM_EB0 |
3.3V |
P55 |
DISP0_DAT3 |
3.3V |
S55 |
EIM_DA4 |
3.3V |
P56 |
DISP0_DRDY |
3.3V |
S56 |
EIM_EB1 |
3.3V |
P57 |
DISP0_VSYNCH |
3.3V |
S57 |
CSPI2_CS1 |
3.3V |
P58 |
DISP0_CLK |
3.3V |
S58 |
CSPI2_MOSI |
3.3V |
P59 |
GND |
0V |
S59 |
CSPI2_CLK |
3.3V |
P60 |
UART2_CTS |
3.3V |
S60 |
EIM_DA12 |
3.3V |
P61 |
UART2_RTS |
3.3V |
S61 |
EIM_DA7 |
3.3V |
P62 |
UART2_RXD |
3.3V |
S62 |
EIM_DA8 |
3.3V |
P63 |
UART2_TXD |
3.3V |
S63 |
EIM_DA3 |
3.3V |
P64 |
UART3_RTS |
3.3V |
S64 |
EIM_DA6 |
3.3V |
P65 |
UART3_RXD |
3.3V |
S65 |
EIM_DA1 |
3.3V |
P66 |
UART3_TXD |
3.3V |
S66 |
EIM_DA11 |
3.3V |
P67 |
UART3_CTS |
3.3V |
S67 |
CSPI2_MISO |
3.3V |
P68 |
GND |
0V |
S68 |
EIM_DA14 |
3.3V |
P69 |
SD1_DAT3 |
3.3V |
S69 |
EIM_DA13 |
3.3V |
P70 |
SD1_DAT2 |
3.3V |
S70 |
EIM_BCLK |
3.3V |
P71 |
SD1_CLK |
3.3V |
S71 |
EIM_DA5 |
3.3V |
P72 |
SD1_DAT1 |
3.3V |
S72 |
EIM_DA9 |
3.3V |
P73 |
SD1_CMD |
3.3V |
S73 |
EIM_DA0 |
3.3V |
P74 |
SD1_DAT0 |
3.3V |
S74 |
CSPI2_RDY |
3.3V |
P75 |
GND |
0V |
S75 |
EIM_EB3 |
3.3V |
P76 |
RGMII_INT |
2.5V |
S76 |
GND |
0V |
P77 |
RGMII_MDIO |
2.5V |
S77 |
USB_OTG_OC |
3.3V |
P78 |
RGMII_REF_CLK |
2.5V |
S78 |
USB_OTG_PWR_EN |
3.3V |
P79 |
RGMII_nRST |
2.5V |
S79 |
GND |
0V |
P80 |
RGMII_MDC |
2.5V |
S80 |
SD2_DATA1 |
3.3V |
P81 |
RGMII_TD2 |
2.5V |
S81 |
SD2_CMD |
3.3V |
P82 |
RGMII_TD1 |
2.5V |
S82 |
SD2_DATA2 |
3.3V |
P83 |
RGMII_RD3 |
2.5V |
S83 |
SD2_DATA3 |
3.3V |
P84 |
RGMII_RX_CTL |
2.5V |
S84 |
SD2_DATA0 |
3.3V |
P85 |
RGMII_TX_CTL |
2.5V |
S85 |
SD2_CLK |
3.3V |
P86 |
RGMII_TXC |
2.5V |
S86 |
GPIO1_24 |
3.3V |
P87 |
RGMII_RD1 |
2.5V |
S87 |
GPIO1_26 |
3.3V |
P88 |
RGMII_TD0 |
2.5V |
S88 |
GPIO1_30 |
3.3V |
P89 |
RGMII_RD0 |
2.5V |
S89 |
GPIO1_27 |
3.3V |
P90 |
RGMII_RXC |
2.5V |
S90 |
GPIO1_29 |
3.3V |
P91 |
RGMII_RD2 |
2.5V |
S91 |
MX6_ONOFF |
3.3V |
P92 |
RGMII_TD3 |
2.5V |
S92 |
BOOT_MODE1 |
3.3V |
P93 |
GND |
0V |
S93 |
BOOT_MODE0 |
3.3V |
P94 |
SATA_RXN |
2.5V |
S94 |
GPIO2_5 |
3.3V |
P95 |
SATA_RXP |
2.5V |
S95 |
GPIO2_4 |
3.3V |
P96 |
GND |
0V |
S96 |
GPIO2_0 |
3.3V |
P97 |
SATA_TXN |
2.5V |
S97 |
GPIO2_2 |
3.3V |
P98 |
SATA_TXP |
2.5V |
S98 |
GPIO6_11 |
3.3V |
P99 |
GND |
0V |
S99 |
GPIO6_9 |
3.3V |
P100 |
USB_HOST_DP |
5V |
S100 |
GPIO2_6 |
3.3V |
P101 |
USB_HOST_DN |
5V |
S101 |
GPIO2_3 |
3.3V |
P102 |
GND |
0V |
S102 |
GPIO2_7 |
3.3V |
P103 |
USB_OTG_VBUS |
5V |
S103 |
GPIO6_16 |
3.3V |
P104 |
USB_H1_VBUS |
5V |
S104 |
GPIO2_1 |
3.3V |
P105 |
USB_H1_OC |
3.3V |
S105 |
GPIO6_7 |
3.3V |
P106 |
USB_OTG_ID |
3.3V |
S106 |
GPIO6_14 |
3.3V |
P107 |
USB_H1_PWR_EN |
3.3V |
S107 |
GPIO6_8 |
3.3V |
P108 |
GND |
0V |
S108 |
GPIO6_10 |
3.3V |
P109 |
USB_OTG_DP |
5V |
S109 |
GPIO6_15 |
3.3V |
P110 |
USB_OTG_DN |
5V |
S110 |
CSPI1_CS0 |
3.3V |
P111 |
GND |
0V |
S111 |
CSPI1_MOSI |
3.3V |
P112 |
CLK1_N |
2.5V |
S112 |
CSPI1_CLK |
3.3V |
P113 |
CLK1_P |
2.5V |
S113 |
CSPI1_RDY |
3.3V |
P114 |
GND |
0V |
S114 |
CSPI1_MISO |
3.3V |
P115 |
PCIE_TXM |
2.5V |
S115 |
GND |
0V |
P116 |
PCIE_TXP |
2.5V |
S116 |
SD3_DATA2 |
3.3V |
P117 |
GND |
0V |
S117 |
SD3_CLK |
3.3V |
P118 |
PCIE_RXP |
2.5V |
S118 |
SD3_DATA3 |
3.3V |
P119 |
PCIE_RXM |
2.5V |
S119 |
SD3_RST |
3.3V |
P120 |
GND |
0V |
S120 |
SD3_DATA0 |
3.3V |
P121 |
CSI_D1P |
2.5V |
S121 |
SD3_DATA1 |
3.3V |
P122 |
CSI_D1M |
2.5V |
S122 |
SD3_CMD |
3.3V |
P123 |
GND |
0V |
S123 |
SD3_DATA6 |
3.3V |
P124 |
CSI_D0M |
2.5V |
S124 |
SD3_DATA7 |
3.3V |
P125 |
CSI_D0P |
2.5V |
S125 |
SD3_DATA5 |
3.3V |
P126 |
GND |
0V |
S126 |
SD3_DATA4 |
3.3V |
P127 |
CSI_CLK0P |
2.5V |
S127 |
GND |
0V |
P128 |
CSI_CLK0M |
2.5V |
S128 |
JTAG_TDO |
3.3V |
P129 |
GND |
0V |
S129 |
JTAG_TCK |
3.3V |
P130 |
DSI_REXT |
2.5V |
S130 |
JTAG_TDI |
3.3V |
P131 |
GND |
0V |
S131 |
JTAG_TMS |
3.3V |
P132 |
DSI_D0P |
2.5V |
S132 |
nJTAG_TRST |
3.3V |
P133 |
DSI_D0M |
2.5V |
S133 |
GND |
0V |
P134 |
GND |
0V |
S134 |
HDMI_CLKP |
2.5V |
P135 |
DSI_D1P |
2.5V |
S135 |
HDMI_CLKM |
2.5V |
P136 |
DSI_D1M |
2.5V |
S136 |
GND |
0V |
P137 |
GND |
0V |
S137 |
HDMI_D1P |
2.5V |
P138 |
DSI_CLK0M |
2.5V |
S138 |
HDMI_D1M |
2.5V |
P139 |
DSI_CLK0P |
2.5V |
S139 |
GND |
0V |
P140 |
GND |
0V |
S140 |
HDMI_D2P |
2.5V |
P141 |
I2C1_SDA |
2.5V |
S141 |
HDMI_D2M |
2.5V |
P142 |
I2C1_SCL |
2.5V |
S142 |
GND |
0V |
P143 |
GPIO1_4 |
3.3V |
S143 |
HDMI_D0M |
2.5V |
P144 |
GPIO7_13 |
3.3V |
S144 |
HDMI_D0P |
2.5V |
P145 |
GPIO7_12 |
3.3V |
S145 |
GND |
0V |
P146 |
GPIO1_5 |
3.3V |
S146 |
HDMI_HPD |
2.5V |
P147 |
GPIO7_11 |
3.3V |
S147 |
HDMI_CEC_IN |
2.5V |
P148 |
nRESET |
3.3V |
S148 |
GND |
0V |
P149 |
2P5V |
2.5V |
S149 |
3P3V |
3.3V |
P150 |
2P5V |
2.5V |
S150 |
3P3V |
3.3V |
P151 |
GND |
0V |
S151 |
3P3V |
3.3V |
P152 |
GND |
0V |
S152 |
3P3V |
3.3V |
P153 |
GND |
0V |
S153 |
5VIN |
5V |
P154 |
GND |
0V |
S154 |
5VIN |
5V |
P155 |
GND |
0V |
S155 |
5VIN |
5V |
P156 |
GND |
0V |
S156 |
5VIN |
5V |
S157 |
5VIN |
5V |
|||
S158 |
5VIN |
5V |
管脚定义&详细功能说明
表 1
标号 |
管脚名称 |
CPU Ball Name |
功能描述 |
管脚电压 |
|---|---|---|---|---|
P1 |
GND |
— |
— |
— |
P2 |
||||
P3 |
||||
P4 |
UART1_RX |
M3 |
IPU1_CSI0_DATA11 |
2.5V |
AUD3_RXFS |
||||
ECSPI2_SS0 |
||||
UART1_RX_DATA |
||||
GPIO5_IO29 |
||||
ARM_TRACE08 |
||||
91 |
UART1_TX |
M1 |
IPU1_CSI0_DATA10 |
2.5V |
AUD3_RXC |
||||
ECSPI2_MISO |
||||
UART1_TX_DATA |
||||
GPIO5_IO28 |
||||
ARM_TRACE07 |
||||
P6 |
AUD3_TXC |
N1 |
IPU1_CSI0_DATA04 |
2.5V |
EIM_DATA02 |
||||
ECSPI1_SCLK |
||||
KEY_COL5 |
||||
AUD3_TXC |
||||
GPIO5_IO22 |
||||
ARM_TRACE01 |
||||
P7 |
AUD3_TXD |
P2 |
IPU1_CSI0_DATA05 |
2.5V |
EIM_DATA03 |
||||
ECSPI1_MOSI |
||||
KEY_ROW5 |
||||
AUD3_TXD |
||||
GPIO5_IO23 |
||||
ARM_TRACE02 |
||||
P8 |
GPIO_0_CLKO |
T5 |
CCM_CLKO1 |
3.3V |
KEY_COL5 |
||||
ASRC_EXT_CLK |
||||
EPIT1_OUT |
||||
GPIO1_IO00 |
||||
USB_H1_PWR |
||||
SNVS_VIO_5 |
||||
P9 |
AUD3_RXD |
N3 |
IPU1_CSI0_DATA07 |
2.5V |
EIM_DATA05 |
||||
ECSPI1_SS0 |
||||
KEY_ROW6 |
||||
AUD3_RXD |
||||
GPIO5_IO25 |
||||
ARM_TRACE04 |
||||
P10 |
AUD3_TXFS |
N4 |
IPU1_CSI0_DATA06 |
2.5V |
EIM_DATA04 |
||||
ECSPI1_MISO |
||||
KEY_COL6 |
||||
AUD3_TXFS |
||||
GPIO5_IO24 |
||||
ARM_TRACE03 |
||||
P11 |
UART5_RXD |
U6 |
ECSPI1_SS0 |
3.3V |
ENET_COL |
||||
AUD5_RXD |
||||
KEY_ROW1 |
||||
UART5_RX_DATA |
||||
GPIO4_IO09 |
||||
SD2_VSELECT |
||||
P12 |
UART5_TXD |
U7 |
ECSPI1_MISO |
3.3V |
ENET_MDIO |
||||
AUD5_TXFS |
||||
KEY_COL1 |
||||
UART5_TX_DATA |
||||
GPIO4_IO08 |
||||
SD1_VSELECT |
||||
P13 |
GND |
— |
— |
— |
P14 |
||||
P15 |
LVDS0_TX1_N |
U4 |
LVDS0_DATA1_N |
2.5V |
P16 |
LVDS0_TX1_P |
U3 |
LVDS0_DATA1_P |
2.5V |
P17 |
GND |
— |
— |
— |
P18 |
LVDS0_TX2_N |
V2 |
LVDS0_DATA2_N |
2.5V |
P19 |
LVDS0_TX2_P |
V1 |
LVDS0_DATA2_P |
2.5V |
P20 |
GND |
— |
— |
— |
P21 |
LVDS0_TX0_N |
U2 |
LVDS0_DATA0_N |
2.5V |
P22 |
LVDS0_TX0_P |
U1 |
LVDS0_DATA0_P |
2.5V |
P23 |
GND |
— |
— |
— |
P24 |
LVDS0_TX3_N |
W2 |
LVDS0_DATA3_N |
2.5V |
P25 |
LVDS0_TX3_P |
W1 |
LVDS0_DATA3_P |
2.5V |
P26 |
GND |
— |
— |
— |
P27 |
LVDS0_CLK_N |
V4 |
LVDS0_CLK_N |
2.5V |
P28 |
LVDS0_CLK_P |
V3 |
LVDS0_CLK_P |
2.5V |
P29 |
GND |
— |
— |
— |
P30 |
DISP0_DAT18 |
V25 |
IPU1_DISP0_DATA18 |
3.3V |
IPU2_DISP0_DATA18 |
||||
ECSPI2_SS0 |
||||
AUD5_TXFS |
||||
AUD4_RXFS |
||||
GPIO5_IO12 |
||||
EIM_CS2_B |
||||
P31 |
DISP0_DAT22 |
V24 |
IPU1_DISP0_DATA22 |
3.3V |
IPU2_DISP0_DATA22 |
||||
ECSPI1_MISO |
||||
AUD4_TXFS |
||||
GPIO5_IO16 |
||||
P32 |
DISP0_DAT14 |
U25 |
IPU1_DISP0_DATA14 |
3.3V |
IPU2_DISP0_DATA14 |
||||
AUD5_RXC |
||||
GPIO5_IO08 |
||||
P33 |
DISP0_DAT17 |
U24 |
IPU1_DISP0_DATA17 |
3.3V |
IPU2_DISP0_DATA17 |
||||
ECSPI2_MISO |
||||
AUD5_TXD |
||||
SDMA_EXT_EVENT1 |
||||
GPIO5_IO11 |
||||
P34 |
DISP0_DAT9 |
T25 |
IPU1_DISP0_DATA09 |
3.3V |
IPU2_DISP0_DATA09 |
||||
PWM2_OUT |
||||
WDOG2_B |
||||
GPIO4_IO30 |
||||
P35 |
DISP0_DAT12 |
T24 |
IPU1_DISP0_DATA12 |
3.3V |
IPU2_DISP0_DATA12 |
||||
GPIO5_IO06 |
||||
P36 |
DISP0_DAT5 |
R25 |
IPU1_DISP0_DATA05 |
3.3V |
DISP0_DATA05 |
||||
ECSPI3_SS2 |
||||
AUD6_RXFS |
||||
GPIO4_IO26 |
||||
P37 |
DISP0_DAT7 |
R24 |
IPU1_DISP0_DATA07 |
3.3V |
IPU2_DISP0_DATA07 |
||||
ECSPI3_RDY |
||||
GPIO4_IO28 |
||||
P38 |
DISP0_CNTRST |
P25 |
IPU1_DI0_PIN04 |
3.3V |
IPU2_DI0_PIN04 |
||||
AUD6_RXD |
||||
SD1_WP |
||||
GPIO4_IO20 |
||||
P39 |
DISP0_DAT0 |
P24 |
IPU1_DISP0_DATA00 |
3.3V |
IPU2_DISP0_DATA00 |
||||
ECSPI3_SCLK |
||||
GPIO4_IO21 |
||||
P40 |
DISP0_HSYNCH |
N25 |
IPU1_DI0_PIN02 |
3.3V |
IPU2_DI0_PIN02 |
||||
AUD6_TXD |
||||
GPIO4_IO18 |
||||
P41 |
DISP0_DAT13 |
R20 |
IPU1_DISP0_DATA13 |
3.3V |
IPU2_DISP0_DATA13 |
||||
AUD5_RXFS |
||||
GPIO5_IO07 |
||||
P42 |
DISP0_DAT16 |
T21 |
IPU1_DISP0_DATA16 |
3.3V |
IPU2_DISP0_DATA16 |
||||
ECSPI2_MOSI |
||||
AUD5_TXC |
||||
SDMA_EXT_EVENT0 |
||||
GPIO5_IO10 |
||||
P43 |
DISP0_DAT21 |
T20 |
IPU1_DISP0_DATA21 |
3.3V |
IPU2_DISP0_DATA21 |
||||
ECSPI1_MOSI |
||||
AUD4_TXD |
||||
GPIO5_IO15 |
||||
P44 |
DISP0_DAT20 |
U22 |
IPU1_DISP0_DATA20 |
3.3V |
IPU2_DISP0_DATA20 |
||||
ECSPI1_SCLK |
||||
AUD4_TXC |
||||
GPIO5_IO14 |
||||
P45 |
DISP0_DAT23 |
W24 |
IPU1_DISP0_DATA23 |
3.3V |
IPU2_DISP0_DATA23 |
||||
ECSPI1_SS0 |
||||
AUD4_RXD |
||||
GPIO5_IO17 |
||||
P46 |
DISP0_DAT10 |
R21 |
IPU1_DISP0_DATA10 |
3.3V |
IPU2_DISP0_DATA10 |
||||
GPIO4_IO31 |
||||
P47 |
DISP0_DAT11 |
T23 |
IPU1_DISP0_DATA11 |
3.3V |
IPU2_DISP0_DATA11 |
||||
GPIO5_IO05 |
||||
P48 |
DISP0_DAT19 |
U23 |
IPU1_DISP0_DATA19 |
3.3V |
IPU2_DISP0_DATA19 |
||||
ECSPI2_SCLK |
||||
AUD5_RXD |
||||
AUD4_RXC |
||||
GPIO5_IO13 |
||||
EIM_CS3_B |
||||
P49 |
DISP0_DAT15 |
T22 |
IPU1_DISP0_DATA15 |
3.3V |
IPU2_DISP0_DATA15 |
||||
ECSPI1_SS1 |
||||
ECSPI2_SS1 |
||||
GPIO5_IO09 |
||||
P50 |
DISP0_DAT8 |
R22 |
IPU1_DISP0_DATA08 |
3.3V |
IPU2_DISP0_DATA08 |
||||
PWM1_OUT |
||||
WDOG1_B |
||||
GPIO4_IO29 |
||||
P51 |
DISP0_DAT6 |
R23 |
IPU1_DISP0_DATA06 |
3.3V |
IPU2_DISP0_DATA06 |
||||
ECSPI3_SS3 |
||||
AUD6_RXC |
||||
GPIO4_IO27 |
||||
P52 |
DISP0_DAT4 |
P20 |
IPU1_DISP0_DATA04 |
3.3V |
IPU2_DISP0_DATA04 |
||||
ECSPI3_SS1 |
||||
GPIO4_IO25 |
||||
P53 |
DISP0_DAT2 |
P23 |
IPU1_DISP0_DATA02 |
3.3V |
IPU2_DISP0_DATA02 |
||||
ECSPI3_MISO |
||||
GPIO4_IO23 |
||||
P54 |
DISP0_DAT1 |
P22 |
IPU1_DISP0_DATA01 |
3.3V |
IPU2_DISP0_DATA01 |
||||
ECSPI3_MOSI |
||||
GPIO4_IO22 |
||||
P55 |
DISP0_DAT3 |
P21 |
IPU1_DISP0_DATA03 |
3.3V |
IPU2_DISP0_DATA03 |
||||
ECSPI3_SS0 |
||||
GPIO4_IO24 |
||||
P56 |
DISP0_DRDY |
N21 |
IPU1_DI0_PIN15 |
3.3V |
IPU2_DI0_PIN15 |
||||
AUD6_TXC |
||||
GPIO4_IO17 |
||||
P57 |
DISP0_VSYNCH |
N20 |
IPU1_DI0_PIN03 |
3.3V |
IPU2_DI0_PIN03 |
||||
AUD6_TXFS |
||||
GPIO4_IO19 |
||||
P58 |
DISP0_CLK |
N19 |
IPU1_DI0_DISP_CLK |
3.3V |
IPU2_DI0_DISP_CLK |
||||
GPIO4_IO16 |
||||
P59 |
GND |
— |
— |
— |
P60 |
UART2_CTS |
G23 |
EIM_DATA28 |
3.3V |
I2C1_SDA |
||||
ECSPI4_MOSI |
||||
IPU2_CSI1_DATA12 |
||||
UART2_CTS_B |
||||
GPIO3_IO28 |
||||
IPU1_EXT_TRIG |
||||
IPU1_DI0_PIN13 |
||||
P61 |
UART2_RTS |
J19 |
EIM_DATA29 |
3.3V |
IPU1_DI1_PIN15 |
||||
ECSPI4_SS0 |
||||
UART2_RTS_B |
||||
GPIO3_IO29 |
||||
IPU2_CSI1_VSYNC |
||||
IPU1_DI0_PIN14 |
||||
P62 |
UART2_RXD |
E25 |
EIM_DATA27 |
3.3V |
IPU1_DI1_PIN13 |
||||
IPU1_CSI0_DATA00 |
||||
IPU2_CSI1_DATA13 |
||||
UART2_RX_DATA |
||||
GPIO3_IO27 |
||||
IPU1_SISG3 |
||||
IPU1_DISP1_DATA23 |
||||
P63 |
UART2_TXD |
E24 |
EIM_DATA26 |
3.3V |
IPU1_DI1_PIN11 |
||||
IPU1_CSI0_DATA01 |
||||
IPU2_CSI1_DATA14 |
||||
UART2_TX_DATA |
||||
UART2_TX_DATA |
||||
IPU1_SISG2 |
||||
IPU1_DISP1_DATA22 |
||||
P64 |
UART3_RTS |
H21 |
EIM_DATA31 |
3.3V |
IPU1_DISP1_DATA20 |
||||
IPU1_DI0_PIN12 |
||||
IPU1_CSI0_DATA02 |
||||
UART3_RTS_B |
||||
GPIO3_IO31 |
||||
USB_H1_PWR |
||||
P65 |
UART3_RXD |
G22 |
EIM_DATA25 |
3.3V |
ECSPI4_SS3 |
||||
UART3_RX_DA |
||||
ECSPI1_SS3 |
||||
ECSPI2_SS3 |
||||
GPIO3_IO25 |
||||
AUD5_RXC |
||||
UART1_DSR_B |
||||
P66 |
UART3_TXD |
F22 |
EIM_DATA24 |
3.3V |
ECSPI4_SS2 |
||||
UART3_TX_DATA |
||||
ECSPI1_SS2 |
||||
ECSPI2_SS2 |
||||
GPIO3_IO24 |
||||
AUD5_RXFS |
||||
UART1_DTR_B |
||||
P67 |
UART3_CTS |
D25 |
EIM_DATA23 |
3.3V |
IPU1_DI0_D0_CS |
||||
UART3_CTS_B |
||||
UART1_DCD_B |
||||
IPU2_CSI1_DATA_EN |
||||
GPIO3_IO23 |
||||
IPU1_DI1_PIN02 |
||||
IPU1_DI1_PIN14 |
||||
P68 |
GND |
— |
— |
— |
P69 |
SD1_DATA3 |
F18 |
SD1_DATA3 |
3.3V |
ECSPI5_SS2 |
||||
GPT_COMPARE3 |
||||
PWM1_OUT |
||||
WDOG2_B |
||||
GPIO1_IO21 |
||||
WDOG2_RESET_B_DEB |
||||
P70 |
SD1_DATA2 |
E19 |
SD1_DATA2 |
3.3V |
ECSPI5_SS1 |
||||
GPT_COMPARE2 |
||||
PWM2_OUT |
||||
WDOG1_B |
||||
GPIO1_IO19 |
||||
WDOG1_RESET_B_DEB |
||||
P71 |
SD1_CLK |
D20 |
SD1_CLK |
3.3V |
ECSPI5_SCLK |
||||
XTALOSC_OSC32K_32K_OUT |
||||
GPT_CLKIN |
||||
GPIO1_IO20 |
||||
P72 |
SD1_DATA1 |
C20 |
SD1_DATA1 |
3.3V |
ECSPI5_SS0 |
||||
PWM3_OUT |
||||
GPT_CAPTURE2 |
||||
GPIO1_IO17 |
||||
P73 |
SD1_CMD |
B21 |
SD1_CMD |
3.3V |
ECSPI5_MOSI |
||||
PWM4_OUT |
||||
GPT_COMPARE1 |
||||
GPIO1_IO18 |
||||
P74 |
SD1_DAT0 |
A21 |
SD1_DATA0 |
3.3V |
ECSPI5_MISO |
||||
GPT_CAPTURE1 |
||||
GPIO1_IO16 |
||||
P75 |
GND |
— |
— |
— |
P76 |
RGMII_INT |
V21 |
ENET_TX_EN |
2.5V |
ESAI_TX3_RX2 |
||||
GPIO1_IO28 |
||||
P77 |
RGMII_MDIO |
V23 |
ENET_MDIO |
2.5V |
ESAI_RX_CLK |
||||
ENET_1588_EVENT1_OUT |
||||
GPIO1_IO22 |
||||
SPDIF_LOCK |
||||
P78 |
RGMII_REF_CLK |
V22 |
ENET_TX_CLK |
2.5V |
ESAI_RX_FS |
||||
GPIO1_IO23 |
||||
SPDIF_SR_CLK |
||||
P79 |
RGMII_nRST |
U21 |
ENET_RX_EN |
2.5V |
ESAI_TX_CLK |
||||
SPDIF_EXT_CLK |
||||
GPIO1_IO25 |
||||
P80 |
RGMII_MDC |
V20 |
MLB_DATA |
2.5V |
ENET_MDC |
||||
ESAI_TX5_RX0 |
||||
ENET_1588_EVENT1_IN |
||||
GPIO1_IO31 |
||||
P81 |
RGMII_TD2 |
E21 |
HSI_RX_DATA |
2.5V |
RGMII_TD2 |
||||
GPIO6_IO22 |
||||
P82 |
RGMII_TD1 |
F20 |
HSI_RX_FLAG |
2.5V |
HRGMII_TD1 |
||||
HGPIO6_IO21 |
||||
P83 |
RGMII_RD3 |
D23 |
HSI_TX_WAKE |
2.5V |
RGMII_RD3 |
||||
GPIO6_IO29 |
||||
P84 |
RGMII_RX_CTL |
D22 |
USB_H3_DATA |
2.5V |
RGMII_RX_CTL |
||||
GPIO6_IO24 |
||||
P85 |
RGMII_TX_CTL |
C23 |
USB_H2_STROBE |
2.5V |
RGMII_TX_CTL |
||||
GPIO6_IO26 |
||||
ENET_REF_CLK |
||||
P86 |
RGMII_TXC |
D21 |
USB_H2_DATA |
2.5V |
RGMII_TXC |
||||
SPDIF_EXT_CLK |
||||
GPIO6_IO19 |
||||
XTALOSC_REF_CLK_24M |
||||
P87 |
RGMII_RD1 |
B23 |
HSI_TX_FLAG |
2.5V |
RGMII_RD1 |
||||
GPIO6_IO27 |
||||
P88 |
RGMII_TD0 |
C22 |
HSI_TX_READY |
2.5V |
RGMII_TD0 |
||||
GPIO6_IO20 |
||||
P89 |
RGMII_RD0 |
C24 |
HSI_RX_READY |
2.5V |
RGMII_RD0 |
||||
GPIO6_IO25 |
||||
P90 |
RGMII_RXC |
B25 |
USB_H3_STROBE |
2.5V |
RGMII_RXC |
||||
GPIO6_IO30 |
||||
P91 |
RGMII_RD2 |
B24 |
HSI_TX_DATA |
2.5V |
RGMII_RD2 |
||||
GPIO6_IO28 |
||||
P92 |
RGMII_TD3 |
A24 |
HSI_RX_WAKE |
2.5V |
RGMII_TD3 |
||||
GPIO6_IO23 |
||||
P93 |
GND |
— |
— |
— |
P94 |
SATA_RXN |
A14 |
SATA_PHY_RX_N |
2.5V |
P95 |
SATA_RXP |
B14 |
SATA_PHY_RX_P |
2.5V |
P96 |
GND |
— |
— |
— |
P97 |
SATA_TXN |
B12 |
SATA_PHY_TX_N |
2.5V |
P98 |
SATA_TXP |
A12 |
SATA_PHY_TX_P |
2.5V |
P99 |
GND |
— |
— |
— |
P100 |
USB_HOST_DP |
E10 |
USB_H1_DP |
5V |
P101 |
USB_HOST_DN |
F10 |
USB_H1_DN |
5V |
P102 |
GND |
— |
— |
— |
P103 |
USB_OTG_VBUS |
E9 |
USB_OTG_VBUS |
5V |
P104 |
USB_H1_VBUS |
D10 |
USB_H1_VBUS |
5V |
P105 |
USB_H1_OC |
J20 |
EIM_DATA30 |
3.3V |
IPU1_DISP1_DATA21 |
||||
IPU1_DI0_PIN11 |
||||
IPU1_CSI0_DATA03 |
||||
UART3_CTS_B |
||||
GPIO3_IO30 |
||||
USB_H1_OC |
||||
P106 |
USB_OTG_ID |
T4 |
ESAI_RX_CLK |
3.3V |
WDOG2_B |
||||
KEY_ROW5 |
||||
USB_OTG_ID |
||||
PWM2_OUT |
||||
GPIO1_IO01 |
||||
SD1_CD_B |
||||
P107 |
USB_H1_PWR_EN |
T1 |
ESAI_TX_FS |
3.3V |
KEY_ROW6 |
||||
GPIO1_IO02 |
||||
SD2_WP |
||||
MLB_DATA |
||||
P108 |
GND |
— |
— |
— |
P109 |
USB_OTG_DP |
A6 |
USB_OTG_DP |
5V |
P110 |
USB_OTG_DN |
B6 |
USB_OTG_DN |
5V |
P111 |
GND |
— |
— |
— |
P112 |
CLK1_N |
C7 |
XTALOSC_CLK1_N |
2.5V |
P113 |
CLK1_P |
D7 |
XTALOSC_CLK1_P |
2.5V |
P114 |
GND |
— |
— |
— |
P115 |
PCIE_TXM |
A3 |
PCIE_TX_N |
2.5V |
P116 |
PCIE_TXP |
B3 |
PCIE_TX_P |
2.5V |
P117 |
GND |
— |
— |
— |
P118 |
PCIE_RXP |
B2 |
PCIE_RX_P |
2.5V |
P119 |
PCIE_RXM |
B1 |
PCIE_RX_N |
2.5V |
P120 |
GND |
— |
— |
— |
P121 |
CSI_D1P |
D2 |
CSI_DATA1_P |
2.5V |
P122 |
CSI_D1M |
D1 |
CSI_DATA1_N |
2.5V |
P123 |
GND |
— |
— |
— |
P124 |
CSI_D0M |
D2 |
CSI_DATA0_N |
2.5V |
P125 |
CSI_D0P |
B1 |
CSI_DATA0_P |
2.5V |
P126 |
GND |
— |
— |
— |
P127 |
CSI_CLK0P |
F3 |
CSI_CLK0_P |
2.5V |
P128 |
CSI_CLK0M |
F4 |
CSI_CLK0_N |
2.5V |
P129 |
GND |
— |
— |
— |
P130 |
rowspan=7EIM_D20 |
G20 |
EIM_DATA20 |
2.5V |
ECSPI4_SS0 |
||||
IPU1_DI0_PIN16 |
||||
IPU2_CSI1_DATA15 |
||||
UART1_RTS_B |
||||
GPIO3_IO20 |
||||
EPIT2_OUT |
||||
P131 |
GND |
— |
— |
— |
P132 |
DSI_D0P |
G1 |
DSI_DATA0_P |
2.5V |
P133 |
DSI_D0M |
G2 |
DSI_DATA0_N |
2.5V |
P134 |
GND |
— |
— |
— |
P135 |
DSI_D1P |
H1 |
DSI_DATA1_P |
2.5V |
P136 |
DSI_D1M |
H2 |
DSI_DATA1_N |
2.5V |
P137 |
GND |
— |
— |
— |
P138 |
DSI_CLK0M |
H3 |
DSI_CLK0_N |
2.5V |
P139 |
DSI_CLK0P |
H4 |
DSI_CLK0_P |
2.5V |
P140 |
GND |
— |
— |
— |
P141 |
I2C1_SDA |
N6 |
IPU1_CSI0_DATA08 |
2.5V |
EIM_DATA06 |
||||
ECSPI2_SCLK |
||||
KEY_COL7 |
||||
I2C1_SDA |
||||
GPIO5_IO26 |
||||
ARM_TRACE05 |
||||
P142 |
I2C1_SCL |
N5 |
IPU1_CSI0_DATA09 |
2.5V |
EIM_DATA07 |
||||
ECSPI2_MOSI |
||||
KEY_ROW7 |
||||
I2C1_SCL |
||||
GPIO5_IO27 |
||||
ARM_TRACE06 |
||||
P143 |
GPIO1_4 |
R6 |
ESAI_TX_HF_CLK |
3.3V |
KEY_COL7 |
||||
GPIO1_IO04 |
||||
SD2_CD_B |
||||
P144 |
GPIO7_13 |
P6 |
ESAI_TX1 |
3.3V |
ENET_RX_CLK |
||||
SD3_VSELECT |
||||
SDMA_EXT_EVENT1 |
||||
ASRC_EXT_CLK |
||||
GPIO7_IO13 |
||||
SNVS_VIO_5_CTL |
||||
P145 |
GPIO7_12 |
R1 |
ESAI_TX0 |
3.3V |
ENET_1588_EVENT3_IN |
||||
CCM_PMIC_READY |
||||
SDMA_EXT_EVENT0 |
||||
SPDIF_OUT |
||||
GPIO7_IO12 |
||||
P146 |
GPIO1_5 |
R4 |
ESAI_TX2_RX3 |
3.3V |
KEY_ROW7 |
||||
CCM_CLKO1 |
||||
GPIO1_IO05 |
||||
I2C3_SCL |
||||
ARM_EVENTI |
||||
P147 |
GPIO7_11 |
R2 |
ESAI_TX3_RX2 |
3.3V |
ENET_1588_EVENT2_IN |
||||
ENET_REF_CLK |
||||
SD1_LCTL |
||||
SPDIF_IN |
||||
GPIO7_IO11 |
||||
I2C3_SDA |
||||
JTAG_DE_B |
||||
P148 |
nRESET |
— |
nRESET |
3.3V |
P149 |
2P5V |
— |
— |
2.5V |
P150 |
||||
P151 |
GND |
— |
— |
— |
P152 |
||||
P153 |
||||
P154 |
||||
P155 |
||||
P156 |
表 2
标号 |
管脚名称 |
CPU Ball Name |
功能描述 |
管脚电压 |
|---|---|---|---|---|
S1 |
GND |
— |
— |
— |
S2 |
||||
S3 |
CSI0_PIXCLK |
P1 |
IPU1_CSI0_PIXCLK |
2.5V |
GPIO5_IO18 |
||||
ARM_EVENTO |
||||
S4 |
CSI0_VSYNCH |
N2 |
IPU1_CSI0_VSYNC |
2.5V |
EIM_DATA01 |
||||
GPIO5_IO21 |
||||
ARM_TRACE00 |
||||
S5 |
CSI0_DAT12 |
M2 |
IPU1_CSI0_DATA12 |
2.5V |
EIM_DATA08 |
||||
UART4_TX_DATA |
||||
GPIO5_IO30 |
||||
ARM_TRACE09 |
||||
S6 |
CSI0_DATA13 |
L1 |
IPU1_CSI0_DATA13 |
2.5V |
EIM_DATA09 |
||||
UART4_RX_DATA |
||||
GPIO5_IO31 |
||||
ARM_TRACE10 |
||||
S7 |
CSI0_DAT19 |
L6 |
IPU1_CSI0_DATA19 |
2.5V |
EIM_DATA15 |
||||
UART5_CTS_B |
||||
GPIO6_IO05 |
||||
S8 |
CSI0_DATA_EN |
P3 |
IPU1_CSI0_DATA_EN |
2.5V |
EIM_DATA00 |
||||
GPIO5_IO20 |
||||
ARM_TRACE_CLK |
||||
S9 |
CSI0_DAT17 |
L3 |
IPU1_CSI0_DATA17 |
2.5V |
EIM_DATA13 |
||||
UART4_CTS_B |
||||
GPIO6_IO03 |
||||
ARM_TRACE14 |
||||
S10 |
CSI0_DAT16 |
L4 |
IPU1_CSI0_DATA16 |
2.5V |
EIM_DATA12 |
||||
UART4_RTS_B |
||||
GPIO6_IO02 |
||||
ARM_TRACE13 |
||||
S11 |
CSI0_DAT14 |
M4 |
IPU1_CSI0_DATA14 |
2.5V |
EIM_DATA10 |
||||
UART5_TX_DATA |
||||
GPIO6_IO00 |
||||
ARM_TRACE11 |
||||
S12 |
CSI0_DATA18 |
M6 |
IPU1_CSI0_DATA18 |
2.5V |
EIM_DATA14 |
||||
UART5_RTS_B |
||||
GPIO6_IO04 |
||||
ARM_TRACE15 |
||||
S13 |
CSI0_DAT15 |
M5 |
IPU1_CSI0_DATA15 |
2.5V |
EIM_DATA11 |
||||
UART5_RX_DATA |
||||
GPIO6_IO01 |
||||
ARM_TRACE12 |
||||
S14 |
CSI0_HSYNCH |
P4 |
IPU1_CSI0_HSYNC |
2.5V |
CCM_CLKO1 |
||||
GPIO5_IO19 |
||||
ARM_TRACE_CTL |
||||
S15 |
GND |
— |
— |
— |
S16 |
||||
S17 |
CAN1_TX |
R3 |
ESAI_TX4_RX1 |
3.3V |
ECSPI5_RDY |
||||
EPIT1_OUT |
||||
FLEXCAN1_TX |
||||
UART2_TX_DATA |
||||
GPIO1_IO07 |
||||
SPDIF_LOCK |
||||
USB_OTG_HOST_MODE |
||||
S18 |
CAN1_RX |
R5 |
ESAI_TX5_RX0 |
3.3V |
XTALOSC_REF_CLK_32K |
||||
EPIT2_OUT |
||||
FLEXCAN1_RX |
||||
UART2_RX_DATA |
||||
GPIO1_IO08 |
||||
SPDIF_SR_CLK |
||||
USB_OTG_PWR_CTL_WAKE |
||||
S19 |
GND |
— |
— |
— |
S20 |
I2C2_SDA |
T7 |
XTALOSC_OSC32K_32K_OUT |
3.3V |
ASRC_EXT_CLK |
||||
HDMI_TX_DDC_SDA |
||||
KEY_ROW3 |
||||
I2C2_SDA |
||||
GPIO4_IO13 |
||||
SD1_VSELECT |
||||
S21 |
I2C2_SCL |
U5 |
ECSPI1_SS1 |
3.3V |
ENET_RX_DATA2 |
||||
FLEXCAN1_TX |
||||
KEY_COL2 |
||||
ENET_MDC |
||||
GPIO4_IO10 |
||||
USB_H1_PWR_CTL_WAKE |
||||
S22 |
GND |
— |
— |
— |
S23 |
I2C3_SDA |
T3 |
ESAI_TX_CLK |
3.3V |
I2C3_SDA |
||||
GPIO1_IO06 |
||||
SD2_LCTL |
||||
MLB_SIG |
||||
S24 |
I2C3_SCL |
R7 |
ESAI_RX_HF_CLK |
3.3V |
I2C3_SCL |
||||
XTALOSC_REF_CLK_24M |
||||
CCM_CLKO2 |
||||
GPIO1_IO03 |
||||
USB_H1_OC |
||||
MLB_CLK |
||||
S25 |
GND |
— |
— |
— |
S26 |
UART4_RXD |
V6 |
ECSPI1_MOSI |
3.3V |
ENET_TX_DATA3 |
||||
AUD5_TXD |
||||
KEY_ROW0 |
||||
UART4_RX_DATA |
||||
GPIO4_IO07 |
||||
DCIC2_OUT |
||||
S27 |
UART4_TXD |
W5 |
ECSPI1_SCLK |
3.3V |
ENET_RX_DATA3 |
||||
AUD5_TXC |
||||
KEY_COL0 |
||||
UART4_TX_DATA |
||||
GPIO4_IO06 |
||||
DCIC1_OUT |
||||
S28 |
GND |
— |
— |
— |
S29 |
CAN2_TX |
T6 |
FLEXCAN2_TX |
3.3V |
IPU1_SISG4 |
||||
USB_OTG_OC |
||||
KEY_COL4 |
||||
UART5_RTS_B |
||||
GPIO4_IO14 |
||||
S30 |
CAN2_RX |
V5 |
FLEXCAN2_RX |
3.3V |
IPU1_SISG5 |
||||
USB_OTG_PWR |
||||
KEY_ROW4 |
||||
UART5_CTS_B |
||||
GPIO4_IO15 |
||||
S31 |
GND |
— |
— |
— |
S32 |
KEY_COL2 |
W6 |
ECSPI1_SS1 |
3.3V |
ENET_RX_DATA2 |
||||
FLEXCAN1_TX |
||||
KEY_COL2 |
||||
ENET_MDC |
||||
GPIO4_IO10 |
||||
USB_H1_PWR_CTL_WAKE |
||||
S33 |
GND |
— |
— |
— |
S34 |
LVDS1_TX1_P |
AA1 |
LVDS1_DATA1_P |
2.5V |
S35 |
LVDS1_TX1_N |
AA2 |
LVDS1_DATA1_N |
2.5V |
S36 |
GND |
— |
— |
— |
S37 |
LVDS1_TX0_P |
Y2 |
LVDS1_DATA0_P |
2.5V |
S38 |
LVDS1_TX0_N |
Y1 |
LVDS1_DATA0_N |
2.5V |
S39 |
GND |
— |
— |
— |
S40 |
LVDS1_CLK_N |
Y3 |
LVDS1_CLK_N |
2.5V |
S41 |
LVDS1_CLK_P |
Y4 |
LVDS1_CLK_P |
2.5V |
S42 |
GND |
— |
— |
— |
S43 |
LVDS1_TX2_N |
AB1 |
LVDS1_DATA2_N |
2.5V |
S44 |
LVDS1_TX2_P |
AB2 |
LVDS1_DATA2_P |
2.5V |
S45 |
GND |
— |
— |
— |
S46 |
LVDS1_TX3_P |
AA4 |
LVDS1_DATA3_P |
2.5V |
S47 |
LVDS1_TX3_N |
AA3 |
LVDS1_DATA3_N |
2.5V |
S48 |
GND |
— |
— |
— |
S49 |
EIM_DA15 |
N24 |
EIM_AD15 |
3.3V |
IPU1_DI1_PIN01 |
||||
IPU1_DI1_PIN04 |
||||
GPIO3_IO15 |
||||
SRC_BOOT_CFG15 |
||||
S50 |
EIM_WAIT |
M25 |
EIM_WAIT_B |
3.3V |
EIM_DTACK_B |
||||
GPIO5_IO00 |
||||
SRC_BOOT_CFG25 |
||||
S51 |
CSPI2_CS0 |
K20 |
EIM_RW |
3.3V |
IPU1_DI1_PIN08 |
||||
ECSPI2_SS0 |
||||
GPIO2_IO26 |
||||
SRC_BOOT_CFG29 |
||||
S52 |
EIM_DA2 |
L21 |
EIM_AD02 |
3.3V |
IPU1_DISP1_DATA07 |
||||
IPU2_CSI1_DATA07 |
||||
GPIO3_IO02 |
||||
SRC_BOOT_CFG02 |
||||
S53 |
EIM_DA10 |
L21 |
EIM_AD10 |
3.3V |
IPU1_DI1_PIN15 |
||||
IPU2_CSI1_DATA_EN |
||||
GPIO3_IO10 |
||||
SRC_BOOT_CFG10 |
||||
S54 |
EIM_EB0 |
K21 |
EIM_EB0_B |
3.3V |
IPU1_DISP1_DATA11 |
||||
IPU2_CSI1_DATA11 |
||||
CCM_PMIC_READY |
||||
GPIO2_IO28 |
||||
SRC_BOOT_CFG27 |
||||
S55 |
EIM_DA4 |
L21 |
EIM_AD04 |
3.3V |
IPU1_DISP1_DATA05 |
||||
IPU2_CSI1_DATA05 |
||||
GPIO3_IO04 |
||||
SRC_BOOT_CFG04 |
||||
S56 |
EIM_EB1 |
K23 |
EIM_EB1_B |
3.3V |
IPU1_DISP1_DATA10 |
||||
IPU2_CSI1_DATA10 |
||||
GPIO2_IO29 |
||||
SRC_BOOT_CFG28 |
||||
S57 |
CSPI2_CS1 |
K22 |
EIM_LBA_B |
3.3V |
IPU1_DI1_PIN17 |
||||
ECSPI2_SS1 |
||||
GPIO2_IO27 |
||||
SRC_BOOT_CFG26 |
||||
S58 |
CSPI2_MOSI |
J23 |
EIM_CS1_B |
3.3V |
IPU1_DI1_PIN06 |
||||
ECSPI2_MOSI |
||||
GPIO2_IO24 |
||||
S59 |
CSPI2_CLK |
H24 |
EIM_CS0_B |
3.3V |
IPU1_DI1_PIN05 |
||||
ECSPI2_SCLK |
||||
GPIO2_IO23 |
||||
S60 |
EIM_DA12 |
M24 |
EIM_AD12 |
3.3V |
IPU1_DI1_PIN03 |
||||
IPU2_CSI1_VSYNC |
||||
GPIO3_IO12 |
||||
SRC_BOOT_CFG12 |
||||
S61 |
EIM_DA7 |
L25 |
EIM_AD7 |
3.3V |
IPU1_DISP1_DATA02 |
||||
IPU2_CSI1_DATA02 |
||||
GPIO3_IO07 |
||||
SRC_BOOT_CFG07 |
||||
S62 |
EIM_DA8 |
L24 |
EIM_AD8 |
3.3V |
IPU1_DISP1_DATA01 |
||||
IPU2_CSI1_DATA01 |
||||
GPIO3_IO08 |
||||
SRC_BOOT_CFG08 |
||||
S63 |
EIM_DA3 |
L25 |
EIM_AD03 |
3.3V |
IPU1_DISP1_DATA06 |
||||
IPU2_CSI1_DATA06 |
||||
GPIO3_IO03 |
||||
SRC_BOOT_CFG03 |
||||
S64 |
EIM_DA6 |
K25 |
EIM_AD6 |
3.3V |
IPU1_DISP1_DATA03 |
||||
IPU2_CSI1_DATA03 |
||||
GPIO3_IO06 |
||||
SRC_BOOT_CFG06 |
||||
S65 |
EIM_DA1 |
L25 |
EIM_AD1 |
3.3V |
IPU1_DISP1_DATA08 |
||||
IPU2_CSI1_DATA08 |
||||
GPIO3_IO01 |
||||
SRC_BOOT_CFG01 |
||||
S66 |
EIM_DA11 |
L25 |
EIM_AD11 |
3.3V |
IPU1_DI1_PIN02 |
||||
IPU2_CSI1_HSYNC |
||||
GPIO3_IO11 |
||||
SRC_BOOT_CFG11 |
||||
S67 |
CSPI2_MISO |
J24 |
EIM_OE_B |
3.3V |
IPU1_DI1_PIN07 |
||||
ECSPI2_MISO |
||||
GPIO2_IO25 |
||||
S68 |
EIM_DA14 |
N23 |
EIM_AD14 |
3.3V |
IPU1_DI1_D1_CS |
||||
GPIO3_IO14 |
||||
SRC_BOOT_CFG14 |
||||
S69 |
EIM_DA13 |
M23 |
EIM_AD13 |
3.3V |
IPU1_DI1_D0_CS |
||||
GPIO3_IO13 |
||||
SRC_BOOT_CFG13 |
||||
S70 |
EIM_BCLK |
N22 |
EIM_BCLK |
3.3V |
IPU1_DI1_PIN16 |
||||
GPIO6_IO31 |
||||
S71 |
EIM_DA5 |
L23 |
EIM_AD05 |
3.3V |
IPU1_DISP1_DATA04 |
||||
IPU2_CSI1_DATA04 |
||||
GPIO3_IO05 |
||||
SRC_BOOT_CFG05 |
||||
S72 |
EIM_DA9 |
M21 |
EIM_AD09 |
3.3V |
IPU1_DISP1_DATA00 |
||||
IPU2_CSI1_DATA00 |
||||
GPIO3_IO09 |
||||
SRC_BOOT_CFG09 |
||||
S73 |
EIM_DA0 |
L20 |
EIM_AD00 |
3.3V |
IPU1_DISP1_DATA09 |
||||
IPU2_CSI1_DATA09 |
||||
GPIO3_IO00 |
||||
SRC_BOOT_CFG00 |
||||
S74 |
CSPI2_RDY |
H19 |
EIM_ADDR25 |
3.3V |
ECSPI4_SS1 |
||||
ECSPI2_RDY |
||||
IPU1_DI1_PIN12 |
||||
IPU1_DI0_D1_CS |
||||
GPIO5_IO02 |
||||
HDMI_TX_CEC_LINE |
||||
S75 |
EIM_EB3 |
F23 |
EIM_EB3_B |
3.3V |
ECSPI4_RDY |
||||
UART3_RTS_B |
||||
UART1_RI_B |
||||
IPU2_CSI1_HSYNC |
||||
GPIO2_IO31 |
||||
IPU1_DI1_PIN03 |
||||
SRC_BOOT_CFG31 |
||||
S76 |
GND |
— |
— |
— |
S77 |
USB_OTG_OC |
H20 |
EIM_DATA21 |
3.3V |
ECSPI4_SCLK |
||||
IPU1_DI0_PIN17 |
||||
IPU2_CSI1_DATA11 |
||||
USB_OTG_OC |
||||
GPIO3_IO21 |
||||
I2C1_SCL |
||||
SPDIF_IN |
||||
S78 |
USB_OTG_PWR_EN |
E23 |
EIM_DATA22 |
3.3V |
ECSPI4_MISO |
||||
IPU1_DI0_PIN01 |
||||
IPU2_CSI1_DATA10 |
||||
USB_OTG_PWR |
||||
GPIO3_IO22 |
||||
SPDIF_OUT |
||||
S79 |
GND |
— |
— |
— |
S80 |
SD2_DATA1 |
E20 |
SD2_DATA1 |
3.3V |
ECSPI5_SS0 |
||||
EIM_CS2_B |
||||
AUD4_TXFS |
||||
KEY_COL7 |
||||
GPIO1_IO14 |
||||
S81 |
SD2_CMD |
F19 |
SD2_CMD |
3.3V |
ECSPI5_MOSI |
||||
KEY_ROW5 |
||||
AUD4_RXC |
||||
GPIO1_IO11 |
||||
S82 |
SD2_DATA2 |
A23 |
EIM_EB2_B |
3.3V |
ECSPI5_SS1 |
||||
EIM_CS3_B |
||||
AUD4_TXD |
||||
KEY_ROW6 |
||||
GPIO1_IO13 |
||||
S83 |
SD2_DATA3 |
B22 |
SD2_DATA3 |
3.3V |
ECSPI5_SS3 |
||||
KEY_COL6 |
||||
AUD4_TXC |
||||
GPIO1_IO12 |
||||
S84 |
SD2_DATA0 |
A22 |
SD2_DATA0 |
3.3V |
ECSPI5_MISO |
||||
AUD4_RXD |
||||
KEY_ROW7 |
||||
GPIO1_IO15 |
||||
DCIC2_OUT |
||||
S85 |
SD2_CLK |
C21 |
SD2_CLK |
3.3V |
ECSPI5_SCLK |
||||
KEY_COL5 |
||||
AUD4_RXFS |
||||
GPIO1_IO10 |
||||
S86 |
GPIO1_24 |
W23 |
USB_OTG_ID |
3.3V |
ENET_RX_ER |
||||
ESAI_RX_HF_CLK |
||||
SPDIF_IN |
||||
ENET_1588_EVENT2_OUT |
||||
GPIO1_IO24 |
||||
S87 |
GPIO1_26 |
W22 |
MLB_SIG |
3.3V |
ENET_RX_DATA1 |
||||
ESAI_TX_FS |
||||
ENET_1588_EVENT3_OUT |
||||
GPIO1_IO26 |
||||
S88 |
GPIO1_30 |
U20 |
ENET_TX_DATA0 |
3.3V |
ESAI_TX4_RX1 |
||||
GPIO1_IO30 |
||||
S89 |
GPIO1_27 |
W21 |
XTALOSC_OSC32K_32K_OUT |
3.3V |
ENET_RX_DATA0 |
||||
ESAI_TX_HF_CLK |
||||
SPDIF_OUT |
||||
GPIO1_IO27 |
||||
S90 |
GPIO1_29 |
W20 |
MLB_CLK |
3.3V |
ENET_TX_DATA1 |
||||
ESAI_TX2_RX3 |
||||
ENET_1588_EVENT0_IN |
||||
GPIO1_IO29 |
||||
S91 |
MX6_ONOFF |
D12 |
SRC_ONOFF |
3.3V |
S92 |
BOOT_MODE1 |
F12 |
SRC_BOOT_MODE1 |
3.3V |
S93 |
BOOT_MODE0 |
C12 |
SRC_BOOT_MODE0 |
3.3V |
S94 |
GPIO2_5 |
B18 |
NAND_DATA05 |
3.3V |
SD2_DATA5 |
||||
GPIO2_IO05 |
||||
S95 |
GPIO2_4 |
A19 |
NAND_DATA04 |
3.3V |
SD2_DATA4 |
||||
GPIO2_IO04 |
||||
S96 |
GPIO2_0 |
A18 |
NAND_DATA00 |
3.3V |
SD1_DATA4 |
||||
GPIO2_IO00 |
||||
S97 |
GPIO2_2 |
F16 |
NAND_DATA02 |
3.3V |
SD1_DATA6 |
||||
GPIO2_IO02 |
||||
S98 |
GPIO6_11 |
F15 |
NAND_CE0_B |
3.3V |
GPIO6_IO11 |
||||
S99 |
GPIO6_9 |
E15 |
NAND_WP_B |
3.3V |
IPU2_SISG5 |
||||
GPIO6_IO09 |
||||
S100 |
GPIO2_6 |
E17 |
NAND_DATA06 |
3.3V |
SD2_DATA6 |
||||
GPIO2_IO06 |
||||
S101 |
GPIO2_3 |
D17 |
NAND_DATA03 |
3.3V |
SD1_DATA7 |
||||
GPIO2_IO03 |
||||
S102 |
GPIO2_7 |
C18 |
NAND_DATA07 |
3.3V |
SD2_DATA7 |
||||
GPIO2_IO07 |
||||
S103 |
GPIO6_16 |
D16 |
NAND_CE3_B |
3.3V |
IPU1_SISG1 |
||||
ESAI_TX1 |
||||
EIM_ADDR26 |
||||
GPIO6_IO16 |
||||
IPU2_SISG1 |
||||
S104 |
GPIO2_1 |
C17 |
NAND_DATA01 |
3.3V |
SD1_DATA5 |
||||
GPIO2_IO01 |
||||
S105 |
GPIO6_7 |
C15 |
NAND_CLE |
3.3V |
IPU2_SISG4 |
||||
GPIO6_IO07 |
||||
S106 |
GPIO6_14 |
C16 |
NAND_CE1_B |
3.3V |
SD4_VSELECT |
||||
SD3_VSELECT |
||||
GPIO6_IO14 |
||||
S107 |
GPIO6_8 |
A16 |
NAND_ALE |
3.3V |
SD4_RESET |
||||
GPIO6_IO08 |
||||
S108 |
GPIO6_10 |
A16 |
NAND_READY_B |
3.3V |
IPU2_DI0_PIN01 |
||||
GPIO6_IO10 |
||||
S109 |
GPIO6_15 |
A17 |
NAND_CE2_B |
3.3V |
EIM_CRE |
||||
CCM_CLKO2 |
||||
GPIO6_IO15 |
||||
IPU2_SISG0 |
||||
S110 |
CSPI1_CS1 |
G21 |
EIM_EB2_B |
3.3V |
EIM_DATA19 |
||||
ECSPI1_SS1 |
||||
IPU1_DI0_PIN08 |
||||
IPU2_CSI1_DATA16 |
||||
UART1_CTS_B |
||||
GPIO3_IO19 |
||||
EPIT1_OUT |
||||
S111 |
CSPI1_MOSI |
D24 |
EIM_DATA18 |
3.3V |
ECSPI1_MOSI |
||||
IPU1_DI0_PIN07 |
||||
IPU2_CSI1_DATA17 |
||||
IPU1_DI1_D0_CS |
||||
GPIO3_IO18 |
||||
I2C3_SDA |
||||
S112 |
CSPI1_CLK |
C25 |
EIM_DATA16 |
3.3V |
ECSPI1_SCLK |
||||
IPU1_DI0_PIN05 |
||||
IPU2_CSI1_DATA18 |
||||
HDMI_TX_DDC_SDA |
||||
GPIO3_IO16 |
||||
I2C2_SDA |
||||
S113 |
CSPI1_RDY |
P5 |
KEY_COL5 |
3.3V |
ENET_1588_EVENT0_OUT |
||||
SPDIF_OUT |
||||
CCM_CLKO1 |
||||
ECSPI1_RDY |
||||
GPIO4_IO05 |
||||
ENET_TX_ER |
||||
S114 |
CSPI1_MISO |
F21 |
EIM_DATA17 |
3.3V |
ECSPI1_MISO |
||||
IPU1_DI0_PIN06 |
||||
IPU2_CSI1_PIXCLK |
||||
DCIC1_OUT |
||||
GPIO3_IO17 |
||||
I2C3_SCL |
||||
S115 |
GND |
— |
— |
— |
S116 |
SD3_DATA2 |
A15 |
SD3_DATA2 |
3.3V |
GPIO7_IO06 |
||||
S117 |
SD3_CLK |
D14 |
SD3_CLK |
3.3V |
UART2_RTS_B |
||||
FLEXCAN1_RX |
||||
GPIO7_IO03 |
||||
S118 |
SD3_DATA3 |
B15 |
SD3_DATA3 |
3.3V |
UART3_CTS_B |
||||
GPIO7_IO07 |
||||
S119 |
SD3_RST |
D15 |
SD3_RESET |
3.3V |
UART3_RTS_B |
||||
GPIO7_IO08 |
||||
S120 |
SD3_DATA0 |
E14 |
SD3_DATA0 |
3.3V |
UART1_CTS_B |
||||
FLEXCAN2_TX |
||||
GPIO7_IO04 |
||||
S121 |
SD3_DATA1 |
F14 |
SD3_DATA1 |
3.3V |
UART1_RTS_B |
||||
FLEXCAN2_RX |
||||
GPIO7_IO05 |
||||
S122 |
SD3_CMD |
B13 |
SD3_CMD |
3.3V |
UART2_CTS_B |
||||
FLEXCAN1_TX |
||||
GPIO7_IO02 |
||||
S123 |
SD3_DATA6 |
E13 |
SD3_DATA6 |
3.3V |
UART1_RX_DATA |
||||
GPIO6_IO18 |
||||
S124 |
SD3_DATA7 |
F13 |
SD3_DATA7 |
3.3V |
UART1_TX_DATA |
||||
GPIO6_IO17 |
||||
S125 |
SD3_DATA5 |
C13 |
SD3_DATA5 |
3.3V |
UART2_TX_DATA |
||||
GPIO7_IO00 |
||||
S126 |
SD3_DATA4 |
D13 |
SD3_DATA4 |
3.3V |
UART2_RX_DATA |
||||
GPIO7_IO01 |
||||
S127 |
GND |
— |
— |
— |
S128 |
JTAG_TDO |
G6 |
JTAG_TDO |
3.3V |
S129 |
JTAG_TCK |
H5 |
JTAG_TCK |
|
S130 |
JTAG_TDI |
G5 |
JTAG_TDI |
|
S131 |
JTAG_TMS |
C3 |
JTAG_TMS |
|
S132 |
nJTAG_TRST |
C2 |
JTAG_TRSTB |
|
S133 |
GND |
— |
— |
— |
S134 |
HDMI_CLKP |
J6 |
HDMI_TX_CLK_P |
2.5V |
S135 |
HDMI_CLKM |
J5 |
HDMI_TX_CLK_N |
|
S136 |
GND |
— |
— |
— |
S137 |
HDMI_D1P |
J4 |
HDMI_TX_DATA1_P |
2.5V |
S138 |
HDMI_D1M |
J3 |
HDMI_TX_DATA1_N |
|
S139 |
GND |
— |
— |
— |
S140 |
HDMI_D2P |
K4 |
HDMI_TX_DATA2_P |
2.5V |
S141 |
HDMI_D2M |
K3 |
HDMI_TX_DATA2_N |
|
S142 |
GND |
— |
— |
— |
S143 |
HDMI_D0M |
K5 |
HDMI_TX_DATA0_N |
2.5V |
S144 |
HDMI_D0P |
K6 |
HDMI_TX_DATA0_P |
|
S145 |
GND |
— |
— |
— |
S146 |
HDMI_HPD |
K1 |
HDMI_TX_HPD |
2.5V |
S147 |
HDMI_CEC_IN |
K2 |
HDMI_TX_DDC_CEC |
|
S148 |
GND |
— |
— |
— |
S149 |
3P3V |
— |
— |
3.3V |
S150 |
||||
S151 |
||||
S152 |
||||
S153 |
5VIN |
— |
— |
5V |
S154 |
||||
S155 |
||||
S156 |
||||
S157 |
||||
S158 |
