核心板硬件手册

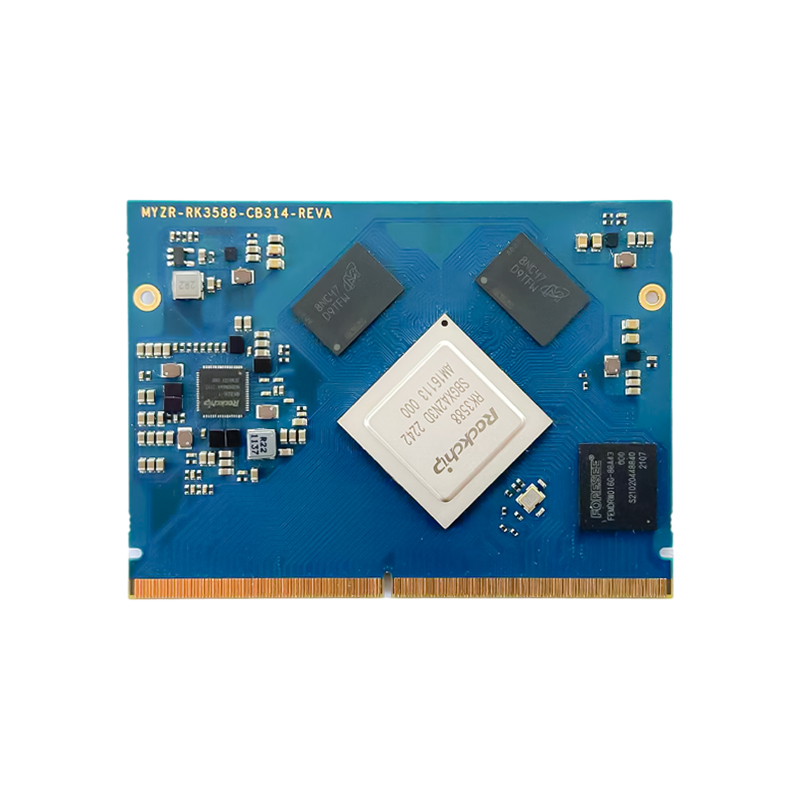

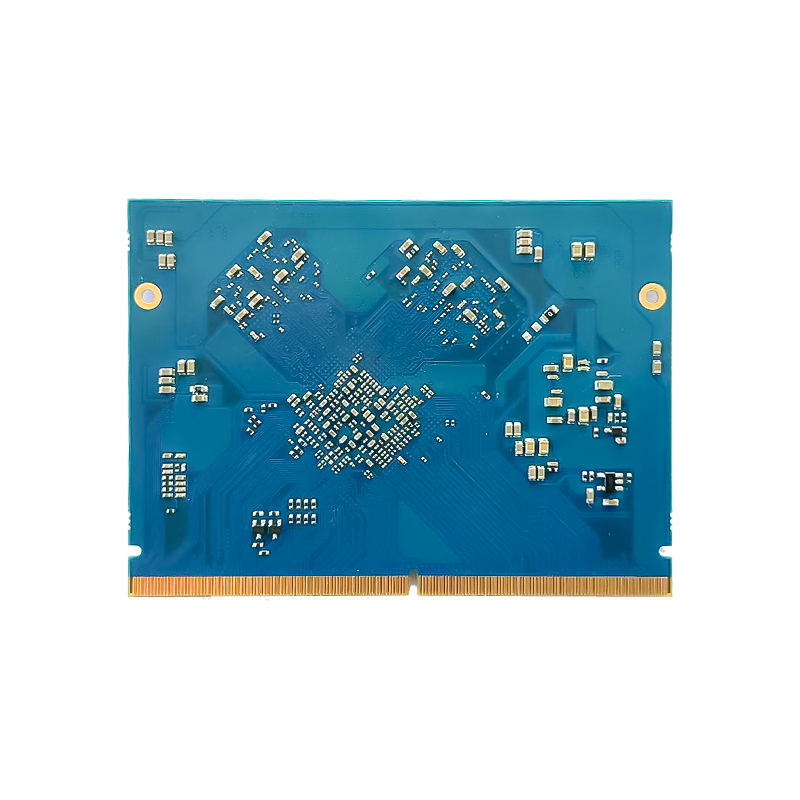

核心板视图

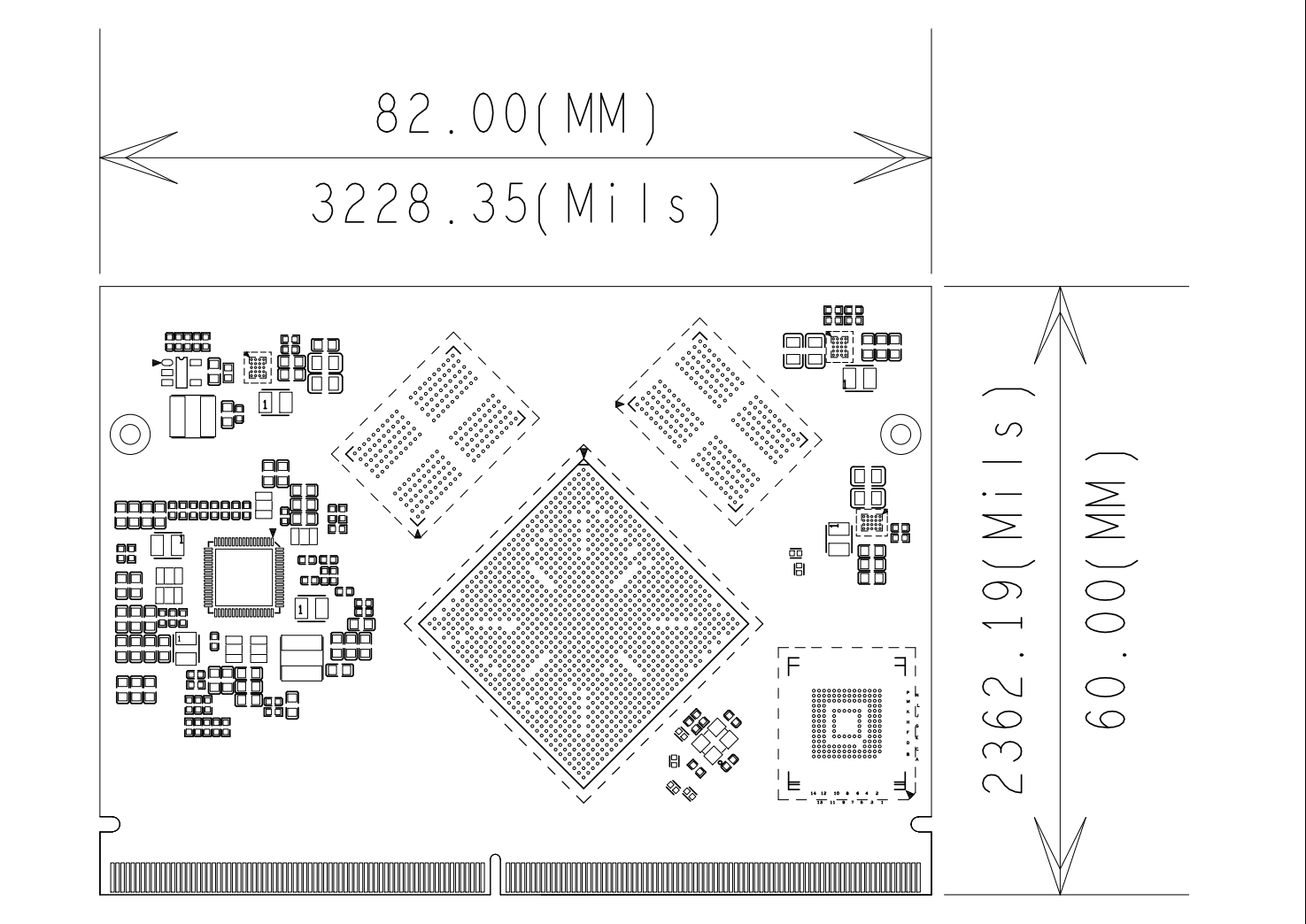

尺寸

82mm*60mm

工作温度

商业级：

0°C ~ 70°C
工业级：

-40°C ~ 85°C

供电电源

12V输入

操作系统支持

Linux

硬件接口

接口种类	接口规格 / 最大可配置数		描述
通讯接口	Ethernet	2	IEEE 1588v2 hardware, MII/RMII/RGMII
	USB2.0	2	2路USB2.0
	UART	8	4 x UART + 4 x USART (12.5 Mbit/s, ISO7816 interface, LIN, IrDA, SPI slave)
	UART	8
	I2C	5	5路I2C,最高支持400 kbps
	SPI	5	5路SPI，每个高达50Mbps
	CAN	2	2路CAN，支持CAN FD协议
外部存储接口	SDMMC	2	2 × SDMMC up to 8 bits (SD/e•MMC™/SDIO)
	DRAM	1	DDR3L, 16-bit data, 512M
	QSPI	1
多媒体	LCD	1	LCD-TFT controller, up to 24-bit // RGB888 up to WXGA (1366 × 768) @60 fps or up to Full HD (1920 x 1080) @ 30 fps


	I2S	4
	SAI	2

管脚定义&详细功能说明

网络标签	PIN	功能
ETH1_REFCLKO_25M	S11	ETH1_REFCLKO_25M	MIPI_CAMERA1_CLK_M1
ETH1_REFCLKO_25M	S11	GPIO3_A6_d	I2C4_SCL_M0
HDMITX1_SDA_M1	S12	CIF_D9	FSPI_CS1N_M2
		PCIE30X4_WAKEN_M222	CAN2_TX_M0
		SPI3_CS1_M3	SPI3_CS1_M3
		PCIE30X4_WAKEN_M222	UART5_RX_M1
HDMITX1_SCL_M1	S13	CIF_D10	PCIE30X4_PERSTN_M2
		GPIO3_C6_u	SPI3_MISO_M3
		HDMI_TX1_SCL_M1
PCIE_PWREN_H	S14	CIF_D10	PCIE30X4_PERSTN_M2
		SPI3_MISO_M3	SO_M3
		HDMI_TX1_SCL_M1
GSENSOR_INT_L	S15	CIF_D10	PCIE30X4_PERSTN_M2
		SPI3_MISO_M3	SO_M3
		HDMI_TX1_SCL_M1
LCD_BL_EN_H	S16	GMAC0_RXD0	I2C2_SCL_M1
		UART1_CTSN_M0	SPI1_MISO_M0
		GPIO2_C1_d
DP1_HPDIN_M0	S17	DP1_HPDIN_M0	PCIE30X4_BUTTON_RSTN
		MCU_JTAG_TMS_M1	UART9_TX_M2
		PWM11_IR_M3	SPI0_CS1_M3
		GPIO3_D5_d
I2C4_SDA_M1_SENSOR	S18	GMAC0_RXD1	I2C6_SDA_M2
		UART9_TX_M0	SPI1_MOSI_M0
		GPIO2_C2_d
I2C4_SCL_M1_SENSOR	S19	I2S2_SDI_M0	ETH0_REFCLKO_25M
		I2C6_SCL_M2	SPI1_CS0_M0
		GPIO2_C3_d
SD_CLK	S21	SDMMC_CLK	PDM1_CLK0_M0
		TEST_CLKOUT_M0	MCU_JTAG_TMS_M0
		CAN0_RX_M1	UART5_TX_M0
		GPIO4_D5_d
SDMMC0_D1	S22	SDMMC_D1	PDM1_SDI2_M0
		JTAG_TMS_M1	I2C3_SDA_M4
		UART2_RX_M1	PWM9_M1
		GPIO4_D1_u
SDMMC0_D3	S23	SDMMC_D3	PDM1_SDI0_M0
		JTAG_TMS_M0	I2C8_SDA_M0
		UART5_RTSN_M0	PWM10_M1
		GPIO4_D3_u
SDMMC0_D0	S24	SDMMC_D0	PDM1_SDI3_M0
		JTAG_TCK_M1	I2C3_SCL_M4
		UART2_TX_M1	PWM8_M1
		GPIO4_D0_u
SDMMC0_CMD	S25	SDMMC_CMD	PDM1_CLK1_M0
		MCU_JTAG_TCK_M0	CAN0_TX_M1
		UART5_RX_M0	PWM7_IR_M1
		GPIO4_D4_u
SDMMC0_D2	S26	SDMMC_D2	PDM1_SDI1_M0
		JTAG_TCK_M0	I2C8_SCL_M0
		UART5_CTSN_M0	GPIO4_D2_u
HDMI_RX_CLKN	S28	HDMI_RX_CLKN
HDMI_RX_CLKP	S29	HDMI_RX_CLKP
HDMI_RX_D0N	S30	HDMI_RX_D0N
HDMI_RX_D0P	S31	HDMI_RX_D0P
HDMI_RX_D1N	S32	HDMI_RX_D1N
HDMI_RX_D1P	S33	HDMI_RX_D1P
HDMI_RX_D2N	S34	HDMI_RX_D2N
HDMI_RX_D2P	S35	HDMI_RX_D2P
USB20_HOST0_DM	S37	USB20_HOST0_DM
USB20_HOST0_DP	S38	USB20_HOST0_DP
USB20_HOST1_DM	S39	USB20_HOST1_DM
USB20_HOST1_DP	S40	USB20_HOST1_DP
TYPEC1_OTG_DM	S41	TYPEC1_USB20_OTG_DMM
TYPEC1_OTG_DP	S42	TYPEC1_USB20_OTG_DPP
TYPEC0_OTG_DM	S43	TYPEC0_USB20_OTG_DMM
TYPEC0_OTG_DP	S44	TYPEC0_USB20_OTG_DPP
TYPEC0_USB20_OTG_ID	S45	TYPEC0_USB20_OTG_IDD
TYPEC0_USB20_VBUSDET	S46	TYPEC0_USB20_VBUSDET
TYPEC0_SBU2	S47	TYPEC0_SBU2	DP0_AUXN
TYPEC0_SBU1	S48	TYPEC0_SBU1	DP0_AUXP
MIPI_DPHY1_RX_D0N	S50	MIPI_DPHY1_RX_D0N	MIPI_CPHY1_RX_TRIO0_AA
MIPI_DPHY1_RX_D0P	S51	MIPI_DPHY1_RX_D0P	MIPI_CPHY1_RX_TRIO0_BB
MIPI_DPHY1_RX_D1N	S52	MIPI_DPHY1_RX_D1N	MIPI_CPHY1_RX_TRIO0_CC
MIPI_DPHY1_RX_D1P	S53	MIPI_DPHY1_RX_D1P	MIPI_CPHY1_RX_TRIO1_AA
MIPI_DPHY1_RX_CLKN	S54	MIPI_DPHY1_RX_CLKN	MIPI_CPHY1_RX_TRIO1_BB
MIPI_DPHY1_RX_CLKP	S55	MIPI_DPHY1_RX_CLKP	MIPI_CPHY1_RX_TRIO1_CC
MIPI_DPHY1_RX_D2N	S56	MIPI_DPHY1_RX_D2N	MIPI_CPHY1_RX_TRIO2_AA
MIPI_DPHY1_RX_D2P	S57	MIPI_DPHY1_RX_D2P	MIPI_CPHY1_RX_TRIO2_BB
MIPI_DPHY1_RX_D3N	S58	MIPI_DPHY1_RX_D3N	MIPI_CPHY1_RX_TRIO2_CC
MIPI_DPHY1_RX_D3P	S59	MIPI_DPHY1_RX_D3P	NO_USE
GMAC1_RSTn_L	S62	GMAC1_PTP_REF_CLK	HDMI_TX1_HPD_M1
		I2C3_SCL_M1	SPI1_MOSI_M1
		GPIO3_B7_d
HDMIIRX_HPDOUT_H	S63	HDMI_TX0_HPD_M1	PCIE30X2_PERSTN_M2
		HDMI_RX_HPDIN_M1	MCU_JTAG_TCK_M1
		UART9_RX_M2	SPI0_CS0_M3
		GPIO3_D4_d
TP_INT_L	S64	GMAC1_PPSTRIG	I2C3_SDA_M1
		UART7_TX_M1	SPI1_MISO_M1
		GPIO3_C0_d
TP_RST_L	S65	GMAC1_PPSCLK	PCIE30X2_BUTTON_RSTN
		UART7_RX_M1	SPI1_CLK_M1
		GPIO3_C1_d
I2C1_SCL_M2	S66	I2S1_SDO2_M1	PDM0_SDI2_M1
		PWM3_IR_M0	I2C1_SCL_M2
		CAN2_RX_M1	HDMI_TX0_SDA_M1
		SPI3_CS0_M2	PCIE30X2_PERSTN_M0
		SATA_CPDET	GPIO0_D4_u
I2C1_SDA_M2	S67	I2S1_SDO3_M1	CPU_BIG1_AVS
		I2C1_SDA_M2	CAN2_TX_M1
		HDMI_TX0_SCL_M1	SPI3_CS1_M2
		SATA_MP_SWITCH	GPIO0_D5_u
BT_REG_ON_H	S68	I2S1_SDI1_M1	NPU_AVS
		UART0_RTSN	PWM5_M1
		SPI0_CLK_M0	PCIE30X4_CLKREQN_M0
		SATA_CP_POD	GPIO0_C6_u
BVGA_HPDIN_L	S69	I2S1_LRCK_M1	PWM0_M0
		I2C2_SCL_M0	CAN0_TX_M0
		SPI0_CS1_M0	PCIE30X1_1_PERSTN_M0
		GPIO0_B7_d
UART2_RX_M0_DEBUG	S70	I2S1_SCLK_M1	JTAG_TMS_M2
		I2C1_SDA_M0	UART2_RX_M0
		PCIE30X1_1_WAKEN_M0	GPIO0_B6_d
SDMMC_DET_L	S71	SDMMC_DET	GPIO0_A4_u
UART2_TX_M0_DEBUG	S72	I2S1_MCLK_M1	JTAG_TCK_M2
		I2C1_SCL_M0	UART2_TX_M0
		GPIO0_B5_d	PCIE30X1_1_CLKREQN_M00
RTC_INT_L	S73	SPI2_CS1_M2	I2C1_SCL_M1
RTC_INT_L	S73	UART0_RX_M1	GPIO0_B0_z
WIFI_WAKE_HOST_H	S74	CLK32K_IN	CLK32K_OUT0
WIFI_WAKE_HOST_H	S74	GPIO0_B2_u
I2C5_SDA_M0_TP	S75	CIF_D12	PCIE20X1_2_WAKEN_M0
		HDMI_TX0_SDA_M2	I2C5_SDA_M0
		UART4_RX_M1	PWM8_M2
		SPI3_CLK_M3	GPIO3_D0_u
I2C5_SCL_M0_TP	S76	CIF_D11	PCIE20X1_2_CLKREQN_M00
		HDMI_TX0_SCL_M2	I2C5_SCL_M0
		SPI3_MOSI_M3	GPIO3_C7_u
HDMITX0_CEC_M0	S77	BT1120_D15	SPDIF1_TX_M2
		PCIE20X1_2_PERSTN_M1	HDMI_TX0_CEC_M0
		I2C8_SDA_M3	PWM6_M1
		SPI3_CS1_M1	GPIO4_C1_d
HDMI0_TX_ON_H	S78	MIPI_CAMERA0_CLK_M0	SPDIF1_TX_M1
		I2S1_SDO0_M0	PCIE30X1_0_BUTTON_RSTN
		SATA2_ACT_LED_M0	I2C6_SCL_M3
		UART8_RX_M0	SPI0_CS1_M1
		GPIO4_B1_u
HDMI1_TX_ON_H	S79	CIF_HREF	BT1120_D8
		I2S1_SDO1_M0	PCIE30X1_1_BUTTON_RSTN
		I2C7_SCL_M3	UART8_RTSN_M0
		PWM14_M1	SPI0_CS0_M1
		CAN1_RX_M1	GPIO4_B2_u
PCIE30X4_WAKEn_M1_L GPIO4_B5	S80	BT1120_D11	PCIE30X4_WAKEN_M1
		HDMI_RX_CEC_M0	SATA1_ACT_LED_M0
		UART9_RX_M1	PWM12_M1
		SPI3_MISO_M1	GPIO4_B5_d
PCIE30X4_PRSNT_L GPIO4_B3	S81	CIF_VSYNC	CIF_VSYNC
		I2S1_SDO2_M0	PCIE20X1_2_BUTTON_RSTN
		I2C7_SDA_M3	UART8_CTSN_M0
		PWM15_IR_M1	CAN1_TX_M1
		GPIO4_B3_u
USB_HOST_PWREN_H	S82	CIF_CLKIN	BT1120_CLKOUT
		I2S1_SDI3_M0	PCIE30X2_PERSTN_M1
		I2C6_SDA_M3	UART8_TX_M0
		SPI2_CS1_M1	GPIO4_B0_d
PCIE30X4_CLKREQn_M1_L	S83	CIF_CLKOUT	BT1120_D10
		I2S1_SDO3_M0	PCIE30X4_CLKREQN_M1
		DP0_HPDIN_M0	SPDIF0_TX_M1
		UART9_TX_M1	PWM11_IR_M1
		GPIO4_B4_u
TYPEC0_SBU1_DC	S84	CIF_D6	BT1120_D6
		I2S1_SDI1_M0	PCIE30X2_CLKREQN_M1
		I2C5_SCL_M2	UART3_RX_M2
		SPI2_CLK_M1	GPIO4_A6_d
TYPEC0_SBU2_DC	S85	CIF_D7	BT1120_D7
		I2S1_SDI2_M0	PCIE30X2_WAKEN_M1
		I2C5_SDA_M2	SPI2_CS0_M1
		GPIO4_A7_d
SDMMC_PWREN	S86	CIF_D5	BT1120_D5
		I2S1_SDI0_M0	PCIE30X1_0_PERSTN_M1
		I2C3_SDA_M2	UART3_TX_M2
		SPI2_MOSI_M1	GPIO4_A5_d
PHONE_CTL	S87	CIF_D4	BT1120_D4
		PCIE30X1_0_WAKEN_M1	I2C3_SCL_M2
		UART0_RX_M2	SPI2_MISO_M1
		GPIO4_A4_d
PCIE30X4_PERSTn_M1_L	S88	BT1120_D12	PCIE30X4_PERSTN_M1
		HDMI_RX_HPDIN_M0	SATA0_ACT_LED_M0
		I2C5_SCL_M1	PWM13_M1
		SPI3_MOSI_M1	GPIO4_B6_d
PCIEX1_1_PERSTn_M1_L	S89	CIF_D2	BT1120_D2
		I2S1_LRCK_M0	PCIE30X1_1_PERSTN_M1
		SPI0_CLK_M1	GPIO4_A2_d
SPK_CTL_H	S90	CIF_D3	BT1120_D3
		UART0_TX_M2	PCIE30X1_0_CLKREQN_M1
		GPIO4_A3_d
PCIEX1_1_CLKREQn_M1_L	S91	CIF_D0	BT1120_D0
		I2S1_MCLK_M0	PCIE30X1_1_CLKREQN_M1
		UART9_RTSN_M1	SPI0_MISO_M1
		GPIO4_A0_d
USB_HUB_RESET	S92	GMAC1_TXER	I2S2_SDI_M1
		UART2_RX_M2	PWM3_IR_M1
		GPIO3_B2_d
PCIEX1_1_WAKEn_M1_L GPIO4_A1	S93	CIF_D1	BT1120_D1
		I2S1_SCLK_M0	PCIE30X1_1_WAKEN_M1
		UART9_CTSN_M1	SPI0_MOSI_M1
		GPIO4_A1_d
MIPI_CSI1_RX_D3P	S95	MIPI_CSI1_D3P
MIPI_CSI1_RX_D3N	S96	MIPI_CSI1_D3N
MIPI_CSI1_RX_D2P	S97	MIPI_CSI1_D2P
MIPI_CSI1_RX_D2N	S98	MIPI_CSI1_D2N
MIPI_CSI1_RX_CLK0P	S99	MIPI_CSI1_CLK0P
MIPI_CSI1_RX_CLK0N	S100	MIPI_CSI1_CLK0N
MIPI_CSI1_RX_D1P	S101	MIPI_CSI1_D1P
MIPI_CSI1_RX_D1N	S102	MIPI_CSI1_D1N
MIPI_CSI1_RX_D0P	S103	MIPI_CSI1_D0P
MIPI_CSI1_RX_D0N	S104	MIPI_CSI1_D0N
GMAC1_RXCLK	S106	GMAC1_RXCLK	SDIO_CLK_M1
		MIPI_CAMERA0_CLK_M1	FSPI_CLK_M2
		I2C4_SDA_M0	UART8_CTSN_M1
		GPIO3_A5_d
GMAC1_RXDV_CRS	S107	GMAC1_RXDV_CRS	MIPI_CAMERA4_CLK_M1
		UART2_TX_M2	PWM2_M1
		GPIO3_B1_d
GMAC1_RXD0	S108	GMAC1_RXD0	MIPI_CAMERA2_CLK_M1
GMAC1_RXD0	S108	PWM8_M0	GPIO3_A7_u
GMAC1_RXD1	S109	GMAC1_RXD1	MIPI_CAMERA3_CLK_M1
GMAC1_RXD1	S109	PWM9_M0	GPIO3_B0_u
GMAC1_RXD3	S110	GMAC1_RXD3	SDIO_D3_M1
		I2S3_SDO	AUDDSM_RN
		FSPI_D3_M2	UART8_RX_M1
		SPI4_CS0_M1	GPIO3_A3_u
GMAC1_RXD2	S111	GMAC1_RXD2	SDIO_D2_M1
		I2S3_LRCK	AUDDSM_LP
		FSPI_D2_M2	UART8_TX_M1
		SPI4_CLK_M1	GPIO3_A2_u
GMAC1_MCLKINOUT	S112	GMAC1_MCLKINOUT	I2S2_LRCK_M1
		CAN1_TX_M0	UART3_RX_M1
		PWM13_M0	GPIO3_B6_d
GMAC1_MDC	S113	GMAC1_MDC	MIPI_TE0
		I2C8_SCL_M4	UART7_RTSN_M1
		PWM14_M0	SPI1_CS0_M1
		GPIO3_C2_d
GMAC1_TXCLK	S114	GMAC1_TXCLK	SDIO_CMD_M1
		I2S3_SDI	AUDDSM_RP
		UART8_RTSN_M1	SPI4_CS1_M1
		GPIO3_A4_d
GMAC1_TXEN	S115	GMAC1_TXEN	I2S2_SCLK_M1
		CAN1_RX_M0	UART3_TX_M1
		PWM12_M0	GPIO3_B5_u
GMAC1_TXD0	S116	GMAC1_TXD0	I2S2_SDO_M1
GMAC1_TXD0	S116	UART2_RTSN	GPIO3_B3_u
GMAC1_TXD1	S117	GMAC1_TXD1	I2S2_MCLK_M1
GMAC1_TXD1	S117	UART2_CTSN	GPIO3_B4_u
GMAC1_TXD3	S118	GMAC1_TXD3	SDIO_D1_M1
		I2S3_SCLK	AUDDSM_LN
		FSPI_D1_M2	I2C6_SCL_M4
		PWM11_IR_M0	SPI4_MOSI_M1
		GPIO3_A1_u
GMAC1_TXD2	S119	GMAC1_TXD2	SDIO_D0_M1
		I2S3_MCLK	FSPI_D0_M2
		I2C6_SDA_M4	PWM10_M0
		SPI4_MISO_M1	GPIO3_A0_u
GMAC1_MDIO	S120	GMAC1_MDIO	MIPI_TE1
		I2C8_SDA_M4	UART7_CTSN_M1
		PWM15_IR_M0	SPI1_CS1_M1
		GPIO3_C3_d
I2C0_SDA_M2	S121	I2S1_SDO1_M1	I2C0_SDA_M2
		UART1_RX_M2	HDMI_RX_SCL_M0
		SPI3_MOSI_M2	PCIE30X2_WAKEN_M0
		HDMI_TX1_CEC_M1	GPIO0_D2_u
I2C0_SCL_M2	S122	I2S1_SDO0_M1	CPU_BIG0_AVS
		I2C0_SCL_M2	UART0_CTSN
		UART1_TX_M2	HDMI_RX_SDA_M0
		SPI0_CS0_M0	PCIE30X2_CLKREQN_M0
		HDMI_TX0_CEC_M1	GPIO0_D1_u
WIFI_REG_ON_H	S125	PDM0_CLK1_M1	PWM2_M0
		UART0_RX_M0	I2C4_SDA_M2
		DP0_HPDIN_M1	PCIE30X1_0_WAKEN_M0
		GPIO0_C4_d
HOST_WAKE_BT_H	S126	I2S1_SDI0_M1	GPU_AVS
		UART0_TX_M0	I2C4_SCL_M2
		DP1_HPDIN_M1	PWM4_M0
		PCIE30X1_0_PERSTN_M0	GPIO0_C5_u
LCD_BL_PWM1	S127	PDM0_CLK0_M1	PWM1_M0
		I2C2_SDA_M0	CAN0_RX_M0
		SPI0_MOSI_M0	PCIE30X1_0_CLKREQN_M0
		GPIO0_C0_d
CC_INT_L	S128	LITCPU_AVS	SPI3_CLK_M2
CC_INT_L	S128	GPIO0_D3_u
BT_WAKE_HOST_H	S129	REFCLK_OUT	GPIO0_A0_d
RESET_L	S130	NPOR_u
PMIC_SPI_CS	S131	SPI2_CS0_M2	I2C1_SDA_M1
		PWM5_M0	UART0_TX_M1
		GPIO0_B1_z
HP_DET_L	S132	PDM0_CLK1_M0	I2C2_SDA_M3
		PWM11_IR_M2	SPI4_CS1_M0
		GPIO1_C4_d
I2S0_SCLK_TX	S133	I2S0_SCLK	I2C6_SCL_M1
		UART3_CTSN	PWM7_IR_M2
		SPI4_CS0_M0	GPIO1_C3_d
I2S0_SDO0	S134	I2S0_SDO0	I2C4_SCL_M4
I2S0_SDO0	S134	UART4_CTSN	GPIO1_C7_d
I2S0_LRCK_TX	S135	I2S0_LRCK	I2C2_SCL_M3
I2S0_LRCK_TX	S135	UART4_RTSN	GPIO1_C5_d
I2S0_SDI0	S136	I2S0_SDI0	GPIO1_D4_d
I2S0_MCLK	S137	I2S0_MCLK	I2C6_SDA_M1
		UART3_RTSN	PWM3_IR_M2
		SPI4_CLK_M0	GPIO1_C2__d
PWM15_M2	S138	PDM0_CLK0_M0	I2C4_SDA_M4
PWM15_M2	S138	PWM15_IR_M2	GPIO1_C6_d
MIPI_CAM2_PWREN_H	S139	I2S0_SDI1	PDM0_SDI3_M0
		I2C1_SDA_M4	UART4_RX_M0
		PWM1_M1	SPI1_CS0_M2
		GPIO1_D3_d
MIPI_CAM2_CLKOUT	S140	MIPI_CAMERA2_CLK_M0	SPDIF1_TX_M0
		PCIE30X2_PERSTN_M3	HDMI_RX_CEC_M2
		SATA2_ACT_LED_M1	I2C5_SDA_M3
		UART1_RX_M1	PWM13_M2
		GPIO1_B7_u
LCD_PWREN_H	S141	PDM1_CLK1_M1	PCIE30X1_0_WAKEN_M2
		SATA0_ACT_LED_M1	UART4_TX_M2
		SPI0_CLK_M2	GPIO1_B3_d
PCIEx1_0_CLKREQn_M2_L	S142	UART7_TX_M2	PCIE30X1_0_CLKREQN_M2
PCIEx1_0_CLKREQn_M2_L	S142	SPI0_CS1_M2	GPIO1_B5_u
MIPI_CAM1_CLKOUT	S143	MIPI_CAMERA1_CLK_M0	SPDIF0_TX_M0
		PCIE30X2_WAKEN_M3	HDMI_RX_HPDIN_M2
		I2C5_SCL_M3	UART1_TX_M1
		GPIO1_B6_d
MIPI_CAM3_PWREN_H	S144	PDM1_SDI3_M1	PCIE30X4_PERSTN_M3
		UART4_RX_M2	SPI0_MOSI_M2
		GPIO1_B2_d
MIPI_CAM3_PDN_L	S145	PDM1_SDI0_M1	PCIE30X1_1_PERSTN_M2
		PWM3_IR_M3	SPI2_CS0_M0
		GPIO1_A7_u
HDMIIRX_DET_L	S146	PDM0_SDI0_M0	SPI1_CS1_M2
HDMIIRX_DET_L	S146	GPIO1_D5_d
MIPI_CAM1_PWREN_H	S147	I2S0_SDO3	I2S0_SDI2
		PDM0_SDI2_M0	I2C1_SCL_M4
		UART4_TX_M0	PWM0_M1
		SPI1_CLK_M2	GPIO1_D2_d
I2C3_SDA_M0_MIPI	S148	I2C3_SDA_M0	UART3_RX_M0
I2C3_SDA_M0_MIPI	S148	SPI4_MISO_M0	GPIO1_C0_z
I2C3_SCL_M0_MIPI	S149	I2C3_SCL_M0	UART3_TX_M0
I2C3_SCL_M0_MIPI	S149	SPI4_MOSI_M0	GPIO1_C1_z
I2C7_SDA_M0_CODEC	S150	I2S0_SDO2	I2S0_SDI3
		PDM0_SDI1_M0	I2C7_SDA_M0
		UART6_RX_M2	SPI1_MOSI_M2
		GPIO1_D1_d
I2C7_SCL_M0_CODEC	S151	I2S0_SDO1	I2C7_SCL_M0
		UART6_TX_M2	SPI1_MISO_M2
		GPIO1_D0_d
MIPI_CAM1/2_RESET_L	S152	HDMI_TX1_SDA_M2	I2C4_SCL_M3
		UART6_CTSN_M1	PWM1_M2
		SPI4_CS0_M2	GPIO1_A3_d
MIPI_CAM4_PDN_L	S153	PDM1_SDI1_M1	PCIE30X4_CLKREQN_M3
MIPI_CAM4_PDN_L	S153	SPI2_CS1_M0	GPIO1_B0_u
MIPI_CAM1_PDN_L	S154	VOP_POST_EMPTY	I2C4_SDA_M3
		UART6_RTSN_M1	PWM0_M2
		SPI4_CLK_M2	GPIO1_A2_d
HDMITX0_HPDIN_M0	S155	HDMI_TX0_HPD_M0	SPI2_MOSI_M0
HDMITX0_HPDIN_M0	S155	GPIO1_A5_d
MIPI_CAM2_PDN_L	S156	HDMI_TX1_SCL_M2	SPI2_MISO_M0
MIPI_CAM2_PDN_L	S156	GPIO1_A4_d
I2C2_SCL_M4_MIPI	S157	PCIE30X1_1_WAKEN_M2	DP1_HPDIN_M2
		SATA1_ACT_LED_M1	I2C2_SCL_M4
		UART6_TX_M1	SPI4_MOSI_M2
		GPIO1_A1_d
I2C2_SDA_M4_MIPI	S158	DP0_HPDIN_M2	PCIE30X1_1_CLKREQN_M2
		I2C2_SDA_M4	UART6_RX_M1
		SPI4_MISO_M2	GPIO1_A0_d
BOOT_SARADC_IN0	P2	SARADC_IN0_BOOT
SARADC_VIN1_KEY RECOVERY	P3	SARADC_IN1
SARADC_VIN1_KEY RECOVERY	P3
SARADC_VIN3_HP_HOOK	P4	SARADC_IN3
HDMI_RX_CEC	P5	CIF_D13	PCIE20X1_2_PERSTN_M0
HDMI_RX_CEC	P5	HDMI_RX_CEC_M1	UART4_TX_M1
HDMI_RX_SDA_M1	P6	CIF_D15	PCIE30X2_WAKEN_M2
HDMI_RX_SDA_M1	P6	HDMI_RX_SDA_M1	I2C7_SDA_M2
HDMI_RX_SCL_M1	P7	CIF_D14	PCIE30X2_CLKREQN_M2
		HDMI_RX_SCL_M1	I2C7_SCL_M2
		UART9_RTSN_M2	SPI0_MOSI_M3
		GPIO3_D2_d
HDMITX0_SDA_M0	P8	BT1120_D14	PCIE20X1_2_WAKEN_M1
		HDMI_TX0_SDA_M0	I2C8_SCL_M3
		SPI3_CS0_M1	GPIO4_C0_u
HDMITX0_SCL_M0	P9	BT1120_D13	PCIE20X1_2_CLKREQN_M1
		HDMI_TX0_SCL_M0	I2C5_SDA_M1
		SPI3_CLK_M1	GPIO4_B7_u
HDMITX1_CEC_M2	P10	CIF_D8	FSPI_CS0N_M2
		PCIE30X4_CLKREQN_M2	HDMI_TX1_CEC_M2
		CAN2_RX_M0	UART5_TX_M1
		SPI3_CS0_M3	GPIO3_C4_u
HDMI0_TX_SBDN eDP0_TX_AUXN	P12	HDMI_TX0_SBDN	eDP_TX0_AUXN
HDMI0_TX_SBDN eDP0_TX_AUXN	P12
HDMI0_TX_SBDP eDP0_TX_AUXP	P13	HDMI_TX0_SBDP	eDP_TX0_AUXP
HDMI0_TX_SBDP eDP0_TX_AUXP	P13
HDMI0_TX3N_PORT eDP0_TX_D3N	P14	HDMI_TX0_D3N	eDP_TX0_D3N
HDMI0_TX3N_PORT eDP0_TX_D3N	P14
HDMI0_TX3P_PORT eDP0_TX_D3P	P15	HDMI_TX0_D3P	eDP_TX0_D3P
HDMI0_TX3P_PORT eDP0_TX_D3P	P15
HDMI0_TX0N_PORT eDP0_TX_D0N	P16	HDMI_TX0_D0N	eDP_TX0_D0N
HDMI0_TX0N_PORT eDP0_TX_D0N	P16
HDMI0_TX0P_PORT eDP0_TX_D0P	P17	HDMI_TX0_D0P	eDP_TX0_D0P
HDMI0_TX0P_PORT eDP0_TX_D0P	P17
HDMI0_TX1N_PORT eDP0_TX_D1N	P18	HDMI_TX0_D1N	eDP_TX0_D1N
HDMI0_TX1N_PORT eDP0_TX_D1N	P18
HDMI0_TX1P_PORT eDP0_TX_D1P	P19	HDMI_TX0_D1P	eDP_TX0_D1P
HDMI0_TX1P_PORT eDP0_TX_D1P	P19
HDMI0_TX2N_PORT eDP0_TX_D2N	P20	HDMI_TX0_D2N	eDP_TX0_D2N
HDMI0_TX2N_PORT eDP0_TX_D2N	P20
HDMI0_TX2P_PORT eDP0_TX_D2P	P21	HDMI_TX0_D2P	eDP_TX0_D2P
HDMI0_TX2P_PORT eDP0_TX_D2P	P21
HDMI1_TX_SBDN eDP1_TX_AUXN	P23	HDMI_TX1_SBDN	eDP_TX1_AUXN
HDMI1_TX_SBDN eDP1_TX_AUXN	P23
HDMI1_TX_SBDP eDP1_TX_AUXP	P24	HDMI_TX1_SBDP	eDP_TX1_AUXP
HDMI1_TX_SBDP eDP1_TX_AUXP	P24
HDMI1_TX3N_PORT eDP1_TX_D3N	P25	HDMI_TX1_D3N	eDP_TX1_D3N
HDMI1_TX3N_PORT eDP1_TX_D3N	P25
HDMI1_TX3P_PORT eDP1_TX_D3P	P26	HDMI_TX1_D3P	eDP_TX1_D3P
HDMI1_TX3P_PORT eDP1_TX_D3P	P26
HDMI1_TX0N_PORT eDP1_TX_D0N	P27	HDMI_TX1_D0N	eDP_TX1_D0N
HDMI1_TX0N_PORT eDP1_TX_D0N	P27
HDMI1_TX0P_PORT eDP1_TX_D0P	P28	HDMI_TX1_D0P	eDP_TX1_D0P
HDMI1_TX0P_PORT eDP1_TX_D0P	P28
HDMI1_TX1N_PORT eDP1_TX_D1N	P29	HDMI_TX1_D1N	eDP_TX1_D1N
HDMI1_TX1N_PORT eDP1_TX_D1N	P29
HDMI1_TX1P_PORT eDP1_TX_D1P	P30	HDMI_TX1_D1P	eDP_TX1_D1P
HDMI1_TX1P_PORT eDP1_TX_D1P	P30
HDMI1_TX2N_PORT eDP1_TX_D2N	P31	HDMI_TX1_D2N	eDP_TX1_D2N
HDMI1_TX2N_PORT eDP1_TX_D2N	P31
HDMI1_TX2P_PORT eDP1_TX_D2P	P32	HDMI_TX1_D2P	eDP_TX1_D2P
HDMI1_TX2P_PORT eDP1_TX_D2P	P32
DP1_TX0N	P34	TYPEC1_SSRX1N	DP1_TX0N
DP1_TX0P	P35	TYPEC1_SSRX1P	DP1_TX0P
DP1_TX1P	P36	TYPEC1_SSTX1P	DP1_TX1P
DP1_TX1N	P37	TYPEC1_SSTX1N	DP1_TX1N
DP1_TX2N	P38	TYPEC1_SSRX2N	DP1_TX2N
DP1_TX2P	P39	TYPEC1_SSRX2P	DP1_TX2P
DP1_TX3P	P40	TYPEC1_SSTX2P	DP1_TX3P
DP1_TX3N	P41	TYPEC1_SSTX2N	DP1_TX3N
DP1_AUXN	P42	TYPEC1_SBU2	DP1_AUXN
DP1_AUXP	P43	TYPEC1_SBU1	DP1_AUXP
TYPEC0_SSRX1N	P45	TYPEC0_SSRX1N	DP0_TX0N
TYPEC0_SSRX1P	P46	TYPEC0_SSRX1P	DP0_TX0P
TYPEC0_SSTX1P	P47	TYPEC0_SSTX1P	DP0_TX1P
TYPEC0_SSTX1N	P48	TYPEC0_SSTX1N	DP0_TX1N
TYPEC0_SSRX2N	P49	TYPEC0_SSRX2N	DP0_TX2N
TYPEC0_SSRX2P	P50	TYPEC0_SSRX2P	DP0_TX2P
TYPEC0_SSTX2P	P51	TYPEC0_SSTX2P	DP0_TX3P
TYPEC0_SSTX2N	P52	TYPEC0_SSTX2N	DP0_TX3N
MIPI_DPHY1_TX_D0N	P54	MIPI_DPHY1_TX_D0N	MIPI_CPHY1_TX_TRIO0_A
MIPI_DPHY1_TX_D0P	P55	MIPI_DPHY1_TX_D0P	MIPI_CPHY1_TX_TRIO0_B
MIPI_DPHY1_TX_D1N	P56	MIPI_DPHY1_TX_D1N	MIPI_CPHY1_TX_TRIO0_C
MIPI_DPHY1_TX_D1P	P57	MIPI_DPHY1_TX_D1P	MIPI_CPHY1_TX_TRIO1_A
MIPI_DPHY1_TX_CLKN	P58	MIPI_DPHY1_TX_CLKN	MIPI_CPHY1_TX_TRIO1_B
MIPI_DPHY1_TX_CLKP	P59	MIPI_DPHY1_TX_CLKP	MIPI_CPHY1_TX_TRIO1_C
MIPI_DPHY1_TX_D2N	P60	IPI_DPHY1_TX_D2N	MIPI_CPHY1_TX_TRIO2_A
MIPI_DPHY1_TX_D2P	P61	MIPI_DPHY1_TX_D2P	MIPI_CPHY1_TX_TRIO2_B
MIPI_DPHY1_TX_D3N	P62	MIPI_DPHY1_TX_D3N	MIPI_CPHY1_TX_TRIO2_C
MIPI_DPHY1_TX_D3P	P63	MIPI_DPHY1_TX_D3P	NO_USE
MIPI_DPHY0_TX_D0N	P65	MIPI_DPHY0_TX_D0N	MIPI_CPHY0_TX_TRIO0_A
MIPI_DPHY0_TX_D0P	P66	MIPI_DPHY0_TX_D0P	MIPI_CPHY0_TX_TRIO0_B
MIPI_DPHY0_TX_D1P	P68	MIPI_DPHY0_TX_D1P	MIPI_CPHY0_TX_TRIO1_A
MIPI_DPHY0_TX_CLKN	P69	MIPI_DPHY0_TX_CLKN	MIPI_CPHY0_TX_TRIO1_B
MIPI_DPHY0_TX_CLKP	P70	MIPI_DPHY0_TX_CLKP	MIPI_CPHY0_TX_TRIO1_C
MIPI_DPHY0_TX_D2N	P71	MIPI_DPHY0_TX_D2N	MIPI_CPHY0_TX_TRIO2_A
MIPI_DPHY0_TX_D2P	P72	MIPI_DPHY0_TX_D2P	MIPI_CPHY0_TX_TRIO2_B
MIPI_DPHY0_TX_D3N	P73	MIPI_DPHY0_TX_D3N	MIPI_CPHY0_TX_TRIO2_C
MIPI_DPHY0_TX_D3P	P74	MIPI_DPHY0_TX_D3P	NO_USE
MIPI_DPHY0_RX_D0N	P75	MIPI_DPHY0_RX_D0N	MIPI_CPHY0_RX_TRIO0_A
MIPI_DPHY0_RX_D0P	P76	MIPI_DPHY0_RX_D0P	MIPI_CPHY0_RX_TRIO0_B
MIPI_DPHY0_RX_D1N	P77	MIPI_DPHY0_RX_D1N	MIPI_CPHY0_RX_TRIO0_C
MIPI_DPHY0_RX_D1P	P78	MIPI_DPHY0_RX_D1P	MIPI_CPHY0_RX_TRIO1_A
MIPI_DPHY0_RX_CLKN	P79	MIPI_DPHY0_RX_CLKN	MIPI_CPHY0_RX_TRIO1_B
MIPI_DPHY0_RX_CLKP	P80	MIPI_DPHY0_RX_CLKP	MIPI_CPHY0_RX_TRIO1_C
MIPI_DPHY0_RX_D2N	P81	MIPI_DPHY0_RX_D2N	MIPI_CPHY0_RX_TRIO2_A
MIPI_DPHY0_RX_D2P	P82	MIPI_DPHY0_RX_D2P	MIPI_CPHY0_RX_TRIO2_B
MIPI_DPHY0_RX_D3N	P83	MIPI_DPHY0_RX_D3N	MIPI_CPHY0_RX_TRIO2_C
MIPI_DPHY0_RX_D3P	P84	MIPI_DPHY0_RX_D3P	NO_USE
MIPI_CSI0_RX_D3P	P86	MIPI_CSI0_D3P
MIPI_CSI0_RX_D3N	P87	MIPI_CSI0_D3N
MIPI_CSI0_RX_D2P	P88	MIPI_CSI0_D2P
MIPI_CSI0_RX_D2N	P89	MIPI_CSI0_D2N
MIPI_CSI0_RX_CLK0P	P90	MIPI_CSI0_CLK0P
MIPI_CSI0_RX_CLK0N	P91	MIPI_CSI0_CLK0N
MIPI_CSI0_RX_D1P	P92	MIPI_CSI0_D1P
MIPI_CSI0_RX_D1N	P93	MIPI_CSI0_D1N
MIPI_CSI0_RX_D0P	P94	MIPI_CSI0_D0P
MIPI_CSI0_RX_D0N	P95	MIPI_CSI0_D0N
ALPS_INT_L	P97	GMAC0_TXER	I2C0_SDA_M1
		UART7_CTSN_M0	PWM7_IR_M3
		SPI3_CLK_M0	GPIO4_C6_d
I2S2_SDI_M0_BT	P98	ETH0_REFCLKO_25M	I2S2_SDI_M0
		I2C6_SCL_M2	SPI1_CS0_M0
		GPIO2_C3_d
UART9_TX_M0_BT	P99	GMAC0_RXD1	I2C6_SDA_M2
		UART9_TX_M0	SPI1_MOSI_M0
		GPIO2_C2_d
UART9_RX_M0_BT	P100	GMAC0_PPSCLK	TEST_CLKOUT_M1
		HDMI_TX1_CEC_M0	UART9_RX_M0
		SPI1_CS1_M0	GPIO2_C4_d
SDIO_D2_M0_WIFI	P101	GMAC0_RXCLK	SDIO_D2_M0
		FSPI_D2_M1	I2C8_SCL_M1
		UART6_RTSN_M0	GPIO2_B0_u
SDIO_D1_M0_WIFI	P102	GMAC0_RXD3	SDIO_D1_M0
		FSPI_D1_M1	UART6_TX_M0
		GPIO2_A7_u
SDIO_D0_M0_WIFI	P103	GMAC0_RXD2	SDIO_D0_M0
		FSPI_D0_M1	UART6_RX_M0
		GPIO2_A6_u
I2S2_SDO_M0_BT	P104	GMAC0_MCLKINOUT	I2S2_SDO_M0
		I2C7_SCL_M1	PWM4_M1
		SPI3_CS1_M0	GPIO4_C3_d
SDIO_CLK_M0_WIFI	P105	GMAC0_TXCLK	SDIO_CLK_M0
		FSPI_CLK_M1	I2C3_SDA_M3
		GPIO2_B3_d
I2S2_LRCK_M0_BT	P106	GMAC0_TXEN	I2S2_LRCK_M0
		I2C2_SDA_M1	UART1_RTSN_M0
		SPI1_CLK_M0	GPIO2_C0_d
MIPI_CAM3/4_RESET_L	P107	GMAC0_TXD0	I2S2_MCLK_M0
		I2C5_SCL_M4	UART1_RX_M0
		GPIO2_B6_d
I2S2_SCLK_M0_BT	P108	GMAC0_TXD1	I2S2_SCLK_M0
		I2C5_SDA_M4	UART1_TX_M0
		GPIO2_B7_d
SDIO_D3_M0_WIFI	P109	GMAC0_TXD2	SDIO_D3_M0
		FSPI_D3_M1	I2C8_SDA_M1
		UART6_CTSN_M0	GPIO2_B1_u
SDIO_CMD_M0_WIFI	P110	GMAC0_TXD3	SDIO_CMD_M0
SDIO_CMD_M0_WIFI	P110	I2C3_SCL_M3	GPIO2_B2_u
UART9_CTSn_M0_BT	P111	GMAC0_MDIO	I2C0_SCL_M1
		UART9_CTSN_M0	PWM6_M2
		SPI3_MOSI_M0	GPIO4_C5_d
UART9_RTSn_M0_BT	P112	GMAC0_MDC	I2C7_SDA_M1
		UART9_RTSN_M0	PWM5_M2
		SPI3_MISO_M0	GPIO4_C4_d
PCIE20_0_RXP SATA30_0_RXP	P114	PCIE20_0_RXP	SATA30_0_RXP
PCIE20_0_RXP SATA30_0_RXP	P114
PCIE20_0_RXN SATA30_0_RXN	P115	PCIE20_0_RXN	SATA30_0_RXN
PCIE20_0_RXN SATA30_0_RXN	P115
PCIE20_0_TXN SATA30_0_TXN	P116	PCIE20_0_TXN	SATA30_0_TXN
PCIE20_0_TXN SATA30_0_TXN	P116
PCIE20_0_TXP SATA30_0_TXP	P117	PCIE20_0_TXP	SATA30_0_TXP
PCIE20_0_TXP SATA30_0_TXP	P117
PCIE20_1_TXP SATA30_1_TXP	P118	PCIE20_1_TXP	SATA30_1_TXP
PCIE20_1_TXP SATA30_1_TXP	P118
PCIE20_1_TXN SATA30_1_TXN	P119	PCIE20_1_TXN	SATA30_1_TXN
PCIE20_1_TXN SATA30_1_TXN	P119
PCIE20_1_RXP SATA30_1_RXP	P120	PCIE20_1_RXP	SATA30_1_RXP
PCIE20_1_RXP SATA30_1_RXP	P120
PCIE20_1_RXN SATA30_1_RXN	P121	PCIE20_1_RXN	SATA30_1_RXN
PCIE20_1_RXN SATA30_1_RXN	P121
PCIE20_1_REFCLKP	P122	PCIE20_1_REFCLKP
PCIE20_1_REFCLKN	P123	PCIE20_1_REFCLKN
PCIE20_2_RXP SATA30_2_RXP	P124	PCIE20_2_RXP	SATA30_2_RXP
PCIE20_2_RXP SATA30_2_RXP	P124	USB30_SSRXP
PCIE20_2_RXN SATA30_2_RXN	P125	PCIE20_2_RXN	SATA30_2_RXN
PCIE20_2_RXN SATA30_2_RXN	P125	USB30_SSRXN
PCIE20_2_TXP SATA30_2_TXP	P126	PCIE20_2_TXP	SATA30_2_TXP
PCIE20_2_TXP SATA30_2_TXP	P126	USB30_SSTXP
PCIE20_2_TXN SATA30_2_TXN	P127	PCIE20_2_TXN	SATA30_2_TXN
PCIE20_2_TXN SATA30_2_TXN	P127	USB30_SSTXN
PCIE20_2_REFCLKP	P128	PCIE20_2_REFCLKP
PCIE20_2_REFCLKN	P129	PCIE20_2_REFCLKN
PCIE30_PORT0_RX0P	P131	PCIE30_PORT0_RX0P
PCIE30_PORT0_RX0N	P132	PCIE30_PORT0_RX0N
PCIE30_PORT0_RX1P	P133	PCIE30_PORT0_RX1P
PCIE30_PORT0_RX1N	P134	PCIE30_PORT0_RX1N
PCIE30_PORT0_REFCLKP_IN	P135		PCIE30_PORT0_REF_CLKP
PCIE30_PORT0_REFCLKN_IN	P136		PCIE30_PORT0_REF_CLKN
PCIE30_PORT0_TX0P	P137	PCIE30_PORT0_TX0P
PCIE30_PORT0_TX0N	P138	PCIE30_PORT0_TX0N
PCIE30_PORT0_TX1P	P139	PCIE30_PORT0_TX1P
PCIE30_PORT0_TX1N	P140	PCIE30_PORT0_TX1N
PCIE30_PORT1_RX2P	P141	PCIE30_PORT1_RX0P
PCIE30_PORT1_RX2N	P142	PCIE30_PORT1_RX0N
PCIE30_PORT1_RX3P	P143	PCIE30_PORT1_RX1P
PCIE30_PORT1_RX3N	P144	PCIE30_PORT1_RX1N
PCIE30_PORT1_TX2P	P145	PCIE30_PORT1_RX1N
PCIE30_PORT1_TX2N	P146	PCIE30_PORT1_TX0N
PCIE30_PORT1_TX3P	P147	PCIE30_PORT1_TX1P
PCIE30_PORT1_TX3N	P148	PCIE30_PORT1_TX1N
PCIE30_PORT1_REFCLKN_IN	P149		PCIE30_PORT1_REF_CLKN
PCIE30_PORT1_REFCLKP_IN	P150		PCIE30_PORT1_REF_CLKP
MIPI_CAM4_PWREN_H	P152	PDM1_SDI2_M1	PCIE30X4_WAKEN_M3
MIPI_CAM4_PWREN_H	P152	SPI0_MISO_M2	GPIO1_B1_d
HDMITX1_HPDIN_M0	P153	HDMI_TX1_HPD_M0	HDMI_TX1_HPD_M0
HDMITX1_HPDIN_M0	P153	GPIO1_A6_d
MIPI_CAM4_CLKOUT	P154	MIPI_CAMERA4_CLK_M0	MIPI_CAMERA4_CLK_M0
		HDMI_RX_SDA_M2	I2C8_SDA_M2
		UART1_CTSN_M1	PWM15_IR_M3
		GPIO1_D7_u
PCIEx1_0_PERSTn_M2_L	P155	PDM1_CLK0_M1	PCIE30X1_0_PERSTN_M2
		UART7_RX_M2	SPI0_CS0_M2
		GPIO1_B4_u
MIPI_CAM3_CLKOUT	P156	MIPI_CAMERA3_CLK_M0	HDMI_RX_SCL_M2
		I2C8_SCL_M2	UART1_RTSN_M1
		PWM14_M2	GPIO1_D6_u

--------------------------------------------------------------------------------
* 珠海明远智睿科技有限公司
* ZhuHai MYZR Technology CO.,LTD.
* Latest Update: 2023/4/26
* Supporter: Kuangwh
--------------------------------------------------------------------------------
