核心板硬件手册

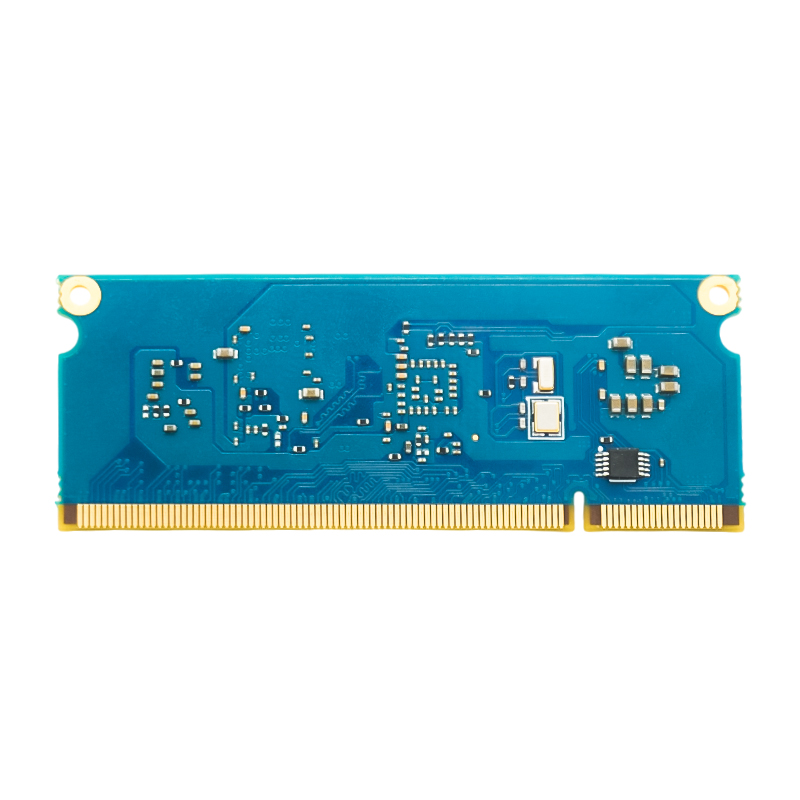

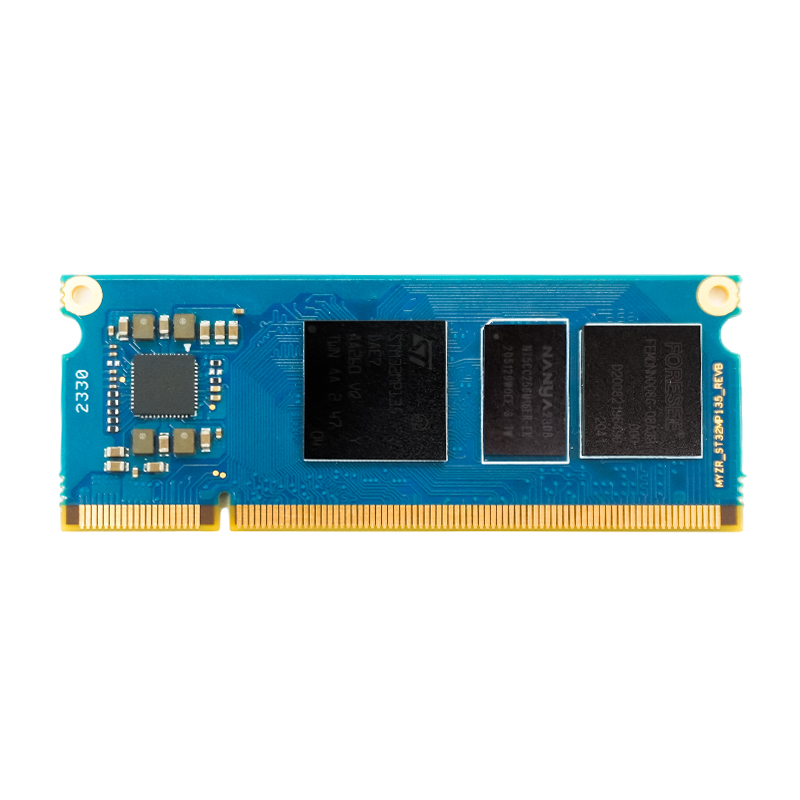

核心板视图
工作温度
商业级：
0°C ~ 70°C
工业级：
-40°C ~ 85°C
供电电源
3.6V输入
操作系统支持
Linux
硬件接口
接口种类 |
接口规格 / 最大可配置数 |
描述 |
|
|---|---|---|---|
通讯接口 |
Ethernet |
2 |
IEEE 1588v2 hardware, MII/RMII/RGMII |
USB2.0 |
2 |
2路USB2.0 PHY接口 |
|
UART |
8 |
4 x UART + 4 x USART (12.5 Mbit/s, ISO7816 interface, LIN, IrDA, SPI slave) |
|
I2C |
5 |
5路I2C,最高支持400 kbps |
|
SPI |
5 |
5路SPI，每个高达50Mbps |
|
CAN |
2 |
2路CAN，支持CAN FD协议 |
|
外部存储接口 |
SDMMC |
2 |
2 × SDMMC up to 8 bits (SD/e•MMC™/SDIO) |
DRAM |
1 |
DDR3L, 16-bit data, 512M |
|
QSPI |
1 |
||
多媒体 |
LCD |
1 |
LCD-TFT controller, up to 24-bit // RGB888 up to WXGA (1366 × 768) @60 fps or up to Full HD (1920 x 1080) @ 30 fps |
I2S |
4 |
||
SAI |
2 |
||
管脚定义&详细功能说明
PIN |
PORT |
PORT |
|---|---|---|
1 |
POWER |
|
2 |
||
3 |
||
5 |
||
7 |
||
9 |
||
11 |
||
13 |
||
4 |
GND |
|
15 |
||
17 |
||
19 |
||
20 |
||
21 |
||
23 |
||
26 |
||
31 |
||
41 |
||
46 |
||
47 |
||
53 |
||
54 |
||
59 |
||
64 |
||
73 |
||
74 |
||
84 |
||
87 |
||
90 |
||
96 |
||
99 |
||
109 |
||
110 |
||
123 |
||
124 |
||
128 |
||
129 |
||
135 |
||
136 |
||
144 |
||
151 |
||
152 |
||
154 |
||
160 |
||
161 |
||
162 |
||
168 |
||
171 |
||
174 |
||
180 |
||
185 |
||
186 |
||
187 |
||
188 |
||
197 |
||
198 |
||
199 |
||
200 |
||
22 |
I2C4_SCL |
“PE15 |
TIM2_CH1/TIM2_ETR |
||
TIM1_BKIN |
||
USART2_CTS/USART2_NSS |
||
LCD_B7 |
||
HDP7 |
||
FMC_D12(boot)/FMC_AD12 |
||
DCMIPP_D10 |
||
24 |
I2C4_SDA |
PB9 |
TRACED3 |
||
TIM4_CH4 |
||
FDCAN1_TX |
||
SDMMC2_D5 |
||
UART5_TX |
||
SDMMC1_CDIR(boot) |
||
LCD_DE |
||
LCD_B1 |
||
25 |
CORE_LED |
|
27 |
MainPWR_EN |
|
28 |
PH8 |
TRACED9 |
TIM5_ETR |
||
USART2_RX |
||
I2C3_SDA |
||
LCD_R6 |
||
FMC_A8 |
||
DCMIPP_HSYNC |
||
LCD_R2 |
||
HDP2 |
||
29 |
PWR_WKUP1 |
TIM16_CH1N |
TIM4_CH3 |
||
TIM8_CH3 |
||
SAI1_SCK_B |
||
USART6_TX |
||
TIM13_CH1 |
||
QUADSPI_BK1_IO0(boot) |
||
DCMIPP_D15 |
||
LCD_B3 |
||
30 |
PD10 |
RTC_REFIN |
I2C5_SMBA |
||
SPI4_NSS/I2S4_WS |
||
USART3_CK |
||
LCD_G5 |
||
LCD_B7 |
||
FMC_D15(boot)/FMC_AD15 |
||
DCMIPP_VSYNC |
||
LCD_B2 |
||
32 |
PH14 |
DFSDM1_DATIN2 |
I2C3_SDA |
||
DCMIPP_D8 |
||
UART4_RX |
||
LCD_B4 |
||
DCMIPP_D2 |
||
DCMIPP_PIXCLK |
||
33 |
PWR_ON |
|
34 |
PB7 |
“TIM17_CH1N |
TIM4_CH2 |
||
I2S4_CK |
||
I2C4_SDA |
||
FMC_NCE2 |
||
FMC_NL |
||
DCMIPP_D13 |
||
DCMIPP_PIXCLK |
||
35 |
NRST |
|
36 |
PE9 |
TIM1_CH1 |
QUADSPI_BK1_IO1 |
||
LCD_HSYNC |
||
FMC_D6(boot)/FMC_AD6 |
||
DCMIPP_D7 |
||
LCD_R7 |
||
HDP3 |
||
37 |
PWR_NJTRST |
|
38 |
PA9 |
TIM1_CH2 |
I2C3_SMBA |
||
DFSDM1_DATIN0 |
||
USART1_TX |
||
UART4_TX |
||
FMC_NWAIT(boot) |
||
DCMIPP_D0 |
||
LCD_R6 |
||
39 |
PWR_LP |
|
40 |
PD3 |
TIM2_CH1/TIM2_ETR |
USART2_CTS/USART2_NSS |
||
DFSDM1_CKOUT |
||
I2C1_SDA |
||
SAI1_D3 |
||
FMC_CLK |
||
DCMIPP_D5 |
||
42 |
PH12 |
USART2_TX |
TIM5_CH3 |
||
DFSDM1_CKIN1 |
||
I2C3_SCL |
||
SPI5_MOSI |
||
SAI1_SCK_A |
||
QUADSPI_BK2_IO2 |
||
SAI1_CK2 |
||
ETH1_MII_CRS |
||
FMC_A6 |
||
DCMIPP_D3 |
||
43 |
USART1_RX |
PD14 |
TIM4_CH3 |
||
I2C3_SDA |
||
UART8_CTS |
||
FMC_D0(boot)/FMC_AD0 |
||
DCMIPP_D8 |
||
LCD_R4 |
||
44 |
PB8 |
TIM16_CH1 |
TIM4_CH3 |
||
I2C1_SCL |
||
I2C3_SCL |
||
DFSDM1_DATIN1 |
||
UART4_RX |
||
SAI1_D1 |
||
FMC_D13(boot)/FMC_AD13 |
||
DCMIPP_D6 |
||
45 |
USART1_TX |
PB6 |
TRACED6 |
||
TIM16_CH1N |
||
TIM4_CH1 |
||
TIM8_CH1 |
||
SAI1_CK2 |
||
LCD_B6 |
||
QUADSPI_BK1_NCS |
||
ETH2_MDIO |
||
FMC_NE3 |
||
DCMIPP_D5 |
||
LCD_B7 |
||
HDP6 |
||
48 |
UART4_TX |
PD6 |
TIM16_CH1N |
||
SAI1_D1 |
||
SAI1_SD_A |
||
DCMIPP_D4 |
||
DCMIPP_D0 |
||
49 |
PI3 |
SPDIFRX_IN3 |
ETH1_MII_RX_ER |
||
TAMP_IN4/TAMP_OUT5 |
||
WKUP2 |
||
50 |
UART4_RX |
PD8 |
USART2_TX |
||
I2S4_WS |
||
USART3_TX |
||
DCMIPP_D9 |
||
DCMIPP_D3 |
||
51 |
PD13 |
LPTIM2_ETR |
TIM4_CH2 |
||
TIM8_CH2 |
||
SAI1_CK1 |
||
SAI1_MCLK_A |
||
USART1_RX |
||
QUADSPI_BK1_IO3 |
||
QUADSPI_BK2_IO2 |
||
FMC_A18 |
||
LCD_G4 |
||
52 |
UART4_DE |
PA15 |
TRACED5 |
||
TIM2_CH1/TIM2_ETR |
||
I2S4_MCK |
||
UART4_RTS/UART4_DE |
||
UART4_RX |
||
LCD_R0 |
||
LCD_G7 |
||
FMC_A9 |
||
DCMIPP_D14 |
||
DCMIPP_D5 |
||
HDP5 |
||
55 |
ETH2_MDC |
PG5 |
TIM17_CH1 |
||
LCD_G4 |
||
FMC_A15 |
||
DCMIPP_VSYNC |
||
DCMIPP_D3 |
||
56 |
UART8_RTS |
PE12 |
TIM1_CH3N |
||
SPI4_SCK/I2S4_CK |
||
UART8_DE |
||
LCD_VSYNC |
||
LCD_G4 |
||
FMC_D9(boot)/FMC_AD9 |
||
DCMIPP_D11 |
||
LCD_G6 |
||
HDP4 |
||
57 |
ETH2_MDIO |
PB2 |
RTC_OUT2 |
||
SAI1_D1 |
||
I2S_CKIN |
||
SAI1_SD_A |
||
UART4_RX |
||
QUADSPI_BK1_NCS(boot) |
||
FMC_A6 |
||
LCD_B4 |
||
58 |
UART8_TX |
PE1 |
LPTIM1_IN2 |
||
UART8_TX(boot) |
||
LCD_HSYNC |
||
LCD_R4 |
||
FMC_NBL1 |
||
DCMIPP_D3 |
||
DCMIPP_D12 |
||
60 |
UART8_RX |
PF9 |
TIM17_CH1N |
||
TIM1_CH1 |
||
DFSDM1_CKIN3 |
||
SAI1_D4 |
||
UART7_CTS |
||
TIM14_CH1 |
||
QUADSPI_BK1_IO1(boot) |
||
QUADSPI_BK2_IO3 |
||
FMC_A9 |
||
LCD_B6 |
||
61 |
ETH2_TX_CTL |
PF6 |
TIM16_CH1 |
||
SPI5_NSS |
||
UART7_RX(boot) |
||
ETH2_MII_TX_EN/ETH2_RMII_TX_EN |
||
QUADSPI_BK1_IO2 |
||
LCD_R7 |
||
LCD_G4” |
||
62 |
UART8_CTS |
PG10 |
SPI5_SCK |
||
SAI1_SD_B |
||
UART8_CTS |
||
FDCAN1_TX |
||
QUADSPI_BK2_IO1(boot) |
||
FMC_NE3 |
||
DCMIPP_D2” |
||
63 |
ETH2_TXD0 |
PF7 |
TIM17_CH1 |
||
UART7_TX(boot) |
||
UART4_CTS |
||
ETH2_MII_TXD0/ETH2_RMII_TXD0 |
||
ETH1_RGMII_CLK125 |
||
FMC_A18 |
||
LCD_G2” |
||
65 |
ETH2_TXD2 |
PG1 |
LPTIM1_ETR |
||
TIM4_ETR |
||
SAI2_FS_A |
||
I2C2_SMBA |
||
SPI2_MISO/I2S2_SDI |
||
SAI2_D2 |
||
FDCAN2_TX |
||
ETH2_MII_TXD2 |
||
FMC_NBL0 |
||
LCD_G7” |
||
66 |
UART7_CTS |
PG7 |
TRACED8 |
||
TIM1_ETR |
||
SPI3_MISO/I2S3_SDI |
||
SDMMC2_CKIN |
||
LCD_R1 |
||
LCD_R5 |
||
LCD_R2 |
||
67 |
ETH2_TXD3 |
PE6 |
MCO2 |
||
TIM1_BKIN2 |
||
SAI2_SCK_B |
||
TIM15_CH2 |
||
I2C3_SMBA |
||
SAI1_SCK_B |
||
UART4_RTS/UART4_DE |
||
ETH2_MII_TXD3 |
||
FMC_A22 |
||
DCMIPP_D7 |
||
LCD_G3 |
||
68 |
UART7_RX |
PD11 |
LPTIM2_IN2 |
||
I2C4_SMBA |
||
USART3_CTS/USART3_NSS |
||
SPDIFRX_IN0 |
||
QUADSPI_BK1_IO2 |
||
ETH2_RGMII_CLK125 |
||
LCD_R7 |
||
FMC_CLE(boot)/FMC_A16 |
||
DCMIPP_D4” |
||
69 |
ETH2_GTX_CLK |
PG3 |
TIM8_BKIN2 |
||
I2C2_SDA |
||
SAI2_SD_B |
||
FDCAN2_RX |
||
ETH1_MDIO |
||
FMC_A13 |
||
DCMIPP_D15 |
||
DCMIPP_D12” |
||
70 |
UART7_TX |
PH2 |
LPTIM1_IN2 |
||
DCMIPP_D9 |
||
LCD_G1 |
||
QUADSPI_BK2_IO0(boot) |
||
ETH2_MII_CRS |
||
ETH1_MII_CRS |
||
FMC_NE4 |
||
ETH2_RGMII_CLK125 |
||
LCD_B0” |
||
71 |
ETH2_TXD1 |
PG11 |
SAI2_D3 |
||
I2S2_MCK |
||
USART3_TX |
||
UART4_TX |
||
ETH2_MII_TXD1/ETH2_RMII_TXD1 |
||
FMC_A24 |
||
DCMIPP_D14 |
||
LCD_B2” |
||
72 |
UART7_RTS |
PE4 |
SPI5_MISO |
||
SAI1_D2 |
||
DFSDM1_DATIN3 |
||
TIM15_CH1N |
||
I2S_CKIN |
||
SAI1_FS_A |
||
UART7_DE |
||
UART8_TX |
||
LCD_G7 |
||
QUADSPI_BK2_NCS |
||
FMC_NCE2 |
||
FMC_A25 |
||
DCMIPP_D3 |
||
75 |
ETH2_RXD3 |
PA8 |
MCO1 |
||
SAI2_MCLK_A |
||
TIM8_BKIN2 |
||
I2C4_SDA |
||
SPI5_MISO |
||
SAI2_CK1 |
||
USART1_CK |
||
ETH2_MII_RXD3 |
||
SPI2_MOSI/I2S2_SDO |
||
OTG_HS_SOF |
||
FMC_A21 |
||
LCD_B7” |
||
76 |
USART6_TX |
PC6 |
TRACED2 |
||
TIM3_CH1 |
||
TIM8_CH1 |
||
DFSDM1_DATIN0 |
||
I2S3_MCK |
||
SDMMC1_D6 |
||
SDMMC2_D0DIR |
||
SDMMC2_D6 |
||
LCD_B1 |
||
FMC_A19 |
||
LCD_R6 |
||
LCD_HSYNC |
||
HDP2 |
||
77 |
ETH2_RXD2 |
PH6 |
TIM12_CH1 |
||
USART2_CK |
||
SPI2_SCK/I2S2_CK |
||
QUADSPI_BK1_IO2 |
||
I2C5_SDA |
||
ETH1_PHY_INTN |
||
ETH1_MII_RX_ER |
||
ETH2_MII_RXD2 |
||
QUADSPI_BK1_NCS” |
||
78 |
USART6_RX |
PG9 |
DBTRGO |
||
I2C2_SDA |
||
SPDIFRX_IN3 |
||
FDCAN1_RX |
||
FMC_NE2 |
||
FMC_NCE(boot) |
||
DCMIPP_VSYNC” |
||
79 |
ETH2_RX_CTL |
PA12 |
TIM1_ETR |
||
SAI2_MCLK_A |
||
LCD_G6 |
||
USART1_RTS/USART1_DE |
||
FMC_A7 |
||
DCMIPP_D1 |
||
ETH2_MII_RX_DV/ETH2_RMII_CRS_DV |
||
80 |
USART6_CTS |
PG15 |
USART6_NSS |
||
UART7_CTS |
||
QUADSPI_BK1_IO1 |
||
ETH2_PHY_INTN |
||
LCD_B4 |
||
DCMIPP_D10 |
||
LCD_B3” |
||
81 |
ETH2_RX_CLK |
PH11 |
SPI5_NSS |
||
TIM5_CH2 |
||
SAI2_SD_A |
||
SPI2_NSS/I2S2_WS |
||
I2C4_SCL |
||
USART6_RX |
||
QUADSPI_BK2_IO0 |
||
FMC_A12 |
||
LCD_G6 |
||
ETH2_MII_RX_CLK/ETH2_RMII_REF_CLK” |
||
82 |
USART6_RTS |
PG12 |
LPTIM1_IN1 |
||
SAI2_SCK_A |
||
SAI2_CK2 |
||
USART6_DE |
||
USART3_CTS |
||
ETH2_PHY_INTN |
||
ETH1_PHY_INTN |
||
ETH2_MII_RX_DV/ETH2_RGMII_RX_CTL/ ETH2_RMII_CRS_DV |
||
83 |
ETH2_RXD1 |
PE2 |
TRACECLK |
||
TIM2_CH1/TIM2_ETR |
||
I2C4_SCL |
||
SPI5_MOSI |
||
SAI1_FS_B |
||
USART6_RTS/USART6_DE |
||
SPDIFRX_IN1 |
||
ETH2_MII_RXD1/ETH2_RMII_RXD1 |
||
FMC_A23 |
||
LCD_R1” |
||
85 |
ETH2_RXD0 |
PF4 |
USART2_RX |
||
ETH2_MII_RXD0/ETH2_RMII_RXD0 |
||
FMC_A4 |
||
DCMIPP_D4 |
||
LCD_B6” |
||
86 |
CAN1_TX |
PE10 |
TIM1_CH2N |
||
UART7_RX |
||
FDCAN1_TX |
||
FMC_D7(boot)/FMC_AD7” |
||
88 |
CAN1_RX |
PD0 |
SAI1_MCLK_A |
||
SAI1_CK1 |
||
FDCAN1_RX |
||
FMC_D2(boot)/FMC_AD2 |
||
DCMIPP_D1” |
||
89 |
PA11 |
TIM1_CH4 |
I2C5_SCL |
||
SPI2_NSS/I2S2_WS |
||
USART1_CTS/USART1_NSS |
||
ETH2_MII_RXD1/ETH2_RGMII_RXD1/ ETH2_RMII_RXD1 |
||
ETH1_CLK |
||
ETH2_CLK” |
||
91 |
PA0 |
TIM2_CH1/TIM2_ETR |
TIM5_CH1 |
||
TIM8_ETR |
||
TIM15_BKIN |
||
SAI1_SD_B |
||
UART5_TX |
||
ETH1_MII_CRS |
||
ETH2_MII_CRS |
||
ADC1_INP7 |
||
ADC1_INN3 |
||
ADC2_INP7 |
||
ADC2_INN3” |
||
92 |
ETH1_MDC |
PG2 |
MCO2 |
||
TIM8_BKIN |
||
SAI2_MCLK_B |
||
DCMIPP_D1 |
||
93 |
PA5 |
TIM2_CH1/TIM2_ETR |
USART2_CK |
||
TIM8_CH1N |
||
SAI1_D1 |
||
SPI1_NSS/I2S1_WS |
||
SAI1_SD_A |
||
ETH1_PPS_OUT |
||
ETH2_PPS_OUT |
||
ADC1_INP2” |
||
94 |
ETH1_MDIO |
PA2 |
TIM2_CH3 |
||
TIM5_CH3 |
||
LPTIM4_OUT |
||
TIM15_CH1 |
||
USART2_TX |
||
ADC1_INP1 |
||
ADC2_INP1” |
||
95 |
PA4 |
TIM5_ETR |
USART2_CK |
||
SAI1_SCK_B |
||
SPI1_NSS/I2S1_WS |
||
DFSDM1_CKIN1 |
||
ETH1_PPS_OUT |
||
ETH2_PPS_OUT |
||
SAI1_SCK_A |
||
ADC1_INP14” |
||
97 |
PF11 |
USART2_TX |
SAI1_D2 |
||
DFSDM1_CKIN3 |
||
SAI1_FS_A |
||
ETH2_MII_RX_ER |
||
ADC1_INP8 |
||
ADC1_INN4 |
||
ADC2_INP8 |
||
ADC2_INN4” |
||
98 |
ETH1_RX_CTL |
PA7 |
TIM1_CH1N |
||
TIM3_CH2 |
||
TIM8_CH1N |
||
SAI2_D1 |
||
SPI1_SCK/I2S1_CK |
||
USART1_CTS/USART1_NSS |
||
TIM14_CH1 |
||
ETH1_MII_RX_DV/ETH1_RMII_CRS_DV |
||
SAI2_SD_A |
||
ADC1_INP16” |
||
100 |
ETH1_RX_CLK |
PA1 |
TIM2_CH2 |
||
TIM5_CH2 |
||
LPTIM3_OUT |
||
TIM15_CH1N |
||
DFSDM1_CKIN0 |
||
USART2_RTS/USART2_DE |
||
ETH1_MII_RX_CLK/ETH1_RMII_REF_CLK |
||
ADC1_INP3 |
||
ADC2_INP3” |
||
101 |
SPI5_MOSI |
PH3 |
I2C3_SCL |
||
QUADSPI_BK2_IO1 |
||
ETH1_MII_COL |
||
LCD_R5 |
||
ETH2_MII_COL |
||
QUADSPI_BK1_IO0 |
||
LCD_B4 |
||
102 |
ETH1_RXD0 |
PC4 |
TIM3_ETR |
||
DFSDM1_CKIN2 |
||
SAI1_D3 |
||
I2S1_MCK |
||
UART5_RTS/UART5_DE |
||
SPDIFRX_IN2 |
||
ETH1_MII_RXD0/ETH1_RMII_RXD0 |
||
SAI2_D3 |
||
ADC1_INP4 |
||
ADC2_INP4” |
||
103 |
SPI5_MISO |
PG8 |
TIM2_CH1/TIM2_ETR |
||
TIM8_ETR |
||
SAI1_MCLK_B |
||
LCD_B1 |
||
USART3_RTS/USART3_DE |
||
SPDIFRX_IN2 |
||
QUADSPI_BK2_IO2 |
||
QUADSPI_BK1_IO3 |
||
FMC_NE2 |
||
ETH2_CLK |
||
DCMIPP_D6” |
||
104 |
ETH1_RXD3 |
PB1 |
TIM1_CH3N |
||
TIM3_CH4 |
||
TIM8_CH3N |
||
SPI1_SCK/I2S1_CK |
||
DFSDM1_DATIN1 |
||
UART4_RX |
||
ETH1_MII_RXD3 |
||
ADC1_INP5 |
||
ADC2_INP5” |
||
105 |
SPI5_NSS |
PF10 |
TIM16_BKIN |
||
SAI1_D3 |
||
TIM8_BKIN |
||
LCD_B5 |
||
USART6_RTS/USART6_DE |
||
UART7_RTS/UART7_DE |
||
QUADSPI_CLK(boot) |
||
DCMIPP_HSYNC |
||
TAMP_IN1” |
||
106 |
ETH1_RXD2 |
PB0 |
DBTRGI |
||
TIM1_CH2N |
||
TIM3_CH3 |
||
TIM8_CH2N |
||
USART1_RX |
||
I2S1_MCK |
||
SAI2_FS_A |
||
USART1_CK |
||
UART4_CTS |
||
SAI2_D2 |
||
ETH1_MII_RXD2 |
||
ADC1_INP9 |
||
ADC1_INN5 |
||
ADC2_INP9 |
||
ADC2_INN5” |
||
107 |
SPI5_SCK |
PH7 |
SAI2_FS_B |
||
I2C3_SDA |
||
QUADSPI_BK2_IO3 |
||
LCD_B2 |
||
ETH2_MII_TX_CLK |
||
ETH1_MII_TX_CLK |
||
QSPI_BK1_IO3” |
||
108 |
ETH1_RXD1 |
PC5 |
DFSDM1_DATIN2 |
||
SAI2_D4 |
||
I2S_CKIN |
||
SAI1_D4 |
||
USART2_CTS/USART2_NSS |
||
SPDIFRX_IN3 |
||
ETH1_MII_RXD1/ETH1_RMII_RXD1 |
||
ADC1_INP10 |
||
ADC2_INP10” |
||
111 |
PI2 |
SPDIFRX_IN2 |
TAMP_IN3/TAMP_OUT4 |
||
WKUP5 |
||
112 |
ETH1_TXD3 |
PE5 |
SAI2_SCK_B |
||
TIM8_CH3 |
||
TIM15_CH1 |
||
UART4_RX |
||
ETH1_MII_TXD3 |
||
FMC_NE1” |
||
113 |
PI1 |
SPDIFRX_IN1 |
RTC_OUT2/RTC_LSCO |
||
TAMP_IN2/TAMP_OUT3 |
||
WKUP4 |
||
114 |
ETH1_TXD2 |
PC2 |
SPI5_NSS |
||
SPI1_NSS/I2S1_WS |
||
SAI2_MCLK_A |
||
USART1_RTS/USART1_DE |
||
SAI2_CK1 |
||
ETH1_MII_TXD2 |
||
ADC1_INP15 |
||
115 |
PF5 |
TRACED12 |
DFSDM1_CKIN0 |
||
I2C1_SMBA |
||
LCD_G0 |
||
FMC_A5 |
||
DCMIPP_D11 |
||
LCD_R5” |
||
116 |
ETH1_GTX_CLK |
PC1 |
DFSDM1_DATIN0 |
||
SAI1_D3 |
||
ADC2_INP2 |
||
ETH1_MII_RX_DV/ETH1_RMII_CRS_DV |
||
117 |
PC13 |
RTC_OUT1/RTC_TS/RTC_LSCO |
TAMP_IN1/TAMP_OUT2 |
||
WKUP3 |
||
118 |
ETH1_TXD0 |
PG13 |
LPTIM1_OUT |
||
USART6_CTS/USART6_NSS |
||
ETH1_MII_TXD0/ETH1_RMII_TXD0 |
||
ADC2_INP6 |
||
ADC2_INN2” |
||
119 |
PA13 |
DBTRGO |
DBTRGI |
||
MCO1 |
||
UART4_TX |
||
BOOTFAILN |
||
120 |
ETH1_TX_CTL |
PB11 |
TIM2_CH4 |
||
LPTIM1_OUT |
||
I2C5_SMBA |
||
USART3_RX |
||
ETH1_MII_TX_EN/ETH1_RMII_TX_EN” |
||
121 |
PE14 |
TIM1_BKIN |
SAI1_D4 |
||
UART8_RTS/UART8_DE |
||
QUADSPI_BK1_NCS |
||
QUADSPI_BK2_IO2 |
||
TAMP_IN6 |
||
FMC_D11(boot)/FMC_AD11 |
||
DCMIPP_D7 |
||
LCD_G0 |
||
122 |
ETH1_TXD1 |
PG14 |
LPTIM1_ETR |
||
SAI2_D1 |
||
USART6_TX |
||
SAI2_SD_A |
||
ETH1_MII_TXD1/ETH1_RMII_TXD1 |
||
125 |
USB_D2_N |
USBH_HS_DM2(boot) |
OTG_HS_DM |
||
126 |
RCC_MCO1 |
PD7 |
MCO1 |
||
USART2_CK |
||
I2C2_SCL |
||
I2C3_SDA |
||
SPDIFRX_IN0 |
||
ETH1_MII_RX_CLK/ETH1_RGMII_RX_CLK/ ETH1_RMII_REF_CLK |
||
QUADSPI_BK1_IO2 |
||
FMC_NE1” |
||
127 |
USB_D2_P |
USBH_HS_DP2(boot) |
OTG_HS_DP |
||
130 |
ADC1_INN12 |
PC3 |
SAI1_CK1 |
||
DFSDM1_CKOUT |
||
SPI1_MISO/I2S1_SDI |
||
SPI1_SCK/I2S1_CK |
||
UART5_CTS |
||
SAI1_MCLK_A |
||
TAMP_IN5 |
||
ETH1_MII_TX_CLK |
||
ETH2_MII_TX_CLK |
||
ADC1_INP13” |
||
131 |
USB_D1_N |
USBH_HS_DM1 |
132 |
ADC1_INP6 |
PF12 |
SPI1_NSS/I2S1_WS |
||
SAI1_SD_A |
||
UART4_TX |
||
ETH1_MII_TX_ER |
||
ETH1_RGMII_CLK125 |
||
ADC1_INN2” |
||
133 |
USB_D1_P |
USBH_HS_DP1 |
134 |
ADC1_INP12 |
PA3 |
TIM2_CH4 |
||
TIM5_CH4 |
||
LPTIM5_OUT |
||
TIM15_CH2 |
||
SPI1_MOSI/I2S1_SDO |
||
SAI1_FS_B |
||
USART2_RX |
||
ETH1_MII_COL |
||
ETH2_MII_COL |
||
ADC1_INN11 |
||
PVD_IN |
||
WKUP6” |
||
137 |
PA14 |
DBTRGO |
DBTRGI |
||
MCO2 |
||
OTG_HS_SOF |
||
138 |
TAMP_IN2 |
PA6 |
TIM1_BKIN |
||
TIM3_CH1 |
||
TIM8_BKIN |
||
SAI2_CK2 |
||
SPI1_MISO/I2S1_SDI |
||
USART1_CK |
||
UART4_RTS/UART4_DE |
||
TIM13_CH1 |
||
SAI2_SCK_A |
||
ADC1_INP17 |
||
ADC1_INN16” |
||
139 |
PA10 |
TIM1_CH3 |
OTG_HS_ID |
||
140 |
TAMP_IN3 |
PC0 |
SAI1_SCK_A |
||
SAI1_CK2 |
||
I2S1_MCK |
||
SPI1_MOSI/I2S1_SDO |
||
USART1_TX |
||
ADC1_INP0 |
||
ADC1_INN1 |
||
ADC2_INP0 |
||
ADC2_INN1” |
||
141 |
PI7 |
OTG_HS_VBUS |
142 |
TAMP_OUT1 |
PI0 |
SPDIFRX_IN0 |
||
TAMP_IN8 |
||
143 |
PF0 |
TRACED13 |
DFSDM1_CKOUT |
||
USART3_CK |
||
SDMMC2_D4 |
||
FMC_A0 |
||
LCD_R6 |
||
LCD_G0” |
||
145 |
PF2 |
TRACED1 |
I2C2_SCL |
||
DFSDM1_CKIN1 |
||
USART6_CK |
||
SDMMC2_D0DIR |
||
SDMMC1_D0DIR |
||
FMC_A2 |
||
LCD_G4 |
||
LCD_B3” |
||
146 |
BOOT0 |
PI4 |
147 |
PD9 |
TRACECLK |
DFSDM1_DATIN3 |
||
SDMMC2_CDIR |
||
LCD_B5 |
||
FMC_D14(boot)/FMC_AD14 |
||
LCD_CLK |
||
LCD_B0” |
||
148 |
BOOT2 |
PI6 |
149 |
PD5 |
QUADSPI_BK1_IO0 |
FMC_NWE(boot) |
||
LCD_B0 |
||
LCD_G4 |
||
150 |
BOOT1 |
PI5 |
153 |
PH4 |
JTDI |
155 |
STLINK_SWCLK |
PF14 |
JTCK |
||
156 |
USART3_RX |
PG4 |
TRACED1 |
||
TIM1_BKIN2 |
||
DFSDM1_CKIN3 |
||
LCD_VSYNC |
||
SDMMC2_D123DIR |
||
FMC_A14 |
||
DCMIPP_D8 |
||
DCMIPP_D13 |
||
HDP1” |
||
157 |
STLINK_SWDIO |
PF15 |
JTMS |
||
158 |
USART3_CTS |
PC7 |
TRACED4 |
||
TIM3_CH2 |
||
TIM8_CH2 |
||
I2S2_MCK |
||
USART6_RX(boot) |
||
SDMMC2_CDIR |
||
SDMMC2_D7 |
||
LCD_R1 |
||
SDMMC1_D7 |
||
LCD_G6 |
||
HDP4 |
||
159 |
PH5 |
JTDO |
163 |
USART2_TX |
PF13 |
TIM2_CH1/TIM2_ETR |
||
SAI1_MCLK_B |
||
DFSDM1_DATIN3 |
||
UART5_RX |
||
ADC1_INP11 |
||
ADC1_INN10 |
||
ADC2_INP11 |
||
ADC2_INN10” |
||
164 |
UART5_RX |
PB12 |
TRACED10 |
||
I2C2_SMBA |
||
DFSDM1_DATIN1 |
||
UART7_RTS/UART7_DE |
||
USART3_RX(boot) |
||
SDMMC1_D5 |
||
LCD_R3 |
||
LCD_VSYNC” |
||
165 |
USART2_RX |
PD15 |
TIM4_CH4 |
||
DFSDM1_DATIN2 |
||
QUADSPI_BK1_IO3 |
||
FMC_D1(boot)/FMC_AD1 |
||
LCD_B5 |
||
166 |
UART5_TX |
PE7 |
TIM1_ETR |
||
LPTIM2_IN1 |
||
FMC_D4(boot)/FMC_A |
||
167 |
USART2_CTS |
PE11 |
TIM1_CH2 |
||
USART2_NSS |
||
SAI1_D2 |
||
SPI4_MOSI/I2S4_SDO |
||
SAI1_FS_A |
||
USART6_CK |
||
LCD_R0 |
||
ETH2_MII_TX_ER |
||
ETH1_MII_TX_ER |
||
FMC_D8(boot)/FMC_AD8 |
||
DCMIPP_D10 |
||
LCD_R5” |
||
169 |
USART2_RTS |
PD4 |
USART2_DE |
||
SPI3_MISO/I2S3_SDI |
||
DFSDM1_CKIN0 |
||
QUADSPI_CLK |
||
LCD_R1 |
||
FMC_NOE(boot) |
||
LCD_R4 |
||
LCD_R6” |
||
170 |
CAN2_TX |
PG0 |
FMC_A10 |
||
DCMIPP_PIXCLK |
||
LCD_G5 |
||
172 |
CAN2_RX |
PE0 |
DCMIPP_D12 |
||
UART8_RX(boot) |
||
LCD_B1 |
||
FMC_A11 |
||
DCMIPP_D1 |
||
LCD_B5 |
||
173 |
SDMMC1_CK |
PC12 |
TRACECLK |
||
UART7_TX |
||
SAI2_SD_B |
||
LCD_DE |
||
175 |
SDMMC1_CMD |
PD2 |
TRACED4 |
||
TIM3_ETR |
||
I2C1_SMBA |
||
SPI3_NSS/I2S3_WS |
||
SAI2_D1 |
||
USART3_RX” |
||
176 |
I2C5_SCL |
PD1 |
SPI4_MOSI/I2S4_SDO |
||
UART4_TX |
||
QUADSPI_BK1_NCS |
||
LCD_B6 |
||
FMC_D3(boot)/FMC_AD3 |
||
DCMIPP_D13 |
||
LCD_G2” |
||
177 |
SDMMC1_D3 |
PC11 |
TRACED3 |
||
I2C1_SDA |
||
SPI3_MOSI/I2S3_SDO |
||
USART3_CK |
||
UART5_RX |
||
SAI2_SCK_B” |
||
178 |
I2C5_SDA |
PE13 |
TIM1_CH3 |
||
SPI4_MISO/I2S4_SDI |
||
LCD_B1 |
||
FMC_D10(boot)/FMC_AD10 |
||
DCMIPP_D4 |
||
LCD_R6 |
||
179 |
SDMMC1_D0 |
PC8 |
TRACED0 |
||
TIM3_CH3 |
||
TIM8_CH3 |
||
USART3_CTS |
||
SPI3_MISO/I2S3_SDI |
||
USART6_CK |
||
SAI2_FS_B |
||
UART5_RTS/UART5_DE |
||
LCD_G7 |
||
181 |
SDMMC1_D1 |
PC9 |
TRACED1 |
||
TIM3_CH4 |
||
TIM8_CH4 |
||
USART3_RTS |
||
UART5_CTS |
||
FDCAN1_TX |
||
LCD_B4 |
||
182 |
I2C1_SDA |
PE8 |
TIM1_CH1N |
||
DFSDM1_CKIN2 |
||
UART7_TX |
||
FMC_D5(boot)/FMC_AD5” |
||
183 |
SDMMC1_D2 |
PC10 |
TRACED2 |
||
I2C1_SCL |
||
SPI3_SCK/I2S3_CK |
||
USART3_TX |
||
SAI2_MCLK_B” |
||
184 |
I2C1_SCL |
PD12 |
LPTIM1_IN1 |
||
TIM4_CH1 |
||
USART3_RTS/USART3_DE |
||
FMC_ALE(boot)/FMC_A17 |
||
DCMIPP_D6 |
||
189 |
SPI3_SCK |
PH13 |
TRACED15 |
||
USART2_CK |
||
TIM8_CH1N |
||
I2C5_SCL |
||
SPI3_SCK/I2S3_CK |
||
UART4_TX |
||
LCD_G3 |
||
LCD_G2” |
||
190 |
SPI2_MOSI |
PH10 |
TRACED0 |
||
TIM5_CH1 |
||
SAI2_D3 |
||
DFSDM1_DATIN2 |
||
I2S3_MCK |
||
I2S2_SDO |
||
USART3_CTS/USART3_NSS |
||
SDMMC1_D4 |
||
LCD_HSYNC |
||
LCD_R2 |
||
HDP0 |
||
191 |
SPI4_MISO |
PF3 |
LPTIM2_IN2 |
||
I2C5_SDA |
||
SPI4_MISO/I2S4_SDI |
||
SPI3_NSS/I2S3_WS |
||
FMC_A3 |
||
LCD_G3 |
||
192 |
SPI2_NSS |
PB13 |
TRACECLK |
||
TIM1_CH1N |
||
LPTIM2_OUT |
||
I2S2_WS |
||
I2C4_SCL |
||
SDMMC1_D123DIR |
||
FDCAN2_TX |
||
UART5_TX(boot) |
||
LCD_CLK |
||
193 |
SPI4_SCK |
PH9 |
TIM1_CH4 |
||
TIM12_CH2 |
||
I2S4_CK |
||
DCMIPP_D13 |
||
LCD_B5 |
||
LCD_DE |
||
FMC_A20 |
||
DCMIPP_D9 |
||
DCMIPP_D8 |
||
194 |
SPI2_SCK |
PB10 |
TIM2_CH3 |
||
LPTIM2_IN1 |
||
I2C5_SMBA |
||
I2S4_WS |
||
SPI2_SCK/I2S2_CK |
||
USART3_TX(boot) |
||
LCD_R3 |
||
195 |
SPI3_MOSI |
PF1 |
TRACED7 |
||
I2C2_SDA |
||
SPI3_MOSI/I2S3_SDO |
||
FMC_A1 |
||
LCD_B7 |
||
LCD_G1 |
||
HDP7” |
||
196 |
SPI2_MISO |
PB5 |
TRACED4 |
||
TIM17_BKIN |
||
TIM3_CH2 |
||
I2S2_SDI |
||
I2C4_SMBA |
||
SDMMC1_CKIN |
||
FDCAN2_RX |
||
UART5_RX(boot) |
||
LCD_B6 |
||
LCD_DE |
||
--------------------------------------------------------------------------------
* 珠海明远智睿科技有限公司
* ZhuHai MYZR Technology CO.,LTD.
* Latest Update: 2023/4/26
* Supporter: Kuangwh
--------------------------------------------------------------------------------
