MYZR-IMX6-CB200 硬件介绍
MYZR-IMX6-CB200视图

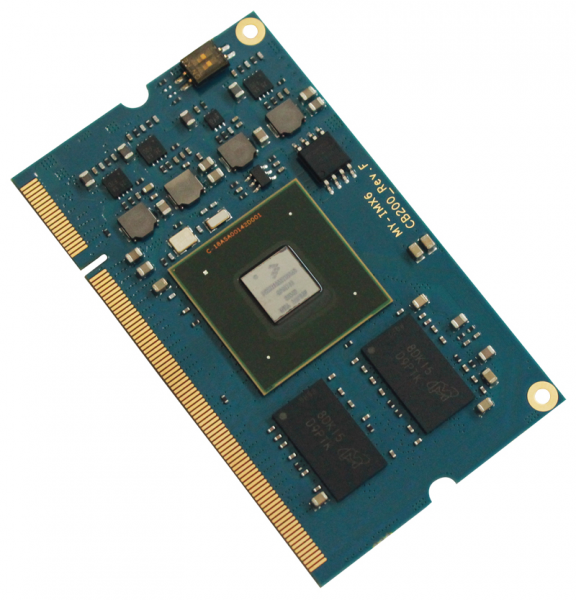

正面

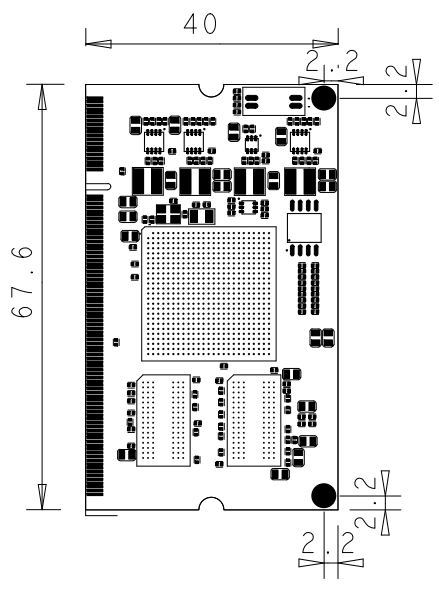

尺寸
MYZR-IMX6-CB200参数
硬件配置
核心板主型号 |
CPU |
内存容量 |
存储容量 |
启动方式 |
烧录方式 |
其它 |
|---|---|---|---|---|---|---|
MYZR-IMX6-CB200 |
i.MX 6QP |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
i.MX 6Q |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
|
i.MX 6U |
1G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
|
i.MX 6S |
512M / 1G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存512M，存储4G |
|
MYZR-IMX6-CB314 |
i.MX 6QP |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
i.MX 6Q |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
|
i.MX 6U |
1G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
|
MYZR-IMX6-CB336 |
i.MX 6QP |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
i.MX 6Q |
1G / 2G |
eMMC: 4G ~ 64G |
SPI Flash |
二位拨码 |
标配：内存1G，存储4G |
温度范围
工作环境温度
商业级：
0°C ~ 70°C
工业级：
-40°C ~ 85°C
汽车级：
-40°C ~ 125°C
存储温度
-60°C ~ 125°C

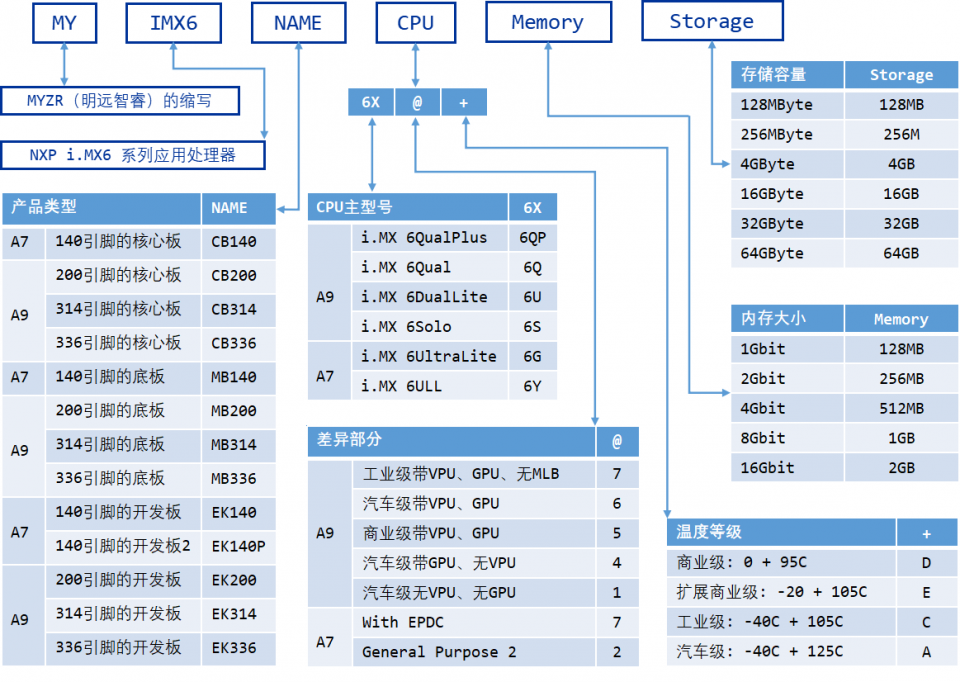

型号命令规则
型号举例
MYZR-IMX6-CB200-6Q5E-1024M-4G
CPU：MCIMX6Q5E 内存大小：1024MB eMMC大小：4G
MYZR-IMX6-CB200-6S5D-512M-4G
CPU：MCIMX6S5D 内存大小：512MB eMMC大小：4G
操作系统支持
操作系统及版本 |
MYZR-IMX6-EK200 |
MYZR-IMX6-EK314 |
MYZR-IMX6-EK336 |
MYZR-IMX6-EK140 |
|
Linux |
Linux-3.0.35 |
YES |
YES |
– |
– |
Linux-3.14.52 |
YES |
YES |
YES |
– |
|
Linux-4.1.15 |
YES |
YES |
YES |
YES |
|
Android |
Android 4.2.2 |
YES |
– |
– |
– |
Android 4.4.2 |
YES |
YES |
– |
– |
|
Android-5.1.1 |
YES |
YES |
YES |
– |
|
QT |
QT-4.8.5 |
YES |
YES |
– |
YES |
QT-5.5.0 |
YES |
YES |
YES |
– |
|
Ubuntu |
Ubuntu 11.10 |
YES |
YES |
– |
– |
Ubuntu 12.04 |
YES |
YES |
– |
– |
|
硬件接口
接口规格 |
最大可配置接口数 |
描述 |
|
通讯接口 |
Ethernet |
1 |
1路10/100Mbps以太网 |
USB |
2 |
1路USB2.0 1路OTG接口，最高速率480M |
|
UART |
5 |
5路UART,每路高达4.0Mbps |
|
PCIe |
1 |
1路PCIe Gen2.0 |
|
I2C |
3 |
3路I2C,最高支持400 kbps |
|
SPI |
2 |
2路eCSPI,每个高达52Mbps |
|
FlexCan |
2 |
2路CAN2.0,最高速率1 Mb/sec |
|
PWM |
4 |
4路16位计数器，4x16 FIFO |
|
外部存储接口 |
SPI-NOR |
1 |
1路外部SPI接口存储设备 |
SATA |
1 |
SATA II, 3.0 Gbps（Only IMX6Q） |
|
SD3.0/SDIO |
2 |
EMMC版本4.4,SD/SDIO版本3.0 |
|
多媒体 |
DSI-MIPI |
1 |
1路2通道MIPI显示接口，高达1.5Gbps |
LVDS |
2 |
“2路8bit模式，每路最高到85 Mpixels/s，分辨率1366X768 |
|
合成一路可以达到165 Mpixels/s” |
|||
RGB |
1 |
支持 8/16/18/24位显示，最大分辨率1366x768 |
|
HDMI |
1 |
1路HDMI1.4，1920X1080@60Hz |
|
CSI-COMS |
1 |
1路8bit并口的摄像头接口 |
|
CSI-MIPI |
1 |
1路2通道MIPI摄像头接口，高达1Gbps |
|
SSI |
1 |
1路 I2S/AC97,速率高达1.4 Mbps |
|
S/PDIF |
1 |
1路S/PDIF立体声收发器，支持收发 |
供电电源
默认显示选择
LVDS0
LVDS1
RGB
HDMI
管脚定义
1 |
GND |
POWER |
5V_IN |
2 |
|
3 |
4 |
||||
5 |
6 |
||||
7 |
8 |
||||
9 |
10 |
||||
11 |
NANDF_CS0 |
GPIO |
POWER |
3V_OUT |
12 |
13 |
NANDF_CS1 |
14 |
|||
15 |
NANDF_CS2 |
16 |
|||
17 |
SD1_DAT0 |
18 |
|||
19 |
SD3_RST |
GPIO |
GPIO_4 |
20 |
|
21 |
KEY_COL2 |
EIM_BCLK |
22 |
||
23 |
EIM_D20 |
CSI0_DATA_EN |
24 |
||
25 |
CSPI2_CS0 |
CSPI2 |
UART2 |
UART2_CTS |
26 |
27 |
CSPI2_RDY |
UART2_RTS |
28 |
||
29 |
CSPI2_MOSI |
UART2_TXD |
30 |
||
31 |
CSPI2_CLK |
UART2_RXD |
32 |
||
33 |
CSPI2_CS1 |
UART3 |
UART3_CTS |
34 |
|
35 |
CSPI2_MISO |
UART3_RTS |
36 |
||
37 |
BOOT_MODE0 |
— |
UART3 |
UART3_TXD |
38 |
39 |
nRESET |
nRESET IN |
UART3 |
UART3_RXD |
40 |
41 |
CSPI1_CS0 |
CSPI1 |
SD2 |
SD2_DATA2 |
42 |
43 |
CSPI1_MISO |
SD2_DATA0 |
44 |
||
45 |
CSPI1_MOSI |
SD2_CLK |
46 |
||
47 |
CSPI1_CLK |
SD2_DATA3 |
48 |
||
49 |
CSPI1_RDY |
SD2_CMD |
50 |
||
51 |
GND |
POWER |
SD2 |
SD2_DATA1 |
52 |
53 |
SD3_DATA3 |
SD3 |
SATA |
SATA_RXP |
54 |
55 |
SD3_DATA2 |
SATA_RXN |
56 |
||
57 |
SD3_CMD |
SATA_TXN |
58 |
||
59 |
SD3_CLK |
SATA_TXP |
60 |
||
61 |
SD3_DATA1 |
USBOTG |
USB_OTG_OC |
62 |
|
63 |
SD3_DATA0 |
USB_OTG_PWR_EN |
64 |
||
65 |
GND |
POWER |
USBOTG |
USB_OTG_DN |
66 |
67 |
USB_H1_PWR_EN |
USBHOST |
USBOTG |
USB_OTG_DP |
68 |
69 |
USB_HOST_DN |
USBHOST |
USB_OTG_VBUS |
70 |
|
71 |
USB_HOST_DP |
USB_OTG_ID |
72 |
||
73 |
USB_H1_OC |
MINI_PCIE |
PCIE_RXP |
74 |
|
75 |
USB_H1_VBUS |
PCIE_RXM |
76 |
||
77 |
CSI_D1M |
MIPI_CSI |
MINI_PCIE |
PCIE_TXP |
78 |
79 |
CSI_D1P |
PCIE_TXM |
80 |
||
81 |
CSI_D0M |
CLK1_P |
82 |
||
83 |
CSI_D0P |
CLK1_N |
84 |
||
85 |
CSI_CLK0M |
HDMI |
HDMI_D2P |
86 |
|
87 |
CSI_CLK0P |
HDMI_D2M |
88 |
||
89 |
UART1_RX |
UART1 |
HDMI |
HDMI_CEC_IN |
90 |
91 |
UART1_TX |
HDMI_HPD |
92 |
||
93 |
GND |
POWER |
HDMI |
HDMI_D1P |
94 |
95 |
CSI0_DAT17 |
CIS |
HDMI |
HDMI_D1M |
96 |
97 |
CSI0_DAT16 |
HDMI_CLKP |
98 |
||
99 |
CSI0_DAT14 |
HDMI_CLKM |
100 |
||
101 |
CSI0_DAT19 |
HDMI_D0P |
102 |
||
103 |
CSI0_DAT18 |
HDMI_D0M |
104 |
||
105 |
CSI0_DAT13 |
I2C1 |
I2C1_SCL |
106 |
|
107 |
CSI0_DAT12 |
I2C1_SDA |
108 |
||
109 |
CSI0_VSYNCH |
AUDIO |
AUD3_TXC |
110 |
|
111 |
CSI0_PIXCLK |
AUD3_TXD |
112 |
||
113 |
CSI0_HSYNCH |
AUD3_RXD |
114 |
||
115 |
CSI0_DAT15 |
AUD3_TXFS |
116 |
||
117 |
CAN1_TX |
CAN1 |
I2C3 |
I2C3_SCL |
118 |
119 |
CAN1_RX |
I2C3_SDA |
120 |
||
121 |
UART4_TXD |
UART4 |
CAN2 |
CAN2_TX |
122 |
123 |
UART4_RXD |
CAN2_RX |
124 |
||
125 |
UART5_RXD |
UART5 |
CLKOUT |
GPIO_0_CLKO |
126 |
127 |
UART5_TXD |
POWER |
GND |
128 |
|
129 |
LVDS0_TX2_P |
LVDS0 |
LVDS1 |
LVDS1_TX1_N |
130 |
131 |
LVDS0_TX2_N |
LVDS1 |
LVDS1_TX1_P |
132 |
|
133 |
LVDS0_TX0_N |
LVDS1 |
LVDS1_TX0_P |
134 |
|
135 |
LVDS0_TX0_P |
LVDS1 |
LVDS1_TX0_N |
136 |
|
137 |
LVDS0_TX3_N |
LVDS1 |
LVDS1_TX3_N |
138 |
|
139 |
LVDS0_TX3_P |
LVDS1 |
LVDS1_TX3_P |
140 |
|
141 |
LVDS0_CLK_N |
LVDS1 |
LVDS1_TX2_P |
142 |
|
143 |
LVDS0_CLK_P |
LVDS1 |
LVDS1_TX2_N |
144 |
|
145 |
LVDS0_TX1_N |
LVDS1 |
LVDS1_CLK_N |
146 |
|
147 |
LVDS0_TX1_P |
LVDS1 |
LVDS1_CLK_P |
148 |
|
149 |
GND |
POWER |
GPIO |
NANDF_ALE |
150 |
151 |
SD1_DAT1 |
GPIO |
GPIO |
NANDF_CLE |
152 |
153 |
SD1_DAT2 |
NANDF_WP_B |
154 |
||
155 |
NANDF_CS3 |
SD1_CLK |
156 |
||
157 |
DISP0_DAT16 |
LCD |
I2C2 |
I2C2_SCL |
158 |
159 |
DISP0_DAT23 |
I2C2_SDA |
160 |
||
161 |
DISP0_DAT11 |
LCD |
DISP0_DAT19 |
162 |
|
163 |
DISP0_DAT15 |
DISP0_DAT20 |
164 |
||
165 |
DISP0_DAT13 |
DISP0_DAT6 |
166 |
||
167 |
DISP0_DAT8 |
DISP0_DAT21 |
168 |
||
169 |
DISP0_DAT3 |
DISP0_DAT2 |
170 |
||
171 |
DISP0_DAT1 |
DISP0_DAT10 |
172 |
||
173 |
DISP0_DRDY |
DISP0_DAT4 |
174 |
||
175 |
DISP0_VSYNCH |
POWER |
GND |
176 |
|
177 |
DISP0_CONTRAST |
FEC |
ENET_REF_CLK |
178 |
|
179 |
DISP0_CLK |
ENET_nINT |
180 |
||
181 |
DISP0_DAT18 |
ENET_RXD1 |
182 |
||
183 |
DISP0_DAT22 |
ENET_RX_ER |
184 |
||
185 |
DISP0_DAT14 |
ENET_nRST |
186 |
||
187 |
DISP0_DAT17 |
ENET_MDIO |
188 |
||
189 |
DISP0_DAT9 |
ENET_CRS_DV |
190 |
||
191 |
DISP0_DAT12 |
ENET_TX_EN |
192 |
||
193 |
DISP0_DAT5 |
ENET_TXD1 |
194 |
||
195 |
DISP0_DAT7 |
ENET_RXD0 |
196 |
||
197 |
DISP0_DAT0 |
ENET_MDC |
198 |
||
199 |
DISP0_HSYNCH |
ENET_TXD0 |
200 |
||
管脚定义&详细功能说明
Pin NO. |
Pin Name |
CPU Ball Name |
功能描述 |
管脚电压 |
|---|---|---|---|---|
1 |
GND |
— |
— |
— |
3 |
||||
5 |
||||
7 |
||||
9 |
||||
2 |
5V |
— |
POWER |
5V(input) |
4 |
POWER |
|||
6 |
POWER |
|||
8 |
POWER |
|||
10 |
POWER |
|||
11 |
NANDF_CS0 |
F15 |
NAND_CE0_B |
3.3V |
GPIO6_IO11 |
||||
12 |
3P3V |
— |
— |
3.3V(output) |
14 |
— |
|||
16 |
— |
|||
18 |
— |
|||
13 |
NANDF_CS1 |
C16 |
NAND_CE1_B |
3.3V |
SD4_VSELECT |
||||
SD3_VSELECT |
||||
GPIO6_IO14 |
||||
15 |
NANDF_CS2 |
A17 |
NAND_CE2_B |
3.3V |
IPU1_SISG0 |
||||
ESAI_TX0 |
||||
EIM_CRE |
||||
CCM_CLKO2 |
||||
GPIO6_IO15 |
||||
IPU2_SISG0 |
||||
17 |
SD1_DAT0/CSI0_PWN |
A21 |
SD1_DATA0 |
3.3V |
ECSPI5_MISO |
||||
GPT_CAPTURE1 |
||||
GPIO1_IO16 |
||||
19 |
SD3_RST/SD3_WP |
D15 |
SD3_RESET |
3.3V |
UART3_RTS_B |
||||
GPIO7_IO08 |
||||
20 |
GPIO_4/SLEEP WAKE |
R6 |
ESAI_TX_HF_CLK |
3.3V |
KEY_COL7 |
||||
GPIO1_IO04 |
||||
SD2_CD_B |
||||
21 |
KEY_COL2/SD3_CD_B |
W6 |
ECSPI1_SS1 |
3.3V |
ENET_RX_DATA2 |
||||
FLEXCAN1_TX |
||||
KEY_COL2 |
||||
ENET_MDC |
||||
GPIO4_IO10 |
||||
USB_H1_PWR_CTL_WAKE |
||||
22 |
EIM_BCLK/VOL+ |
N22 |
EIM_BCLK |
3.3V |
IPU1_DI1_PIN16 |
||||
GPIO6_IO31 |
||||
23 |
EIM_D20 |
G20 |
EIM_DATA20 |
3.3V |
ECSPI4_SS0 |
||||
IPU1_DI0_PIN16 |
||||
IPU2_CSI1_DATA15 |
||||
UART1_RTS_B |
||||
GPIO3_IO20 |
||||
EPIT2_OUT |
||||
24 |
CSI0_DATA_EN/VOL- |
P3 |
IPU1_CSI0_DATA_EN |
2.5V |
EIM_DATA00 |
||||
GPIO5_IO20 |
||||
ARM_TRACE_CLK |
||||
25 |
CSPI2_CS0 |
K20 |
EIM_RW |
3.3V |
IPU1_DI1_PIN08 |
||||
ECSPI2_SS0 |
||||
GPIO2_IO26 |
||||
SRC_BOOT_CFG29 |
||||
26 |
UART2_CTS |
G23 |
EIM_DATA28 |
3.3V |
I2C1_SDA |
||||
ECSPI4_MOSI |
||||
IPU2_CSI1_DATA12 |
||||
UART2_CTS_B |
||||
GPIO3_IO28 |
||||
IPU1_EXT_TRIG |
||||
IPU1_DI0_PIN13 |
||||
27 |
CSPI2_RDY |
H19 |
EIM_ADDR25 |
3.3V |
ECSPI4_SS1 |
||||
ECSPI2_RDY |
||||
IPU1_DI1_PIN12 |
||||
IPU1_DI0_D1_CS |
||||
GPIO5_IO02 |
||||
HDMI_TX_CEC_LINE |
||||
28 |
UART2_RTS |
J19 |
EIM_DATA29 |
3.3V |
IPU1_DI1_PIN15 |
||||
ECSPI4_SS0 |
||||
UART2_RTS_B |
||||
GPIO3_IO29 |
||||
IPU2_CSI1_VSYNC |
||||
IPU1_DI0_PIN14 |
||||
29 |
CSPI2_MOSI |
J23 |
EIM_CS1_B |
3.3V |
IPU1_DI1_PIN06 |
||||
ECSPI2_MOSI |
||||
GPIO2_IO24 |
||||
30 |
UART2_TXD |
E24 |
EIM_DATA26 |
3.3V |
IPU1_DI1_PIN11 |
||||
IPU1_CSI0_DATA01 |
||||
IPU2_CSI1_DATA14 |
||||
UART2_TX_DATA |
||||
UART2_TX_DATA |
||||
IPU1_SISG2 |
||||
IPU1_DISP1_DATA22 |
||||
31 |
CSPI2_CLK |
H24 |
EIM_CS0_B |
3.3V |
IPU1_DI1_PIN05 |
||||
ECSPI2_SCLK |
||||
GPIO2_IO23 |
||||
32 |
UART2_RXD |
E25 |
EIM_DATA27 |
3.3V |
IPU1_DI1_PIN13 |
||||
IPU1_CSI0_DATA00 |
||||
IPU2_CSI1_DATA13 |
||||
UART2_RX_DATA |
||||
GPIO3_IO27 |
||||
IPU1_SISG3 |
||||
IPU1_DISP1_DATA23 |
||||
33 |
CSPI2_CS1 |
K22 |
EIM_LBA_B |
3.3V |
IPU1_DI1_PIN17 |
||||
ECSPI2_SS1 |
||||
GPIO2_IO27 |
||||
SRC_BOOT_CFG26 |
||||
34 |
UART3_CTS |
D25 |
EIM_DATA23 |
3.3V |
IPU1_DI0_D0_CS |
||||
UART3_CTS_B |
||||
UART1_DCD_B |
||||
IPU2_CSI1_DATA_EN |
||||
GPIO3_IO23 |
||||
IPU1_DI1_PIN02 |
||||
IPU1_DI1_PIN14 |
||||
35 |
CSPI2_MISO |
J24 |
EIM_OE_B |
3.3V |
IPU1_DI1_PIN07 |
||||
ECSPI2_MISO |
||||
GPIO2_IO25 |
||||
36 |
UART3_RTS |
H21 |
EIM_DATA31 |
3.3V |
IPU1_DISP1_DATA20 |
||||
IPU1_DI0_PIN12 |
||||
IPU1_CSI0_DATA02 |
||||
UART3_RTS_B |
||||
GPIO3_IO31 |
||||
USB_H1_PWR |
||||
37 |
BOOT_MODE0 |
C12 |
SRC_BOOT_MODE0 |
3.3V |
38 |
UART3_TXD |
F22 |
EIM_DATA24 |
3.3V |
ECSPI4_SS2 |
||||
UART3_TX_DATA |
||||
ECSPI1_SS2 |
||||
ECSPI2_SS2 |
||||
GPIO3_IO24 |
||||
AUD5_RXFS |
||||
UART1_DTR |
||||
39 |
NRESET |
— |
— |
3.3V |
40 |
UART3_RXD |
G22 |
EIM_DATA25 |
3.3V |
ECSPI4_SS3 |
||||
UART3_RX_DA |
||||
ECSPI1_SS3 |
||||
ECSPI2_SS3 |
||||
GPIO3_IO25 |
||||
AUD5_RXC |
||||
UART1_DSR_B |
||||
41 |
CSPI1_CS0 |
E22 |
EIM_EB2_B |
3.3V |
ECSPI1_SS0 |
||||
IPU2_CSI1_DATA19 |
||||
HDMI_TX_DDC_SCL |
||||
GPIO2_IO30 |
||||
I2C2_SCL |
||||
SRC_BOOT_CFG30 |
||||
42 |
SD2_DATA2 |
A23 |
EIM_EB2_B |
3.3V |
ECSPI5_SS1 |
||||
EIM_CS3_B |
||||
AUD4_TXD |
||||
KEY_ROW6 |
||||
GPIO1_IO13 |
||||
43 |
CSPI1_MISO |
F21 |
EIM_DATA17 |
3.3V |
ECSPI1_MISO |
||||
IPU1_DI0_PIN06 |
||||
IPU2_CSI1_PIXCLK |
||||
DCIC1_OUT |
||||
GPIO3_IO17 |
||||
I2C3_SCL |
||||
44 |
SD2_DATA0 |
A22 |
SD2_DATA0 |
3.3V |
ECSPI5_MISO |
||||
AUD4_RXD |
||||
KEY_ROW7 |
||||
GPIO1_IO15 |
||||
DCIC2_OUT |
||||
45 |
CSPI1_MOSI |
D24 |
EIM_DATA18 |
3.3V |
ECSPI1_MOSI |
||||
IPU1_DI0_PIN07 |
||||
IPU2_CSI1_DATA17 |
||||
IPU1_DI1_D0_CS |
||||
GPIO3_IO18 |
||||
I2C3_SDA |
||||
46 |
SD2_CLK |
C21 |
SD2_CLK |
3.3V |
ECSPI5_SCLK |
||||
KEY_COL5 |
||||
AUD4_RXFS |
||||
GPIO1_IO10 |
||||
47 |
CSPI1_CLK |
C25 |
EIM_DATA16 |
3.3V |
ECSPI1_SCLK |
||||
IPU1_DI0_PIN05 |
||||
IPU2_CSI1_DATA18 |
||||
HDMI_TX_DDC_SDA |
||||
GPIO3_IO16 |
||||
I2C2_SDA |
||||
48 |
SD2_DATA3 |
B22 |
SD2_DATA3 |
3.3V |
ECSPI5_SS3 |
||||
KEY_COL6 |
||||
AUD4_TXC |
||||
GPIO1_IO12 |
||||
49 |
CSPI1_RDY |
P5 |
KEY_COL5 |
3.3V |
ENET_1588_EVENT0_OUT |
||||
SPDIF_OUT |
||||
CCM_CLKO1 |
||||
ECSPI1_RDY |
||||
GPIO4_IO05 |
||||
ENET_TX_ER |
||||
50 |
SD2_CMD |
F19 |
SD2_CMD |
3.3V |
ECSPI5_MOSI |
||||
KEY_ROW5 |
||||
AUD4_RXC |
||||
GPIO1_IO11 |
||||
51 |
GND |
— |
— |
— |
52 |
SD2_DATA1 |
E20 |
SD2_DATA1 |
3.3V |
ECSPI5_SS0 |
||||
EIM_CS2_B |
||||
AUD4_TXFS |
||||
KEY_COL7 |
||||
GPIO1_IO14 |
||||
53 |
SD3_DATA3 |
B15 |
SD3_DATA3 |
3.3V |
UART3_CTS_B |
||||
GPIO7_IO07 |
||||
54 |
SATA_RXP |
B14 |
SATA_PHY_RX_P |
2.5V |
55 |
SD3_DATA2 |
A15 |
SD3_DATA2 |
3.3V |
GPIO7_IO06 |
||||
56 |
SATA_RXN |
B13 |
SATA_PHY_RX_N |
2.5V |
57 |
SD3_CMD |
B13 |
SD3_CMD |
3.3V |
UART2_CTS_B |
||||
FLEXCAN1_TX |
||||
GPIO7_IO02 |
||||
58 |
SATA_TXN |
B12 |
SATA_PHY_TX_N |
2.5V |
59 |
SD3_CLK |
D14 |
SD3_CLK |
3.3V |
UART2_RTS_B |
||||
FLEXCAN1_RX |
||||
GPIO7_IO03 |
||||
60 |
SATA_TXP |
A12 |
SATA_PHY_TX_P |
2.5V |
61 |
SD3_DATA1 |
F14 |
SD3_DATA1 |
3.3V |
UART1_RTS_B |
||||
FLEXCAN2_RX |
||||
GPIO7_IO05 |
||||
62 |
USB_OTG_OC |
H20 |
EIM_DATA21 |
3.3V |
ECSPI4_SCLK |
||||
IPU1_DI0_PIN17 |
||||
IPU2_CSI1_DATA11 |
||||
USB_OTG_OC |
||||
GPIO3_IO21 |
||||
I2C1_SCL |
||||
SPDIF_IN |
||||
63 |
SD3_DATA0 |
E14 |
SD3_DATA0 |
3.3V |
UART1_CTS_B |
||||
FLEXCAN2_TX |
||||
GPIO7_IO04 |
||||
64 |
USB_OTG_PWR_EN |
E23 |
EIM_DATA22 |
3.3V |
ECSPI4_MISO |
||||
IPU1_DI0_PIN01 |
||||
IPU2_CSI1_DATA10 |
||||
USB_OTG_PWR |
||||
GPIO3_IO22 |
||||
SPDIF_OUT |
||||
65 |
GND |
— |
— |
— |
66 |
USB_OTG_DN |
B6 |
USB_OTG_DN |
2.5V |
67 |
USB_H1_PWR_EN |
C13 |
SD3_DATA5 |
3.3V |
UART2_TX_DATA |
||||
GPIO7_IO00 |
||||
68 |
USB_OTG_DP |
A6 |
USB_OTG_DP |
2.5V |
69 |
USB_HOST_DN |
F10 |
USB_H1_DN |
2.5V |
70 |
USB_OTG_VBUS |
E9 |
USB_OTG_VBUS |
5V |
71 |
USB_HOST_DP |
E10 |
USB_H1_DP |
2.5V |
72 |
USB_OTG_ID |
T4 |
ESAI_RX_CLK |
3.3V |
WDOG2_B |
||||
KEY_ROW5 |
||||
USB_OTG_ID |
||||
PWM2_OUT |
||||
GPIO1_IO01 |
||||
SD1_CD_B |
||||
73 |
USB_H1_OC |
J20 |
EIM_DATA30 |
3.3V |
IPU1_DISP1_DATA21 |
||||
IPU1_DI0_PIN11 |
||||
IPU1_CSI0_DATA03 |
||||
UART3_CTS_B |
||||
GPIO3_IO30 |
||||
USB_H1_OC |
||||
74 |
PCIE_RXP |
B2 |
PCIE_RX_P |
2.5V |
75 |
USB_H1_VBUS |
D10 |
USB_H1_VBUS |
5V |
76 |
PCIE_RXM |
B1 |
PCIE_RX_N |
2.5V |
77 |
CSI_D1M |
D1 |
CSI_DATA1_N |
2.5V |
78 |
PCIE_TXP |
B3 |
PCIE_TX_P |
2.5V |
79 |
CSI_D1P |
D2 |
CSI_DATA1_P |
2.5V |
80 |
PCIE_TXM |
A3 |
PCIE_TX_N |
2.5V |
81 |
CSI_D0M |
E4 |
CSI_DATA0_N |
2.5V |
82 |
CLK1_P |
D7 |
XTALOSC_CLK1_P |
2.5V |
83 |
CSI_D0P |
E3 |
CSI_DATA0_P |
2.5V |
84 |
CLK1_N |
C7 |
XTALOSC_CLK2_N |
2.5V |
85 |
CSI_CLK0M |
F4 |
CSI_CLK0_N |
2.5V |
86 |
HDMI_D2P |
K4 |
HDMI_TX_DATA2_P |
2.5V |
87 |
CSI_CLK0P |
F3 |
CSI_CLK0_P |
2.5V |
88 |
HDMI_D2M |
K3 |
HDMI_TX_DATA2_N |
2.5V |
89 |
UART1_RX |
M3 |
IPU1_CSI0_DATA11 |
2.5V |
AUD3_RXFS |
||||
ECSPI2_SS0 |
||||
UART1_RX_DATA |
||||
GPIO5_IO29 |
||||
ARM_TRACE08 |
||||
90 |
HDMI_CEC_IN |
W4 |
HDMI_TX_DDC_CEC |
2.5V |
91 |
UART1_TX |
M1 |
IPU1_CSI0_DATA10 |
2.5V |
AUD3_RXC |
||||
ECSPI2_MISO |
||||
UART1_TX_DATA |
||||
UART1_TX_DATA |
||||
GPIO5_IO28 |
||||
ARM_TRACE07 |
||||
92 |
HDMI_HPD |
K1 |
HDMI_TX_HPD |
2.5V |
93 |
GND |
— |
— |
— |
94 |
HDMI_D1P |
J4 |
HDMI_TX_DATA1_P |
2.5V |
95 |
CSI0_DAT17 |
L3 |
IPU1_CSI0_DATA17 |
2.5V |
EIM_DATA13 |
||||
UART4_CTS_B |
||||
GPIO6_IO03 |
||||
ARM_TRACE14 |
||||
96 |
HDMI_D1M |
J3 |
HDMI_TX_DATA1_N |
2.5V |
97 |
CSI0_DAT16 |
L4 |
IPU1_CSI0_DATA16 |
2.5V |
EIM_DATA12 |
||||
UART4_RTS_B |
||||
GPIO6_IO02 |
||||
ARM_TRACE13 |
||||
98 |
HDMI_CLKP |
J6 |
HDMI_TX_CLK_P |
2.5V |
99 |
CSI0_DAT14 |
M4 |
IPU1_CSI0_DATA14 |
2.5V |
EIM_DATA10 |
||||
UART5_TX_DATA |
||||
GPIO6_IO00 |
||||
ARM_TRACE11 |
||||
100 |
HDMI_CLKM |
J5 |
HDMI_TX_CLK_N |
2.5V |
101 |
CSI0_DAT19 |
L6 |
IPU1_CSI0_DATA19 |
2.5V |
EIM_DATA15 |
||||
UART5_CTS_B |
||||
GPIO6_IO05 |
||||
102 |
HDMI_D0P |
K6 |
HDMI_TX_DATA0_P |
2.5V |
103 |
CSI0_DATA18 |
M6 |
IPU1_CSI0_DATA18 |
2.5V |
EIM_DATA14 |
||||
UART5_RTS_B |
||||
GPIO6_IO04 |
||||
ARM_TRACE15 |
||||
104 |
HDMI_D0M |
K5 |
HDMI_TX_DATA0_NP |
2.5V |
105 |
CSI0_DATA13 |
L1 |
IPU1_CSI0_DATA13 |
2.5V |
EIM_DATA09 |
||||
UART4_RX_DATA |
||||
GPIO5_IO31 |
||||
ARM_TRACE10 |
||||
106 |
I2C1_SCL |
N5 |
IPU1_CSI0_DATA09 |
2.5V |
EIM_DATA07 |
||||
ECSPI2_MOSI |
||||
KEY_ROW7 |
||||
I2C1_SCL |
||||
GPIO5_IO27 |
||||
ARM_TRACE06 |
||||
107 |
CSI0_DAT12 |
M2 |
IPU1_CSI0_DATA12 |
2.5V |
EIM_DATA08 |
||||
UART4_TX_DATA |
||||
GPIO5_IO30 |
||||
ARM_TRACE09 |
||||
108 |
I2C1_SDA |
N6 |
IPU1_CSI0_DATA08 |
2.5V |
EIM_DATA06 |
||||
ECSPI2_SCLK |
||||
KEY_COL7 |
||||
I2C1_SDA |
||||
GPIO5_IO26 |
||||
ARM_TRACE05 |
||||
109 |
CSI0_VSYNCH |
N2 |
IPU1_CSI0_VSYNC |
2.5V |
EIM_DATA01 |
||||
GPIO5_IO21 |
||||
ARM_TRACE00 |
||||
110 |
AUD3_TXC |
N1 |
IPU1_CSI0_DATA04 |
2.5V |
EIM_DATA02 |
||||
ECSPI1_SCLK |
||||
KEY_COL5 |
||||
AUD3_TXC |
||||
GPIO5_IO22 |
||||
ARM_TRACE01 |
||||
111 |
CSI0_PIXCLK |
P1 |
IPU1_CSI0_PIXCLK |
2.5V |
GPIO5_IO18 |
||||
ARM_EVENTO |
||||
112 |
AUD3_TXD |
P2 |
IPU1_CSI0_DATA05 |
2.5V |
EIM_DATA03 |
||||
ECSPI1_MOSI |
||||
KEY_ROW5 |
||||
AUD3_TXD |
||||
GPIO5_IO23 |
||||
ARM_TRACE02 |
||||
113 |
CSI0_HSYNCH |
P4 |
IPU1_CSI0_HSYNC |
2.5V |
CCM_CLKO1 |
||||
GPIO5_IO19 |
||||
ARM_TRACE_CTL |
||||
114 |
AUD3_RXD |
N3 |
IPU1_CSI0_DATA07 |
2.5V |
EIM_DATA05 |
||||
ECSPI1_SS0 |
||||
KEY_ROW6 |
||||
AUD3_RXD |
||||
GPIO5_IO25 |
||||
ARM_TRACE04 |
||||
115 |
CSI0_DAT15 |
M5 |
IPU1_CSI0_DATA15 |
2.5V |
EIM_DATA11 |
||||
UART5_RX_DATA |
||||
GPIO6_IO01 |
||||
ARM_TRACE12 |
||||
116 |
AUD3_TXFS |
N4 |
IPU1_CSI0_DATA06 |
2.5V |
EIM_DATA04 |
||||
ECSPI1_MISO |
||||
KEY_COL6 |
||||
AUD3_TXFS |
||||
GPIO5_IO24 |
||||
ARM_TRACE03 |
||||
117 |
CAN1_TX |
R3 |
ESAI_TX4_RX1 |
3.3V |
ECSPI5_RDY |
||||
EPIT1_OUT |
||||
FLEXCAN1_TX |
||||
UART2_TX_DATA |
||||
GPIO1_IO07 |
||||
SPDIF_LOCK |
||||
USB_OTG_HOST_MODE |
||||
118 |
I2C3_SCL |
R7 |
ESAI_RX_HF_CLK |
3.3V |
I2C3_SCL |
||||
XTALOSC_REF_CLK_24M |
||||
CCM_CLKO2 |
||||
GPIO1_IO03 |
||||
USB_H1_OC |
||||
MLB_CLK |
||||
119 |
CAN1_RX |
R5 |
ESAI_TX5_RX0 |
3.3V |
XTALOSC_REF_CLK_32K |
||||
EPIT2_OUT |
||||
FLEXCAN1_RX |
||||
UART2_RX_DATA |
||||
GPIO1_IO08 |
||||
SPDIF_SR_CLK |
||||
USB_OTG_PWR_CTL_WAKE |
||||
120 |
I2C3_SDA |
T3 |
ESAI_TX_CLK |
3.3V |
I2C3_SDA |
||||
GPIO1_IO06 |
||||
SD2_LCTL |
||||
MLB_SIG |
||||
121 |
UART4_TXD |
W5 |
ECSPI1_SCLK |
3.3V |
ENET_RX_DATA3 |
||||
AUD5_TXC |
||||
KEY_COL0 |
||||
UART4_TX_DATA |
||||
GPIO4_IO06 |
||||
DCIC1_OUT |
||||
122 |
CAN2_TX |
T6 |
FLEXCAN2_TX |
3.3V |
IPU1_SISG4 |
||||
USB_OTG_OC |
||||
KEY_COL4 |
||||
UART5_RTS_B |
||||
GPIO4_IO14 |
||||
123 |
UART4_RXD |
V6 |
ECSPI1_MOSI |
3.3V |
ENET_TX_DATA3 |
||||
AUD5_TXD |
||||
KEY_ROW0 |
||||
UART4_RX_DATA |
||||
GPIO4_IO07 |
||||
DCIC2_OUT |
||||
124 |
CAN2_RX |
V5 |
FLEXCAN2_RX |
3.3V |
IPU1_SISG5 |
||||
USB_OTG_PWR |
||||
KEY_ROW4 |
||||
UART5_CTS_B |
||||
GPIO4_IO15 |
||||
125 |
UART5_RXD |
U6 |
ECSPI1_SS0 |
3.3V |
ENET_COL |
||||
AUD5_RXD |
||||
KEY_ROW1 |
||||
UART5_RX_DATA |
||||
GPIO4_IO09 |
||||
SD2_VSELECT |
||||
126 |
GPIO_0_CLKO |
T5 |
CCM_CLKO1 |
3.3V |
KEY_COL5 |
||||
ASRC_EXT_CLK |
||||
EPIT1_OUT |
||||
GPIO1_IO00 |
||||
USB_H1_PWR |
||||
SNVS_VIO_5 |
||||
127 |
UART5_TXD |
U7 |
ECSPI1_MISO |
3.3V |
ENET_MDIO |
||||
AUD5_TXFS |
||||
KEY_COL1 |
||||
UART5_TX_DATA |
||||
GPIO4_IO08 |
||||
SD1_VSELECT |
||||
128 |
GND |
— |
— |
— |
129 |
LVDS0_TX2_P |
V1 |
LVDS0_DATA2_P |
2.5V |
130 |
LVDS1_TX1_N |
AA2 |
LVDS1_DATA1_N |
2.5V |
131 |
LVDS0_TX2_N |
V2 |
LVDS0_DATA2_N |
2.5V |
132 |
LVDS1_TX1_P |
AA1 |
LVDS1_DATA1_P |
2.5V |
133 |
LVDS0_TX0_N |
U2 |
LVDS0_DATA0_N |
2.5V |
134 |
LVDS1_TX0_P |
Y2 |
LVDS1_DATA0_P |
2.5V |
135 |
LVDS0_TX0_P |
U1 |
LVDS0_DATA0_P |
2.5V |
136 |
LVDS1_TX0_N |
Y1 |
LVDS1_DATA0_N |
2.5V |
137 |
LVDS0_TX3_N |
W2 |
LVDS0_DATA3_N |
2.5V |
138 |
LVDS1_TX3_N |
AA3 |
LVDS1_DATA3_N |
2.5V |
139 |
LVDS0_TX3_P |
W1 |
LVDS0_DATA3_P |
2.5V |
140 |
LVDS1_TX3_P |
AA4 |
LVDS1_DATA3_P |
2.5V |
141 |
LVDS0_CLK_N |
V4 |
LVDS0_CLK_N |
2.5V |
142 |
LVDS1_TX2_P |
AB2 |
LVDS1_DATA2_P |
2.5V |
143 |
LVDS0_CLK_P |
V3 |
LVDS0_CLK_P |
2.5V |
144 |
LVDS1_TX2_N |
AB1 |
LVDS1_DATA2_N |
2.5V |
145 |
LVDS0_TX1_N |
U4 |
LVDS0_DATA1_N |
2.5V |
146 |
LVDS1_CLK_N |
Y3 |
LVDS1_CLK_N |
2.5V |
147 |
LVDS0_TX1_P |
U3 |
LVDS0_DATA1_P |
2.5V |
148 |
LVDS1_CLK_P |
Y4 |
LVDS1_CLK_P |
2.5V |
149 |
GND |
— |
— |
— |
150 |
NANDF_ALE |
A16 |
NAND_ALE |
3.3V |
SD4_RESET |
||||
GPIO6_IO08 |
||||
151 |
SD1_DAT1/TOUCH_NEINT1 |
C20 |
SD1_DATA1 |
3.3V |
ECSPI5_SS0 |
||||
PWM3_OUT |
||||
GPT_CAPTURE2 |
||||
GPIO1_IO17 |
||||
152 |
NANDF_CLE |
C15 |
NAND_CLE |
3.3V |
IPU2_SISG4 |
||||
GPIO6_IO07 |
||||
153 |
SD1_DATA2 |
E19 |
SD1_DATA2 |
3.3V |
ECSPI5_SS1 |
||||
GPT_COMPARE2 |
||||
PWM2_OUT |
||||
WDOG1_B |
||||
GPIO1_IO19 |
||||
WDOG1_RESET_B_DEB |
||||
154 |
NANDF_WP_B |
E15 |
NAND_WP_B |
3.3V |
IPU2_SISG5 |
||||
GPIO6_IO09 |
||||
155 |
NANDF_CS3 |
D16 |
NAND_CE3_B |
3.3V |
IPU1_SISG1 |
||||
ESAI_TX1 |
||||
EIM_ADDR26 |
||||
GPIO6_IO16 |
||||
IPU2_SISG1 |
||||
156 |
SD1_CLK |
D20 |
SD1_CLK |
3.3V |
ECSPI5_SCLK |
||||
XTALOSC_OSC32K_32K_OUT |
||||
GPT_CLKIN |
||||
GPIO1_IO20 |
||||
157 |
DISP0_DAT16 |
T21 |
IPU1_DISP0_DATA16 |
3.3V |
IPU2_DISP0_DATA16 |
||||
ECSPI2_MOSI |
||||
AUD5_TXC |
||||
SDMA_EXT_EVENT0 |
||||
GPIO5_IO10 |
||||
158 |
I2C2_SCL |
U5 |
ECSPI1_SS3 |
3.3V |
ENET_CRS |
||||
HDMI_TX_DDC_SCL |
||||
KEY_COL3 |
||||
I2C2_SCL |
||||
GPIO4_IO12 |
||||
SFDIF_IN |
||||
159 |
DISP0_DAT23 |
W24 |
IPU1_DISP0_DATA23 |
3.3V |
IPU2_DISP0_DATA23 |
||||
ECSPI1_SS0 |
||||
AUD4_RXD |
||||
GPIO5_IO17 |
||||
160 |
I2C2_SDA |
T7 |
XTALOSC_OSC32K_32K_OUT |
3.3V |
ASRC_EXT_CLK |
||||
HDMI_TX_DDC_SDA |
||||
KEY_ROW3 |
||||
I2C2_SDA |
||||
GPIO4_IO13 |
||||
SD1_VSELECT |
||||
161 |
DISP0_DAT11 |
T23 |
IPU1_DISP0_DATA11 |
3.3V |
IPU2_DISP0_DATA11 |
||||
GPIO5_IO05 |
||||
162 |
DISP0_DAT19 |
U23 |
IPU1_DISP0_DATA19 |
3.3V |
IPU2_DISP0_DATA19 |
||||
ECSPI2_SCLK |
||||
AUD5_RXD |
||||
AUD4_RXC |
||||
GPIO5_IO13 |
||||
EIM_CS3_B |
||||
163 |
DISP0_DAT15 |
T22 |
IPU1_DISP0_DATA15 |
3.3V |
IPU2_DISP0_DATA15 |
||||
ECSPI1_SS1 |
||||
ECSPI2_SS1 |
||||
GPIO5_IO09 |
||||
164 |
DISP0_DAT20 |
U22 |
IPU1_DISP0_DATA20 |
3.3V |
IPU2_DISP0_DATA20 |
||||
ECSPI1_SCLK |
||||
AUD4_TXC |
||||
GPIO5_IO14 |
||||
165 |
DISP0_DAT13 |
R20 |
IPU1_DISP0_DATA13 |
3.3V |
IPU2_DISP0_DATA13 |
||||
AUD5_RXFS |
||||
GPIO5_IO0 |
||||
166 |
DISP0_DAT6 |
R23 |
IPU1_DISP0_DATA06 |
3.3V |
IPU2_DISP0_DATA06 |
||||
ECSPI3_SS3 |
||||
AUD6_RXC |
||||
GPIO4_IO27 |
||||
167 |
DISP0_DAT8 |
R22 |
IPU1_DISP0_DATA08 |
3.3V |
IPU2_DISP0_DATA08 |
||||
PWM1_OUT |
||||
WDOG1_B |
||||
GPIO4_IO29 |
||||
168 |
DISP0_DAT21 |
T20 |
IPU1_DISP0_DATA21 |
3.3V |
IPU2_DISP0_DATA21 |
||||
ECSPI1_MOSI |
||||
AUD4_TXD |
||||
GPIO5_IO15 |
||||
169 |
DISP0_DAT3 |
P21 |
IPU1_DISP0_DATA03 |
3.3V |
IPU2_DISP0_DATA03 |
||||
ECSPI3_SS0 |
||||
GPIO4_IO24 |
||||
170 |
DISP0_DAT2 |
P23 |
IPU1_DISP0_DATA02 |
3.3V |
IPU2_DISP0_DATA02 |
||||
ECSPI3_MISO |
||||
GPIO4_IO23 |
||||
171 |
DISP0_DAT1 |
P22 |
IPU1_DISP0_DATA01 |
3.3V |
IPU2_DISP0_DATA01 |
||||
ECSPI3_MOSI |
||||
GPIO4_IO22 |
||||
172 |
DISP0_DAT10 |
R21 |
IPU1_DISP0_DATA10 |
3.3V |
IPU2_DISP0_DATA10 |
||||
GPIO4_IO31 |
||||
173 |
DISP0_DRDY |
N21 |
IPU1_DI0_PIN15 |
3.3V |
IPU2_DI0_PIN15 |
||||
AUD6_TXC |
||||
GPIO4_IO17 |
||||
174 |
DISP0_DAT4 |
P20 |
IPU1_DISP0_DATA04 |
3.3V |
IPU2_DISP0_DATA04 |
||||
ECSPI3_SS1 |
||||
GPIO4_IO25 |
||||
175 |
DISP0_VSYNCH |
N20 |
IPU1_DI0_PIN03 |
3.3V |
IPU2_DI0_PIN03 |
||||
AUD6_TXFS |
||||
GPIO4_IO19 |
||||
176 |
GND |
— |
— |
— |
177 |
DISP0_CONTRAST |
F18 |
SD1_DATA3 |
3.3V |
ECSPI5_SS2 |
||||
GPT_COMPARE3 |
||||
PWM1_OUT |
||||
WDOG2_B |
||||
GPIO1_IO21 |
||||
WDOG2_RESET_B_DEB |
||||
178 |
ENET_REF_CLK |
R2 |
ENET_TX_CLK |
3.3V |
ESAI_RX_FS |
||||
GPIO1_IO23 |
||||
SPDIF_SR_CLK |
||||
179 |
DISP0_CLK |
N19 |
IPU1_DI0_DISP_CLK |
3.3V |
IPU2_DI0_DISP_CLK |
||||
GPIO4_IO16 |
||||
180 |
ENET_NINT |
P6 |
ESAI_TX1 |
3.3V |
ENET_RX_CLK |
||||
SD3_VSELECT |
||||
SDMA_EXT_EVENT1 |
||||
ASRC_EXT_CLK |
||||
GPIO7_IO13 |
||||
SNVS_VIO_5_CTL |
||||
181 |
DISP0_DAT18 |
V25 |
IPU1_DISP0_DATA18 |
3.3V |
IPU2_DISP0_DATA18 |
||||
ECSPI2_SS0 |
||||
AUD5_TXFS |
||||
AUD4_RXFS |
||||
GPIO5_IO12 |
||||
EIM_CS2_B |
||||
182 |
ENET_RXD1 |
W22 |
MLB_SIG |
3.3V |
ENET_RX_DATA1 |
||||
ESAI_TX_FS |
||||
ENET_1588_EVENT3_OUT |
||||
GPIO1_IO26 |
||||
183 |
DISP0_DAT22 |
V24 |
IPU1_DISP0_DATA22 |
3.3V |
IPU2_DISP0_DATA22 |
||||
ECSPI1_MISO |
||||
AUD4_TXFS |
||||
GPIO5_IO16 |
||||
184 |
ENET_RX_ER |
W23 |
USB_OTG_ID |
3.3V |
ENET_RX_ER |
||||
ESAI_RX_HF_CLK |
||||
SPDIF_IN |
||||
ENET_1588_EVENT2_OUT |
||||
GPIO1_IO24 |
||||
185 |
DISP0_DAT14 |
U25 |
IPU1_DISP0_DATA14 |
3.3V |
IPU2_DISP0_DATA14 |
||||
AUD5_RXC |
||||
GPIO5_IO08 |
||||
186 |
ENET_NRST |
V22 |
ENET_TX_CLK |
3.3V |
ESAI_RX_FS |
||||
GPIO1_IO23 |
||||
SPDIF_SR_CLK |
||||
187 |
DISP0_DAT17 |
U24 |
IPU1_DISP0_DATA17 |
3.3V |
IPU2_DISP0_DATA17 |
||||
ECSPI2_MISO |
||||
AUD5_TXD |
||||
SDMA_EXT_EVENT1 |
||||
GPIO5_IO11 |
||||
188 |
ENET_MDIO |
V23 |
ENET_MDIO |
3.3V |
ESAI_RX_CLK |
||||
ENET_1588_EVENT1_OUT |
||||
GPIO1_IO22 |
||||
SPDIF_LOCK |
||||
189 |
DISP0_DAT9 |
T25 |
IPU1_DISP0_DATA09 |
3.3V |
IPU2_DISP0_DATA09 |
||||
PWM2_OUT |
||||
WDOG2_B |
||||
GPIO4_IO30 |
||||
190 |
ENET_CRS_DV |
U21 |
ENET_RX_EN |
3.3V |
ESAI_TX_CLK |
||||
SPDIF_EXT_CLK |
||||
GPIO1_IO25 |
||||
191 |
DISP0_DAT12 |
T24 |
IPU1_DISP0_DATA12 |
3.3V |
IPU2_DISP0_DATA12 |
||||
GPIO5_IO06 |
||||
192 |
ENET_TX_EN |
V21 |
ENET_TX_EN |
3.3V |
ESAI_TX3_RX2 |
||||
GPIO1_IO28 |
||||
193 |
DISP0_DAT5 |
R25 |
IPU1_DISP0_DATA05 |
3.3V |
DISP0_DATA05 |
||||
ECSPI3_SS2 |
||||
AUD6_RXFS |
||||
GPIO4_IO26 |
||||
194 |
ENET_TXD1 |
W20 |
MLB_CLK |
3.3V |
ENET_TX_DATA1 |
||||
ESAI_TX2_RX3 |
||||
ENET_1588_EVENT0_IN |
||||
GPIO1_IO29 |
||||
195 |
DISP0_DAT7 |
R24 |
IPU1_DISP0_DATA07 |
3.3V |
IPU2_DISP0_DATA07 |
||||
ECSPI3_RDY |
||||
GPIO4_IO28 |
||||
196 |
ENET_RXD0 |
W21 |
ENET_TX_DATA0 |
3.3V |
ESAI_TX4_RX1 |
||||
GPIO1_IO30 |
||||
197 |
DISP0_DAT0 |
P24 |
IPU1_DISP0_DATA00 |
3.3V |
IPU2_DISP0_DATA00 |
||||
ECSPI3_SCLK |
||||
GPIO4_IO21 |
||||
198 |
ENET_MDC |
V20 |
MLB_DATA |
3.3V |
ENET_MDC |
||||
ESAI_TX5_RX0 |
||||
ENET_1588_EVENT1_IN |
||||
GPIO1_IO31 |
||||
199 |
DISP0_HSYNCH |
N25 |
IPU1_DI0_PIN02 |
3.3V |
IPU2_DI0_PIN02 |
||||
AUD6_TXD |
||||
GPIO4_IO18 |
||||
200 |
ENET_TXD0 |
U20 |
ENET_TX_DATA0 |
3.3V |
ESAI_TX4_RX1 |
||||
GPIO1_IO30 |
