MYZR-IMX8M-CB300 硬件介绍
MYZR-IMX8M-CB300视图

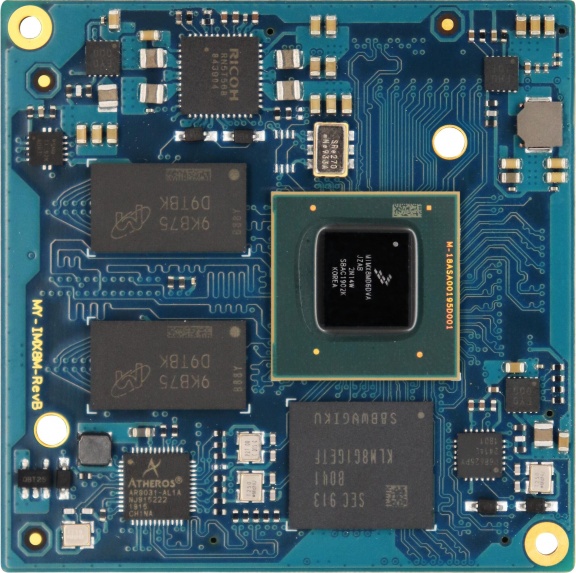

正面
尺寸
MYZR-IMX8M-CB300参数
硬件配置
CPU |
i.MX8MQ/D |
四核/双核 |
内存 |
DDR4 2GB |
可扩展至4GB |
存储 |
eMMC 4GB |
可扩展至16GB |
温度范围
工作温度
0℃~70℃（商业级）
-40℃~85℃（工业级）
存储温度
-60℃~125℃
操作系统支持
Android
Linux
硬件接口
接口规格 |
最大可配置接口数 |
描述 |
|
通讯接口 |
Ethernet |
1 |
1路10/100/1000Mbps以太网，符合IEEE802.3-2002 |
USB |
2 |
2路超高速USB3.0（最高5Gbps），兼容USB2.0 |
|
UART |
4 |
4路UART，每路高达 4.0Mbps |
|
PCIe |
2 |
2路PCIe Gen 2.0（5.0 GTps） |
|
I2C |
3 |
3路I2C，支持400kbps |
|
SPI |
2 |
2路eCSPI（Enhanced CSPI），每个高达52Mbps |
|
PWM |
4 |
4路具有时钟源选择的16位递增计数器，4X16 FIFO |
|
外部存储接口 |
NAND |
1 |
8位NAND闪存，支持ECC与BCH用于错误检测 |
QSPI |
2 |
2个四路外部串行闪存设备接口，支持XIP模式 |
|
SD3.0/SDIO |
1 |
4位SD和SDIO卡传输，最高可达UHS-I SDR-208模式（最大208MB/s） |
|
多媒体 |
HDMI |
1 |
1路HDMI 2.0a，支持4096x2160@60Hz，支持HDCP 2.2和HDCP 1.4，20+音频交错32位 |
@384khz fs，支持S/PDIF输入和输出 |
|||
DSI（MIPI接口） |
1 |
1路4通道MIPI显示接口，支持高速模式（每通道1.5Gbps），支持1920x1080@60Hz， |
|
4K@30Hz，支持LCDIF显示器 |
|||
CSI（MIPI接口） |
2 |
2路4通道MIPI摄像头接口，支持高速模式（每通道1.5Gbps），支持4K@30fps |
|
SAI |
5 |
5路 I2S/SAI/AC97/TDM，1路分别16个Tx和Rx，1路分别8个Tx和Rx，3路分别2个Tx和Rx |
|
S/PDIF |
1 |
1个S/PDIF立体声收发器，支持输入和输出 |
|
供电电源
管脚定义&详细功能说明
Pin NO. |
Pin Name |
CPU Ball Name |
功能描述 |
管脚电压 |
|---|---|---|---|---|
J1.1 |
VDD_PHY_1V8 |
— |
POWER_OUT |
1.8V |
J1.3 |
GND |
— |
GND |
— |
J1.5 |
DCDC_5V |
— |
POWER_IN |
5V |
J1.7 |
PMU_GPIO1 |
U19.44(PMIC) |
POWER_nRST |
3.3V |
J1.9 |
POR_B |
W20 |
SRC_POR_B |
3.3V |
J1.11 |
NVCC_SD2 |
— |
POWER_IN |
3.3V |
J1.13 |
GND |
— |
GND |
— |
J1.15 |
REF_CLK_32K |
T6 |
CCM_ENET_PHY_REF_CLK_ROOT |
3.3V |
CCM_EXT_CLK1 |
||||
GPIO1_IO00 |
||||
SJC_FAIL |
||||
REF_CLK_32K |
||||
J1.17 |
GND |
— |
GND |
— |
J1.19 |
HDMI_HPD |
W2 |
HDMI_HPD |
1.8V |
J1.21 |
HDMI_CEC |
W3 |
HDMI_CEC |
1.8V |
J1.23 |
HDMI_DDC_SCL |
R3 |
HDMI_DDC_SCL |
1.8V |
J1.25 |
HDMI_DDC_SDA |
P3 |
HDMI_DDC_SDA |
1.8V |
J1.27 |
GND |
— |
GND |
— |
J1.29 |
HDMI_AUXP |
V1 |
HDMI_AUX_P |
1.8V |
J1.31 |
HDMI_AUXN |
V2 |
HDMI_AUX_N |
1.8V |
J1.33 |
HDMI_TXP2 |
N2 |
HDMI_TX_P_LN_2 |
1.8V |
J1.35 |
HDMI_TXN2 |
N1 |
HDMI_TX_N_LN_2 |
1.8V |
J1.37 |
HDMI_CLKN |
M2 |
HDMI_TX_N_LN_3 |
1.8V |
J1.39 |
HDMI_CLKP |
M1 |
HDMI_TX_P_LN_3 |
1.8V |
J1.41 |
HDMI_TXN1 |
U1 |
HDMI_TX_N_LN_1 |
1.8V |
J1.43 |
HDMI_TXP1 |
U2 |
HDMI_TX_P_LN_1 |
1.8V |
J1.45 |
HDMI_TXP0 |
I1 |
HDMI_TX_P_LN_0 |
1.8V |
J1.47 |
HDMI_TXN0 |
T2 |
HDMI_TX_N_LN_0 |
1.8V |
J1.49 |
GND |
— |
GND |
— |
J1.51 |
NVCC_SNVS_3V3 |
— |
POWER_IN |
3.3V |
J1.53 |
NVCC_3V3 |
— |
POWER_IN |
3.3V |
J1.55 |
GND |
— |
GND |
— |
J1.57 |
BOOT_MODE0 |
W6 |
SRC_BOOT_MODE0 |
3.3V |
J1.59 |
BOOT_MODE1 |
V6 |
SRC_BOOT_MODE1 |
3.3V |
J1.61 |
GND |
— |
GND |
— |
J1.63 |
JTAG_TDI |
W5 |
JTAG_TDI |
3.3V |
J1.65 |
JTAG_TMS |
V5 |
JTAG_TMS |
3.3V |
J1.67 |
JTAG_TDO |
U5 |
JTAG_TDO |
3.3V |
J1.69 |
JTAG_NTRST |
U6 |
JTAG_NTRST |
3.3V |
J1.71 |
JTAG_TCK |
T5 |
JTAG_TCK |
3.3V |
J1.73 |
GND |
— |
GND |
— |
J1.75 |
CSI_P1_PWDN |
P4 |
GPIO1_IO03 |
3.3V |
SDMA1_EXT_EVENT0 |
||||
SJC_DONE |
||||
USDHC1_VSELECT |
||||
J1.77 |
CSI_NRST |
N5 |
CCM_EXT_CLK3 |
3.3V |
ENET1_MDC |
||||
GPIO1_IO06 |
||||
USDHC1_CD_B |
||||
J1.79 |
GND |
— |
GND |
— |
J1.81 |
AUD_NMUTE |
N7 |
ENET1_1588_EVENT0_IN |
3.3V |
GPIO1_IO08 |
||||
USDHC2_RESET_B |
||||
J1.83 |
GND |
— |
GND |
— |
J1.85 |
||||
J1.87 |
SAI2_MCLK |
H5 |
GPIO4_IO27 |
3.3V |
SAI2_MCLK |
||||
SAI5_MCLK |
||||
J1.89 |
SAI2_TXFS |
H4 |
GPIO4_IO24 |
3.3V |
SAI2_TX_SYNC |
||||
SAI5_TX_DATA1 |
||||
J1.91 |
SAI2_RXFS |
J4 |
GPIO4_IO21 |
3.3V |
SAI2_RX_SYNC |
||||
SAI5_TX_SYNC |
||||
J1.93 |
SAI2_TXC |
J5 |
GPIO4_IO25 |
3.3V |
SAI2_TX_BCLK |
||||
SAI5_TX_DATA2 |
||||
J1.95 |
SAI2_RXC |
H3 |
GPIO4_IO22 |
3.3V |
SAI2_RX_BCLK |
||||
SAI5_TX_BCLK |
||||
J1.97 |
SAI2_TXD |
G5 |
GPIO4_IO26 |
3.3V |
SAI2_TX_DATA0 |
||||
SAI5_TX_DATA3 |
||||
J1.99 |
SAI2_RXD |
H6 |
GPIO4_IO23 |
3.3V |
SAI2_RX_DATA0 |
||||
SAI5_TX_DATA0 |
||||
J1.2 |
GND |
— |
GND |
— |
J1.4 |
||||
J1.6 |
DCDC_5V |
— |
POWER_IN |
5V |
J1.8 |
GND |
— |
GND |
— |
J1.10 |
VDD_3V3 |
— |
POWER_IN |
3.3V |
J1.12 |
GND |
— |
GND |
— |
J1.14 |
||||
J1.16 |
DSI_TS_nRST |
L7 |
GPIO1_IO12 |
3.3V |
SDMA2_EXT_EVENT1 |
||||
USB1_OTG_PWR |
||||
J1.18 |
GND |
— |
GND |
— |
J1.20 |
GPIO1_IO02 |
R4 |
GPIO1_IO02 |
3.3V |
SJC_DE_B |
||||
WDOG1_WDOG_B |
||||
WDOG1_WDOG_ANY |
||||
J1.22 |
SAI5_RXFS |
N4 |
GPIO3_IO19 |
3.3V |
SAI1_TX_DATA0 |
||||
SAI5_RX_SYNC |
||||
J1.24 |
SAI5_RXD3 |
K5 |
GPIO3_IO24 |
3.3V |
SAI1_TX_DATA5 |
||||
SAI1_TX_SYNC |
||||
SAI5_RX_DATA3 |
||||
SAI5_TX_DATA0 |
||||
J1.26 |
SAI5_RXD0 |
M5 |
GPIO3_IO21 |
3.3V |
SAI1_TX_DATA2 |
||||
SAI5_RX_DATA0 |
||||
J1.28 |
SAI5_RXC |
L5 |
GPIO3_IO20 |
3.3V |
SAI1_TX_DATA1 |
||||
SAI5_RX_BCLK |
||||
J1.30 |
SAI5_RXD2 |
M4 |
GPIO3_IO23 |
3.3V |
SAI1_TX_DATA4 |
||||
SAI1_TX_SYNC |
||||
SAI5_RX_DATA2 |
||||
SAI5_TX_BCLK |
||||
J1.32 |
SAI5_RXD1 |
L4 |
GPIO3_IO22 |
3.3V |
SAI1_TX_DATA3 |
||||
SAI1_TX_SYNC |
||||
SAI5_RX_DATA1 |
||||
SAI5_TX_SYNC |
||||
J1.34 |
SAI5_MCLK |
K4 |
GPIO3_IO25 |
3.3V |
SAI1_TX_BCLK |
||||
SAI4_MCLK |
||||
SAI5_MCLK |
||||
J1.36 |
GND |
— |
GND |
— |
J1.38 |
SAI1_RXD1 |
L2 |
ARM_PLATFORM_TRACE01 |
3.3V |
GPIO4_IO03 |
||||
SAI1_RX_DATA1 |
||||
SAI5_RX_DATA1 |
||||
SRC_BOOT_CFG01 |
||||
J1.40 |
SAI1_RXFS |
L1 |
ARM_PLATFORM_TRACE_CLK |
3.3V |
GPIO4_IO00 |
||||
SAI1_RX_SYNC |
||||
SAI5_RX_SYNC |
||||
J1.42 |
SAI1_RXD0 |
K2 |
ARM_PLATFORM_TRACE00 |
3.3V |
GPIO4_IO02 |
||||
SAI1_RX_DATA0 |
||||
SAI5_RX_DATA0 |
||||
SRC_BOOT_CFG00 |
||||
J1.44 |
SAI1_RXC |
K1 |
ARM_PLATFORM_TRACE_CTL |
3.3V |
GPIO4_IO01 |
||||
SAI1_RX_BCLK |
||||
SAI5_RX_BCLK |
||||
J1.46 |
SAI1_RXD3 |
J2 |
ARM_PLATFORM_TRACE03 |
3.3V |
GPIO4_IO05 |
||||
SAI1_RX_DATA3 |
||||
SAI5_RX_DATA3 |
||||
SRC_BOOT_CFG03 |
||||
J1.48 |
SAI1_RXD4 |
J1 |
ARM_PLATFORM_TRACE04 |
3.3V |
GPIO4_IO06 |
||||
SAI1_RX_DATA4 |
||||
SAI6_TX_BCLK |
||||
SAI6_RX_BCLK |
||||
SRC_BOOT_CFG04 |
||||
J1.50 |
SAI1_RXD2 |
H2 |
ARM_PLATFORM_TRACE02 |
3.3V |
GPIO4_IO04 |
||||
SAI1_RX_DATA2 |
||||
SAI5_RX_DATA2 |
||||
SRC_BOOT_CFG02 |
||||
J1.52 |
SAI1_TXFS |
H1 |
ARM_PLATFORM_EVENTO |
3.3V |
GPIO4_IO10 |
||||
SAI1_TX_SYNC |
||||
SAI5_TX_SYNC |
||||
J1.54 |
SAI1_RXD6 |
G2 |
ARM_PLATFORM_TRACE06 |
3.3V |
GPIO4_IO08 |
||||
SAI1_RX_DATA6 |
||||
SAI6_TX_SYNC |
||||
SAI6_RX_SYNC |
||||
SRC_BOOT_CFG06 |
||||
J1.56 |
SAI1_RXD7 |
G1 |
ARM_PLATFORM_TRACE07 |
3.3V |
GPIO4_IO09 |
||||
SAI1_RX_DATA7 |
||||
SAI1_TX_SYNC |
||||
SAI1_TX_DATA4 |
||||
SAI6_MCLK |
||||
SRC_BOOT_CFG07 |
||||
J1.58 |
SAI1_TXD0 |
F2 |
ARM_PLATFORM_TRACE08 |
3.3V |
GPIO4_IO12 |
||||
SAI1_TX_DATA0 |
||||
SAI5_TX_DATA0 |
||||
SRC_BOOT_CFG08 |
||||
J1.60 |
SAI1_RXD5 |
F1 |
ARM_PLATFORM_TRACE05 |
3.3V |
GPIO4_IO07 |
||||
SAI1_RX_DATA5 |
||||
SAI1_RX_SYNC |
||||
SAI6_TX_DATA0 |
||||
SAI6_RX_DATA0 |
||||
SRC_BOOT_CFG05 |
||||
J1.62 |
SAI1_TXD1 |
E2 |
ARM_PLATFORM_TRACE09 |
3.3V |
GPIO4_IO13 |
||||
SAI1_TX_DATA1 |
||||
SAI5_TX_DATA1 |
||||
SRC_BOOT_CFG09 |
||||
J1.64 |
SAI1_TXC |
E1 |
ARM_PLATFORM_EVENTI |
3.3V |
GPIO4_IO11 |
||||
SAI1_TX_BCLK |
||||
SAI5_TX_BCLK |
||||
J1.66 |
SAI1_TXD4 |
D2 |
ARM_PLATFORM_TRACE12 |
3.3V |
GPIO4_IO16 |
||||
SAI1_TX_DATA4 |
||||
SAI6_RX_BCLK |
||||
SAI6_TX_BCLK |
||||
SRC_BOOT_CFG12 |
||||
J1.68 |
SAI1_TXD3 |
D1 |
ARM_PLATFORM_TRACE11 |
3.3V |
GPIO4_IO15 |
||||
SAI1_TX_DATA3 |
||||
SAI5_TX_DATA3 |
||||
SRC_BOOT_CFG11 |
||||
J1.70 |
SAI1_TXD5 |
C2 |
ARM_PLATFORM_TRACE13 |
3.3V |
GPIO4_IO17 |
||||
SAI1_TX_DATA5 |
||||
SAI6_RX_DATA0 |
||||
SAI6_TX_DATA0 |
||||
SRC_BOOT_CFG13 |
||||
J1.72 |
SAI1_TXD7 |
C1 |
ARM_PLATFORM_TRACE15 |
3.3V |
GPIO4_IO19 |
||||
SAI1_TX_DATA7 |
||||
SAI6_MCLK |
||||
SRC_BOOT_CFG15 |
||||
J1.74 |
SAI1_TXD2 |
B2 |
ARM_PLATFORM_TRACE10 |
3.3V |
GPIO4_IO14 |
||||
SAI1_TX_DATA2 |
||||
SAI5_TX_DATA2 |
||||
SRC_BOOT_CFG10 |
||||
J1.76 |
SAI1_TXD6 |
B3 |
ARM_PLATFORM_TRACE14 |
3.3V |
GPIO4_IO18 |
||||
SAI1_TX_DATA6 |
||||
SAI6_RX_SYNC |
||||
SAI6_TX_SYNC |
||||
SRC_BOOT_CFG14 |
||||
J1.78 |
SAI1_MCLK |
A3 |
GPIO4_IO20 |
3.3V |
SAI1_MCLK |
||||
SAI5_MCLK |
||||
J1.80 |
VSYS |
— |
POWER_IN |
3.3V |
J1.82 |
||||
J1.84 |
||||
J1.86 |
||||
J1.88 |
||||
J1.90 |
||||
J1.92 |
||||
J1.94 |
PCIE_NCLKREQ |
U3.22 |
CKPWRGD_PD# |
— |
J1.96 |
GND |
— |
GND |
— |
J1.98 |
I2C1_SCL |
E7 |
ENET1_MDC |
3.3V |
GPIO5_IO14 |
||||
I2C1_SCL |
||||
J1.100 |
I2C1_SDA |
E8 |
ENET1_MDIO |
3.3V |
GPIO5_IO15 |
||||
I2C1_SDA |
||||
J2.1 |
PCIE2_REF_CLKP_CN |
U3.17 |
DIF1 |
— |
J2.3 |
PCIE2_REF_CLKN_CN |
U3.18 |
DIF1# |
— |
J2.5 |
GND |
— |
GND |
— |
J2.7 |
PCIE2_RXN |
D24 |
PCIE2_RXN_N |
3.3V |
J2.9 |
PCIE2_RXP |
D25 |
PCIE2_RXN_P |
3.3V |
J2.11 |
PCIE2_TXN |
E24 |
PCIE2_TXN_N |
3.3V |
J2.13 |
PCIE2_TXP |
E25 |
PCIE2_TXN_P |
3.3V |
J2.15 |
PCIE1_RXN |
H24 |
PCIE1_RXN_N |
3.3V |
J2.17 |
PCIE1_RXP |
H25 |
PCIE1_RXN_P |
3.3V |
J2.19 |
GND |
— |
GND |
— |
J2.21 |
PCIE1_TXN |
J24 |
PCIE1_TXN_N |
3.3V |
J2.23 |
PCIE1_TXP |
J25 |
PCIE1_TXN_P |
3.3V |
J2.25 |
GND |
— |
GND |
— |
J2.27 |
PCIE1_REF_CLKN |
K24 |
PCIE1_REF_PAD_CLK_N |
3.3V |
J2.29 |
PCIE1_REF_CLKP |
K25 |
PCIE1_REF_PAD_CLK_P |
3.3V |
J2.31 |
GND |
— |
GND |
— |
J2.33 |
||||
J2.35 |
||||
J2.37 |
I2C4_SCL |
F8 |
GPIO5_IO20 |
3.3V |
I2C4_SCL |
||||
PWM2_OUT |
||||
J2.39 |
GND |
— |
GND |
— |
J2.41 |
CLKO2 |
J6 |
CCM_CLKO2 |
3.3V |
GPIO1_IO15 |
||||
PWM4_OUT |
||||
USB2_OTG_OC |
||||
J2.43 |
GND |
— |
GND |
— |
J2.45 |
NAND_NCE0 |
H19 |
GPIO3_IO01 |
3.3V |
NAND_CE0_B |
||||
QSPI_A_SS0_B |
||||
J2.47 |
NAND_ALE |
G19 |
GPIO3_IO00 |
3.3V |
NAND_ALE |
||||
QSPI_A_SCLK |
||||
J2.49 |
NAND_NCE2 |
F21 |
GPIO3_IO03 |
3.3V |
NAND_CE2_B |
||||
QSPI_B_SS0_B |
||||
J2.51 |
NAND_DATA0 |
G20 |
GPIO3_IO06 |
3.3V |
NAND_DATA00 |
||||
QSPI_A_DATA0 |
||||
J2.53 |
NAND_NCE3 |
H20 |
GPIO3_IO04 |
3.3V |
NAND_CE3_B |
||||
QSPI_B_SS1_B |
||||
J2.55 |
NAND_DATA2 |
H22 |
GPIO3_IO08 |
3.3V |
NAND_DATA02 |
||||
QSPI_A_DATA2 |
||||
J2.57 |
NAND_DATA3 |
J21 |
GPIO3_IO09 |
3.3V |
NAND_DATA03 |
||||
QSPI_A_DATA3 |
||||
J2.59 |
NAND_DATA5 |
J22 |
GPIO3_IO11 |
3.3V |
NAND_DATA05 |
||||
QSPI_B_DATA1 |
||||
J2.61 |
GND |
— |
GND |
— |
J2.63 |
||||
J2.65 |
||||
J2.67 |
||||
J2.69 |
LED_LINK1000 |
U27.24(AR8031) |
LED_LINK1000 |
2.5V |
J2.71 |
GPIO1_IO04 |
P5 |
GPIO1_IO04 |
3.3V |
SDMA1_EXT_EVENT1 |
||||
USDHC2_VSELECT |
||||
J2.73 |
ONOFF |
W21 |
XTALOSC_ONOFF |
3.3V |
J2.75 |
ETH_TRX0_P |
U27.11(AR8031) |
TRXP0 |
— |
J2.77 |
ETH_TRX0_N |
U27.12(AR8031) |
TRXN0 |
— |
J2.79 |
GND |
— |
GND |
— |
J2.81 |
ETH_TRX1_P |
U27.14(AR8031) |
TRXP1 |
— |
J2.83 |
ETH_TRX1_N |
U27.15(AR8031) |
TRXN1 |
— |
J2.85 |
GND |
— |
GND |
— |
J2.87 |
ETH_TRX2_P |
U27.17(AR8031) |
TRXP2 |
— |
J2.89 |
ETH_TRX2_N |
U27.18(AR8031) |
TRXN2 |
— |
J2.91 |
GND |
— |
GND |
— |
J2.93 |
ETH_TRX3_P |
U27.20(AR8031) |
TRXP3 |
— |
J2.95 |
ETH_TRX3_N |
U27.21(AR8031) |
TRXN3 |
— |
J2.97 |
LED_LINK10_100 |
U27.26(AR8031) |
LED_LINK10_100 |
2.5V |
J2.99 |
LED_ACT |
U27.23(AR8031) |
LED_ACT |
2.5V |
J2.2 |
CSI_P2_CKN |
A19 |
MIPI_CSI2_CLK_N |
1.8V |
J2.4 |
CSI_P2_CKP |
B19 |
MIPI_CSI2_CLK_P |
1.8V |
J2.6 |
GND |
— |
GND |
— |
J2.8 |
CSI_P2_DN1 |
A20 |
MIPI_CSI2_D1_N |
1.8V |
J2.10 |
CSI_P2_DP1 |
B20 |
MIPI_CSI2_D1_P |
1.8V |
J2.12 |
GND |
— |
GND |
— |
J2.14 |
CSI_P2_DN2 |
A21 |
MIPI_CSI2_D2_N |
1.8V |
J2.16 |
CSI_P2_DP2 |
B21 |
MIPI_CSI2_D2_P |
1.8V |
J2.18 |
GND |
— |
GND |
— |
J2.20 |
CSI_P2_DN3 |
C19 |
MIPI_CSI2_D3_N |
1.8V |
J2.22 |
CSI_P2_DP3 |
D19 |
MIPI_CSI2_D3_P |
1.8V |
J2.24 |
GND |
— |
GND |
— |
J2.26 |
CSI_P2_DN0 |
C20 |
MIPI_CSI2_D0_N |
1.8V |
J2.28 |
CSI_P2_DP0 |
D20 |
MIPI_CSI2_D0_P |
1.8V |
J2.30 |
GND |
— |
GND |
— |
J2.32 |
CSI_P1_DN3 |
C21 |
MIPI_CSI1_D3_N |
1.8V |
J2.34 |
CSI_P1_DP3 |
D21 |
MIPI_CSI1_D3_P |
1.8V |
J2.36 |
GND |
— |
GND |
— |
J2.38 |
CSI_P1_CKN |
A22 |
MIPI_CSI1_CLK_N |
1.8V |
J2.40 |
CSI_P1_CKP |
B22 |
MIPI_CSI1_CLK_P |
1.8V |
J2.42 |
GND |
— |
GND |
— |
J2.44 |
CSI_P1_DN0 |
A23 |
MIPI_CSI1_D0_N |
1.8V |
J2.46 |
CSI_P1_DP0 |
B23 |
MIPI_CSI1_D0_P |
1.8V |
J2.48 |
GND |
— |
GND |
— |
J2.50 |
CSI_P1_DN2 |
B24 |
MIPI_CSI1_D2_N |
1.8V |
J2.52 |
CSI_P1_DP2 |
C23 |
MIPI_CSI1_D2_P |
1.8V |
J2.54 |
GND |
— |
GND |
— |
J2.56 |
CSI_P1_DN1 |
C22 |
MIPI_CSI1_D1_N |
1.8V |
J2.58 |
CSI_P1_DP1 |
D22 |
MIPI_CSI1_D1_P |
1.8V |
J2.60 |
GND |
— |
GND |
— |
J2.62 |
NAND_NWP |
K21 |
GPIO3_IO18 |
3.3V |
NAND_WP_B |
||||
J2.64 |
NAND_NWE |
K22 |
GPIO3_IO17 |
3.3V |
NAND_WE_B |
||||
J2.66 |
NAND_DATA4 |
L20 |
GPIO3_IO10 |
3.3V |
NAND_DATA04 |
||||
QSPI_B_DATA0 |
||||
J2.68 |
NAND_DATA1 |
J20 |
GPIO3_IO07 |
3.3V |
NAND_DATA01 |
||||
QSPI_A_DATA1 |
||||
J2.70 |
NAND_NREADY |
K20 |
GPIO3_IO16 |
3.3V |
NAND_READY_B |
||||
J2.72 |
NAND_DATA6 |
L19 |
GPIO3_IO12 |
3.3V |
NAND_DATA06 |
||||
QSPI_B_DATA2 |
||||
J2.74 |
NAND_DATA7 |
M19 |
GPIO3_IO13 |
3.3V |
NAND_DATA07 |
||||
QSPI_B_DATA3 |
||||
J2.76 |
SDIO_WAKE |
M21 |
GPIO2_IO20 |
3.3V |
USDHC2_WP |
||||
J2.78 |
WL_NWAKE |
M20 |
GPIO3_IO14 |
3.3V |
NAND_DQS |
||||
QSPI_A_DQS |
||||
J2.80 |
SD2_NCD |
L21 |
GPIO2_IO12 |
3.3V |
USDHC2_CD_B |
||||
J2.82 |
SD2_CMD |
M22 |
GPIO2_IO14 |
3.3V |
USDHC2_CMD |
||||
J2.84 |
SD2_CLK |
L22 |
GPIO2_IO13 |
3.3V |
USDHC2_CLK |
||||
J2.86 |
SD2_DATA0 |
N22 |
GPIO2_IO15 |
3.3V |
USDHC2_DATA0 |
||||
J2.88 |
SD2_DATA1 |
N21 |
GPIO2_IO16 |
3.3V |
USDHC2_DATA1 |
||||
J2.90 |
SD2_DATA2 |
P22 |
GPIO2_IO17 |
3.3V |
USDHC2_DATA2 |
||||
J2.92 |
SD2_DATA3 |
P21 |
GPIO2_IO18 |
3.3V |
SRC_EARLY_RESET |
||||
USDHC2_DATA3 |
||||
J2.94 |
SD2_NRST |
R22 |
GPIO2_IO19 |
3.3V |
SRC_SYSTEM_RESET |
||||
USDHC2_RESET_B |
||||
J2.96 |
DCDC_5V |
— |
POWER_IN |
5V |
J2.98 |
||||
J2.100 |
||||
J3.1 |
GND |
— |
GND |
— |
J3.3 |
||||
J3.5 |
PWM_LED |
K6 |
GPIO1_IO13 |
3.3V |
PWM2_OUT |
||||
USB1_OTG_OC |
||||
J3.7 |
PWM_FAN |
K7 |
CCM_CLKO1 |
3.3V |
GPIO1_IO14 |
||||
PWM3_OUT |
||||
USB2_OTG_PWR |
||||
J3.9 |
PCIe_nDIS |
C5 |
ECSPI2_SCLK |
3.3V |
GPIO5_IO10 |
||||
UART4_RX |
||||
J3.11 |
PCIe_nWAKE |
E5 |
ECSPI2_MOSI |
3.3V |
GPIO5_IO11 |
||||
UART4_TX |
||||
J3.13 |
BT_WAKE |
A5 |
ECSPI2_SS0 |
3.3V |
GPIO5_IO13 |
||||
UART4_RTS_B |
||||
J3.15 |
PCIe_nRST |
B5 |
ECSPI2_MISO |
3.3V |
GPIO5_IO12 |
||||
UART4_CTS_B |
||||
J3.17 |
GND |
— |
GND |
— |
J3.19 |
SAI3_TXFS |
G3 |
GPIO4_IO31 |
3.3V |
GPT1_CLK |
||||
SAI3_TX_SYNC |
||||
J3.21 |
SAI3_RXFS |
G4 |
GPIO4_IO28 |
3.3V |
GPT1_CAPTURE1 |
||||
SAI3_RX_SYNC |
||||
J3.23 |
SAI3_RXD |
F3 |
GPIO4_IO30 |
3.3V |
GPT1_COMPARE1 |
||||
SAI3_RX_DATA0 |
||||
J3.25 |
SAI3_RXC |
F4 |
GPIO4_IO29 |
3.3V |
GPT1_CAPTURE2 |
||||
SAI3_RX_BCLK |
||||
J3.27 |
SAI3_MCLK |
D3 |
GPIO5_IO02 |
3.3V |
PWM4_OUT |
||||
SAI3_MCLK |
||||
J3.29 |
SAI3_TXD |
C3 |
GPIO5_IO01 |
3.3V |
GPT1_COMPARE3 |
||||
SAI3_TX_DATA0 |
||||
J3.31 |
SAI3_TXC |
C4 |
GPIO5_IO00 |
3.3V |
GPT1_COMPARE2 |
||||
SAI3_TX_BCLK |
||||
J3.33 |
GND |
— |
GND |
— |
J3.35 |
||||
J3.37 |
USB2_RXN |
A8 |
USB_P2_RX_N |
3.3V |
J3.39 |
USB2_RXP |
B8 |
USB_P2_RX_P |
3.3V |
J3.41 |
GND |
— |
GND |
— |
J3.43 |
USB2_TXN |
B9 |
USB_P2_TX_N |
3.3V |
J3.45 |
USB2_TXP |
A9 |
USB_P2_TX_P |
3.3V |
J3.47 |
GND |
— |
GND |
— |
J3.49 |
USB2_DN |
B10 |
USB_P2_DN |
3.3V |
J3.51 |
USB2_DP |
A10 |
USB_P2_DP |
3.3V |
J3.53 |
USB2_VBUS |
D9 |
USB_P2_VBUS |
3.3V |
J3.55 |
GND |
— |
GND |
— |
J3.57 |
USB1_RXP |
A12 |
USB_P1_RX_P |
3.3V |
J3.59 |
USB1_RXN |
B12 |
USB_P1_RX_N |
3.3V |
J3.61 |
GND |
— |
GND |
— |
J3.63 |
USB1_TXP |
A13 |
USB_P1_TX_P |
3.3V |
J3.65 |
USB1_TXN |
B13 |
USB_P1_TX_N |
3.3V |
J3.67 |
USB1_SS_SEL |
K19 |
GPIO3_IO15 |
3.3V |
NAND_RE_B |
||||
QSPI_B_DQS |
||||
J3.69 |
SPDIF_TX |
F6 |
GPIO5_IO03 |
3.3V |
PWM3_OUT |
||||
SPDIF1_OUT |
||||
J3.71 |
SPDIF_RX |
G6 |
GPIO5_IO04 |
3.3V |
PWM2_OUT |
||||
SPDIF1_IN |
||||
J3.73 |
SPDIF_EXT_CLK |
E6 |
GPIO5_IO05 |
3.3V |
PWM1_OUT |
||||
SPDIF1_EXT_CLK |
||||
J3.75 |
VDD_3V3 |
— |
POWER_IN |
3.3V |
J3.77 |
||||
J3.79 |
||||
J3.81 |
GND |
— |
GND |
— |
J3.83 |
||||
J3.85 |
||||
J3.87 |
VDD_1V8 |
— |
POWER_OUT |
1.8V |
J3.89 |
||||
J3.91 |
||||
J3.93 |
GND |
— |
GND |
— |
J3.95 |
I2C3_SCL |
G8 |
GPIO5_IO18 |
3.3V |
I2C3_SCL |
||||
PWM4_OUT |
||||
J3.97 |
I2C3_SDA |
E9 |
GPIO5_IO19 |
3.3V |
I2C3_SDA |
||||
PWM3_OUT |
||||
J3.99 |
GND |
— |
GND |
— |
J3.2 |
UART2_RXD |
B6 |
GPIO5_IO24 |
3.3V |
UART2_RX |
||||
J3.4 |
UART2_TXD |
D6 |
GPIO5_IO25 |
3.3V |
UART2_TX |
||||
J3.6 |
UART1_RXD |
C7 |
GPIO5_IO22 |
3.3V |
UART1_RX |
||||
J3.8 |
UART1_TXD |
A7 |
GPIO5_IO23 |
3.3V |
UART1_TX |
||||
J3.10 |
GND |
— |
GND |
— |
J3.12 |
||||
J3.14 |
WL_REG_ON |
D7 |
GPIO5_IO29 |
3.3V |
UART2_RTS_B |
||||
UART4_TX |
||||
J3.16 |
UART4_RXD |
C6 |
GPIO5_IO28 |
3.3V |
UART2_CTS_B |
||||
UART4_RX |
||||
J3.18 |
GND |
— |
GND |
— |
J3.20 |
DSI_EN |
D5 |
ECSPI1_SCLK |
3.3V |
GPIO5_IO06 |
||||
UART3_RX |
||||
J3.22 |
DSI_TS_NINT |
A4 |
ECSPI1_MOSI |
3.3V |
GPIO5_IO07 |
||||
UART3_TX |
||||
J3.24 |
UART3_CTS |
B4 |
ECSPI1_MISO |
3.3V |
GPIO5_IO08 |
||||
UART3_CTS_B |
||||
J3.26 |
UART3_RTS |
D4 |
ECSPI1_SS0 |
3.3V |
GPIO5_IO09 |
||||
UART3_RTS_B |
||||
J3.28 |
UART3_RXD |
A6 |
GPIO5_IO26 |
3.3V |
UART1_CTS_B |
||||
UART3_RX |
||||
J3.30 |
UART3_TXD |
B7 |
GPIO5_IO27 |
3.3V |
UART1_RTS_B |
||||
UART3_TX |
||||
J3.32 |
GND |
— |
GND |
— |
J3.34 |
BT_REG_ON |
H21 |
GPIO3_IO05 |
3.3V |
NAND_CLE |
||||
QSPI_B_SCLK |
||||
J3.36 |
GND |
— |
GND |
— |
J3.38 |
||||
J3.40 |
DSI_BL_PWM |
T7 |
CCM_EXT_CLK2 |
3.3V |
GPIO1_IO01 |
||||
PWM1_OUT |
||||
SJC_ACTIVE |
||||
REF_CLK_24M |
||||
J3.42 |
GND |
— |
GND |
— |
J3.44 |
USB1_VBUS |
D14 |
USB_P1_VBUS |
3.3V |
J3.46 |
USB1_ID |
C14 |
USB_P1_ID |
3.3V |
J3.48 |
GND |
— |
GND |
— |
J3.50 |
USB1_DP |
A14 |
USB_P1_DP |
3.3V |
J3.52 |
USB1_DN |
B14 |
USB_P1_DN |
3.3V |
J3.54 |
GND |
— |
GND |
— |
J3.56 |
DSI_DN3 |
A15 |
MIPI_DSI_D3_N |
1.8V |
J3.58 |
DSI_DP3 |
B15 |
MIPI_DSI_D3_P |
1.8V |
J3.60 |
GND |
— |
GND |
— |
J3.62 |
DSI_DN1 |
A16 |
MIPI_DSI_D1_N |
1.8V |
J3.64 |
DSI_DP1 |
B16 |
DSI_DP1 |
1.8V |
J3.66 |
GND |
— |
GND |
— |
J3.68 |
DSI_CKN |
C16 |
MIPI_DSI_CLK_N |
1.8V |
J3.70 |
DSI_CKP |
D16 |
MIPI_DSI_CLK_P |
1.8V |
J3.72 |
GND |
— |
GND |
— |
J3.74 |
DSI_DN0 |
A17 |
MIPI_DSI_D0_N |
1.8V |
J3.76 |
DSI_DP0 |
B17 |
MIPI_DSI_D0_P |
1.8V |
J3.78 |
GND |
— |
GND |
— |
J3.80 |
DSI_DN2 |
A18 |
MIPI_DSI_D2_N |
1.8V |
J3.82 |
DSI_DP2 |
B18 |
MIPI_DSI_D2_P |
1.8V |
J3.84 |
GND |
— |
GND |
— |
J3.86 |
||||
J3.88 |
||||
J3.90 |
BT_DEV_WAKE |
G21 |
GPIO3_IO02 |
3.3V |
NAND_CE1_B |
||||
QSPI_A_SS1_B |
||||
J3.92 |
GND |
— |
GND |
— |
J3.94 |
||||
J3.96 |
I2C2_SCL |
G7 |
ENET1_1588_EVENT1_IN |
3.3V |
GPIO5_IO16 |
||||
I2C2_SCL |
||||
J3.98 |
I2C2_SDA |
F7 |
ENET1_1588_EVENT1_OUT |
3.3V |
GPIO5_IO17 |
||||
I2C2_SDA |
||||
J3.100 |
CSI_P2_PWDN |
P7 |
CCM_PMIC_READY |
3.3V |
GPIO1_IO05 |
||||
M4_NMI |
