核心板硬件手册

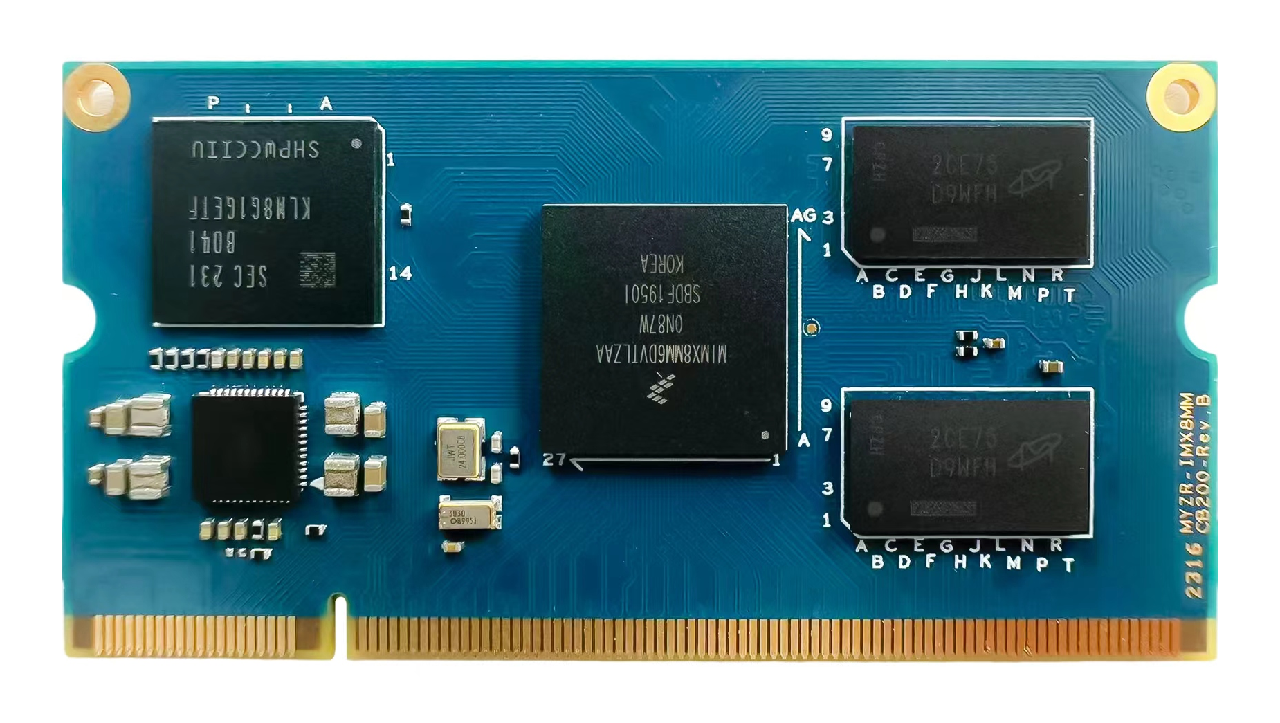

核心板视图

工作温度

• 商业级：

  0°C ~ 70°C

• 工业级：

  -40°C ~ 85°C

供电电源

• 5V输入

操作系统支持

• Linux

• Android

硬件接口

接口种类	接口规格 / 最大可配置数		描述
通讯接口	Ethernet	1	1路支持EEE, Ethernet AVB和IEEE1588
	USB2.0	2	2路USB3.0 PHY接口
	UART	4	4路UART,每路高达4.0Mbps
	I2C	4	4路I2C,最高支持400 kbps
	SPI	3	3路eCSPI(Enhanced CSPI),每个高达52Mbps
	PCIe	1	单通道支持PCIe Gen 3，双模式操作，可用作 根复合体或端点
外部存储接口	eMMC	2	5.1 FLASH
	NAND	1	8位NAND闪存，支持ECC与BCH用于错误检测
	DRAM	1	82-bit DRAM，对原始MLC/SLC器件的支持， BCH ECC高达符合62位和ONFi3.2标准
	QSPI	4	1个四路外部串行闪存设备接口，支持XIP模式
多媒体	DSI（MIPI接口）	1	1路4通道MIPI显示接口，支持高速模式（每 通道1.5Gbps),支持1920x1080@60Hz， 4K@30Hz，支持LCDIF显示器
	CSI（MIPI接口）	2	2路4通道MIPI摄像头接口，支持高速模式 （每通道1.5Gbps），支持4K@30fps

管脚定义

PIN	CPU Pad	Net	Instance
1	power
3
5
7
9
11
13	GND
15
17
19
21
23	NVCC_3V3
25	–	PMIC_I2C_SDA	CON3
27	–	PMIC_I2C_SCL	CON3
29	GPIO1_IO12	GPIO1_IO12	DSI:WAKE
31	NAND_READY_B	SYS_STATUS	LED_RED
33	RESET_KEY	RESET_KEY	RESET
35	BOOT_MODE0	BOOT_MODE0	Boot Switch
37	BOOT_MODE1	BOOT_MODE1	Boot Switch
39	TEST_MODE	BOOT_MODE3	Boot Switch
41	JTAG_TCK	JTAG_TCK	JTAG
43	JTAG_TMS	JTAG_TMS	JTAG
45	JTAG_TDO	JTAG_TDO	JTAG
47	JTAG_TDI	JTAG_TDI	JTAG
49	JTAG_TRST_B	JTAG_nTRST/BOOT_MODE	Boot Switch
51	GND
53	USB2_ID	USB2_ID	VDD_3V3
55	USB2_DP	USB2_DP	Upstream
57	USB2_DN	USB2_DN	Upstream
59	USB2_VBUS	USB2_VBUS	VDD_3V3
61	GND
63	USB1_ID	USB1_ID	DSI
65	USB1_DP	USB1_DP	Download
67	USB1_DN	USB1_DN	Download
69	USB1_VBUS	USB1_VBUS	Download
71	GND
73	PCIE_CLK_P	PCIE_CLKP	PCIe
75	PCIE_CLK_N	PCIE_CLKN	PCIe
77	PCIE_TXN_P	PCIE_TXP	PCIe
79	PCIE_TXN_N	PCIE_TXN	PCIe
81	PCIE_RXN_P	PCIE_RXP	PCIe
83	PCIE_RXN_N	PCIE_RXN	PCIe
85	GND
87	MIPI_CSI_D3_P	CSI_DP3	CSI
89	MIPI_CSI_D3_N	CSI_DN3	CSI
91	MIPI_CSI_D2_P	CSI_DP2	CSI
93	MIPI_CSI_D2_N	CSI_DN2	CSI
95	MIPI_CSI_CLK_P	CSI_CKP	CSI
97	MIPI_CSI_CLK_N	CSI_CKN	CSI
99	MIPI_CSI_D1_P	CSI_DP1	CSI
101	MIPI_CSI_D1_N	CSI_DN1	CSI
103	MIPI_CSI_D0_P	CSI_DP0	CSI
105	MIPI_CSI_D0_N	CSI_DN0	CSI
107	GND
109	MIPI_DSI_D3_P	DSI_DP3	DSI
111	MIPI_DSI_D3_N	DSI_DN3	DSI
113	MIPI_DSI_D2_P	DSI_DP2	DSI
115	MIPI_DSI_D2_N	DSI_DN2	DSI
117	MIPI_DSI_CLK_P	DSI_CKP	DSI
119	MIPI_DSI_CLK_N	DSI_CKN	DSI
121	MIPI_DSI_D1_P	DSI_DP1	DSI
123	MIPI_DSI_D1_N	DSI_DN1	DSI
125	MIPI_DSI_D0_P	DSI_DP0	DSI
127	MIPI_DSI_D0_N	DSI_DN0	DSI
129	GND
131	ECSPI2_MOSI	ECSPI2_MOSI	J5:20
133	ECSPI2_MISO	ECSPI2_MISO	J5:18
135	ECSPI2_SCLK	ECSPI2_SCLK	J5:16
137	ECSPI2_SS0	ECSPI2_SS0	J5:14
139	ECSPI1_MOSI	ECSPI1_MOSI	J5:10
141	ECSPI1_MISO	ECSPI1_MISO	J5:8
143	ECSPI1_SCLK	ECSPI1_SCLK	J5:6
145	ECSPI1_SS0	ECSPI1_SS0	J5:4
147	GND
149	I2C4_SCL	PCIE2_nCLKREQ	PCIe
151	I2C4_SDA	I2C4_SDA	J10:33
153	I2C3_SCL	I2C3_SCL	WM8960,RTC
155	I2C3_SDA	I2C3_SDA	WM8960,RTC
157	I2C2_SCL	I2C2_SCL	DSI,CSI,PCIe
159	I2C2_SDA	I2C2_SDA	DSI,CSI,PCIe
161	I2C1_SCL	I2C1_SCL	J10:34
163	I2C1_SDA	I2C1_SDA	J10:36
165	GND
167	GPIO1_IO00	REF_CLK_32K	J10:21
169	GPIO1_IO05	GPIO1_IO05	PCIe:nDIS
171	SAI3_TXFS	SAI3_TXFS	WM8960
173	SAI3_MCLK	SAI3_MCLK	WM8960
175	SAI3_TXD	SAI3_TXD	WM8960
177	SAI3_TXC	SAI3_TXC	WM8960
179	SAI3_RXD	SAI3_RXD	WM8960
181	SAI3_RXC	SAI3_RXC	J10:22
183	SAI3_RXFS	SAI3_RXFS	J10:20
185	GND
187	SPDIF_EXT_CLK	SPDIF_EXT_CLK	J10:31
189	SPDIF_TX	SPDIF_TX	J10:27
191	SPDIF_RX	SPDIF_RX	J10:29
193	GPIO1_IO09	ENET_nRST	nINT
195	GPIO1_IO08	GPIO1_IO08	DSI:EN
197	GPIO1_IO07	GPIO1_IO07	CSI:PWDN
199	GPIO1_IO06	GPIO1_IO06	CSI:nRST
2	SAI1_RXD0	SAI1_RXD0	NC
4	SAI1_RXD1	SAI1_RXD1	NC
6	SAI1_RXC	SAI1_RXC	NC
8	SAI1_RXFS	SAI1_RXFS	J10:6
10	SAI1_RXD3	SAI1_RXD3	NC
12	SAI1_RXD2	SAI1_RXD2	NC
14	SAI1_RXD5	SAI1_RXD5	NC
16	SAI1_RXD4	SAI1_RXD4	NC
18	SAI1_RXD7	SAI1_RXD7	NC
20	SAI1_RXD6	SAI1_RXD6	NC
22	SAI1_TXD1	SAI1_TXD1	NC
24	SAI1_TXD0	SAI1_TXD0	NC
26	SAI1_TXD3	SAI1_TXD3	NC
28	SAI1_TXD2	SAI1_TXD2	NC
30	SAI1_TXD5	SAI1_TXD5	NC
32	SAI1_TXD4	SAI1_TXD4	NC
34	SAI1_TXD7	SAI1_TXD7	NC
36	SAI1_TXD6	SAI1_TXD6	NC
38	SAI1_TXC	SAI1_TXC	J10:8
40	SAI1_MCLK	SAI1_MCLK	LED2
42	SAI1_TXFS	SAI1_TXFS	WM8960:INT
44	GND
46	SAI2_MCLK	SAI2_MCLK	J10:18
48	SAI2_RXFS	SAI2_RXFS	PCIe:nRST
50	SAI2_TXC	SAI2_TXC	J10:16
52	SAI2_TXD	SAI2_TXD	J10:12
54	SAI2_RXC	SAI2_RXC	ENET:nRST
56	SAI2_TXFS	SAI2_TXFS	J10:14
58	SAI2_RXD0	SAI2_RXD	J10:10
60	GND
62	ENET_TX_CTL	ENET_TX_CTL	RTL8211F
64	ENET_TXC	ENET_TXC	RTL8211F
66	ENET_TD3	ENET_TD3	RTL8211F
68	ENET_TD2	ENET_TD2	RTL8211F
70	ENET_TD1	ENET_TD1	RTL8211F
72	ENET_TD0	ENET_TD0	RTL8211F
74	ENET_RX_CTL	ENET_RX_CTL	RTL8211F
76	ENET_RXC	ENET_RXC	RTL8211F
78	ENET_RD0	ENET_RD0	RTL8211F
80	ENET_RD2	ENET_RD2	RTL8211F
82	ENET_RD1	ENET_RD1	RTL8211F
84	ENET_RD3	ENET_RD3	RTL8211F
86	ENET_MDC	ENET_MDC	RTL8211F
88	ENET_MDIO	ENET_MDIO	RTL8211F
90	GND
92	SD1_DATA1	SD1_DATA1	J11:10
94	SD1_DATA0	SD1_DATA0	J11:8
96	SD1_CMD	SD1_CMD	J11:6
98	SD1_DATA2	SD1_DATA2	J11:11
100	SD1_CLK	SD1_CLK	J11:4
102	SD1_DATA3	SD1_DATA3	J11:13
104	SD1_STROBE	SD1_STROBE	J11: 3
106	GND
108	SD1_DATA7	WL_WAKE_HOST	J11:7
110	SD1_DATA4	BT_REG_ON	J11:13
112	SD1_DATA6	BT_WAKE_HOST	J11:7
114	SD1_DATA5	BT_WAKE_DEV	J11:11
116	SD1_RESET_B	WL_REG_ON	J11:5
118	GND
120	SD2_CMD	SD2_CMD	SD2
122	SD2_CLK	SD2_CLK	SD2
124	SD2_DATA2	SD2_DATA2	SD2
126	SD2_DATA3	SD2_DATA3	SD2
128	SD2_DATA0	SD2_DATA0	SD2
130	SD2_DATA1	SD2_DATA1	SD2
132	SD2_RESET_B	SD2_nRST	SD2
134	SD2_WP	SD2_WP	PCIe:WAKE
136	SD2_CD_B	SD2_nCD	SD2
138	GND
140	NAND_DATA00	QSPIA_DATA0	AT25S
142	NAND_ALE	QSPIA_SCLK	AT25S
144	NAND_CE0_B	QSPIA_nSS0	AT25S
146	NAND_DATA01	QSPIA_DATA1	AT25S
148	NAND_DATA03	QSPIA_DATA3	AT25S
150	NAND_DATA02	QSPIA_DATA2	AT25S
152	GND
154	UART4_RXD	UART4_RXD	M4_Debug
156	UART4_TXD	UART4_TXD	M4_Debug
158	UART3_RXD	UART3_RXD	UART:RS232
160	UART3_TXD	UART3_TXD	UART:RS232
162	UART2_RXD	UART2_RXD	M4_Debug
164	UART2_TXD	UART2_TXD	M4_Debug
166	UART1_TXD	UART1_TXD	UART:RS485
168	UART1_RXD	UART1_RXD	UART:RS485
170	GND
172	GPIO1_IO04	SD2_VSEL	J10:23
174	GPIO1_IO03	PMIC_nINT	J10:37
176	GPIO1_IO01	DSI_BL_PWM	DSI
178	GPIO1_IO14	PWM3	J10:28
180	GPIO1_IO13	PWM2	J10:26
182	GPIO1_IO15	PWM4	J10:30
184	GPIO1_IO11	ENET_WoL	J10:25
186	GPIO1_IO10	ENET_nINT	RTL8211F
188	SAI5_RXD3	PDM_DATA3	J10:17
190	SAI5_RXD2	PDM_DATA2	J10:15
192	SAI5_RXD1	PDM_DATA1	J10:13
194	SAI5_RXC	PDM_CLK	J10:9
196	SAI5_RXD0	PDM_DATA0	J10:11
198	SAI5_MCLK	SAI5_MCLK	J10:19
200	SAI5_RXFS	SAI5_RXFS	J10:7

管脚定义&详细功能说明

PIN	CPU Pad	PORT
1	power
3
5
7
9
11
13	GND
15
17
19
21
23	NVCC_3V3
25	PMIC_PSO2	PMIC_PSO2
27	PMIC_PSO1	PMIC_PSO1
29	GPIO1_IO12	GPIO1_IO12
		SDMA2_EXT_EVENT1
		USB1_OTG_PWR
31	NAND_READY_B	GPIO3_IO16
		RAWNAND_READY_B
		USDHC3_RESET_B
33	RESET_KEY	RESET_KEY
35	BOOT_MODE0	SRC_BOOT_MODE0
37	BOOT_MODE1	SRC_BOOT_MODE1
39	TEST_MODE	TEST_MODE
41	JTAG_TCK	CJTAG_TCK
43	JTAG_TMS	CJTAG_TMS
45	JTAG_TDO	CJTAG_TDO
47	JTAG_TDI	CJTAG_TDI
49	JTAG_TRST_B	CJTAG_TRST_B
51	GND
53	USB2_ID	USB2_P2_ID
55	USB2_DP	USB2_P2_DP
57	USB2_DN	USB2_P2_DN
59	USB2_VBUS	USB2_P2_VBUS
61	GND
63	USB1_ID	USB1_P1_ID
65	USB1_DP	USB1_P1_DP
67	USB1_DN	USB1_P1_DN
69	USB1_VBUS	USB1_P1_VBUS
71	GND
73	PCIE_CLK_P	PCIE_CLK_P
75	PCIE_CLK_N	PCIE_CLK_N
77	PCIE_TXN_P	PCIE_TXN_P
79	PCIE_TXN_N	PCIE_TXN_N
81	PCIE_RXN_P	PCIE_RXN_P
83	PCIE_RXN_N	PCIE_RXN_N
85	GND
87	MIPI_CSI_D3_P	MIPI_CSI_D3_P
89	MIPI_CSI_D3_N	MIPI_CSI_D3_N
91	MIPI_CSI_D2_P	MIPI_CSI_D2_P
93	MIPI_CSI_D2_N	MIPI_CSI_D2_N
95	MIPI_CSI_CLK_P	MIPI_CSI_CLK_P
97	MIPI_CSI_CLK_N	MIPI_CSI_CLK_N
99	MIPI_CSI_D1_P	MIPI_CSI_D1_P
101	MIPI_CSI_D1_N	MIPI_CSI_D1_N
103	MIPI_CSI_D0_P	MIPI_CSI_D0_P
105	MIPI_CSI_D0_N	MIPI_CSI_D0_N
107	GND
109	MIPI_DSI_D3_P	MIPI_DSI_D3_P
111	MIPI_DSI_D3_N	MIPI_DSI_D3_N
113	MIPI_DSI_D2_P	MIPI_DSI_D2_P
115	MIPI_DSI_D2_N	MIPI_DSI_D2_N
117	MIPI_DSI_CLK_P	MIPI_DSI_CLK_P
119	MIPI_DSI_CLK_N	MIPI_DSI_CLK_N
121	MIPI_DSI_D1_P	MIPI_DSI_D1_P
123	MIPI_DSI_D1_N	MIPI_DSI_D1_N
125	MIPI_DSI_D0_P	MIPI_DSI_D0_P
127	MIPI_DSI_D0_N	MIPI_DSI_D0_N
129	GND
131	ECSPI2_MOSI	GPIO5_IO11
		UART4_TX
		ECSPI2_MOSI
133	ECSPI2_MISO	GPIO5_IO12
		UART4_CTS_B
		ECSPI2_MISO
135	ECSPI2_SCLK	ECSPI2_SCLK
		GPIO5_IO10
		UART4_RX
137	ECSPI2_SS0	ECSPI2_SS0
		GPIO5_IO13
		UART4_RTS_B
139	ECSPI1_MOSI	ECSPI1_MOSI
		GPIO5_IO07
		UART3_TX
141	ECSPI1_MISO	ECSPI1_MISO
		GPIO5_IO08
		UART3_CTS_B
143	ECSPI1_SCLK	ECSPI1_SCLK
		GPIO5_IO06
		UART3_RX
145	ECSPI1_SS0	ECSPI1_SS0
		GPIO5_IO09
		UART3_RTS_B
147	GND
149	I2C4_SCL	GPIO5_IO20
		I2C4_SCL
		PCIE1_CLKREQ_B
		PWM2_OUT
151	I2C4_SDA	GPIO5_IO21
		I2C4_SDA
		PWM1_OUT
153	I2C3_SCL	GPIO5_IO18
		GPT2_CLK
		I2C3_SCL
		PWM4_OUT
155	I2C3_SDA	GPIO5_IO19
		GPT3_CLK
		I2C3_SDA
		PWM3_OUT
157	I2C2_SCL	ENET1_1588_EVENT1_IN
		GPIO5_IO16
		USDHC3_CD_B
159	I2C2_SDA	ENET1_1588_EVENT1_OUT
		GPIO5_IO17
		I2C2_SDA
		USDHC3_WP
161	I2C1_SCL	ENET1_MDC
		GPIO5_IO14
		I2C1_SCL
163	I2C1_SDA	ENET1_MDIO
		I2C1_SDA
		GPIO5_IO15
165	GND
167	GPIO1_IO00	CCM_ENET_PHY_REF_CLK_ROOT
		GPIO1_IO00
		CCM_EXT_CLK1
		REF_CLK_32K
169	GPIO1_IO05	CCM_PMIC_READY
		M4_NMI
171	SAI3_TXFS	GPIO4_IO31
		GPT1_CAPTURE2
		SAI3_TX_DATA1
		SAI3_TX_SYNC
		SAI5_RX_DATA1
		UART2_RX
173	SAI3_MCLK	GPIO5_IO02
		PWM4_OUT
		SAI3_MCLK
		SAI5_MCLK
175	SAI3_TXD	GPIO5_IO01
		GPT1_COMPARE3
		SAI3_TX_DATA0
		SAI5_RX_DATA3
177	SAI3_TXC	GPIO5_IO00
		GPT1_COMPARE2
		SAI3_TX_BCLK
		SAI5_RX_DATA2
		UART2_TX
179	SAI3_RXD	GPIO4_IO30
		GPT1_COMPARE1
		SAI3_RX_DATA0
		SAI5_RX_DATA0
		UART2_RTS_B
181	SAI3_RXC	GPIO4_IO29
		GPT1_CLK
		SAI3_RX_BCLK
		SAI5_RX_BCLK
		UART2_CTS_B
183	SAI3_RXFS	GPIO4_IO28
		GPT1_CAPTURE1
		SAI3_RX_DATA1
		SAI3_RX_SYNC
		SAI5_RX_SYNC
185	GND
187	SPDIF_EXT_CLK	GPIO5_IO05
		PWM1_OUT
		SPDIF1_EXT_CLK
189	SPDIF_TX	GPIO5_IO03
		PWM3_OUT
		SPDIF1_OUT
191	SPDIF_RX	GPIO5_IO04
		PWM2_OUT
		SPDIF1_IN
193	GPIO1_IO09	ENET1_1588_EVENT0_OUT
		GPIO1_IO09
		SDMA2_EXT_EVENT0
		USDHC3_RESET_B
195	GPIO1_IO08	GPIO1_IO08
		ENET1_1588_EVENT0_IN
		USDHC2_RESET_B
197	GPIO1_IO07	CCM_EXT_CLK4
		ENET1_MDIO
		GPIO1_IO07
		USDHC1_WP
199	GPIO1_IO06	GPIO1_IO06
		USDHC1_CD_B
		CCM_EXT_CLK3
		ENET1_MDC
2	SAI1_RXD0	GPIO4_IO02
		PDM_BIT_STREAM0
		SAI1_RX_DATA0
		SAI1_TX_DATA1
		SAI5_RX_DATA0
		SRC_BOOT_CFG0
4	SAI1_RXD1	GPIO4_IO03
		PDM_BIT_STREAM1
		SAI1_RX_DATA1
		SAI5_RX_DATA1
		SRC_BOOT_CFG1
6	SAI1_RXC	GPIO4_IO01
		SAI1_RX_BCLK
		SAI5_RX_BCLK
8	SAI1_RXFS	GPIO4_IO00
		SAI1_RX_SYNC
		SAI5_RX_SYNC
10	SAI1_RXD3	GPIO4_IO05
		PDM_BIT_STREAM3
		SAI1_RX_DATA3
		SAI5_RX_DATA3
		SRC_BOOT_CFG3
12	SAI1_RXD2	GPIO4_IO04
		SAI1_RX_DATA2
		PDM_BIT_STREAM2
		SAI5_RX_DATA2
		SRC_BOOT_CFG2
14	SAI1_RXD5	GPIO4_IO07
		SAI1_RX_DATA5
		SAI1_RX_SYNC
		SAI6_RX_DATA0
		SAI6_TX_DATA0
		SRC_BOOT_CFG5
16	SAI1_RXD4	GPIO4_IO06
		SAI1_RX_DATA4
		SAI6_RX_BCLK
		SAI6_TX_BCLK
		SRC_BOOT_CFG4
18	SAI1_RXD7	GPIO4_IO09
		SAI1_RX_DATA7
		SAI1_TX_DATA4
		SAI1_TX_SYNC
		SAI6_MCLK
		SRC_BOOT_CFG7
20	SAI1_RXD6	GPIO4_IO08
		SAI6_RX_SYNC
		SAI1_RX_DATA6
		SAI6_TX_SYNC
		SRC_BOOT_CFG6
22	SAI1_TXD1	SAI1_TX_DATA1
		GPIO4_IO13
		SAI5_TX_DATA1
		SRC_BOOT_CFG9
24	SAI1_TXD0	GPIO4_IO12
		SAI1_TX_DATA0
		SAI5_TX_DATA0
		SRC_BOOT_CFG8
26	SAI1_TXD3	GPIO4_IO15
		SAI1_TX_DATA3
		SAI5_TX_DATA3
		SRC_BOOT_CFG11
28	SAI1_TXD2	GPIO4_IO14
		SAI1_TX_DATA2
		SAI5_TX_DATA2
		SRC_BOOT_CFG10
30	SAI1_TXD5	GPIO4_IO17
		SAI1_TX_DATA5
		SAI6_RX_DATA0
		SAI6_TX_DATA0
		SRC_BOOT_CFG13
32	SAI1_TXD4	GPIO4_IO16
		SAI1_TX_DATA4
		SAI6_RX_BCLK
		SAI6_TX_BCLK
		SRC_BOOT_CFG12
34	SAI1_TXD7	GPIO4_IO19
		PDM_CLK
		SAI1_TX_DATA7
		SAI6_MCLK
		SRC_BOOT_CFG15
36	SAI1_TXD6	GPIO4_IO18
		SAI1_TX_DATA6
		SAI6_RX_SYNC
		SAI6_TX_SYNC
		SRC_BOOT_CFG14
38	SAI1_TXC	ARM_EVENTI
		GPIO4_IO11
		SAI1_TX_BCLK
		SAI5_TX_BCLK
40	SAI1_MCLK	GPIO4_IO20
		PDM_CLK
		SAI1_MCLK
		SAI1_TX_BCLK
42	SAI1_TXFS	ARM_EVENTO
		GPIO4_IO10
		SAI1_TX_SYNC
		SAI5_TX_SYNC
44	GND
46	SAI2_MCLK	GPIO4_IO27
		SAI2_MCLK
		SAI5_MCLK
48	SAI2_RXFS	SAI2_RX_DATA1
		GPIO4_IO21
		SAI2_RX_SYNC
		SAI5_TX_DATA1
		SAI5_TX_SYNC
		UART1_TX
50	SAI2_TXC	GPIO4_IO25
		SAI2_TX_BCLK
		SAI5_TX_DATA2
52	SAI2_TXD0	GPIO4_IO26
		GPIO4_IO26
		SAI5_TX_DATA3
54	SAI2_RXC	GPIO4_IO22
		SAI2_RX_BCLK
		SAI5_TX_BCLK
		UART1_RX
56	SAI2_TXFS	GPIO4_IO24
		SAI2_TX_DATA1
		SAI2_TX_SYNC
		SAI5_TX_DATA1
		UART1_CTS_B
58	SAI2_RXD0	GPIO4_IO23
		SAI2_RX_DATA0
		SAI5_TX_DATA0
		UART1_RTS_B
60	GND
62	ENET_TX_CTL	ENET1_RGMII_TX_CTL
		GPIO1_IO22
64	ENET_TXC	ENET1_RGMII_TXC
		ENET1_TX_ER
		GPIO1_IO23
66	ENET_TD3	ENET1_RGMII_TD3
		GPIO1_IO18
68	ENET_TD2	ENET1_RGMII_TD2
		ENET1_TX_CLK
		GPIO1_IO19
70	ENET_TD1	ENET1_RGMII_TD1
		GPIO1_IO20
72	ENET_TD0	ENET1_RGMII_TD0
		GPIO1_IO21
74	ENET_RX_CTL	ENET1_RGMII_RX_CTL
		GPIO1_IO24
76	ENET_RXC	ENET1_RGMII_RXC
		ENET1_RX_ER
		GPIO1_IO25
78	ENET_RD0	ENET1_RGMII_RD0
		GPIO1_IO26
80	ENET_RD2	ENET1_RGMII_RD2
		GPIO1_IO28
82	ENET_RD1	ENET1_RGMII_RD1
		GPIO1_IO27
84	ENET_RD3	ENET1_RGMII_RD3
		GPIO1_IO29
86	ENET_MDC	ENET1_MDC
		GPIO1_IO16
88	ENET_MDIO	ENET1_MDIO
		GPIO1_IO17
90	GND
92	SD1_DATA1	GPIO2_IO03
		USDHC1_DATA1
94	SD1_DATA0	GPIO2_IO02
		USDHC1_DATA0
96	SD1_CMD	GPIO2_IO01
		USDHC1_CMD
98	SD1_DATA2	GPIO2_IO04
		USDHC1_DATA2
100	SD1_CLK	GPIO2_IO00
		USDHC1_CLK
102	SD1_DATA3	GPIO2_IO05
		USDHC1_DATA3
104	SD1_STROBE	GPIO2_IO11
		USDHC1_STROBE
106	GND
108	SD1_DATA7	GPIO2_IO09
		USDHC1_DATA7
110	SD1_DATA4	GPIO2_IO06
		USDHC1_DATA4
112	SD1_DATA6	GPIO2_IO08
		USDHC1_DATA6
114	SD1_DATA5	GPIO2_IO07
		USDHC1_DATA5
116	SD1_RESET_B	GPIO2_IO10
		USDHC1_RESET_B
118	GND
120	SD2_CMD	GPIO2_IO14
		USDHC2_CMD
122	SD2_CLK	GPIO2_IO13
		USDHC2_CLK
124	SD2_DATA2	GPIO2_IO17
		USDHC2_DATA2
126	SD2_DATA3	GPIO2_IO18
		SRC_EARLY_RESET
		USDHC2_DATA3
128	SD2_DATA0	GPIO2_IO15
		USDHC2_DATA0
130	SD2_DATA1	GPIO2_IO16
		USDHC2_DATA1
132	SD2_RESET_B	GPIO2_IO19
		SRC_SYSTEM_RESET
		USDHC2_RESET_B
134	SD2_WP	GPIO2_IO20
		USDHC2_WP
136	SD2_CD_B	GPIO2_IO12
		USDHC2_CD_B
138	GND
140	NAND_DATA00	GPIO3_IO06
		QSPI_A_DATA0
		RAWNAND_DATA00
142	NAND_ALE	GPIO3_IO00
		QSPI_A_SCLK
		RAWNAND_ALE
144	NAND_CE0_B	GPIO3_IO01
		QSPI_A_SS0_B
		RAWNAND_CE0_B
146	NAND_DATA01	GPIO3_IO07
		QSPI_A_DATA1
		RAWNAND_DATA01
148	NAND_DATA03	GPIO3_IO09
		QSPI_A_DATA3
		RAWNAND_DATA03
		USDHC3_WP
150	NAND_DATA02	GPIO3_IO08
		QSPI_A_DATA2
		RAWNAND_DATA02
		USDHC3_CD_B
152	GND
154	UART4_RXD	GPIO5_IO28
		PCIE1_CLKREQ_B
		UART2_CTS_B
		UART4_RX
156	UART4_TXD	GPIO5_IO29
		UART2_RTS_B
		UART4_TX
158	UART3_RXD	GPIO5_IO26
		UART1_CTS_B
		UART3_RX
		USDHC3_RESET_B
160	UART3_TXD	UART3_TXD
		UART1_RTS_B
		UART3_TX
162	UART2_RXD	ECSPI3_MISO
		GPIO5_IO24
		UART2_RX
164	UART2_TXD	ECSPI3_SS0
		GPIO5_IO25
		UART2_TX
166	UART1_TXD	ECSPI3_MOSI
		GPIO5_IO23
		UART1_TX
168	UART1_RXD	ECSPI3_SCLK
		GPIO5_IO22
		UART1_RX
170	GND
172	GPIO1_IO04	GPIO1_IO04
		SDMA1_EXT_EVENT1
		USDHC2_VSELECT
174	GPIO1_IO03	GPIO1_IO03
		SDMA1_EXT_EVENT0
		USDHC1_VSELECT
176	GPIO1_IO01	GPIO1_IO01
		PWM1_OUT
		REF_CLK_24M
178	GPIO1_IO14	CCM_CLKO1
		PWM3_OUT
		USB2_OTG_PWR
		USDHC3_CD_B
180	GPIO1_IO13	GPIO1_IO13
		PWM2_OUT
		USB1_OTG_OC
182	GPIO1_IO15	CCM_CLKO2
		GPIO1_IO15
		PWM4_OUT
		USB2_OTG_OC
		USDHC3_WP
184	GPIO1_IO11	CCM_PMIC_READY
		GPIO1_IO11
		USB2_OTG_ID
		USDHC3_VSELECT
186	GPIO1_IO10	GPIO1_IO10
		USB1_OTG_ID
188	SAI5_RXD3	GPIO3_IO24
		PDM_BIT_STREAM3
		SAI1_TX_DATA5
		SAI1_TX_SYNC
		SAI5_RX_DATA3
		SAI5_TX_DATA0
190	SAI5_RXD2	GPIO3_IO23
		PDM_BIT_STREAM2
		SAI1_TX_SYNC
		SAI1_TX_DATA4
		SAI5_RX_DATA2
		SAI5_TX_BCLK
192	SAI5_RXD1	GPIO3_IO22
		PDM_BIT_STREAM1
		SAI1_TX_DATA3
		SAI1_TX_SYNC
		SAI5_RX_DATA1
		SAI5_TX_SYNC
194	SAI5_RXC	GPIO3_IO20
		PDM_CLK
		SAI1_TX_DATA1
		SAI5_RX_BCLK
196	SAI5_RXD0	GPIO3_IO21
		PDM_BIT_STREAM0
		SAI1_TX_DATA2
		SAI5_RX_DATA0
198	SAI5_MCLK	GPIO3_IO25
		SAI1_TX_BCLK
		SAI5_MCLK
200	SAI5_RXFS	GPIO3_IO19
		SAI1_TX_DATA0
		SAI5_RX_SYNC

---

--------------------------------------------------------------------------------
* 珠海明远智睿科技有限公司
* ZhuHai MYZR Technology CO.,LTD.
* Latest Update: 2023/5/08
* Supporter: Zhong JiaYi
--------------------------------------------------------------------------------
