核心板硬件手册

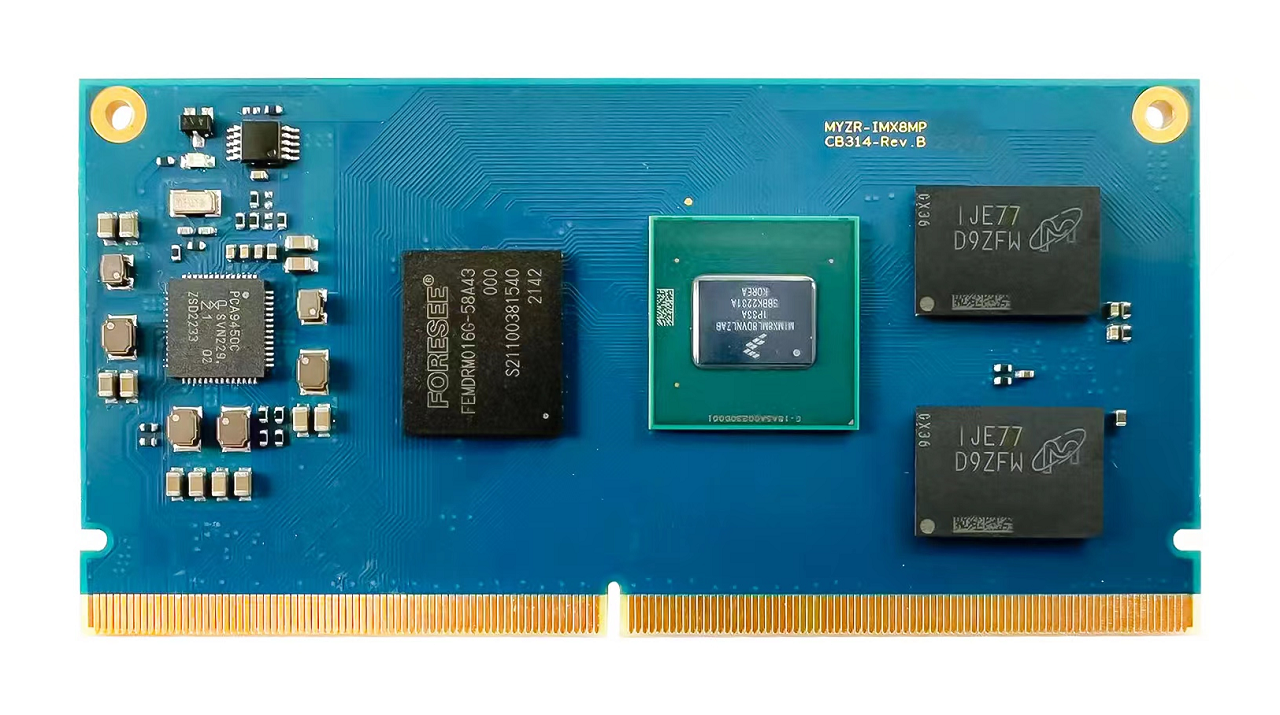

核心板视图

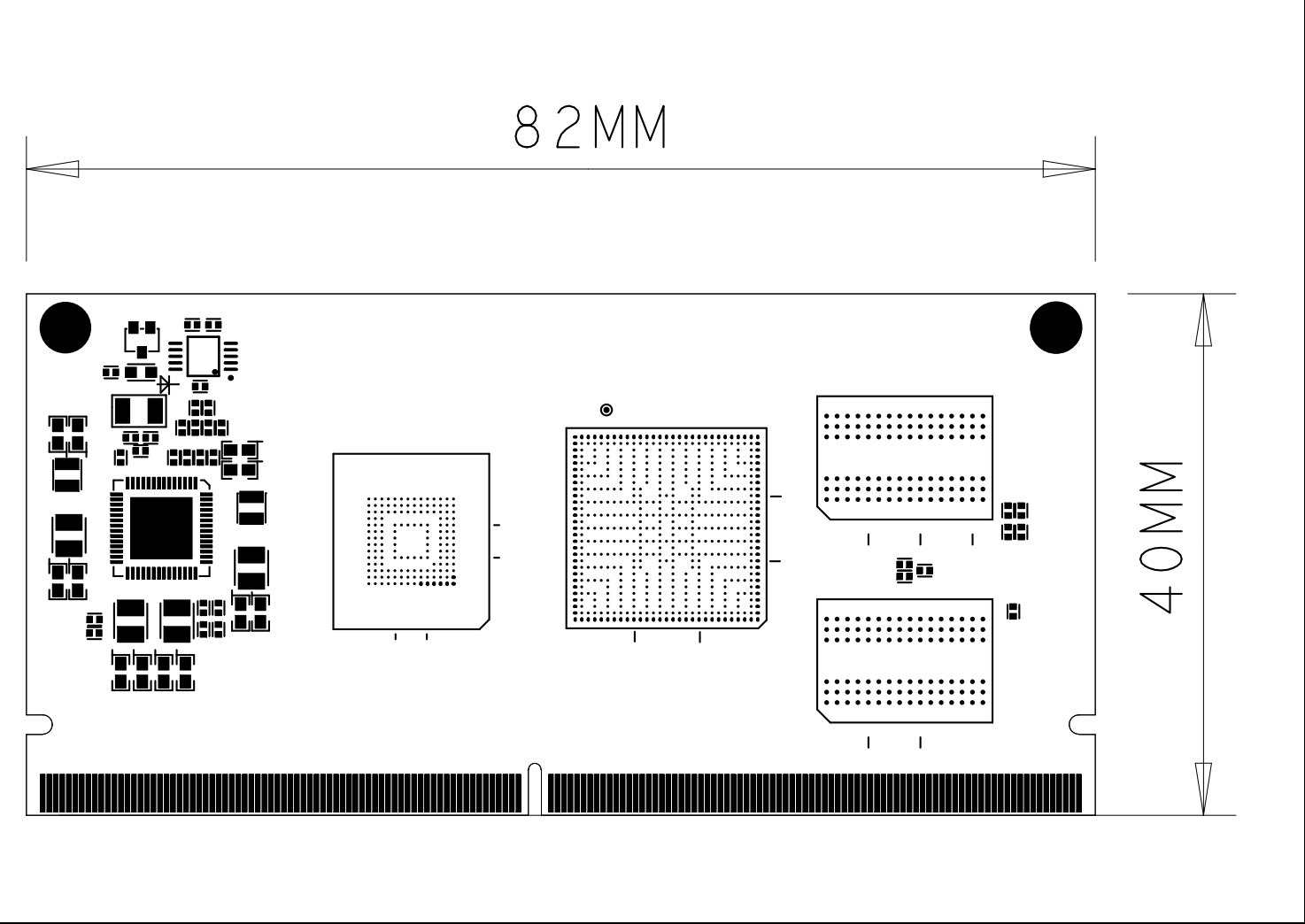

尺寸

82mm*40mm

工作温度

• 商业级：

  0°C ~ 70°C

• 工业级：

  -40°C ~ 85°C

供电电源

• 5V输入

操作系统支持

• Linux

• Android

硬件接口

接口种类	接口规格 / 最大可配置数		描述
通讯接口	Ethernet	2	1路支持EEE, Ethernet AVB和IEEE1588
	USB3.0	2	2路USB3.0 PHY接口
	UART	4	4路UART,每路高达4.0Mbps
	I2C	6	4路I2C,最高支持400 kbps
	SPI	3	3路eCSPI（Enhanced CSPI），每个高达52Mbps
	PCIe	1	单通道支持PCIe Gen 3，双模式操作，可用作根复合体 或端点
外部存储接口	eMMC	2	5.1 FLASH
	NAND	1	8位NAND闪存，支持ECC与BCH用于错误检测
	DRAM	1	82-bit DRAM，对原始MLC/SLC器件的支持，BCH ECC高达符合62位和ONFi3.2标准
	QSPI	4	1个四路外部串行闪存设备接口，支持XIP模式
多媒体	HDMI	1	1路HDMI 2.0a，支持4096x2160@60Hz，支持 HDCP 2.2 和HDCP 1.4，20+音频交错32位 @384khz fs，支持S/PDIF输入和输出
	DSI（MIPI接口）	1	1路4通道MIPI显示接口，支持高速模式(每通道 1.5Gbps),支持1920x1080@60Hz，4K@30Hz， 支持LCDIF显示器
	CSI（MIPI接口）	2	2路4通道MIPI摄像头接口，支持高速模式(每通道 1.5Gbps)，支持4K@30fps
	ISI	2	ISI是一个简单的相机接口，支持图像处理和传输
	ISP	2	1路12MP@30fps or 4kp45，2路都是1080p80

管脚定义

管脚	CPU Pad	Net	Instance
P1	POWER
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15	SAI1_RXD1	ENET1_nINT	ENET1:RTL8211F
P16	SAI1_RXD0	ENET1_nRST	ENET1:RTL8211F
P17	SAI1_RXD3	ENET1_MDIO	ENET1:RTL8211F
P18	SAI1_RXD2	ENET1_MDC	ENET1:RTL8211F
P19	SAI1_RXD4	ENET1_RD0	ENET1:RTL8211F
P20	SAI1_RXD5	ENET1_RD1	ENET1:RTL8211F
P21	SAI1_TXD4	ENET1_TX_CTL	ENET1:RTL8211F
P22	SAI1_RXD6	ENET1_RD2	ENET1:RTL8211F
P23	SAI1_RXD7	ENET1_RD3	ENET1:RTL8211F
P24	SAI1_TXC	ENET1_RXC	ENET1:RXC
P25	SAI1_TXD1	ENET1_TD1	ENET1:RTL8211F
P26	SAI1_TXD2	ENET1_TD2	ENET1:RTL8211F
P27	SAI1_TXD0	ENET1_TD0	ENET1:RTL8211F
P28	SAI1_TXD3	ENET1_TD3	ENET1:RTL8211F
P29	SAI1_TXD4	ENET1_TX_CTL	ENET1:RTL8211F
P30	SAI1_TXD5	ENET1_TXC	ENET1:RTL8211F
P31	GND
P32	ENET_TX_CTL	ENET_TX_CTL	ENET:TXCTL
P33	ENET_TXC	ENET_TXC	ENET:TXC
P34	ENET_TD3	ENET_TD3	ENET:TXD3
P35	ENET_TD2	ENET_TD2	ENET:TXD2
P36	ENET_TD1	ENET_TD1	ENET:TXD1
P37	ENET_TD0	ENET_TD0	ENET:TXD0
P38	SAI2_RXC	ENET_nRST	ENET:RST
P39	SAI2_RXFS	ENET_nINT	ENET:INT
P40	ENET_MDC	ENET_MDC	ENET:MDC
P41	ENET_MDIO	ENET_MDIO	ENET:MDIO
P42	ENET_RD1	ENET_RD1	ENET:RXD1
P43	ENET_RD0	ENET_RD0	ENET:RXD0
P44	ENET_RD3	ENET_RD3	ENET:RXD3
P45	ENET_RD2	ENET_RD2	ENET:RXD2
P46	ENET_RX_CTL	ENET_RX_CTL	ENET:RXCTL
P47	ENET_RXC	ENET_RXC	ENET:RXC
P48	GND
P49	LVDS0_D3_N	LVDS0_TX3_N	LVDS:J8:32
P50	LVDS0_D3_P	LVDS0_TX3_P	LVDS:J8:34
P51	GND
P52	LVDS0_D2_N	LVDS0_TX2_N	LVDS:J8:26
P53	LVDS0_D2_P	LVDS0_TX2_P	LVDS:J8:28
P54	GND
P55	LVDS0_CLK_N	LVDS0_CLK_N	LVDS:J8:3
P56	LVDS0_CLK_P	LVDS0_CLK_P	LVDS:J8:5
P57	GND
P58	LVDS0_D1_N	LVDS0_TX1_N	LVDS:J8:10
P59	LVDS0_D1_P	LVDS0_TX1_P	LVDS:J8:12
P60	GND
P61	LVDS0_D0_N	LVDS0_TX0_N	LVDS:J8:4
P62	LVDS0_D0_P	LVDS0_TX0_P	LVDS:J8:6
P63	GND
P64	LVDS1_D3_N	LVDS1_TX3_N	LVDS:J9:32
P65	LVDS1_D3_P	LVDS1_TX3_P	LVDS:J9:34
P66	GND
P67	LVDS1_D2_N	LVDS1_TX2_N	LVDS:J9:26
P68	LVDS1_D2_P	LVDS1_TX2_P	LVDS:J9:28
P69	GND
P70	LVDS1_CLK_N	LVDS1_CLK_N	LVDS:J9:3
P71	LVDS1_CLK_P	LVDS1_CLK_P	LVDS:J9:5
P72	GND
P73	LVDS1_D1_N	LVDS1_TX1_N	LVDS:J9:10
P74	LVDS1_D1_P	LVDS1_TX1_P	LVDS:J9:12
P75	GND
P76	LVDS1_D0_N	LVDS1_TX0_N	LVDS:J8:4
P77	LVDS1_D0_P	LVDS1_TX0_P	LVDS:J8:6
P78	GND
P79	MIPI_CSI2_D0_P	CSI2_DP0	CSI2:J7
P80	MIPI_CSI2_D0_N	CSI2_DN0	CSI2:J7
P81	GND
P82	MIPI_CSI2_D1_P	CSI2_DP1	CSI2:J7
P83	MIPI_CSI2_D1_N	CSI2_DN1	CSI2:J7
P84	GND
P85	MIPI_CSI2_CLK_P	CSI2_CKP	CSI2:J7
P86	MIPI_CSI2_CLK_N	CSI2_CKN	CSI2:J7
P87	GND
P88	MIPI_CSI2_D2_P	CSI2_DP2	CSI2:J7
P89	MIPI_CSI2_D2_N	CSI2_DN2	CSI2:J7
P90	GND
P91	MIPI_CSI2_D3_P	CSI2_DP3	CSI2:J7
P92	MIPI_CSI2_D3_N	CSI2_DN3	CSI2:J7
P93	GND
P94	MIPI_DSI1_D3_P	DSI_DP3	DSI:J5
P95	MIPI_DSI1_D3_N	DSI_DN3	DSI:J5
P96	GND
P97	MIPI_DSI1_D2_P	DSI_DP2	DSI:J5
P98	MIPI_DSI1_D2_N	DSI_DN2	DSI:J5
P99	GND
P100	MIPI_DSI1_CLK_P	DSI_CKP	DSI:J5
P101	MIPI_DSI1_CLK_N	DSI_CKN	DSI:J5
P102	GND
P103	MIPI_DSI1_D1_P	DSI_DP1	DSI:J5
P104	MIPI_DSI1_D1_N	DSI_DN1	DSI:J5
P105	GND
P106	MIPI_DSI1_D0_P	DSI_DP0	DSI:J5
P107	MIPI_DSI1_D0_N	DSI_DN0	DSI:J5
P108	GND
P109	PCIE_TXN_P	PCIE_TXP	PCIE:PETp0
P110	PCIE_TXN_N	PCIE_TXN	PCIE:PETn0
P111	GND
P112	PCIE_RXN_P	PCIE_RXP	PCIE:PERp0
P113	PCIE_RXN_N	PCIE_RXN	PCIE:PERn0
P114	GND
P115	PCIE_REF_PAD_CLK_P	PCIE_CLKP	PCIE
P116	PCIE_REF_PAD_CLK_N	PCIE_CLKN	PCIE
P117	GND
P118	USB2_D_P	USB2_DP	USB2
P119	USB2_D_N	USB2_DN	USB2
P120	GND
P121	USB2_VBUS_3V3
P122	GND
P123	USB2_TX_P	USB2_TXP	USB2
P124	USB2_TX_N	USB2_TXN	USB2
P125	GND
P126	USB2_RX_P	USB2_RXP	USB2
P127	USB2_RX_N	USB2_RXN	USB2
P128	GND
P129	USB1_VBUS_3V3
P130	GND
P131	USB1_D_P	USB1_DP	Download
P132	USB1_D_N	USB1_DN	Download
P133	GND
P134	USB1_TX_P	USB1_TXP	M2:USB_SS_TX_P
P135	USB1_TX_N	USB1_TXN	M2:USB_SS_TX_M
P136	GND
P137	USB1_RX_P	USB1_RXP	M2:nDPR
P138	USB1_RX_N	USB1_RXN	M2:USB_SS_TX_M
P139	GND
P140	I2C4_SCL	I2C4_SCL	PCIE:PCIe_nCLKREQ
P141	I2C4_SDA	I2C4_SDA	PCIE:PCIe_nWAKE
P142	GND
P143	UART3_RXD	UART1_CTS	UART1:J14:11
P144	UART1_RXD	UART1_RXD	UART1:J14:9
P145	UART1_TXD	UART1_TXD	UART1:J14:8
P146	UART3_TXD	UART1_RTS	UART1:J14:10
P147	GND
P148	UART2_RXD	UART2_RXD	RS232_TX2
P149	UART2_TXD	UART2_TXD	RS232_RX2
P150	GND
P151	UART4_TXD	UART4_TXD	UART4:RS232
P152	UART4_RXD	UART4_RXD	UART4:RS232
P153	GND
P154	I2C3_SDA	I2C3_SDA	I2C
P155	I2C3_SCL	I2C3_SCL	I2C
P156	GND
S1	POWER
S2	GND
S3
S4
S5
S6
S7		PMIC_I2C_SDA
S8		PMIC_I2C_SCL
S9	CLK_32K_OUT	PMIC_32K_OUT	TP2
S10	GPIO1_IO02	WDOG_B	WDOG
S11	GPIO1_IO03	PMIC_nINT	PMIC:INT
S12	GPIO1_IO04	SD2_VSEL	DSI:J5:9
S13		MainPWR_EN	TP4
S14		SYS_nRST_Main	RESET
S15	SAI3_RXFS	AUD_nINT	WM8960
S16	SAI3_RXC	AUD_PWR_EN	Audio CODEC
S17	GND
S18	I2C1_SCL	I2C1_SCL	IO:J13:9
S19	I2C1_SDA	I2C1_SDA	IO:J13:11
S20	GND
S21	SAI2_RXD0	SAI2_RXD	IO:J13:30
S22	SAI2_TXFS	SAI2_TXFS	IO:J13:24
S23	SAI2_TXD0	SAI2_TXD	IO:J13:28
S24	SAI2_TXC	SAI2_TXC	IO:J13:26
S25	GND
S26	SAI3_TXFS	SAI3_TXFS	WM8960
S27	SAI3_MCLK	SAI3_MCLK	WM8960
S28	SAI3_TXC	SAI3_TXC	WM8960
S29	SAI3_TXD	SAI3_TXD	WM8960
S30	SAI3_RXD	SAI3_RXD	WM8960
S31	GND
S32	ECSPI2_SCLK	ECSPI2_SCLK	QSPI
S33	ECSPI2_MOSI	ECSPI2_MOSI	QSPI
S34	ECSPI2_MISO	ECSPI2_MISO	QSPI
S35	ECSPI2_SS0	ECSPI2_SS0	QSPI
S36	GND
S37	HDMI_DDC_SCL	HDMI_DDC_SCL	HDMI
S38	HDMI_DDC_SDA	HDMI_DDC_SDA	HDMI
S39	GND
S40	HDMI_HPD	HDMI_HPD	HDMI
S41	HDMI_CEC	HDMI_CEC	HDMI
S42	GND
S43	EARC_N_HPD	EARC_N_HPD	HDMI
S44	EARC_P_UTIL	EARC_P_UTIL	HDMI
S45	GND
S46	HDMI_TXC_N	HDMI_TXCN	HDMI
S47	HDMI_TXC_P	HDMI_TXCP	HDMI
S48	GND
S49	HDMI_TX0_N	HDMI_TXN0	HDMI
S50	HDMI_TX0_P	HDMI_TXP0	HDMI
S51	GND
S52	HDMI_TX1_N	HDMI_TXN1	HDMI
S53	HDMI_TX1_P	HDMI_TXP1	HDMI
S54	GND
S55	HDMI_TX2_N	HDMI_TXN2	HDMI
S56	HDMI_TX2_P	HDMI_TXP2	HDMI
S57	GND
S58	CLKOUT2	CLKOUT2	TP6
S59	CLKIN2	CLKIN2	TP7
S60	GND
S61	CLKOUT1	CLKOUT1	TP8
S62	CLKIN1	CLKIN1	TP9
S63		POR_B
S64	NAND_DQS	NAND_DQS	IO:J13:17
S65	SD1_STROBE	CSI_PWDN	CSI1:J6:12
S66		ONOFF
S67	GND
S68	SD2_WP	SD2_WP	DSI:J5:8
S69	SD2_RESET_B	SD2_RESET_B	TP20
S70	SD2_CD_B	SD2_nCD	Micro-SD
S71	SD2_CLK	SD2_CLK	Micro-SD
S72	SD2_DATA1	SD2_DATA1	Micro-SD
S73	SD2_DATA0	SD2_DATA0	Micro-SD
S74	SD2_CMD	SD2_CMD	Micro-SD
S75	SD2_DATA2	SD2_DATA2	Micro-SD
S76	SD2_DATA3	SD2_DATA3	Micro-SD
S77	GND
S78	SD1_RESET_B	SD1_RESET_B	IO:J13:22
S79	SD1_DATA7	M2_SD_WAKE_HOST	LED
S80	SD1_DATA6	M2_BT_WAKE_HOST	RTC
S81	SD1_DATA5	SD1_DATA5	PCIE:PERST
S82	SD1_DATA1	SD1_DATA1	IO:J13:16
S83	SD1_DATA0	SD1_DATA0	IO:J13:14
S84	SD1_CLK	SD1_CLK	IO:J13:10
S85	SD1_CMD	SD1_CMD	IO:J13:12
S86	SD1_DATA2	SD1_DATA2	IO:J13:18
S87	SD1_DATA3	SD1_DATA3	IO:J13:20
S88	SD1_DATA4	SD1_DATA4	PCIE:W_DISABLE
S89	GND
S90	MIPI_CSI1_D3_P	CSI1_DP3	CSI1:J6:16
S91	MIPI_CSI1_D3_N	CSI1_DN3	CSI1:J6:17
S92	GND
S93	MIPI_CSI1_D2_P	CSI1_DP2	CSI1:J6:19
S94	MIPI_CSI1_D2_N	CSI1_DN2	CSI1:J6:20
S95	GND
S96	MIPI_CSI1_CLK_N	CSI1_CKP	CSI1:J6:25
S97	MIPI_CSI1_CLK_P	CSI1_CKN	CSI1:J6:26
S98	GND
S99	MIPI_CSI1_D1_P	CSI1_DP1	CSI1:J6:22
S100	MIPI_CSI1_D1_N	CSI1_DN1	CSI1:J6:23
S101	GND
S102	MIPI_CSI1_D0_P	CSI1_DP0	CSI1:J6:28
S103	MIPI_CSI1_D0_N	CSI1_DN0	CSI1:J6:29
S104	GND
S105	JTAG_MOD	JTAG_MOD	J15:4
S106	JTAG_TCK	JTAG_TCK	J15:3
S107	JTAG_TDI	JTAG_TDI	J15:7
S108	JTAG_TDO	JTAG_TDO	J15:5
S109	JTAG_TMS	JTAG_TMS	J15:1
S110	GND
S111	BOOT_MODE3	BOOT_MODE3	SW3
S112	BOOT_MODE0	BOOT_MODE0	SW3
S113	BOOT_MODE1	BOOT_MODE1	SW3
S114	BOOT_MODE2	BOOT_MODE2	SW3
S115	GND
S116	GPIO1_IO01	GPIO1_IO01	IO:J13:27
S117	GPIO1_IO11	LVDS_BL_PWM	DSI:J5:16/LVDS:J8:16
S118	GPIO1_IO07	CSI2_SYNC	IO:J13:19
S119	GPIO1_IO08	DSI_EN	DSI:J5
S120	GPIO1_IO09	LVDS_EN	LVDS:J8:21/J9:21
S121	GPIO1_IO00	GPIO1_IO00	IO:J13:25
S122	GPIO1_IO12	GPIO1_IO12	IO:J13:31
S123	GPIO1_IO10	DSI_TS_nINT	DSI:J5
S124	GPIO1_IO06	CSI_nRST	CSI1:J6/J7
S125	GPIO1_IO13	LVDS_TS_nINT	LVDS:J8:18/J9:18
S126	GPIO1_IO15	CSI_MCLK	CSI1:J6/J7
S127	GPIO1_IO14	USB2_PWR_EN	M2:DIS
S128	GPIO1_IO05	GPIO1_IO05	IO:J13:29
S129	GND
S130	I2C2_SCL	I2C2_SCL	DSI:J5
S131	I2C2_SDA	I2C2_SDA	DSI:J5
S132	GND
S133	SAI1_RXC	SAI1_RXC	CSI2:J7
S134	SAI1_RXFS	SAI1_RXFS	CSI2:J7
S135	SAI1_TXD6	TCPC_nINT	IO:J13:13
S136	SAI1_MCLK	USB1_SS_SEL	M2:CONFIG_3
S137	GND
S138	SAI5_RXD3	CAN2_TX	CAN2
S139	SAI5_MCLK	CAN2_RX	CAN2
S140	SAI2_MCLK	CAN2_STBY_3V3	CAN2:STB
S141	GND
S142	SAI5_RXC	PDM_CLK	IO:J13:34
S143	SAI1_TXD7	TCPC_nINT1	IO:J13:15
S144	GND
S145	SAI5_RXFS	PWM4	PWM:J13:33
S146	SAI5_RXD1	SAI5_RXD1	M2:DPR
S147	SAI5_RXD0	SAI5_RXD0	M2:RESET
S148	SAI5_RXD2	SAI5_RXD2	M2:WAKE_ON_WAN
S149	GND
S150	SPDIF_EXT_CLK	CAN1_STBY_3V3	CAN1:STB
S151	SPDIF_RX	CAN1_RX	CAN1
S152	SPDIF_TX	CAN1_TX	CAN1
S153	GND
S154	ECSPI1_MOSI	UART3_TXD	UART3:RS485
S155	ECSPI1_SCLK	UART3_RXD	UART3:RS485
S156	ECSPI1_SS0	UART3_RTS	UART3:J13:21
S157	ECSPI1_MISO	UART3_CTS	UART3:J13:23
S158	GND

管脚定义&详细功能说明

PIN	PORT	PORT
P1	POWER
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P31	GND
P48
P51
P54
P57
P60
P63
P66
P72
P75
P78
P81
P84
P87
P90
P93
P96
P99
P102
P105
P108
P111
P114
P117
P120
P122
P125
P128
P130
P133
P136
P139
P142
P147
P150
P153
P156
P15	SAI1_RXD1	ENET1_1588_EVENT1_OUT
		GPIO4_IO03
		PDM_BIT_STREAM1
		SAI1_RX_DATA1
P16	SAI1_RXD0	SAI1_RX_DATA0
		SAI5_RX_DATA0
		CORESIGHT_TRACE0
		GPIO4_IO2
		CCMSRCGPCMIX_BOOT_CFG0
		SIM_M_HADDR17
P17	SAI1_RXD3	SAI1_RX_DATA3
		SAI5_RX_DATA3
		CORESIGHT_TRACE3
		GPIO4_IO5
		CCMSRCGPCMIX_BOOT_CFG3
		SIM_M_HADDR20
P18	SAI1_RXD2	SAI1_RX_DATA2
		SAI5_RX_DATA2
		CORESIGHT_TRACE2
		GPIO4_IO4
		CCMSRCGPCMIX_BOOT_CFG2
		SIM_M_HADDR19
P19	SAI1_RXD4	SAI1_RX_DATA4
		SAI6_TX_BCLK
		SAI6_RX_BCLK
		CORESIGHT_TRACE4
		GPIO4_IO6
		CCMSRCGPCMIX_BOOT_CFG4
		SIM_M_HADDR21
P20	SAI1_RXD5	SAI1_RX_DATA5
		SAI6_TX_DATA0
		SAI6_RX_DATA0
		SAI1_RX_SYNC
		CORESIGHT_TRACE5
		GPIO4_IO7
		CCMSRCGPCMIX_BOOT_CFG5
		SIM_M_HADDR22
P21	SAI1_TXFS	SAI1_TX_SYNC
		SAI5_TX_SYNC
		CORESIGHT_EVENTO
		GPIO4_IO10
		SIM_M_HADDR25
P22	SAI1_TXD6	SAI1_TX_DATA6
		SAI6_RX_SYNC
		SAI6_TX_SYNC
		CORESIGHT_TRACE14
		GPIO4_IO18
		CCMSRCGPCMIX_BOOT_CFG14
		SIM_M_HBURST1
P23	SAI1_TXD7	SAI1_TX_DATA7
		SAI6_MCLK
		CORESIGHT_TRACE15
		GPIO4_IO19
		CCMSRCGPCMIX_BOOT_CFG15
		SIM_M_HBURST2
P24	SAI1_TXC	SAI1_TX_BCLK
		SAI5_TX_BCLK
		CORESIGHT_EVENTI
		GPIO4_IO11
		SIM_M_HADDR26
P25	SAI1_TXD1	SAI1_TX_DATA1
		SAI5_TX_DATA1
		CORESIGHT_TRACE9
		GPIO4_IO13
		CCMSRCGPCMIX_BOOT_CFG9
		SIM_M_HADDR28
P26	SAI1_TXD2	SAI1_TX_DATA2
		SAI5_TX_DATA2
		CORESIGHT_TRACE10
		GPIO4_IO14
		CCMSRCGPCMIX_BOOT_CFG10
		SIM_M_HADDR29
P27	SAI1_TXD0	SAI1_TX_DATA0
		SAI5_TX_DATA0
		CORESIGHT_TRACE8
		GPIO4_IO12
		CCMSRCGPCMIX_BOOT_CFG8
		SIM_M_HADDR27
P28	SAI1_TXD3	SAI1_TX_DATA3
		SAI5_TX_DATA3
		CORESIGHT_TRACE11
		GPIO4_IO15
		CCMSRCGPCMIX_BOOT_CFG11
		SIM_M_HADDR30
P29	SAI1_TXD4	SAI1_TX_DATA4
		SAI6_RX_BCLK
		SAI6_TX_BCLK
		CORESIGHT_TRACE12
		GPIO4_IO16
		CCMSRCGPCMIX_BOOT_CFG12
		SIM_M_HADDR31
P30	SAI1_TXD5	SAI1_TX_DATA5
		SAI6_RX_DATA0
		SAI6_TX_DATA0
		CORESIGHT_TRACE13
		GPIO4_IO17
		CCMSRCGPCMIX_BOOT_CFG13
		SIM_M_HBURST0
P32	ENET_TX_CTL	ENET1_RGMII_TX_CTL
		GPIO1_IO22
P33	ENET_TXC	ENET1_RGMII_TXC
		ENET1_TX_ER
		GPIO1_IO23
P34	ENET_TD3	ENET1_RGMII_TD3
		GPIO1_IO18
P35	ENET_TD2	ENET1_RGMII_TD2
		ENET1_TX_CLK
		GPIO1_IO19
P36	ENET_TD1	ENET1_RGMII_TD1
		GPIO1_IO20
P37	ENET_TD0	ENET1_RGMII_TD0
		GPIO1_IO21
P38	SAI2_RXC	SAI2_RX_BCLK
		SAI5_TX_BCLK
		GPIO4_IO22
		SIM_M_HSIZE1
P39	SAI2_RXFS	SAI2_RX_SYNC
		SAI5_TX_SYNC
		GPIO4_IO21
		SIM_M_HSIZE0
P40	ENET_MDC	ENET1_MDC
		GPIO1_IO16
P41	ENET_MDIO	ENET1_MDIO
		GPIO1_IO17
P42	ENET_RD1	ENET1_RGMII_RD1
		GPIO1_IO27
P43	ENET_RD0	ENET1_RGMII_RD0
		GPIO1_IO26
P44	ENET_RD3	ENET1_RGMII_RD3
		GPIO1_IO29
P45	ENET_RD2	ENET1_RGMII_RD2
		GPIO1_IO28
P46	ENET_RX_CTL	ENET1_RGMII_RX_CTL
		GPIO1_IO24
P47	ENET_RXC	ENET1_RGMII_RXC
		ENET1_RX_ER
		GPIO1_IO25
P49	LVDS0_D3_N	LVDS0_D3N
P50	LVDS0_D3_P	LVDS0_D3P
P52	LVDS0_D2_N	LVDS0_D2N
P53	LVDS0_D2_P	LVDS0_D2P
P55	LVDS0_CLK_N	LVDS0_CLKN
P56	LVDS0_CLK_P	LVDS0_CLKP
P58	LVDS0_D1_N	LVDS0_D1N
P59	LVDS0_D1_P	LVDS0_D1_P
P61	LVDS0_D0_N	LVDS0_D0N
P62	LVDS0_D0_P	LVDS0_D0P
P64	LVDS1_D3_N	LVDS1_D3N
P65	LVDS1_D3_P	LVDS1_D3P
P67	LVDS1_D2_N	LVDS1_D2N
P68	LVDS1_D2_P	LVDS1_D2P
P70	LVDS1_CLK_N	LVDS1_CLKN
P71	LVDS1_CLK_P	LVDS1_CLKP
P73	LVDS1_D1_N	LVDS1_D1N
P74	LVDS1_D1_P	LVDS1_D1P
P76	LVDS1_D0_N	LVDS1_D0N
P77	LVDS1_D0_P	LVDS1_D0P
P79	MIPI_CSI2_D0_P	MIPI_CSI2_D0_P
P80	MIPI_CSI2_D0_N	MIPI_CSI2_D0_N
P82	MIPI_CSI2_D1_P	MIPI_CSI2_D1_P
P83	MIPI_CSI2_D1_N	MIPI_CSI2_D1_N
P85	MIPI_CSI2_CLK_P	MIPI_CSI2_CLK_P
P86	MIPI_CSI2_CLK_N	MIPI_CSI2_CLK_N
P88	MIPI_CSI2_D2_P	MIPI_CSI2_D2_P
P89	MIPI_CSI2_D2_N	MIPI_CSI2_D2_N
P91	MIPI_CSI2_D3_P	MIPI_CSI2_D3_P
P92	MIPI_CSI2_D3_N	MIPI_CSI2_D3_N
P94	MIPI_DSI1_D3_P	MIPI_DSI1_D3_P
P95	MIPI_DSI1_D3_N	MIPI_DSI1_D3_N
P97	MIPI_DSI1_D2_P	MIPI_DSI1_D2_P
P98	MIPI_DSI1_D2_N	MIPI_DSI1_D2_N
P100	MIPI_DSI1_CLK_P	MIPI_DSI1_CLK_P
P101	MIPI_DSI1_CLK_N	MIPI_DSI1_CLK_N
P103	MIPI_DSI1_D1_P	MIPI_DSI1_D1_P
P104	MIPI_DSI1_D1_N	MIPI_DSI1_D1_N
P106	MIPI_DSI1_D0_P	MIPI_DSI1_D0_P
P107	MIPI_DSI1_D0_N	MIPI_DSI1_D0_N
P109	PCIE_TXN_P	PCIE_TXN_P
P110	PCIE_TXN_N	PCIE_TXN_N
P112	PCIE_RXN_P	PCIE_RXN_P
P113	PCIE_RXN_N	PCIE_RXN_N
P115	PCIE_REF_PAD_CLK_P	PCIE_REF_PAD_CLK_P
P116	PCIE_REF_PAD_CLK_N	PCIE_REF_PAD_CLK_N
P118	USB2_D_P	USB2_DP
P119	USB2_D_N	USB2_DN
P121	USB2_VBUS_3V3	X
P123	USB2_TX_P	USB2_TX_P
P124	USB2_TX_N	USB2_TX_N
P126	USB2_RX_P	USB2_RX_P
P127	USB2_RX_N	USB2_RX_N
P129	USB1_VBUS_3V3	X
P131	USB1_D_P	USB1_D_P
P132	USB1_D_N	USB1_D_N
P134	USB1_TX_P	USB1_TX_P
P135	USB1_TX_N	USB1_TX_N
P137	USB1_RX_P	USB1_RX_P
P138	USB1_RX_N	USB1_RX_N
P140	I2C4_SCL	I2C4_SCL
		PWM2_OUT
		PCIE1_CLKREQ_B
		GPIO5_IO20
		TPSMP_HDATA22
P141	I2C4_SDA	I2C4_SDA
		PWM1_OUT
		PCIE2_CLKREQ_B
		GPIO5_IO21
		TPSMP_HDATA23
P143	UART3_RXD	UART3_DCE_RX
		UART3_DTE_TX
		UART1_DCE_CTS_B
		UART1_DTE_RTS_B
		GPIO5_IO26
		TPSMP_HDATA28
P144	UART1_RXD	UART1_DCE_RX
		UART1_DTE_TX
		ECSPI3_SCLK
		GPIO5_IO22
		TPSMP_HDATA24
P145	UART1_TXD	UART1_DCE_TX
		UART1_DTE_RX
		ECSPI3_MOSI
		GPIO5_IO23
		TPSMP_HDATA25
P146	UART3_TXD	UART3_DCE_TX
		UART3_DTE_RX
		UART1_DCE_RTS_B
		UART1_DTE_CTS_B
		GPIO5_IO27
		TPSMP_HDATA29
P148	UART2_RXD	UART2_DCE_RX
		UART2_DTE_TX
		ECSPI3_MISO
		GPIO5_IO24
		TPSMP_HDATA26
P149	UART2_TXD	UART2_DCE_TX
		UART2_DTE_RX
		ECSPI3_SS0
		GPIO5_IO25
		TPSMP_HDATA27
P151	UART4_TXD	UART4_DCE_TX
		UART4_DTE_RX
		UART2_DCE_RTS_B
		UART2_DTE_CTS_B
		PCIE2_CLKREQ_B
		GPIO5_IO29
		TPSMP_HDATA31
P152	UART4_RXD	UART4_DCE_RX
		UART4_DTE_TX
		UART2_DCE_CTS_B
		UART2_DTE_RTS_B
		PCIE1_CLKREQ_B
		GPIO5_IO28
		TPSMP_HDATA30
P154	I2C3_SDA	I2C3_SDA
		PWM3_OUT
		GPT3_CLK
		GPIO5_IO19
		TPSMP_HDATA21
P155	I2C3_SCL	I2C3_SCL
		PWM4_OUT
		GPT2_CLK
		GPIO5_IO18
		TPSMP_HDATA20
s1	POWER
S2	GND
S3
S4
S5
S6
S17
S20
S25
S31
S36
S39
S42
S45
S48
S51
S54
S57
S60
S67
S77
S89
S92
S95
S98
S101
S104
S110
S115
S129
S132
S137
S141
S144
S149
S153
S158
S7	PMIC_I2C_SDA	X
S8	PMIC_I2C_SCL	X
S9	PMIC_32K_OUT	X
S10	GPIO1_IO02	GPIO1_IO2
		WDOG1_WDOG_B
		WDOG1_WDOG_ANY
		SJC_DE_B
S11	GPIO1_IO03	GPIO1_IO3
		USDHC1_VSELECT
		SDMA1_EXT_EVENT0
		ANAMIX_XTAL_OK
		SJC_DONE
S12	GPIO1_IO04	GPIO1_IO4
		USDHC2_VSELECT
		SDMA1_EXT_EVENT1
		ANAMIX_XTAL_OK_LV
		USDHC1_TEST_TRIG
S13	MainPWR_EN	X
S14	SYS_nRST_Main	X
S15	SAI3_RXFS	SAI3_RX_SYNC
		GPT1_CAPTURE1
		SAI5_RX_SYNC
		GPIO4_IO28
		TPSMP_HTRANS0
S16	SAI3_RXC	SAI3_RX_BCLK
		GPT1_CAPTURE2
		SAI5_RX_BCLK
		GPIO4_IO29
		TPSMP_HTRANS1
S18	I2C1_SCL	I2C1_SCL
		ENET1_MDC
		GPIO5_IO14
		TPSMP_HDATA16
S19	I2C1_SDA	I2C1_SDA
		ENET1_MDIO
		GPIO5_IO15
		TPSMP_HDATA17
S21	SAI2_RXD0	SAI2_RX_DATA0
		SAI5_TX_DATA0
		GPIO4_IO23
		SIM_M_HSIZE2
S22	SAI2_TXFS	SAI2_TX_SYNC
		SAI5_TX_DATA1
		GPIO4_IO24
		SIM_M_HWRITE
S23	SAI2_TXD0	SAI2_TX_DATA0
		SAI5_TX_DATA3
		GPIO4_IO26
		TPSMP_CLK
S24	SAI2_TXC	SAI2_TX_BCLK
		SAI5_TX_DATA2
		GPIO4_IO25
		SIM_M_HREADYOUT
S26	SAI3_TXFS	SAI3_TX_SYNC
		GPT1_CLK
		SAI5_RX_DATA1
		GPIO4_IO31
		TPSMP_HDATA1
S27	SAI3_MCLK	SAI3_MCLK
		PWM4_OUT
		SAI5_MCLK
		GPIO5_IO2
		TPSMP_HDATA4
S28	SAI3_TXC	SAI3_TX_BCLK
		GPT1_COMPARE2
		SAI5_RX_DATA2
		GPIO5_IO0
		TPSMP_HDATA2
S29	SAI3_TXD	SAI3_TX_DATA0
		GPT1_COMPARE3
		SAI5_RX_DATA3
		GPIO5_IO1
		TPSMP_HDATA3
S30	SAI3_RXD	SAI3_RX_DATA0
		GPT1_COMPARE1
		SAI5_RX_DATA0
		GPIO4_IO30
		TPSMP_HDATA0
S32	ECSPI2_SCLK	ECSPI2_SCLK
		UART4_DCE_RX
		UART4_DTE_TX
		GPIO5_IO10
		TPSMP_HDATA12
S33	ECSPI2_MOSI	ECSPI2_MOSI
		UART4_DCE_TX
		UART4_DTE_RX
		GPIO5_IO11
		TPSMP_HDATA13
S34	ECSPI2_MISO	ECSPI2_MISO
		UART4_DCE_CTS_B
		UART4_DTE_RTS_B
		GPIO5_IO12
		TPSMP_HDATA14
S35	ECSPI2_SS0	ECSPI2_SS0
		UART4_DCE_RTS_B
		UART4_DTE_CTS_B
		GPIO5_IO13
		TPSMP_HDATA15
S37	HDMI_DDC_SCL	FLEXCAN1_TX
		GPIO3_IO26
		HDMI_SCL
		I2C5_SCL
S38	HDMI_DDC_SDA	FLEXCAN1_RX
		GPIO3_IO27
		HDMI_SDA
		I2C5_SDA
S40	HDMI_HPD	FLEXCAN2_RX
		GPIO3_IO29
		HDMI_HPD
		HDMI_HPD_O
		I2C6_SDA
S41	HDMI_CEC	FLEXCAN2_TX
		GPIO3_IO28
		HDMI_CEC
		I2C6_SCL
S43	EARC_N_HPD	EARC_N_HPD
S44	EARC_P_UTIL	EARC_P_UTIL
S46	HDMI_TXC_N	HDMI_TXCN
S47	HDMI_TXC_P	HDMI_TXCP
S49	HDMI_TX0_N	HDMI_TX0N
S50	HDMI_TX0_P	HDMI_TX0P
S52	HDMI_TX1_N	HDMI_TX1N
S53	HDMI_TX1_P	HDMI_TX1_P
S55	HDMI_TX2_N	HDMI_TX2N
S56	HDMI_TX2_P	HDMI_TX2P
S58	CLKOUT2	X
S59	CLKIN2	X
S61	CLKOUT1	X
S62	CLKIN1	X
S63	POR_B	SNVSMIX_POR_B
S64	NAND_DQS	RAWNAND_DQS
		QSPI_A_DQS
		GPIO3_IO14
		SIM_M_HADDR10
S65	SD1_STROBE	I2C3_SDA
		GPIO2_IO11
		UART3_CTS_B
S66	ONOFF	SNVSMIX_ONOFF
S68	SD2_WP	USDHC2_WP
		GPIO2_IO20
		SIM_M_HMASTLOCK
S69	SD2_RESET_B	USDHC2_RESET_B
		GPIO2_IO19
		CCMSRCGPCMIX_SYSTEM_RESET
S70	SD2_CD_B	USDHC2_CD_B
		GPIO2_IO12
S71	SD2_CLK	USDHC2_CLK
		GPIO2_IO13
		CCMSRCGPCMIX_OBSERVE0
		OBSERVE_MUX_OUT0
S72	SD2_DATA1	USDHC2_DATA1
		GPIO2_IO16
		CCMSRCGPCMIX_WAIT
		OBSERVE_MUX_OUT3
S73	SD2_DATA0	USDHC2_DATA0
		GPIO2_IO15
		CCMSRCGPCMIX_OBSERVE2
		OBSERVE_MUX_OUT2
S74	SD2_CMD	USDHC2_CMD
		GPIO2_IO14
		CCMSRCGPCMIX_OBSERVE1
		OBSERVE_MUX_OUT1
S75	SD2_DATA2	USDHC2_DATA2
		GPIO2_IO17
		CCMSRCGPCMIX_STOP
		OBSERVE_MUX_OUT4
S76	SD2_DATA3	USDHC2_DATA3
		GPIO2_IO18
		CCMSRCGPCMIX_EARLY_RESET
S78	SD1_RESET_B	USDHC1_RESET_B
		GPIO2_IO10
S79	SD1_DATA7	ENET1_RX_ER
		GPIO2_IO09
		I2C2_SDA
		UART3_RX
		USDHC1_DATA7
S80	SD1_DATA6	ENET1_RGMII_RX_CTL
		GPIO2_IO08
		I2C2_SCL
		UART3_TX
		USDHC1_DATA6
S81	SD1_DATA5	USDHC1_DATA5
		GPIO2_IO7
S82	SD1_DATA1	USDHC1_DATA1
		GPIO2_IO3
S83	SD1_DATA0	USDHC1_DATA0
		GPIO2_IO2
S84	SD1_CLK	USDHC1_CLK
		GPIO2_IO0
S85	SD1_CMD	USDHC1_CMD
		GPIO2_IO1
S86	SD1_DATA2	USDHC1_DATA2
		GPIO2_IO4
S87	SD1_DATA3	USDHC1_DATA3
		GPIO2_IO5
S88	SD1_DATA4	USDHC1_DATA4
		GPIO2_IO6
S90	MIPI_CSI1_D3_P	MIPI_CSI1_D3_P
S91	MIPI_CSI1_D3_N	MIPI_CSI1_D3_N
S93	MIPI_CSI1_D3_P	MIPI_CSI1_D3_P
S94	MIPI_CSI1_D3_N	MIPI_CSI1_D3_N
S96	MIPI_CSI1_CLK_N	MIPI_CSI1_CLK_N
S97	MIPI_CSI1_CLK_P	MIPI_CSI1_CLK_P
S99	MIPI_CSI1_D1_P	MIPI_CSI1_D1_P
S100	MIPI_CSI1_D1_N	MIPI_CSI1_D1_N
S102	MIPI_CSI1_D0_P	MIPI_CSI1_D0_P
S103	MIPI_CSI1_D0_N	MIPI_CSI1_D0_N
S105	JTAG_MOD	JTAG_MODE
S106	JTAG_TCK	JTAG_TCK
S107	JTAG_TDI	JTAG_TDI
S108	JTAG_TDO	JTAG_TDO
S109	JTAG_TMS	JTAG_TMS
S111	BOOT_MODE3	SRC_BOOT_MODE3
S112	BOOT_MODE0	SRC_BOOT_MODE0
S113	BOOT_MODE1	SRC_BOOT_MODE1
S114	BOOT_MODE2	SRC_BOOT_MODE2
S116	GPIO1_IO01	GPIO1_IO1
		PWM1_OUT
		ANAMIX_REF_CLK_24M
		CCMSRCGPCMIX_EXT_CLK2
		SJC_ACTIVE
S117	GPIO1_IO11	GPIO1_IO11
		USB2_OTG_ID
		CCMSRCGPCMIX_PMIC_READY
		CCMSRCGPCMIX_OUT0
		CAAM_WRAPPER_RNG_OSC_OBS
S118	GPIO1_IO07	GPIO1_IO7
		ENET1_MDIO
		USDHC1_WP
		CCMSRCGPCMIX_EXT_CLK4
		ECSPI2_TEST_TRIG
S119	GPIO1_IO08	GPIO1_IO8
		ENET1_1588_EVENT0_IN
		USDHC2_RESET_B
		CCMSRCGPCMIX_WAIT
		QSPI_TEST_TRIG
S120	GPIO1_IO09	GPIO1_IO9
		ENET1_1588_EVENT0_OUT
		SDMA2_EXT_EVENT0
		CCMSRCGPCMIX_STOP
		RAWNAND_TEST_TRIG
S121	GPIO1_IO00	GPIO1_IO0
		CCMSRCGPCMIX_ENET_PHY_REF_CLK_ROOT
		ANAMIX_REF_CLK_32K
		CCMSRCGPCMIX_EXT_CLK1
		SJC_FAIL
S122	GPIO1_IO12	GPIO1_IO12
		USB1_OTG_PWR
		SDMA2_EXT_EVENT1
		CCMSRCGPCMIX_OUT1
		CSU_CSU_ALARM_AUT0
S123	GPIO1_IO10	GPIO1_IO10
		USB1_OTG_ID
		OCOTP_CTRL_WRAPPER_FUSE_LATCHED
S124	GPIO1_IO06	GPIO1_IO6
		ENET1_MDC
		USDHC1_CD_B
		CCMSRCGPCMIX_EXT_CLK3
		ECSPI1_TEST_TRIG
S125	GPIO1_IO13	GPIO1_IO13
		USB1_OTG_OC
		PWM2_OUT
		CCMSRCGPCMIX_OUT2
		CSU_CSU_ALARM_AUT1
S126	GPIO1_IO15	GPIO1_IO15
		USB2_OTG_OC
		PWM4_OUT
		CCMSRCGPCMIX_CLKO2
		CSU_CSU_INT_DEB
S127	GPIO1_IO14	GPIO1_IO14
		USB2_OTG_PWR
		PWM3_OUT
		CCMSRCGPCMIX_CLKO1
		CSU_CSU_ALARM_AUT2
S128	GPIO1_IO05	GPIO1_IO5
		M4_NMI
		CCMSRCGPCMIX_PMIC_READY
		CCMSRCGPCMIX_INT_BOOT
		USDHC2_TEST_TRIG
S130	I2C2_SCL	I2C2_SCLF
		ENET1_1588_EVENT1_IN
		GPIO5_IO16
		TPSMP_HDATA18
S131	I2C2_SDA	I2C2_SDA
		ENET1_1588_EVENT1_OUT
		GPIO5_IO17
		TPSMP_HDATA19
S133	SAI1_RXC	SAI1_RX_BCLK
		SAI5_RX_BCLK
		CORESIGHT_TRACE_CTL
		GPIO4_IO1
		SIM_M_HADDR16
S134	SAI1_RXFS	SAI1_RX_SYNC
		SAI5_RX_SYNC
		CORESIGHT_TRACE_CLK
		GPIO4_IO0
		SIM_M_HADDR15
S135	USB1_SS_SEL	X
S136	CAN2_TX	X
S138	SAI5_RXD3	SAI5_RX_DATA3
		SAI1_TX_DATA5
		SAI1_TX_SYNC
		SAI5_TX_DATA0
		GPIO3_IO24
S139	SAI5_MCLK	SAI5_MCLK
		SAI1_TX_BCLK
		SAI4_MCLK
		GPIO3_IO25
		CCMSRCGPCMIX_TESTER_ACK
S140	SAI2_MCLK	SAI2_MCLK
		SAI5_MCLK
		GPIO4_IO27
		TPSMP_HDATA_DIR
S142	SAI5_RXC	SAI5_RX_BCLK
		SAI1_TX_DATA1
		GPIO3_IO20
S143	SAI1_TXD7	ENET1_TX_ER
		GPIO4_IO19
		PDM_CLK
		SAI1_TX_DATA7
		SAI6_MCLK
S145	SAI5_RXFS	SAI5_RX_SYNC
		SAI1_TX_DATA0
		GPIO3_IO19
S146	SAI5_RXD1	SAI5_RX_DATA1
		SAI1_TX_DATA3
		SAI1_TX_SYNC
		SAI5_TX_SYNC
		GPIO3_IO22
S147	SAI5_RXD0	SAI5_RX_DATA0
		SAI1_TX_DATA2
		GPIO3_IO21
S148	SAI5_RXD2	SAI5_RX_DATA2
		SAI1_TX_DATA4
		SAI1_TX_SYNC
		SAI5_TX_BCLK
		GPIO3_IO23
S150	SPDIF_EXT_CLK	SPDIF1_EXT_CLK
		PWM1_OUT
		GPIO5_IO5
		TPSMP_HDATA7
S151	SPDIF_RX	SPDIF1_IN
		PWM2_OUT
		GPIO5_IO4
		TPSMP_HDATA6
S152	SPDIF_TX	SPDIF1_OUT
		PWM3_OUT
		GPIO5_IO3
		TPSMP_HDATA5
S154	ECSPI1_MOSI	ECSPI1_MOSI
		UART3_DCE_TX
		UART3_DTE_RX
		GPIO5_IO7
		TPSMP_HDATA9
S155	ECSPI1_SCLK	ECSPI1_SCLK
		UART3_DCE_RX
		UART3_DTE_TX
		GPIO5_IO6
		TPSMP_HDATA8
S156	ECSPI1_SS0	ECSPI1_SS0
		UART3_DCE_RTS_B
		GPIO5_IO9
		TPSMP_HDATA11
		UART3_DTE_CTS_B
S157	ECSPI1_MISO	ECSPI1_MISO
		UART3_DCE_CTS_B
		UART3_DTE_RTS_B
		GPIO5_IO8
		TPSMP_HDATA10

---

--------------------------------------------------------------------------------
* 珠海明远智睿科技有限公司
* ZhuHai MYZR Technology CO.,LTD.
* Latest Update: 2023/4/26
* Supporter: Zhong JiaYi
--------------------------------------------------------------------------------
