MYZR-I.MX8Mmini-CB240 硬件介绍
视图

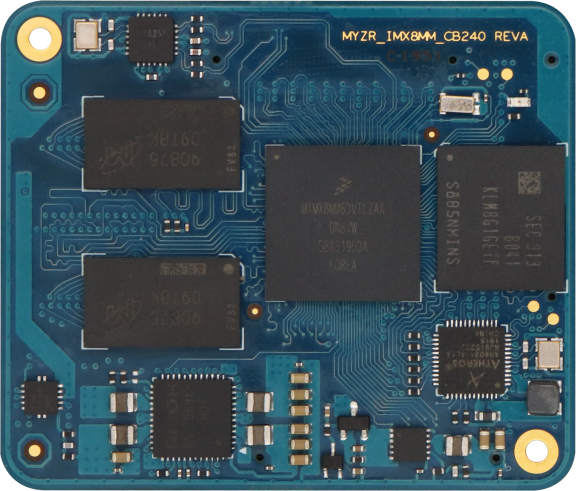

正面

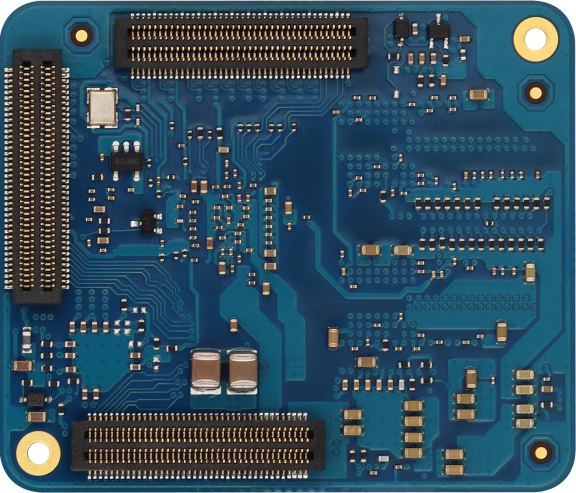

反面

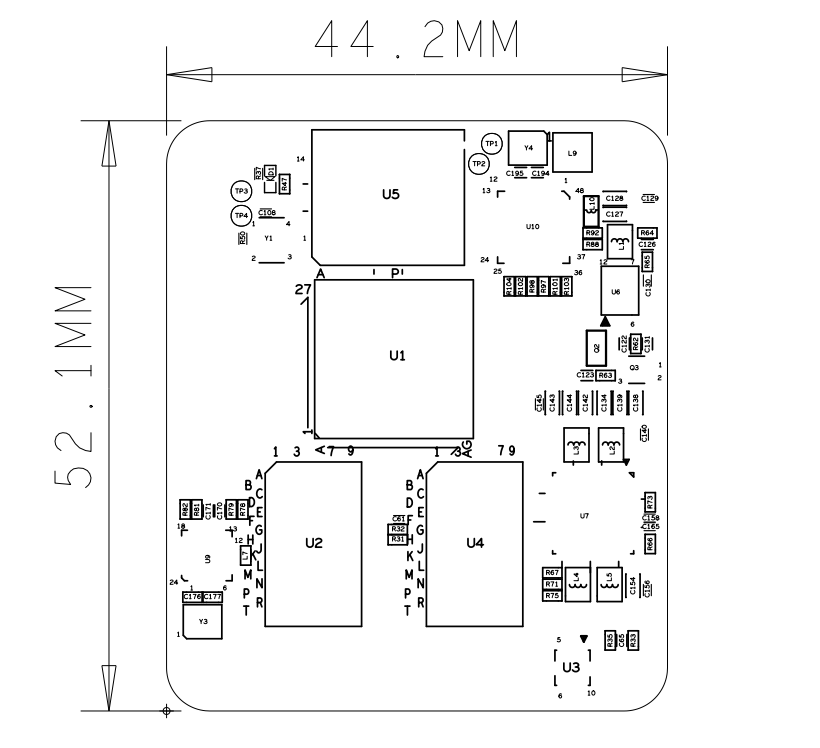

尺寸
硬件配置
CPU |
i.MX 8M Mini |
四核 |
内存 |
DDR4 2GB |
可扩展至4GB |
存储 |
eMMC 8GB |
可扩展至16GB |
供电电源
3.3V、5V输入
工作温度
商业级：
0°C ~ 70°C
工业级：
-40°C ~ 85°C
操作系统支持
Android
Linux
硬件接口
接口规格 |
最大可配置接口数 |
描述 |
|
|---|---|---|---|
通讯接口 |
Ethernet |
1 |
1路10/100/1000Mbps以太网 |
USB |
2 |
2路USB2.0 OTG接口 |
|
UART |
4 |
4路UART,每路高达4.0Mbps |
|
PCIe |
1 |
1路PCIe Gen2.0 |
|
I2C |
4 |
4路I2C,最高支持400 kbps |
|
SPI |
3 |
3路eCSPI（Enhanced CSPI），每个高达52Mbps |
|
PWM |
4 |
4路16位计数器，4x16 FIFO |
|
外部存储接口 |
NAND |
1 |
8位NAND闪存 |
FlexSPI |
1 |
外部串口存储设备 |
|
SD3.0/SDIO |
1 |
EMMC版本5.1,SD/SDIO版本3.0 |
|
多媒体 |
DSI-MIPI |
1 |
1路4通道MIPI显示接口，高达1.5Gbps |
CSI-MIPI |
1 |
1路4通道MIPI摄像头接口，高达1.5Gbps |
|
SAI |
5 |
5路 I2S/SAI/AC97/TMD |
|
S/PDIF |
1 |
1个S/PDIF立体声收发器，支持输入和输出 |
|
管脚定义&详细功能说明
Pin NO. |
Pin Name |
CPU Ball Name |
功能描述 |
管脚电压 |
|---|---|---|---|---|
J1.1 |
GND |
— |
GND |
— |
J1.2 |
GND |
— |
GND |
— |
J1.3 |
SAI2_RXC |
AB22 |
SAI2_RX_BCLK |
3.3V |
GPIO4_IO22 |
||||
J1.4 |
SAI1_RXD7 |
AF19 |
GPIO4_IO09 |
3.3V |
SAI1_RX_DATA7 |
||||
SAI6_MCLK |
||||
SRC_BOOT_CFG7 |
||||
J1.5 |
SAI2_RXD |
AC24 |
GPIO4_IO23 |
3.3V |
SAI2_RX_DATA0 |
||||
J1.6 |
SAI1_RXD6 |
AG19 |
GPIO4_IO08 |
3.3V |
SAI1_RX_DATA6 |
||||
SAI6_TX_SYNC |
||||
SRC_BOOT_CFG6 |
||||
J1.7 |
SAI2_TXFS |
AD23 |
GPIO4_IO24 |
3.3V |
SAI2_TX_DATA1 |
||||
SAI2_TX_SYNC |
||||
J1.8 |
SAI1_RXD5 |
AF18 |
GPIO4_IO07 |
3.3V |
SAI1_RX_DATA5 |
||||
SAI6_TX_DATA0 |
||||
SRC_BOOT_CFG5 |
||||
J1.9 |
SAI2_TXD |
AC22 |
GPIO4_IO26 |
3.3V |
SAI2_TX_DATA0 |
||||
J1.10 |
SAI1_RXD4 |
AG18 |
GPIO4_IO06 |
3.3V |
SAI1_RX_DATA4 |
||||
SAI6_TX_BCLK |
||||
SRC_BOOT_CFG4 |
||||
J1.11 |
SAI2_TXC |
AD22 |
GPIO4_IO25 |
3.3V |
SAI2_TX_BCLK |
||||
J1.12 |
SAI1_RXD3 |
AF17 |
GPIO4_IO05 |
3.3V |
PDM_BIT_STREAM3 |
||||
SAI1_RX_DATA3 |
||||
SRC_BOOT_CFG3 |
||||
J1.13 |
SAI2_MCLK |
AD19 |
GPIO4_IO27 |
3.3V |
SAI2_MCLK |
||||
J1.14 |
SAI1_RXD2 |
AG17 |
GPIO4_IO04 |
3.3V |
PDM_BIT_STREAM2 |
||||
SAI1_RX_DATA2 |
||||
SRC_BOOT_CFG2 |
||||
J1.15 |
SAI2_RXFS |
AC19 |
GPIO4_IO21 |
3.3V |
SAI2_RX_DATA1 |
||||
SAI2_RX_SYNC |
||||
J1.16 |
GND |
— |
— |
— |
J1.17 |
SAI1_TXFS |
AB19 |
ARM_EVENTO |
3.3V |
GPIO4_IO10 |
||||
SAI1_TX_SYNC |
||||
J1.18 |
SAI1_RXC |
AF16 |
GPIO4_IO01 |
3.3V |
SAI1_RX_BCLK |
||||
J1.19 |
SAI1_MCLK |
AB18 |
GPIO4_IO20 |
3.3V |
PDM_CLK |
||||
SAI1_MCLK |
||||
J1.20 |
SAI1_RXFS |
AG16 |
GPIO4_IO00 |
3.3V |
SAI1_RX_SYNC |
||||
J1.21 |
SAI1_TXC |
AC18 |
ARM_EVENTI |
3.3V |
GPIO4_IO11 |
||||
SAI1_TX_BCLK |
||||
J1.22 |
SAI1_RXD1 |
AF15 |
GPIO4_IO03 |
3.3V |
PDM_BIT_STREAM1 |
||||
SAI1_RX_DATA1 |
||||
SRC_BOOT_CFG1 |
||||
J1.23 |
GND |
— |
— |
— |
J1.24 |
SAI1_RXD0 |
AG15 |
GPIO4_IO02 |
3.3V |
PDM_BIT_STREAM0 |
||||
SAI1_RX_DATA0 |
||||
SRC_BOOT_CFG0 |
||||
J1.25 |
SD2_NRST |
AB26 |
SD2_RESET_B |
3.3V |
GPIO2_IO19 |
||||
SRC_SYSTEM_RESET |
||||
USDHC2_RESET_B |
||||
J1.26 |
GND |
— |
— |
— |
J1.27 |
PDM_DATA0 |
AD18 |
SAI5_RXD0 |
3.3V |
GPIO3_IO21 |
||||
PDM_BIT_STREAM0 |
||||
SAI5_RX_DATA0 |
||||
J1.28 |
DSI_BL_PWM |
AF14 |
GPIO1_IO01 |
3.3V |
CCM_EXT_CLK2 |
||||
PWM1_OUT |
||||
REF_CLK_24M |
||||
J1.29 |
SAI5_MCLK |
AD15 |
GPIO3_IO25 |
3.3V |
SAI5_MCLK |
||||
J1.30 |
REF_CLK_32K |
AG14 |
REF_CLK_32K |
3.3V |
GPIO1_IO00 |
||||
J1.31 |
PDM_CLK |
AC15 |
SAI5_RXC |
3.3V |
GPIO3_IO20 |
||||
PDM_CLK |
||||
SAI5_RX_BCLK |
||||
J1.32 |
GND |
— |
— |
— |
J1.33 |
GND |
— |
— |
— |
J1.34 |
WDOG_B |
AG13 |
GPIO1_IO02 |
3.3V |
WDOG1_ANY |
||||
WDOG1_B |
||||
J1.35 |
SAI5_RXFS |
AB15 |
GPIO3_IO19 |
3.3V |
SAI5_RX_SYNC |
||||
J1.36 |
GPIO1_IO12 |
AB10 |
GPIO1_IO12 |
3.3V |
SDMA2_EXT_EVENT1 |
||||
USB1_OTG_PWR |
||||
J1.37 |
PDM_DATA1 |
AC14 |
SAI5_RXD1 |
3.3V |
GPIO3_IO22 |
||||
PDM_BIT_STREAM1 |
||||
SAI5_RX_DATA1 |
||||
J1.38 |
GND |
— |
— |
— |
J1.39 |
PDM_DATA3 |
AC13 |
SAI5_RXD3 |
3.3V |
GPIO3_IO24 |
||||
PDM_BIT_STREAM3 |
||||
SAI5_RX_DATA3 |
||||
J1.40 |
PWM4 |
AB9 |
GPIO1_IO15 |
3.3V |
CCM_CLKO2 |
||||
USB2_OTG_OC |
||||
PWM4_OUT |
||||
J1.41 |
PDM_DATA2 |
AD13 |
SAI5_RXD2 |
3.3V |
GPIO3_IO23 |
||||
PDM_BIT_STREAM2 |
||||
SAI5_RX_DATA2 |
||||
J1.42 |
CLKO1 |
AC9 |
GPIO1_IO14 |
3.3V |
CCM_CLKO1 |
||||
PWM3_OUT |
||||
USB2_OTG_PWR |
||||
J1.43 |
GND |
— |
— |
— |
J1.44 |
PWM2 |
AD9 |
GPIO1_IO13 |
3.3V |
PWM2_OUT |
||||
USB1_OTG_OC |
||||
J1.45 |
SPDIF_TX |
AF9 |
GPIO5_IO03 |
3.3V |
PWM3_OUT |
||||
SPDIF1_OUT |
||||
J1.46 |
GND |
— |
— |
— |
J1.47 |
SPDIF_RX |
AG9 |
GPIO5_IO04 |
3.3V |
PWM2_OUT |
||||
SPDIF1_IN |
||||
J1.48 |
PGOOD |
— |
— |
— |
J1.49 |
SPDIF_EXT_CLK |
AF8 |
GPIO5_IO05 |
3.3V |
PWM1_OUT |
||||
SPDIF1_EXT_CLK |
||||
J1.50 |
GPIO1_IO05 |
AF12 |
CCM_PMIC_READY |
3.3V |
M4_NMI |
||||
J1.51 |
GND |
— |
— |
— |
J1.52 |
SD2_VSEL |
AG12 |
GPIO1_IO04 |
3.3V |
SDMA1_EXT_EVENT1 |
||||
USDHC2_VSELECT |
||||
J1.53 |
SAI3_MCLK |
AD6 |
GPIO5_IO02 |
3.3V |
PWM4_OUT |
||||
J1.54 |
GPIO1_IO07 |
AF11 |
GPIO1_IO07 |
3.3V |
CCM_EXT_CLK4 |
||||
ENET1_MDIO |
||||
USDHC1_WP |
||||
J1.55 |
SAI3_TXFS |
AC6 |
GPIO4_IO31 |
3.3V |
GPT1_CAPTURE2 |
||||
SAI3_TX_DATA1 |
||||
SAI3_TX_SYNC |
||||
J1.56 |
GPIO1_IO06 |
AG11 |
CCM_EXT_CLK3 |
3.3V |
ENET1_MDC |
||||
USDHC1_CD_B |
||||
J1.57 |
SAI3_RXFS |
AG8 |
SAI3_RX_SYNC |
3.3V |
GPIO4_IO28 |
||||
GPT1_CAPTURE1 |
||||
SAI3_RX_DATA1 |
||||
J1.58 |
GPIO1_IO08 |
AG10 |
ENET1_1588_EVENT0_IN |
3.3V |
J1.59 |
SAI3_RXD |
AF7 |
SAI3_RX_DATA0 |
3.3V |
GPIO4_IO30 |
||||
GPT1_COMPARE1 |
||||
J1.60 |
BOARD_NRST |
— |
BOARD_NRST |
— |
J1.61 |
SAI3_RXC |
AG7 |
GPIO4_IO29 |
3.3V |
GPT1_CLK |
||||
SAI3_RX_BCLK |
||||
J1.62 |
GND |
— |
— |
— |
J1.63 |
SAI3_TXD |
AF6 |
SAI3_TX_DATA0 |
3.3V |
GPIO5_IO01 |
||||
GPT1_COMPARE3 |
||||
J1.64 |
VDD_1V8 |
POWER_OUT |
1.8V |
|
J1.65 |
SAI3_TXC |
AG6 |
GPIO5_IO00 |
3.3V |
GPT1_COMPARE2 |
||||
SAI3_TX_BCLK |
||||
J1.66 |
VDD_1V8 |
— |
POWER_OUT |
1.8V |
J1.67 |
GND |
— |
— |
— |
J1.68 |
VDD_1V8 |
— |
POWER_OUT |
1.8V |
J1.69 |
NVCC_3V3 |
— |
POWER_OUT |
3.3V |
J1.70 |
VDD_1V8 |
— |
POWER_OUT |
1.8V |
J1.71 |
GND |
— |
— |
— |
J1.72 |
GND |
— |
— |
— |
J1.73 |
VSYS |
— |
POWER_IN |
3.3V |
J1.74 |
||||
J1.75 |
||||
J1.76 |
||||
J1.77 |
||||
J1.78 |
||||
J1.79 |
||||
J1.80 |
||||
J2.1 |
GND |
— |
— |
— |
J2.2 |
GND |
— |
— |
— |
J2.3 |
ETH_TRX3_N |
U10.21(AR8031) |
ETH_TRX3_N |
— |
J2.4 |
GND |
— |
— |
— |
J2.5 |
ETH_TRX3_P |
U10.20(AR8031) |
ETH_TRX3_P |
— |
J2.6 |
LED_LINK10_100 |
U10.26(AR8031) |
LED_LINK10_100 |
— |
J2.7 |
GND |
— |
— |
— |
J2.8 |
LED_LINK1000 |
U10.24(AR8031) |
LED_LINK1000 |
— |
J2.9 |
ETH_TRX2_N |
U10.18(AR8031) |
ETH_TRX2_N |
— |
J2.10 |
LED_ACT |
U10.23(AR8031) |
LED_ACT |
— |
J2.11 |
ETH_TRX2_P |
U10.17(AR8031) |
ETH_TRX2_P |
— |
J2.12 |
GND |
— |
— |
— |
J2.13 |
GND |
— |
— |
— |
J2.14 |
GND |
— |
— |
— |
J2.15 |
ETH_TRX1_N |
U10.15(AR8031) |
ETH_TRX1_N |
— |
J2.16 |
JTAG_NTRST |
C27 |
JTAG_TRST_B |
3.3V |
J2.17 |
ETH_TRX1_P |
U10.14(AR8031) |
ETH_TRX1_P |
— |
J2.18 |
JTAG_TDO |
E26 |
JTAG_TDO |
3.3V |
J2.19 |
GND |
— |
— |
— |
J2.20 |
JTAG_TDI |
E27 |
JTAG_TDI |
3.3V |
J2.21 |
ETH_TRX0_N |
U10.12(AR8031) |
ETH_TRX0_N |
— |
J2.22 |
JTAG_TCK |
F26 |
JTAG_TCK |
3.3V |
J2.23 |
ETH_TRX0_P |
U10.11(AR8031) |
ETH_TRX0_P |
— |
J2.24 |
JTAG_TMS |
F27 |
JTAG_TMS |
3.3V |
J2.25 |
GND |
— |
— |
— |
J2.26 |
GND |
— |
— |
— |
J2.27 |
WL_REG_ON |
R23 |
SD1_RESET_B |
3.3V |
GPIO2_IO10 |
||||
USDHC1_RESET_B |
||||
J2.28 |
GND |
— |
— |
— |
J2.29 |
SD1_STROBE |
R24 |
SD1_STROBE |
3.3V |
GPIO2_IO10 |
||||
USDHC1_RESET_B |
||||
J2.30 |
BOOT_MODE0 |
G26 |
BOOT_MODE0 |
3.3V |
J2.31 |
SD1_DATA2 |
T27 |
GPIO2_IO04 |
3.3V |
USDHC1_DATA2 |
||||
J2.32 |
BOOT_MODE1 |
G27 |
BOOT_MODE1 |
3.3V |
J2.33 |
SD1_DATA3 |
T26 |
GPIO2_IO05 |
3.3V |
USDHC1_DATA3 |
||||
J2.34 |
GND |
— |
— |
— |
J2.35 |
BT_REG_ON |
U27 |
GPIO2_IO06 |
3.3V |
USDHC1_DATA4 |
||||
J2.36 |
GND |
— |
— |
— |
J2.37 |
BT_WAKE_DEV |
U26 |
GPIO2_IO07 |
3.3V |
USDHC1_DATA5 |
||||
J2.38 |
GND |
— |
— |
— |
J2.39 |
GND |
— |
— |
— |
J2.40 |
GND |
— |
— |
— |
J2.41 |
SD1_CMD |
V27 |
GPIO2_IO01 |
3.3V |
USDHC1_CMD |
||||
J2.42 |
GND |
— |
— |
— |
J2.43 |
SD1_CLK |
V26 |
GPIO2_IO00 |
3.3V |
USDHC1_CLK |
||||
J2.44 |
QSPIA_DATA2 |
K23 |
NAND_DATA02 |
1.8V |
GPIO3_IO08 |
||||
QSPI_A_DATA2 |
||||
RAWNAND_DATA02 |
||||
USDHC3_CD_B |
||||
J2.45 |
GND |
— |
— |
— |
J2.46 |
QSPIA_DATA1 |
K24 |
NAND_DATA01 |
1.8V |
GPIO3_IO07 |
||||
QSPI_A_DATA1 |
||||
RAWNAND_DATA01 |
||||
J2.47 |
BT_WAKE_HOST |
W27 |
SD1_DATA6 |
3.3V |
GPIO2_IO08 |
||||
USDHC1_DATA6 |
||||
J2.48 |
QSPIA_NSS0 |
N24 |
NAND_CE0_B |
1.8V |
GPIO3_IO01 |
||||
QSPI_A_SS0_B |
||||
RAWNAND_CE0_B |
||||
J2.49 |
WL_WAKE_HOST |
W26 |
SD1_DATA7 |
3.3V |
GPIO2_IO09 |
||||
USDHC1_DATA7 |
||||
J2.50 |
QSPIA_DATA3 |
N23 |
NAND_DATA03 |
1.8V |
GPIO3_IO09 |
||||
QSPI_A_DATA3 |
||||
RAWNAND_DATA03 |
||||
USDHC3_WP |
||||
J2.51 |
SD1_DATA0 |
Y27 |
GPIO2_IO02 |
3.3V |
USDHC1_DATA0 |
||||
J2.52 |
QSPIA_SCLK |
N22 |
NAND_ALE |
1.8V |
GPIO3_IO00 |
||||
QSPI_A_SCLK |
||||
RAWNAND_ALE |
||||
J2.53 |
SD1_DATA1 |
Y26 |
GPIO2_IO03 |
3.3V |
USDHC1_DATA1 |
||||
J2.54 |
QSPIA_DATA0 |
P23 |
NAND_DATA00 |
1.8V |
GPIO3_IO06 |
||||
QSPI_A_DATA0 |
||||
RAWNAND_DATA00 |
||||
J2.55 |
GND |
— |
— |
— |
J2.56 |
GND |
— |
— |
— |
J2.57 |
SD2_DATA2 |
V24 |
GPIO2_IO17 |
3.3V |
USDHC2_DATA2 |
||||
J2.58 |
GND |
— |
— |
— |
J2.59 |
SD2_DATA3 |
V23 |
GPIO2_IO18 |
3.3V |
SRC_EARLY_RESET |
||||
USDHC2_DATA3 |
||||
J2.60 |
NVCC_SD2 |
V22 |
NVCC_SD2 |
3.3V |
J2.61 |
GND |
— |
— |
— |
J2.62 |
GND |
— |
— |
— |
J2.63 |
SD2_CLK |
W23 |
GPIO2_IO13 |
3.3V |
USDHC2_CLK |
||||
J2.64 |
SAI1_TXD7 |
AF23 |
GPIO4_IO19 |
3.3V |
PDM_CLK |
||||
SAI1_TX_DATA7 |
||||
SRC_BOOT_CFG15 |
||||
J2.65 |
SD2_CMD |
W24 |
GPIO2_IO14 |
3.3V |
USDHC2_CMD |
||||
J2.66 |
SAI1_TXD6 |
AG23 |
GPIO4_IO18 |
3.3V |
SAI1_TX_DATA6 |
||||
SAI6_RX_SYNC |
||||
SRC_BOOT_CFG14 |
||||
J2.67 |
GND |
— |
— |
— |
J2.68 |
SAI1_TXD5 |
AF22 |
GPIO4_IO17 |
3.3V |
SAI1_TX_DATA5 |
||||
SAI6_RX_DATA0 |
||||
SRC_BOOT_CFG13 |
||||
J2.69 |
SD2_DATA1 |
AB24 |
GPIO2_IO16 |
3.3V |
USDHC2_DATA1 |
||||
J2.70 |
SAI1_TXD4 |
AG22 |
GPIO4_IO16 |
3.3V |
SAI1_TX_DATA4 |
||||
SAI6_RX_BCLK |
||||
SRC_BOOT_CFG12 |
||||
J2.71 |
SD2_DATA0 |
AB23 |
GPIO2_IO15 |
3.3V |
USDHC2_DATA0 |
||||
J2.72 |
SAI1_TXD3 |
AF21 |
GPIO4_IO15 |
3.3V |
SAI1_TX_DATA3 |
||||
SAI5_TX_DATA3 |
||||
SRC_BOOT_CFG11 |
||||
J2.73 |
GND |
— |
— |
— |
J2.74 |
SAI1_TXD2 |
AG21 |
GPIO4_IO14 |
3.3V |
SAI1_TX_DATA2 |
||||
SAI5_TX_DATA2 |
||||
SRC_BOOT_CFG10 |
||||
J2.75 |
SD2_WP |
AA27 |
GPIO2_IO20 |
3.3V |
USDHC2_WP |
||||
J2.76 |
SAI1_TXD1 |
AF20 |
GPIO4_IO13 |
3.3V |
SAI1_TX_DATA1 |
||||
SAI5_TX_DATA1 |
||||
SRC_BOOT_CFG9 |
||||
J2.77 |
SD2_NCD |
AA26 |
SD2_CD_B |
3.3V |
GPIO2_IO12 |
||||
USDHC2_CD_B |
||||
J2.78 |
SAI1_TXD0 |
AG20 |
GPIO4_IO12 |
3.3V |
SAI1_TX_DATA0 |
||||
SAI5_TX_BCLK |
||||
SRC_BOOT_CFG8 |
||||
J2.79 |
GND |
— |
— |
— |
J2.80 |
GND |
— |
— |
— |
J3.1 |
USB2_DP |
B23 |
USB2_DP |
3.3V |
J3.2 |
UART4_RXD |
F19 |
GPIO5_IO28 |
3.3V |
PCIE1_CLKREQ_B |
||||
UART2_CTS_B |
||||
UART4_RX |
||||
J3.3 |
USB2_DN |
A23 |
USB2_DN |
3.3V |
J3.4 |
UART4_TXD |
F18 |
GPIO5_IO29 |
3.3V |
UART2_RTS_B |
||||
UART4_TX |
||||
J3.5 |
USB2_ID |
D23 |
USB2_ID |
1.8V |
J3.6 |
UART3_RXD |
E18 |
GPIO5_IO26 |
3.3V |
UART1_CTS_B |
||||
UART3_RX |
||||
J3.7 |
USB2_VBUS |
F23 |
USB2_VBUS |
3.3V |
J3.8 |
UART3_TXD |
D18 |
GPIO5_IO27 |
3.3V |
UART1_RTS_B |
||||
UART3_TX |
||||
USDHC3_VSELECT |
||||
J3.9 |
GND |
— |
— |
— |
J3.10 |
GND |
— |
— |
— |
J3.11 |
USB1_DP |
B22 |
USB1_DP |
3.3V |
J3.12 |
UART2_TXD |
E15 |
ECSPI3_SS0 |
3.3V |
GPIO5_IO25 |
||||
UART2_TX |
||||
J3.13 |
USB1_DN |
A22 |
USB1_DN |
3.3V |
J3.14 |
UART2_RXD |
F15 |
ECSPI3_MISO |
3.3V |
GPIO5_IO24 |
||||
UART2_RX |
||||
J3.15 |
USB1_ID |
D22 |
USB1_ID |
1.8V |
J3.16 |
UART1_RXD |
E14 |
ECSPI3_SCLK |
3.3V |
GPIO5_IO22 |
||||
UART1_RX |
||||
J3.17 |
USB1_VBUS |
F22 |
USB1_VBUS |
3.3V |
J3.18 |
UART1_TXD |
F13 |
ECSPI3_MOSI |
3.3V |
GPIO5_IO23 |
||||
UART1_TX |
||||
J3.19 |
GND |
— |
— |
— |
J3.20 |
GND |
— |
— |
— |
J3.21 |
CSI_DP3 |
B18 |
MIPI_CSI_D3_P |
1.8V |
J3.22 |
PCIE_TXP |
B20 |
PCIE_TXN_P |
1.8V |
J3.23 |
CSI_DN3 |
A18 |
MIPI_CSI_D3_N |
1.8V |
J3.24 |
PCIE_TXN |
A20 |
PCIE_TXN_N |
1.8V |
J3.25 |
GND |
— |
— |
— |
J3.26 |
GND |
— |
— |
— |
J3.27 |
CSI_DP2 |
B17 |
MIPI_CSI_D2_P |
1.8V |
J3.28 |
PCIE_RXP |
B19 |
PCIE_RXN_P |
1.8V |
J3.29 |
CSI_DN2 |
A17 |
MIPI_CSI_D2_N |
1.8V |
J3.30 |
PCIE_RXN |
A19 |
PCIE_RXN_N |
1.8V |
J3.31 |
GND |
— |
— |
— |
J3.32 |
GND |
— |
— |
— |
J3.33 |
CSI_CKP |
B16 |
MIPI_CSI_CLK_P |
1.8V |
J3.34 |
I2C4_SDA |
E13 |
GPIO5_IO21 |
1.8V |
I2C4_SDA |
||||
PWM1_OUT |
||||
J3.35 |
CSI_CKN |
A16 |
MIPI_CSI_CLK_N |
1.8V |
J3.36 |
PCIE2_NCLKREQ |
D13 |
I2C4_SCL |
1.8V |
GPIO5_IO20 |
||||
PCIE1_CLKREQ_B |
||||
PWM2_OUT |
||||
J3.37 |
GND |
— |
— |
— |
J3.38 |
GND |
— |
— |
— |
J3.39 |
CSI_DP1 |
B15 |
MIPI_CSI_D1_P |
1.8V |
J3.40 |
DSI_DN1 |
A10 |
MIPI_DSI_D1_N |
1.8V |
J3.41 |
CSI_DN1 |
A15 |
MIPI_CSI_D1_N |
1.8V |
J3.42 |
DSI_DP1 |
B10 |
MIPI_DSI_D1_P |
1.8V |
J3.43 |
GND |
— |
— |
— |
J3.44 |
GND |
— |
— |
— |
J3.45 |
CSI_DP0 |
B14 |
MIPI_CSI_D0_P |
1.8V |
J3.46 |
I2C3_SCL |
E10 |
GPIO5_IO18 |
1.8V |
GPT2_CLK |
||||
PWM4_OUT |
||||
J3.47 |
CSI_DN0 |
A14 |
MIPI_CSI_D0_N |
1.8V |
J3.48 |
I2C3_SDA |
F10 |
GPIO5_IO19 |
1.8V |
GPT3_CLK |
||||
PWM3_OUT |
||||
J3.49 |
GND |
— |
— |
— |
J3.50 |
GND |
— |
— |
— |
J3.51 |
DSI_DP3 |
B13 |
MIPI_DSI_D3_P |
1.8V |
J3.52 |
DSI_DP0 |
B9 |
MIPI_DSI_D0_P |
1.8V |
J3.53 |
DSI_DN3 |
A13 |
MIPI_DSI_D3_N |
1.8V |
J3.54 |
DSI_DN0 |
A9 |
MIPI_DSI_D0_N |
1.8V |
J3.55 |
GND |
— |
— |
— |
J3.56 |
GND |
— |
— |
— |
J3.57 |
DSI_DP2 |
B12 |
MIPI_DSI_D2_P |
1.8V |
J3.58 |
ECSPI2_MOSI |
B8 |
GPIO5_IO11 |
3.3V |
J3.59 |
DSI_DN2 |
A12 |
MIPI_DSI_D2_N |
1.8V |
J3.60 |
ECSPI2_MISO |
A8 |
UART4_CTS_B |
3.3V |
GPIO5_IO12 |
||||
J3.61 |
GND |
— |
— |
— |
J3.62 |
ECSPI2_SS0 |
A6 |
GPIO5_IO11 |
3.3V |
J3.63 |
DSI_CKP |
B11 |
MIPI_DSI_CLK_P |
1.8V |
J3.64 |
ECSPI2_SCLK |
E6 |
GPIO5_IO10 |
3.3V |
J3.65 |
DSI_CKN |
A11 |
MIPI_DSI_CLK_N |
1.8V |
J3.66 |
GND |
— |
— |
— |
J3.67 |
GND |
— |
— |
— |
J3.68 |
ECSPI1_MOSI |
B7 |
GPIO5_IO07 |
3.3V |
J3.69 |
I2C1_SCL |
E9 |
ENET1_MDC |
1.8V |
GPIO5_IO14 |
||||
J3.70 |
ECSPI1_MISO |
A7 |
GPIO5_IO08 |
3.3V |
UART3_CTS_B |
||||
J3.71 |
I2C1_SDA |
F9 |
ENET1_MDIO |
1.8V |
GPIO5_IO15 |
||||
J3.72 |
ECSPI1_SS0 |
B6 |
GPIO5_IO09 |
3.3V |
UART3_RTS_B |
||||
J3.73 |
GND |
— |
— |
— |
J3.74 |
ECSPI1_SCLK |
D6 |
GPIO5_IO06 |
3.3V |
J3.75 |
I2C2_SDA |
D9 |
GPIO5_IO17 |
1.8V |
J3.76 |
GND |
— |
— |
— |
J3.77 |
I2C2_SCL |
D10 |
ENET1_1588_EVENT1_IN |
1.8V |
GPIO5_IO16 |
||||
J3.78 |
PCIE2_REF_CLKP_CN |
U9.17 |
PCIE2_REF_CLKP_CN |
— |
J3.79 |
GND |
— |
— |
— |
J3.80 |
PCIE2_REF_CLKN_CN |
U9.18 |
PCIE2_REF_CLKN_CN |
— |
